Low Profile Cylinder, Compact Type, Clean / Low Dust Generation, 10/11/20/21/22-CQS Series(Lista numerów części: str. 2)

Warunki filtrowania

Cylinder I.D: D(Ø)
- 12
- 16
- 20
- 25
Stroke: L(mm)
- 5
- 10
- 15
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 100
Environment, Applications
- Non-use of Copper and fluoropolymer-based Material (Partially Plating)
- Clean Room
Operating Pressure(MPa)
- 0.05 to 1
- 0.07 to 1
Specifications
- Built-in magnet
- Without magnet
Body Options
Auto Switch
Lead Wire Length(m)
- 0.5
- 3
Number of Switches
- 2
Type
Type
CAD
- 2D
- 3D
Szacowane dni wysyłki
- Wszystko
- W ciągu 11 dni robocze
- W ciągu 17 dni robocze
- W ciągu 19 dni robocze
- W ciągu 24 dni robocze
- W ciągu 28 dni robocze
- W ciągu 30 dni robocze

SMC

Low Profile Cylinder, Compact Type, Clean / Low Dust Generation, 10/11/20/21/22-CQS Series(Lista numerów części: str. 2)

Katalog

Przestroga

Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.
CAD data is not available for some model numbers.

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 103.

Informacje o produkcie
Lista numerów części
Szczegółowe informacje
Katalog

Informacje o produkcie

■ Refer to the table below for details about lead wire / connector specifications.

Lista numerów części

Liczba pozycji

Poprzednia

Numer części

Cylinder I.D: D

(Ø)

Stroke: L

(mm)

Environment, Applications

Operating Temperature

(℃)

Operating Pressure

(MPa)

Specifications

Body Options

Auto Switch

Lead Wire Length

(m)

Number of Switches

Type

Minimalna wielkość zamówienia

25	10	Clean Room	-10～70	0.05 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Relief type)	1 szt.
25	15	Clean Room	-10～70	0.05 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Relief type)	1 szt.
25	50	Clean Room	-10～70	0.05 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Relief type)	1 szt.
12	5	Clean Room	-10～70	0.07 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
12	10	Clean Room	-10～70	0.07 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
12	15	Clean Room	-10～70	0.07 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
12	20	Clean Room	-10～70	0.07 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
12	25	Clean Room	-10～70	0.07 to 1	Built-in magnet	Male rod end	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
12	30	Clean Room	-10～70	0.07 to 1	Built-in magnet	Male rod end	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
16	10	Clean Room	-10～60	0.07 to 1	Built-in magnet	Standard (rod-end female thread)	A93	3	2	Clean Series (Vacuum type)	1 szt.
16	30	Clean Room	-10～70	0.07 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
20	10	Clean Room	-10～70	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
20	10	Clean Room	-10～70	0.05 to 1	Built-in magnet	Male rod end	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
20	30	Clean Room	-10～70	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
20	30	Clean Room	-10～60	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	A93	0.5	2	Clean Series (Vacuum type)	1 szt.
20	30	Clean Room	-10～70	0.05 to 1	Built-in magnet	Male rod end	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
20	50	Clean Room	-10～70	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
20	50	Clean Room	-10～70	0.05 to 1	Built-in magnet	Male rod end	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
25	10	Clean Room	-10～60	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	A93	3	2	Clean Series (Vacuum type)	1 szt.
25	15	Clean Room	-10～70	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
25	15	Clean Room	-10～60	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	A93	3	2	Clean Series (Vacuum type)	1 szt.
25	15	Clean Room	-10～70	0.05 to 1	Built-in magnet	Male rod end	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
25	15	Clean Room	-10～60	0.05 to 1	Built-in magnet	Male rod end	A93	0.5	2	Clean Series (Vacuum type)	1 szt.
25	25	Clean Room	-10～70	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
25	30	Clean Room	-10～70	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
25	50	Clean Room	-10～70	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Clean Series (Vacuum type)	1 szt.
12	15	Clean Room	-10～70	0.07 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Vacuum type)	1 szt.
12	20	Clean Room	-10～70	0.07 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Vacuum type)	1 szt.
12	30	Clean Room	-10～70	0.07 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Vacuum type)	1 szt.
16	15	Clean Room	-10～70	0.07 to 1	Without magnet	Male rod end	-	-	-	Clean Series (Vacuum type)	1 szt.
16	20	Clean Room	-10～70	0.07 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Vacuum type)	1 szt.
16	25	Clean Room	-10～70	0.07 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Vacuum type)	1 szt.
20	10	Clean Room	-10～70	0.05 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Vacuum type)	1 szt.
20	20	Clean Room	-10～70	0.05 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Vacuum type)	1 szt.
20	25	Clean Room	-10～70	0.05 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Vacuum type)	1 szt.
20	50	Clean Room	-10～70	0.05 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Clean Series (Vacuum type)	1 szt.
16	30	Non-use of Copper and fluoropolymer-based Material (Partially Plating)	-10～70	0.07 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Copper and Fluorine Unavailable Specifications	1 szt.
16	100	Non-use of Copper and fluoropolymer-based Material (Partially Plating)	-10～70	0.07 to 1	Built-in magnet	With rubber cushion / rod tip male screw	Without auto switch	-	-	Copper and Fluorine Unavailable Specifications	1 szt.
20	10	Non-use of Copper and fluoropolymer-based Material (Partially Plating)	-10～70	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Copper and Fluorine Unavailable Specifications	1 szt.
20	50	Non-use of Copper and fluoropolymer-based Material (Partially Plating)	-10～70	0.05 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Copper and Fluorine Unavailable Specifications	1 szt.
20	10	Non-use of Copper and fluoropolymer-based Material (Partially Plating)	-10～70	0.05 to 1	Without magnet	Standard (rod-end female thread)	-	-	-	Copper and Fluorine Unavailable Specifications	1 szt.
12	25	Non-use of Copper and fluoropolymer-based Material (Partially Plating) / Clean Room	-10～70	0.07 to 1	Built-in magnet	Male rod end	Without auto switch	-	-	Copper/fluorine/silicone-free + low dust generation (relief type)	1 szt.
16	5	Non-use of Copper and fluoropolymer-based Material (Partially Plating) / Clean Room	-10～70	0.07 to 1	Built-in magnet	Standard (rod-end female thread)	Without auto switch	-	-	Copper/fluorine/silicone-free + low dust generation (relief type)	1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

60.10 € ( 71.52 € )	19 dni robocze
61.98 € ( 73.76 € )	24 dni robocze
77.76 € ( 92.53 € )	24 dni robocze
51.13 € ( 60.84 € )	19 dni robocze
54.60 € ( 64.97 € )	19 dni robocze
59.61 € ( 70.94 € )	19 dni robocze
65.69 € ( 78.17 € )	24 dni robocze
68.53 € ( 81.55 € )	24 dni robocze
67.48 € ( 80.30 € )	24 dni robocze
105.10 € ( 125.07 € )	24 dni robocze
65.82 € ( 78.33 € )	19 dni robocze
56.81 € ( 67.60 € )	24 dni robocze
58.32 € ( 69.40 € )	17 dni robocze
64.56 € ( 76.83 € )	24 dni robocze
107.69 € ( 128.15 € )	24 dni robocze
66.08 € ( 78.64 € )	24 dni robocze
74.56 € ( 88.73 € )	19 dni robocze
75.84 € ( 90.25 € )	19 dni robocze
116.27 € ( 138.36 € )	28 dni robocze
69.47 € ( 82.67 € )	19 dni robocze
117.98 € ( 140.40 € )	19 dni robocze
69.34 € ( 82.51 € )	19 dni robocze
115.65 € ( 137.62 € )	28 dni robocze
73.02 € ( 86.89 € )	19 dni robocze
74.90 € ( 89.13 € )	28 dni robocze
84.48 € ( 100.53 € )	24 dni robocze
56.61 € ( 67.37 € )	28 dni robocze
58.31 € ( 69.39 € )	11 dni robocze
64.81 € ( 77.12 € )	28 dni robocze
58.82 € ( 70.00 € )	24 dni robocze
59.58 € ( 70.90 € )	19 dni robocze
62.58 € ( 74.47 € )	28 dni robocze
54.27 € ( 64.58 € )	28 dni robocze
60.27 € ( 71.72 € )	24 dni robocze
61.47 € ( 73.15 € )	24 dni robocze
72.32 € ( 86.06 € )	24 dni robocze
41.47 € ( 49.35 € )	30 dni robocze
57.56 € ( 68.50 € )	28 dni robocze
35.18 € ( 41.86 € )	30 dni robocze
52.84 € ( 62.88 € )	30 dni robocze
30.15 € ( 35.88 € )	28 dni robocze
61.15 € ( 72.77 € )	28 dni robocze
45.98 € ( 54.72 € )	19 dni robocze

Poprzednia

Szczegółowe informacje

Podstawowe informacje

Podstawowe informacje

[10- / 11-series clean series]
・ This product can be used in a clean environment.
・ Prevents dust generation in the cleanroom.

[20-Series Copper/Fluorine-Free Specifications]
・ It can be used in environments where copper and fluorine materials should be avoided.
・ External dimensions are the same as standard products.

[21/22-series copper / fluorine / silicon type not possible + low dust generation]
・ This product can be used in environments with restrictions on copper-based, fluorine-based, and silicone-based materials.
·The structure is the same as the clean series (Grease and packaging form are different from the clean series.)

Przestroga

Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.
CAD data is not available for some model numbers.

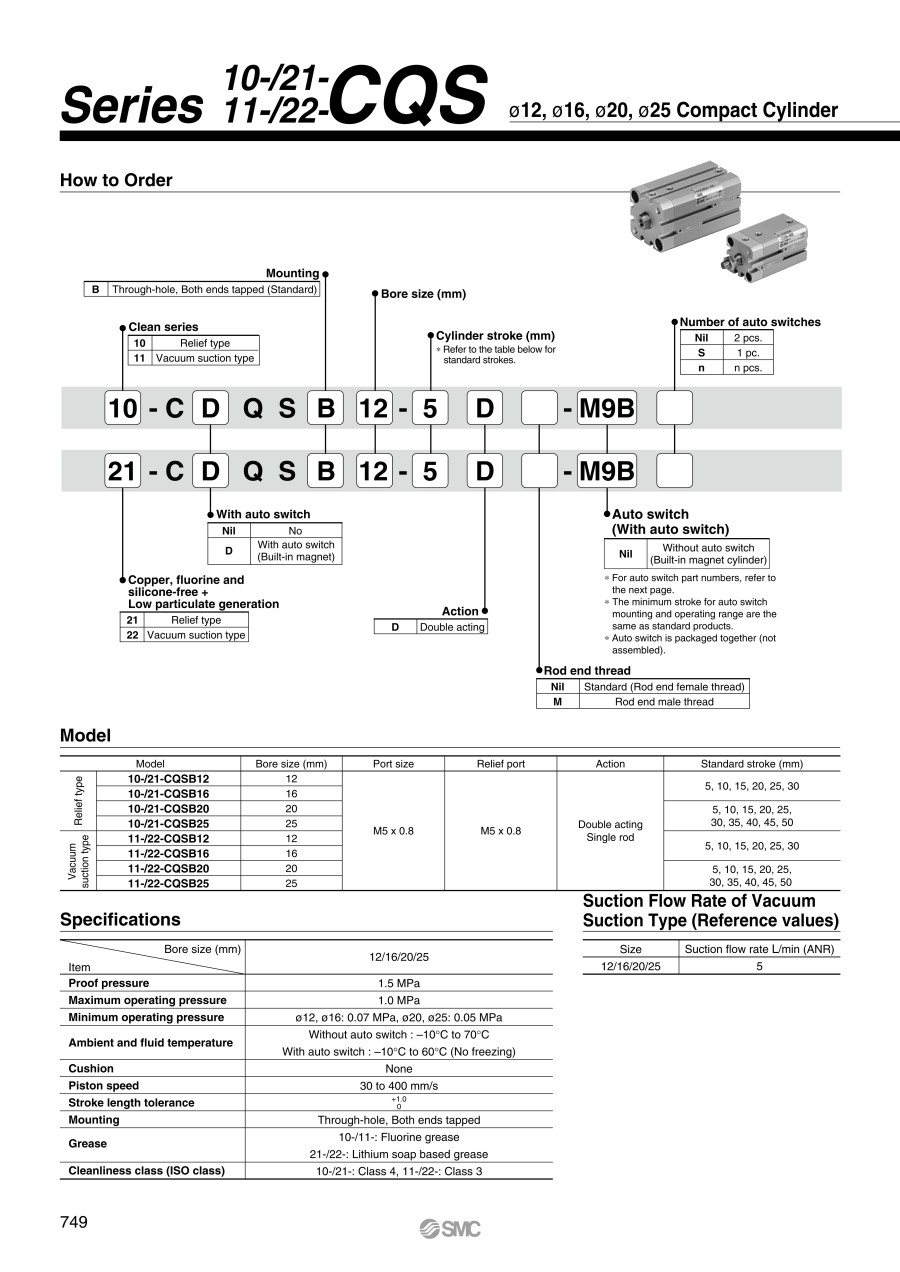

Katalog
