Mechanically Jointed Rodless Cylinder, Basic Type, MY1B Series(Lista numerów części: str. 3)
Przestroga
- Product pictures are representations. CAD data is not supported by some of the model numbers.
Numer części:
.Informacje o produkcie
Drawing

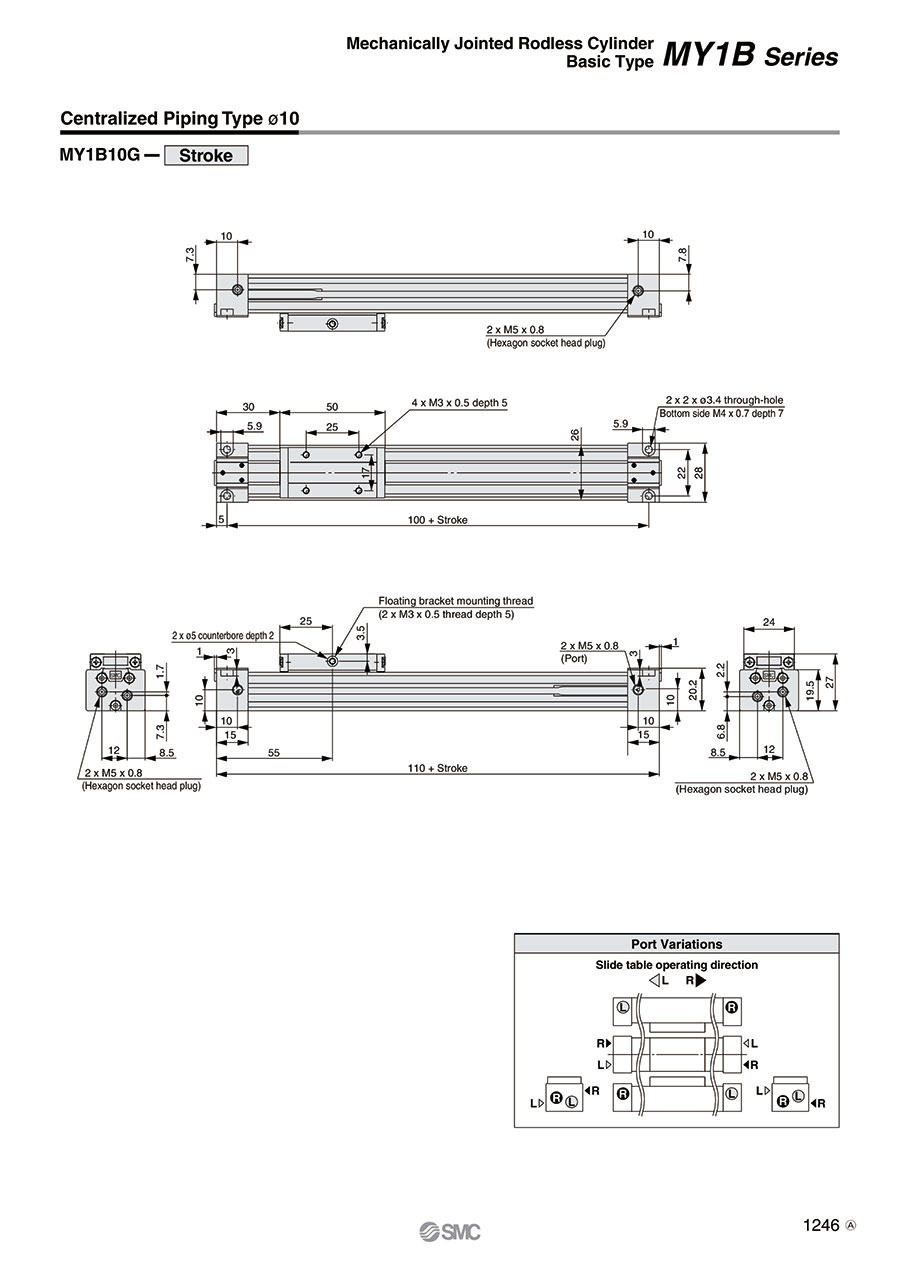

Centralized piping type: ⌀10 (Cylinder inner diameter 10 mm)
MY1B10G-stroke
Standard type / centralized piping type ⌀16 (cylinder inner diameter 16 mm), ⌀20 (Cylinder inner diameter 20 mm)
MY1B16□ / MY1B20□-stroke
MY1B16□ / MY1B20 piping hole dimensions for centralized piping on the bottom (right: piping on the bottom (applicable O-ring))
Standard type / centralized piping type ⌀50 (cylinder inner diameter 50 mm), ⌀63 (Cylinder inner diameter 63 mm)
MY1B50□ / MY1B63□-stroke
Piping hole for centralized piping on the bottom of MY1B50□ / MY1B63□ (right: piping on the bottom (applicable O-ring))
Standard type / centralized piping type ⌀80 (cylinder inner diameter 80 mm), ⌀100 (Cylinder inner diameter 100 mm)
MY1B80□ / MY1B100□-stroke
Piping hole for centralized piping on the bottom of MY1B80□ / MY1B100□ (right: piping on the bottom (applicable O-ring))
Product Specifications
Product Image
Specifications
| Tube Inner Diameter (mm) | 10 | 16 | 20 | 50 | 63 | 80 | 100 | |
|---|---|---|---|---|---|---|---|---|
| Fluid | Air | |||||||
| Operation Type | Double-acting type | |||||||
| Operating Pressure Range | 0.2 to 0.8 MPa | 0.15 to 0.8 MPa | 0.1 to 0.8 MPa | |||||
| Proof Pressure | 1.2 MPa | |||||||
| Ambient and fluid temperature | 5 to 60°C | |||||||
| Cushioning | Rubber cushion | Air cushion | ||||||
| Lubrication | Not required | |||||||
| Stroke Length Tolerance | 1,000 or less (0 to +1.8) 1,001 to 3,000 (0 to +2.8) | 2,700 or less (0 to +1.8) 2,701 to 5,000 (0 to +2.8) | ||||||
| Piping Connection Port Diameter | Front/side port | M5 × 0.8 | Rc 3/8 | RC 1/2 | ||||
| Bottom port | — | ⌀4 (Connection diameter 4 mm) | ⌀10 (Connection diameter 10 mm) | ⌀18 (Connection diameter 18 mm) | ||||
Piston Speed
| Tube Inner Diameter (mm) | 10 | 16 | 20 | 50 to 100 | |
|---|---|---|---|---|---|
| No stroke adjustment unit | 100 to 500 mm/s | 100 to 1,000 mm/s | |||
| Stroke adjustment unit | A unit | 100 to 200 mm/s | 100 to 1,000 mm/sNote1) | — | |
| L unit, H unit | 100 to 1,000 mm/s | — | 100 to 1,500 mm/sNote2) | — | |
Note 1) please note that the capacity of the air cushion will decrease as the stroke adjustment allowance by the adjust bolt increases.
Meanwhile, in ranges exceeding the air cushion stroke, the working piston speed will become 100 to 200 mm/s.
Note 2: The working piston speed will become 100 to 1,000 mm/s when using centralized piping.
Note 3: Use at a speed within the range of the absorption capacity. Please refer to the catalog.
Theoretical Output Table
(Unit: N)
| Tube inner diameter (mm) | Piston Area (mm2) | Operating Pressure (MPa) | ||||||
|---|---|---|---|---|---|---|---|---|
| 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | ||
| 10 | 78 | 15 | 23 | 31 | 39 | 46 | 54 | 62 |
| 16 | 200 | 40 | 60 | 80 | 100 | 120 | 140 | 160 |
| 20 | 314 | 62 | 94 | 125 | 157 | 188 | 219 | 251 |
| 50 | 1,962 | 392 | 588 | 784 | 981 | 1,177 | 1,373 | 1,569 |
| 63 | 3,115 | 623 | 934 | 1,246 | 1,557 | 1,869 | 2,180 | 2,492 |
| 80 | 5,024 | 1,004 | 1,507 | 2,009 | 2,512 | 3,014 | 3,516 | 4,019 |
| 100 | 7,850 | 1,570 | 2,355 | 3,140 | 3,925 | 4,710 | 5,495 | 6,280 |
Note) theoretical output (N) = pressure (MPa) x pressure receiving area (mm2).
Weight Table
(Unit: kg)
| Tube inner diameter (mm) | Basic weight | Extra weight Extra mass per hit | Weight of Moving Parts | Side support Bracket weight (Per pair) | Stroke adjustment unit weight (Per unit) | ||
|---|---|---|---|---|---|---|---|
| A/B type | A unit weight | L unit weight | H unit weight | ||||
| 10 | 0.15 | 0.04 | 0.03 | 0.003 | 0.01 | — | 0.02 |
| 16 | 0.61 | 0.06 | 0.07 | 0.01 | 0.04 | — | — |
| 20 | 1.06 | 0.10 | 0.14 | 0.02 | 0.05 | 0.05 | 0.10 |
| 50 | 7.78 | 0.44 | 1.40 | 0.04 | — | — | — |
| 63 | 13.10 | 0.70 | 2.20 | 0.08 | — | — | — |
| 80 | 20.70 | 1.18 | 4.80 | 0.17 | — | — | — |
| 100 | 35.70 | 1.97 | 8.20 | 0.17 | — | — | — |
Calculation method/example: MY1B20-300A
- Basic weight: 1.06 kg
- Cylinder Stroke: 300st
- Extra weight: 0.10/50st
- A unit weight: 1.76 kg
1.06 + 0.10 × 300 ÷ 50 + 0.05 × 2 ≒ 2.17 kg
Structural drawing of centralized piping type / MY1B10G
Component parts table of centralized piping type/ MY1B10G
Structural drawing of MY1B16, MY1B20, MY1B50 to MY1B100
MY1B16, MY1B20, MY1B50 to MY1B100 components
Specification Table
Standard type / centralized piping type ⌀16 (cylinder inner diameter 16 mm), ⌀20 (Cylinder inner diameter 20 mm)
MY1B16□ / MY1B20□
Piping hole for bottom centralized piping
* Please process the mounting surface with these dimensions.
Standard type / centralized piping type ⌀50 (cylinder inner diameter 50 mm), ⌀63 (Cylinder inner diameter 63 mm)
MY1B50□ / MY1B63□
Piping hole for bottom centralized piping
* Please process the mounting surface with these dimensions.
Standard type / centralized piping type ⌀80 (cylinder inner diameter 80 mm), ⌀100 (Cylinder inner diameter 100 mm)
MY1B80□ / MY1B100□
Piping hole for bottom centralized piping
* Please process the mounting surface with these dimensions.
Selection support information
Model Number Notation
Model number examples
Details of lead wire / connector specifications
Lista numerów części
| Numer części |
|---|
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem) | Standardowa data wysyłki |
|---|
192.40 € ( 228.96 € ) | 8 dni robocze |
236.68 € ( 281.65 € ) | 8 dni robocze |
317.23 € ( 377.50 € ) | 8 dni robocze |
192.40 € ( 228.96 € ) | 8 dni robocze |
192.40 € ( 228.96 € ) | 8 dni robocze |
192.40 € ( 228.96 € ) | 8 dni robocze |
235.18 € ( 279.86 € ) | 7 dni robocze |
236.68 € ( 281.65 € ) | 8 dni robocze |
317.23 € ( 377.50 € ) | 7 dni robocze |
359.98 € ( 428.38 € ) | 7 dni robocze |
192.40 € ( 228.96 € ) | 8 dni robocze |
235.55 € ( 280.30 € ) | 8 dni robocze |
192.40 € ( 228.96 € ) | 8 dni robocze |
387.73 € ( 461.40 € ) | 7 dni robocze |
192.40 € ( 228.96 € ) | 8 dni robocze |
192.40 € ( 228.96 € ) | 8 dni robocze |
235.55 € ( 280.30 € ) | 8 dni robocze |
240.18 € ( 285.81 € ) | 7 dni robocze |
236.68 € ( 281.65 € ) | 8 dni robocze |
276.95 € ( 329.57 € ) | 7 dni robocze |
329.73 € ( 392.38 € ) | 8 dni robocze |
390.06 € ( 464.17 € ) | 8 dni robocze |
199.35 € ( 237.23 € ) | 8 dni robocze |
199.35 € ( 237.23 € ) | 8 dni robocze |
316.47 € ( 376.60 € ) | 8 dni robocze |
324.16 € ( 385.75 € ) | 8 dni robocze |
391.10 € ( 465.41 € ) | 8 dni robocze |
199.35 € ( 237.23 € ) | 8 dni robocze |
242.48 € ( 288.55 € ) | 8 dni robocze |
199.35 € ( 237.23 € ) | 8 dni robocze |
199.35 € ( 237.23 € ) | 8 dni robocze |
242.48 € ( 288.55 € ) | 8 dni robocze |
247.90 € ( 295.00 € ) | 8 dni robocze |
278.18 € ( 331.03 € ) | 7 dni robocze |
266.27 € ( 316.86 € ) | 8 dni robocze |
243.61 € ( 289.90 € ) | 8 dni robocze |
283.89 € ( 337.83 € ) | 8 dni robocze |
336.66 € ( 400.63 € ) | 8 dni robocze |
372.73 € ( 443.55 € ) | 8 dni robocze |
261.76 € ( 311.49 € ) | 8 dni robocze |
206.29 € ( 245.49 € ) | 8 dni robocze |
250.56 € ( 298.17 € ) | 7 dni robocze |
206.29 € ( 245.49 € ) | 8 dni robocze |
331.10 € ( 394.01 € ) | 7 dni robocze |
206.29 € ( 245.49 € ) | 8 dni robocze |
206.29 € ( 245.49 € ) | 8 dni robocze |
250.56 € ( 298.17 € ) | 8 dni robocze |
290.84 € ( 346.10 € ) | 8 dni robocze |
331.10 € ( 394.01 € ) | 8 dni robocze |
213.24 € ( 253.76 € ) | 8 dni robocze |
213.24 € ( 253.76 € ) | 8 dni robocze |
213.24 € ( 253.76 € ) | 8 dni robocze |
257.50 € ( 306.43 € ) | 8 dni robocze |
297.79 € ( 354.37 € ) | 7 dni robocze |
350.55 € ( 417.15 € ) | 8 dni robocze |
220.23 € ( 262.07 € ) | 8 dni robocze |
220.23 € ( 262.07 € ) | 8 dni robocze |
220.23 € ( 262.07 € ) | 8 dni robocze |
264.50 € ( 314.75 € ) | 8 dni robocze |
227.18 € ( 270.34 € ) | 8 dni robocze |
Szczegółowe informacje
Podstawowe informacje
Air slide table made by SMC
[Features]
· Capable of being used in combination with various guides depending on the conditions
· Simple, space-saving design without any guides
· A wide variety is available from ø10 to ø100
Przestroga
- Product pictures are representations. CAD data is not supported by some of the model numbers.
