Strona główna MISUMI
Automation Components
Castors, Leveling Mounts, Posts
Castors, Accessories
Equipment Castors
Swivel Castors for Industrial Vehicles HLJtype

Warunki filtrowania

Caster Type
- Plate Type Universal
- Related Components
Mounting Height H1(mm)
- 210
- 237
- 260
- 285
- 289
- 290
- 292
- 304
- 306
- 307
- 367
- 371
Load Range(daN)
Maximum Load Capacity(daN)
- 60
- 80
- 85
- 100
- 110
- 130
- 160
- 200
Wheel Characteristics
- Abrasion Resistance
Mounting Hole Type
- Round Hole
- Long Hole
Mounting Hole Pitch Longitudinal direction(mm)
- 80(90)
- 100
- 112
- 125
- 140
Mounting Hole Pitch Transverse Direction(mm)
- 56
- 80(90)
- 112
- 125
- 140
Top Plate F1(mm)
- 120
- 128
- 140
- 160
- 175
Top Plate F2(mm)
- 98
- 120
- 140
- 160
- 175
Shaft Diameter D(mm)
- 12
- 20
- 25
Size A or outer diameter A of the tire(mm)
- 175
- 210
- 218
- 220
- 225
- 248
- 253
- 254
- 286
- 295
Tire width R(mm)
- 40
- 50
- 53
- 60
- 62
- 65
- 67
- 73
- 77
- 82
- 90
Eccentricity E(mm)
- 45
- 58
- 71
Metal Fitting Specifications
- Metal Fitting Only - No Wheels
- The wheels on earth
Shaft Bearing
- Steel Plate with Bearing
Wheel specification(g)
Deadweight
- 810
- 820
- 1490
- 1500
- 1630
- 1640
- 2380
- 2970
- 3370
- 3440
- 3490
- 4430
- 4500
- 4520
- 4760
- 4790
- 4830
- 4920
- 5190
- 5650
- 5960
- 6050
- 6810
- 7110
- 7210
- 10440
Type
- HLJ
Szacowane dni wysyłki
- Wszystko
- W ciągu 10 dni robocze

GIFU SANKEN KOGYO

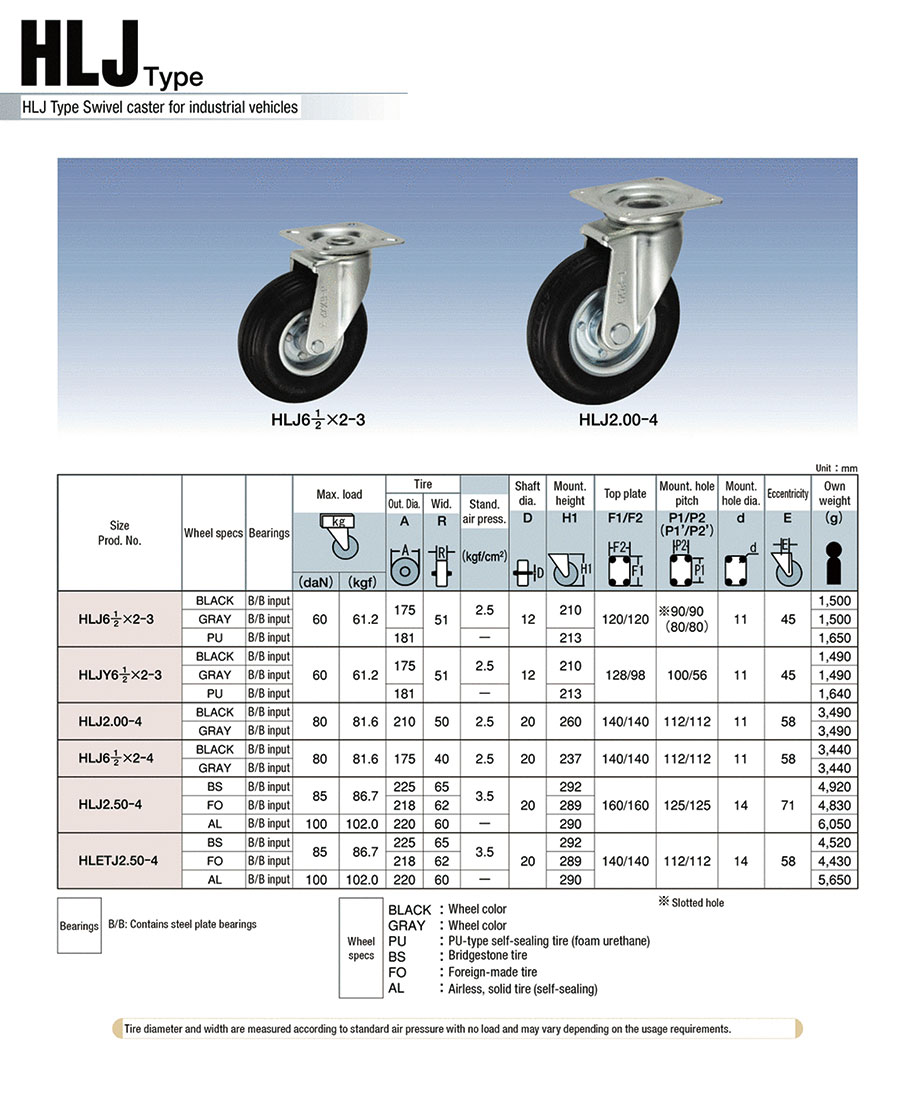

Swivel Castors for Industrial Vehicles HLJtype

Katalog

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 37.

Lista numerów części
Szczegółowe informacje
Katalog

Lista numerów części

Liczba pozycji

Numer części

Caster Type

Mounting Height H1

(mm)

Load Range

(daN)

Maximum Load Capacity

(daN)

Wheel Characteristics

Mounting Hole Type

Mounting Hole Pitch Longitudinal direction

(mm)

Mounting Hole Pitch Transverse Direction

(mm)

Top Plate F1

(mm)

Top Plate F2

(mm)

Shaft Diameter D

(mm)

Size A or outer diameter A of the tire

(mm)

Tire width R

(mm)

Eccentricity E

(mm)

Load Category

Metal Fitting Specifications

Shaft Bearing

Wheel specification

(g)

Deadweight

Minimalna wielkość zamówienia

Plate Type Universal	290	80.01~140.00	100	Abrasion Resistance	Round Hole	112	112	140	140	20	220	60	58	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Airless, Solid Tire (Self-sealing Tire)	5650	1 szt.
Plate Type Universal	292	80.01~140.00	85	Abrasion Resistance	Round Hole	112	112	140	140	20	225	65	58	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Bridge stone Tire Used	4520	1 szt.
Plate Type Universal	289	80.01~140.00	85	Abrasion Resistance	Round Hole	112	112	140	140	20	218	62	58	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Use of Tire Made Overseas	4430	1 szt.
Plate Type Universal	304	80.01~140.00	130	Abrasion Resistance	Round Hole	112	112	140	140	20	248	73	58	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Airless, Solid Tire (Self-sealing Tire)	6810	1 szt.
Plate Type Universal	306	80.01~140.00	110	Abrasion Resistance	Round Hole	112	112	140	140	20	253	82	58	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Bridge stone Tire Used	4790	1 szt.
Plate Type Universal	307	80.01~140.00	110	Abrasion Resistance	Round Hole	112	112	140	140	20	254	77	58	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Use of Tire Made Overseas	4790	1 szt.
Plate Type Universal	260	35.01~80.00	80	Abrasion Resistance	Round Hole	112	112	140	140	20	210	50	58	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Wheel Color Black	3490	1 szt.
Plate Type Universal	260	35.01~80.00	80	Abrasion Resistance	Round Hole	112	112	140	140	20	210	50	58	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Wheel Color Gray	3490	1 szt.
Plate Type Universal	290	80.01~140.00	100	Abrasion Resistance	Round Hole	125	125	160	160	20	220	60	71	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Airless, Solid Tire (Self-sealing Tire)	6050	1 szt.
Plate Type Universal	292	80.01~140.00	85	Abrasion Resistance	Round Hole	125	125	160	160	20	225	65	71	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Bridge stone Tire Used	4920	1 szt.
Plate Type Universal	289	80.01~140.00	85	Abrasion Resistance	Round Hole	125	125	160	160	20	218	62	71	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Use of Tire Made Overseas	4830	1 szt.
Plate Type Universal	304	80.01~140.00	130	Abrasion Resistance	Round Hole	125	125	160	160	20	248	73	71	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Airless, Solid Tire (Self-sealing Tire)	7210	1 szt.
Plate Type Universal	306	80.01~140.00	110	Abrasion Resistance	Round Hole	125	125	160	160	20	253	82	71	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Bridge stone Tire Used	5190	1 szt.
Plate Type Universal	307	80.01~140.00	110	Abrasion Resistance	Round Hole	125	125	160	160	20	254	77	71	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Use of Tire Made Overseas	5190	1 szt.
Plate Type Universal	367	140.01~220.00	200	Abrasion Resistance	Round Hole	140	140	175	175	25	286	90	71	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Airless, Solid Tire (Self-sealing Tire)	10440	1 szt.
Plate Type Universal	371	140.01~220.00	160	Abrasion Resistance	Round Hole	140	140	175	175	25	295	90	71	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Bridge stone Tire Used	7110	1 szt.
Plate Type Universal	367	140.01~220.00	160	Abrasion Resistance	Round Hole	140	140	175	175	25	286	90	71	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Use of Tire Made Overseas	7110	1 szt.
Plate Type Universal	285	80.01~140.00	100	Abrasion Resistance	Round Hole	125	125	160	160	20	210	65	71	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Airless, Solid Tire (Self-sealing Tire)	5960	1 szt.
Plate Type Universal	289	80.01~140.00	85	Abrasion Resistance	Round Hole	125	125	160	160	20	218	67	71	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Use of Tire Made Overseas	4760	1 szt.
Plate Type Universal	210	35.01~80.00	60	Abrasion Resistance	Long Hole	80(90)	80(90)	120	120	12	175	53	45	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Wheel Color Black	1500	1 szt.
Plate Type Universal	210	35.01~80.00	60	Abrasion Resistance	Long Hole	80(90)	80(90)	120	120	12	175	53	45	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Wheel Color Gray	1500	1 szt.
Plate Type Universal	210	35.01~80.00	60	Abrasion Resistance	Long Hole	80(90)	80(90)	120	120	12	175	53	45	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Type PU Self-sealing Tire (Foamed urethane)	1640	1 szt.
Plate Type Universal	237	35.01~80.00	80	Abrasion Resistance	Round Hole	112	112	140	140	20	175	40	58	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Wheel Color Black	3440	1 szt.
Plate Type Universal	237	35.01~80.00	80	Abrasion Resistance	Round Hole	112	112	140	140	20	175	40	58	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Wheel Color Gray	3440	1 szt.
Plate Type Universal	210	35.01~80.00	60	Abrasion Resistance	Round Hole	100	56	128	98	12	175	53	45	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Wheel Color Black	1490	1 szt.
Plate Type Universal	210	35.01~80.00	60	Abrasion Resistance	Round Hole	100	56	128	98	12	175	53	45	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Wheel Color Gray	1490	1 szt.
Plate Type Universal	210	35.01~80.00	60	Abrasion Resistance	Round Hole	100	56	128	98	12	175	53	45	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	Type PU Self-sealing Tire (Foamed urethane)	1630	1 szt.
Plate Type Universal / Related Components	-	-	-	-	-	112	112	140	140	20	-	-	-	-	Metal Fitting Only - No Wheels	-	-	2380	1 szt.
Plate Type Universal / Related Components	-	-	-	-	-	125	125	160	160	-	-	-	-	-	Metal Fitting Only - No Wheels	-	-	2380	1 szt.
Plate Type Universal / Related Components	-	-	-	-	-	112	112	140	140	-	-	-	-	-	Metal Fitting Only - No Wheels	-	-	3370	1 szt.
Plate Type Universal / Related Components	-	-	-	-	-	125	125	160	160	20	-	-	-	-	Metal Fitting Only - No Wheels	-	-	3370	1 szt.
Plate Type Universal / Related Components	-	-	-	-	-	112	112	140	140	20	-	-	-	-	Metal Fitting Only - No Wheels	-	-	4500	1 szt.
Plate Type Universal / Related Components	-	-	-	-	-	140	140	175	175	-	-	-	-	-	Metal Fitting Only - No Wheels	-	-	2970	1 szt.
Plate Type Universal / Related Components	-	-	-	-	-	125	125	160	160	-	-	-	-	-	Metal Fitting Only - No Wheels	-	-	3370	1 szt.
Plate Type Universal / Related Components	-	-	-	-	-	80(90)	80(90)	120	120	-	-	-	-	-	Metal Fitting Only - No Wheels	-	-	820	1 szt.
Plate Type Universal / Related Components	-	-	-	-	-	112	112	140	140	-	-	-	-	-	Metal Fitting Only - No Wheels	-	-	2970	1 szt.
Plate Type Universal	-	-	-	-	-	100	56	128	98	-	-	-	-	-	Metal Fitting Only - No Wheels	-	-	810	1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

146.10 € ( 173.86 € )	10 dni robocze
134.17 € ( 159.66 € )	10 dni robocze
144.52 € ( 171.98 € )	10 dni robocze
196.23 € ( 233.51 € )	10 dni robocze
140.57 € ( 167.28 € )	10 dni robocze
108.78 € ( 129.45 € )	10 dni robocze
137.96 € ( 164.17 € )	10 dni robocze
137.96 € ( 164.17 € )	10 dni robocze
158.32 € ( 188.40 € )	10 dni robocze
146.39 € ( 174.20 € )	10 dni robocze
113.19 € ( 134.70 € )	10 dni robocze
208.53 € ( 248.15 € )	10 dni robocze
152.92 € ( 181.97 € )	10 dni robocze
121.00 € ( 143.99 € )	10 dni robocze
302.92 € ( 360.47 € )	10 dni robocze
180.54 € ( 214.84 € )	10 dni robocze
156.90 € ( 186.71 € )	10 dni robocze
160.21 € ( 190.65 € )	10 dni robocze
145.73 € ( 173.42 € )	10 dni robocze
86.34 € ( 102.74 € )	10 dni robocze
86.34 € ( 102.74 € )	10 dni robocze
87.52 € ( 104.15 € )	10 dni robocze
134.44 € ( 159.98 € )	10 dni robocze
134.44 € ( 159.98 € )	10 dni robocze
86.26 € ( 102.65 € )	10 dni robocze
86.26 € ( 102.65 € )	10 dni robocze
87.44 € ( 104.05 € )	10 dni robocze
56.60 € ( 67.35 € )	10 dni robocze
89.31 € ( 106.28 € )	10 dni robocze
71.71 € ( 85.33 € )	10 dni robocze
89.31 € ( 106.28 € )	10 dni robocze
71.71 € ( 85.33 € )	10 dni robocze
108.81 € ( 129.48 € )	10 dni robocze
89.31 € ( 106.28 € )	10 dni robocze
25.58 € ( 30.44 € )	10 dni robocze
56.60 € ( 67.35 € )	10 dni robocze
25.51 € ( 30.36 € )	10 dni robocze

Szczegółowe informacje

Podstawowe informacje

Podstawowe informacje

A caster for industrial vehicles for which multiple types of wheels are available with the same model number. Comes with free-swivel hardware.
