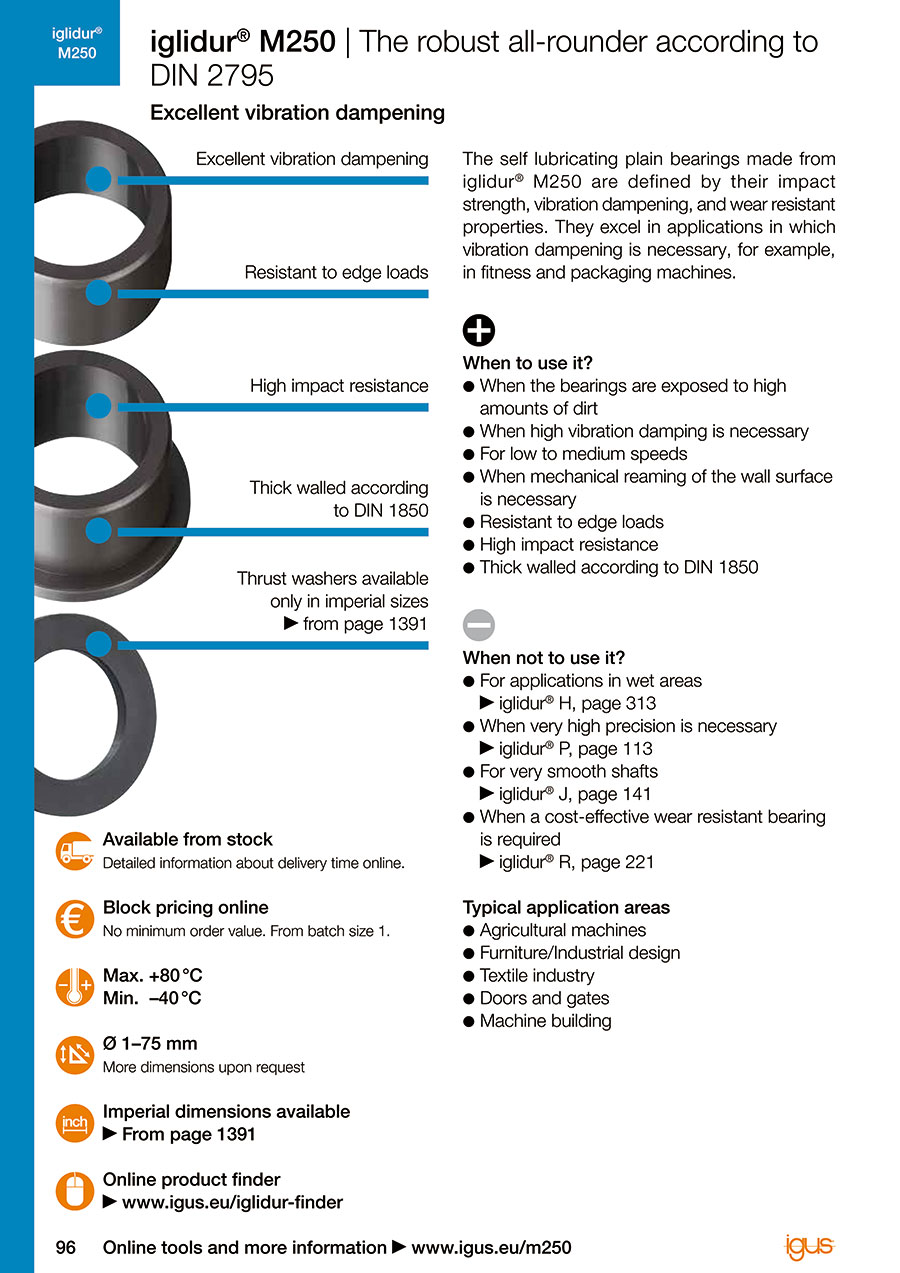

iglidur^® M250 | The Robust All-rounder according to DIN 2795, Flange Bearing (Form F)

Product Information

Excellent vibration dampening
The self lubricating plain bearings made from iglidur^® M250 are defined by their impact strength, vibration dampening, and wear resistant properties. They excel in applications in which vibration dampening is necessary, for example, in fitness and packaging machines.
When to use it?
• When the bearings are exposed to high amounts of dirt
• When high vibration damping is necessary
• For low to medium speeds
• When mechanical reaming of the wall surface is necessary
• Resistant to edge loads
• High impact resistance
• Thick walled according to DIN 1850
When not to use it?
• For applications in wet areas
►iglidur^® H
• When very high precision is necessary
►iglidur^® P
• For very smooth shafts
►iglidur^® J
• When a cost-effective wear resistant bearing is required
►iglidur^® R
Typical application areas
• Agricultural machines
• Furniture/Industrial design
• Textile industry
• Doors and gates
• Machine building

Material Properties

General properties	Unit	iglidur^® M250	Testing method
Density	g/cm³	1.14
Colour		charcoal
Max. moisture absorption at +23 °C/50 % r.h.	% weight	1.4	DIN 53495
Max. water absorption	% weight	7.6
Coefficient of sliding friction, dynamic, against steel	μ	0.18–0.40
pv value, max. (dry)	MPa · m/s	0.12
Mechanical properties
Flexural modulus	MPa	2,700	DIN 53457
Flexural strength at +20 °C	MPa	112	DIN 53452
Compressive strength	MPa	52
Max. recommended surface pressure (+20 °C)	MPa	20
Shore-D hardness		79	DIN 53505
Physical and thermal properties
Max. long-term application temperature	°C	+80
Max. short-term application temperature	°C	+170
Min. long-term application temperature	°C	–40
Heat conductivity	W/m · K	0.24	ASTM C 177
Coefficient of thermal expansion (at +23 °C)	K^–1 · 10^–5	10	DIN 53752
Electrical properties
Specific contact resistance	Ωcm	> 10¹³	DIN IEC 93
Surface resistance	Ω	> 10¹¹	DIN 53482

Dimensions

Flange Bearing (Form F)

²⁾ Thickness < 1 mm: chamfer = 20°

Chamfer in relation to the d1
d1 [mm]:	Ø 1–6	Ø 6–12	Ø 12–30	Ø > 30
f [mm]:	0.3	0.5	0.8	1.2

Dimensions [mm]

d1	d1-	d2	d3	b1	b2	Part No.
	Tolerance³⁾		d13	h13	–0.14
1.0	+0.020 +0.080	3.0	5.0	2.0	1.0	MFM-0103-02
1.5		4.0	6.0	2.0	1.0	MFM-0104-02
2.0		5.0	8.0	3.0	1.5	MFM-0205-03
2.5		6.0	9.0	3.0	1.5	MFM-0206-03
3.0		6.0	9.0	4.0	1.5	MFM-0306-04
4.0	+0.030 +0.105	8.0	12.0	4.0	2.0	MFM-0408-04
4.0		8.0	12.0	6.0	2.0	MFM-0408-06
4.0		8.0	12.0	8.0	2.0	MFM-0408-08
5.0		9.0	13.0	5.0	2.0	MFM-0509-05
5.0		9.0	13.0	6.0	2.0	MFM-0509-06
5.0		9.0	13.0	8.0	2.0	MFM-0509-08
6.0		8.0	12.0	4.0	1.0	MFM-0608-04
6.0		8.0	12.0	8.0	1.0	MFM-0608-08
6.0		10.0	14.0	4.0	2.0	MFM-0610-04
6.0		10.0	14.0	6.0	2.0	MFM-0610-06
6.0		10.0	14.0	10.0	2.0	MFM-0610-10
6.0		11.0	14.0	4.0	2.0	MFM-0611-04
6.0		12.0	14.0	6.0	3.0	MFM-0612-06
6.0		12.0	14.0	10.0	3.0	MFM-0612-10
7.0	+0.040 +0.130	11.0	15.0	6.0	2.0	MFM-0711-06
7.0		11.0	15.0	8.0	2.0	MFM-0711-08
8.0		9.0	13.0	5.5	0.5	MFM-0809-055
8.0		10.0	15.0	5.5	1.0	MFM-0810-05
8.0		10.0	15.0	7.5	1.0	MFM-0810-07
8.0		10.0	15.0	9.5	1.0	MFM-0810-09
8.0		11.0	13.0	5.0	2.0	MFM-0811-05
8.0		11.0	13.0	8.0	2.0	MFM-0811-08
8.0		12.0	16.0	6.0	2.0	MFM-0812-06
8.0		12.0	16.0	8.0	2.0	MFM-0812-08
8.0		12.0	16.0	12.0	2.0	MFM-0812-12
8.0		14.0	18.0	6.0	3.0	MFM-0814-06
8.0		14.0	18.0	10.0	3.0	MFM-0814-10
8.0		14.0	16.0	6.0	3.0	MFM-081416-06
8.0		14.0	16.0	10.0	3.0	MFM-081416-10
9.0		14.0	19.0	6.0	2.0	MFM-0914-06
9.0		14.0	19.0	10.0	2.0	MFM-0914-10
9.0		14.0	19.0	14.0	2.0	MFM-0914-14
10.0		12.0	18.0	7.0	1.0	MFM-1012-07
10.0		12.0	18.0	9.0	1.0	MFM-1012-09
10.0		12.0	18.0	12.0	1.0	MFM-1012-12
10.0		12.0	18.0	17.0	1.0	MFM-1012-17
10.0		14.0	19.0	9.0	2.0	MFM-1014-09
10.0		14.0	19.0	10.0	2.0	MFM-1014-10
10.0		14.0	17.5	14.0	1.0	MFM-1014-14
10.0		14.0	17.5	19.0	1.0	MFM-1014-19
10.0		14.0	17.5	24.0	1.0	MFM-1014-24
10.0		14.0	17.5	34.0	1.0	MFM-1014-34
10.0		14.0	19.0	8.0	2.0	MFM-101419-08
10.0		14.0	19.0	12.0	1.5	MFM-101419-12
10.0		14.0	20.0	12.0	2.0	MFM-101420-12
10.0		16.0	22.0	8.0	3.0	MFM-1016-08
10.0		16.0	22.0	10.0	3.0	MFM-1016-10
10.0		16.0	22.0	16.0	3.0	MFM-1016-16
10.0		16.0	20.0	6.0	3.0	MFM-101620-06
10.0		16.0	20.0	10.0	3.0	MFM-101620-10
12.0	+0.050 +0.160	14.0	20.0	7.0	1.0	MFM-1214-07
12.0		14.0	20.0	9.0	1.0	MFM-1214-09
12.0		14.0	20.0	12.0	1.0	MFM-1214-12
12.0		14.0	20.0	17.0	1.0	MFM-1214-17
12.0		16.0	22.0	10.0	2.0	MFM-1216-10
12.0		16.0	22.0	20.0	2.0	MFM-1216-20
12.0		18.0	24.0	8.0	3.0	MFM-1218-08
12.0		18.0	22.0	10.0	3.0	MFM-1218-10
12.0		18.0	24.0	12.0	3.0	MFM-1218-12
12.0		18.0	22.0	15.0	3.0	MFM-1218-15
12.0		18.0	22.0	20.0	3.0	MFM-1218-20
13.0		15.0	20.0	14.0	2.0	MFM-1315-14
13.0		16.0	24.0	8.0	2.0	MFM-131624-08
14.0		16.0	22.0	12.0	1.0	MFM-1416-12
14.0		16.0	22.0	17.0	1.0	MFM-1416-17
14.0		20.0	25.0	7.0	3.0	MFM-1420-07
14.0		20.0	25.0	10.0	3.0	MFM-1420-10
14.0		20.0	25.0	15.0	3.0	MFM-1420-15
14.0		20.0	25.0	20.0	3.0	MFM-1420-20
15.0		17.0	23.0	9.0	1.0	MFM-1517-09
15.0		17.0	23.0	12.0	1.0	MFM-1517-12
15.0		17.0	23.0	17.0	1.0	MFM-1517-17
15.0		21.0	27.0	10.0	3.0	MFM-1521-10
15.0		21.0	27.0	15.0	3.0	MFM-1521-15
15.0		21.0	27.0	20.0	3.0	MFM-1521-20
15.0		21.0	27.0	25.0	3.0	MFM-1521-25
16.0		18.0	28.0	8.0	2.0	MFM-1618-08/02
16.0		18.0	24.0	12.0	1.0	MFM-1618-12
16.0		18.0	24.0	17.0	1.0	MFM-1618-17
16.0		22.0	28.0	12.0	3.0	MFM-1622-12
16.0		22.0	28.0	15.0	3.0	MFM-1622-15
16.0		22.0	28.0	20.0	3.0	MFM-1622-20
16.0		22.0	28.0	25.0	3.0	MFM-1622-25
18.0		20.0	26.0	12.0	1.0	MFM-1820-12
18.0		20.0	26.0	17.0	1.0	MFM-1820-17
18.0		20.0	26.0	22.0	1.0	MFM-1820-22
18.0		24.0	30.0	8.0	3.0	MFM-1824-08
18.0		24.0	30.0	12.0	3.0	MFM-1824-12
18.0		24.0	30.0	18.0	3.0	MFM-1824-18
18.0		24.0	30.0	20.0	3.0	MFM-1824-20
18.0		24.0	30.0	30.0	3.0	MFM-1824-30
18.0		24.0	26.0	7.8	3.0	MFM-182426-078
19.0	+0.065 +0.195	24.0	27.0	12.0	2.0	MFM-192427-12
20.0		23.0	30.0	11.5	1.5	MFM-2023-11
20.0		23.0	30.0	16.5	1.5	MFM-2023-16
20.0		23.0	30.0	21.5	1.5	MFM-2023-21
20.0		26.0	32.0	15.0	3.0	MFM-2026-15
20.0		26.0	32.0	20.0	3.0	MFM-2026-20
20.0		26.0	28.0	12.0	3.0	MFM-202628-12
20.0		26.0	32.0	30.0	3.0	MFM-2026-30
22.0		28.0	34.0	15.0	3.0	MFM-2228-15
22.0		28.0	34.0	20.0	3.0	MFM-2228-20
22.0		28.0	34.0	30.0	3.0	MFM-2228-30
24.0		30.0	36.0	15.0	3.0	MFM-2430-15
24.0		30.0	36.0	20.0	3.0	MFM-2430-20
24.0		30.0	36.0	30.0	3.0	MFM-2430-30
25.0		28.0	35.0	11.5	1.5	MFM-2528-11
25.0		28.0	35.0	16.5	1.5	MFM-2528-16
25.0		28.0	35.0	21.5	1.5	MFM-2528-21
25.0		32.0	38.0	12.0	4.0	MFM-2532-12
25.0		32.0	38.0	15.0	4.0	MFM-2532-15
25.0		32.0	38.0	20.0	4.0	MFM-2532-20
25.0		32.0	38.0	30.0	4.0	MFM-2532-30
25.0		32.0	38.0	40.0	4.0	MFM-2532-40
27.0		34.0	40.0	20.0	4.0	MFM-2734-20
27.0		34.0	40.0	30.0	4.0	MFM-2734-30
27.0		34.0	40.0	40.0	4.0	MFM-2734-40
28.0		36.0	42.0	20.0	4.0	MFM-2836-20
28.0		36.0	42.0	30.0	4.0	MFM-2836-30
28.0		36.0	42.0	40.0	4.0	MFM-2836-40
30.0		34.0	42.0	16.0	2.0	MFM-3034-16
30.0		34.0	42.0	26.0	2.0	MFM-3034-26
30.0		35.0	44.0	20.0	4.0	MFM-3035-20
30.0		38.0	44.0	20.0	4.0	MFM-3038-20
30.0		38.0	44.0	30.0	4.0	MFM-3038-30
30.0		38.0	44.0	40.0	4.0	MFM-3038-40
32.0	+0.080 +0.240	40.0	46.0	20.0	4.0	MFM-3240-20
32.0		40.0	46.0	30.0	4.0	MFM-3240-30
32.0		40.0	46.0	40.0	4.0	MFM-3240-40
35.0		39.0	47.0	16.0	2.0	MFM-3539-16
35.0		39.0	47.0	26.0	2.0	MFM-3539-26
40.0		44.0	52.0	30.0	2.0	MFM-4044-30
40.0		44.0	52.0	40.0	2.0	MFM-4044-40
45.0		50.0	58.0	50.0	2.0	MFM-4550-50

³⁾After press-fit.
