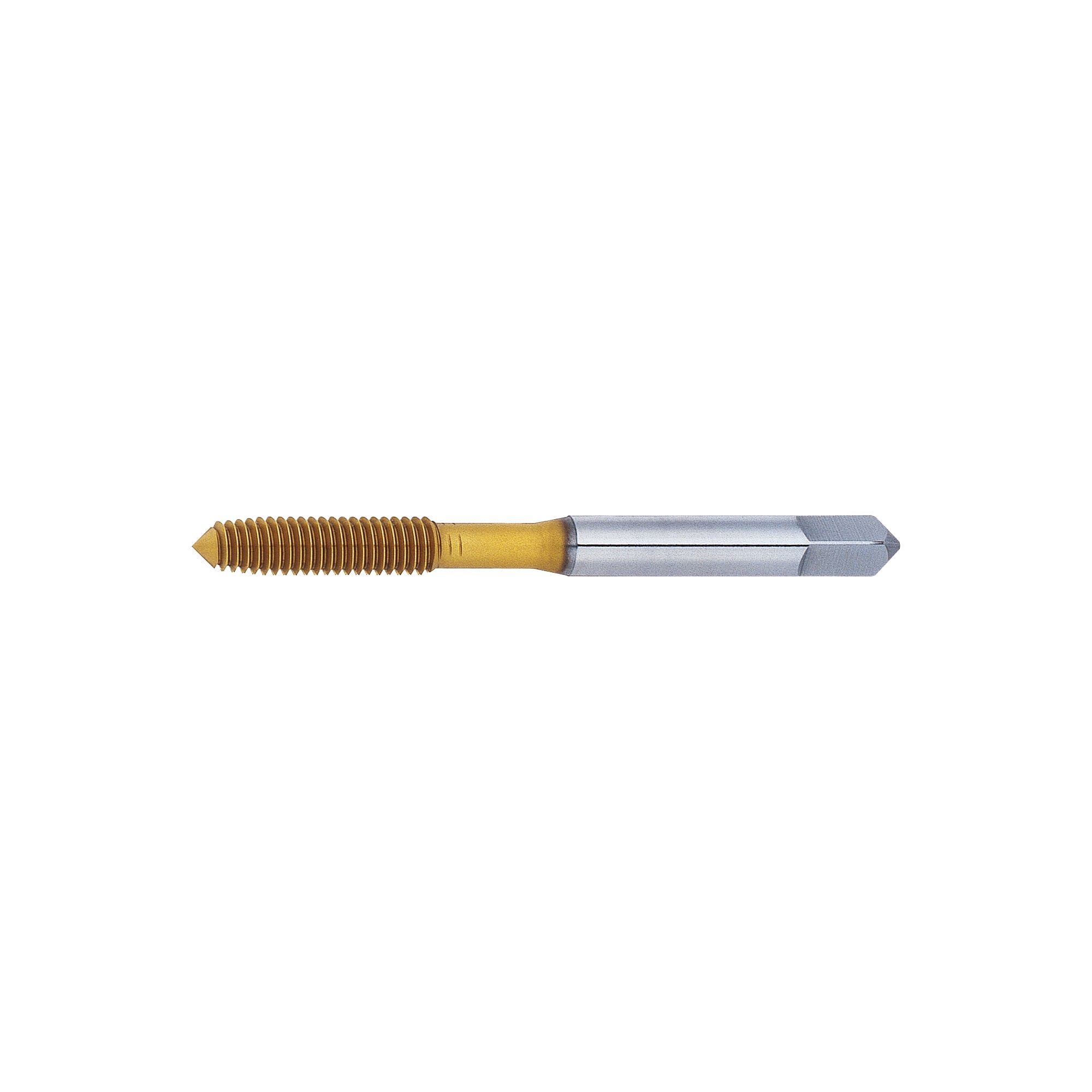

TiN Coated High-Speed Steel Roll Tap【5 szt.】

TiN Coated High-Speed Steel Roll Tap

Umieść kursor myszy nad ilustracją, aby ją powiększyć

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 12.
Ilość:

Rysunek konturowy

TiN Coated High-Speed Steel Roll Tap:Related Image

Lista numerów części

Liczba pozycji

Nominal

Pitch, Number of Threads

(mm)

Number of Chamfered Threads

Overall Length (L)

(mm)

Thread Length

Shank Diameter

(φ)

Length Under Neck

(mm)

Precision

Square Part Length

(mm)

Square Part Width

(mm)

Minimalna wielkość zamówienia
M3
0.5
2 P
46
9(11)
4
18
RM5
6
3.2
1 opak.

5 szt.

M3
0.5
4 P
46
9(11)
4
18
RM5
6
3.2
1 opak.

5 szt.

M4
0.7
2 P
52
10
5
20
RM6
7
4
1 opak.

5 szt.

M4
0.7
4 P
52
10
5
20
RM6
7
4
1 opak.

5 szt.

M5
0.8
2 P
60
11
5.5
22
RM6
7
4.5
1 opak.

5 szt.

M5
0.8
4 P
60
11
5.5
22
RM6
7
4.5
1 opak.

5 szt.

M6
1
2 P
62
12
6
24
RM7
7
4.5
1 opak.

5 szt.

M6
1
4 P
62
12
6
24
RM7
7
4.5
1 opak.

5 szt.

M8
1.25
2 P
70
22
6.2
35
RM7
8
5
1 opak.

5 szt.

M8
1.25
4 P
70
22
6.2
35
RM7
8
5
1 opak.

5 szt.

M10
1.5
2 P
75
24
7
39
RM7
8
5.5
1 opak.

5 szt.

M10
1.5
4 P
75
24
7
39
RM7
8
5.5
1 opak.

5 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)
Standardowa data wysyłki
55.04 €
( 65.50 € )
5 dni robocze
55.04 €
( 65.50 € )
5 dni robocze
53.99 €
( 64.25 € )
5 dni robocze
53.99 €
( 64.25 € )
5 dni robocze
59.37 €
( 70.65 € )
5 dni robocze
59.37 €
( 70.65 € )
5 dni robocze
61.71 €
( 73.43 € )
5 dni robocze
61.71 €
( 73.43 € )
5 dni robocze
90.32 €
( 107.48 € )
5 dni robocze
90.32 €
( 107.48 € )
5 dni robocze
110.58 €
( 131.59 € )
5 dni robocze
110.58 €
( 131.59 € )
5 dni robocze

Szczegółowe informacje

Podstawowe informacje

[Features]
-Used for tapping that produces no chips
-Suitable for a wide range of materials, from general steel to non-ferrous alloys
-Excellent abrasion resistance and chip weld resistance due to TiN coating.

Specyfikacja i cena

Specifications

TiN Coated High-Speed Steel Roll Tap:Related Image

Model Number
G-ROT
1 Pack 5 Pieces Included

Nominal
M x P
Chamfer
Lcf
(Selection)
Precision Overall Length
L
Thread Length
Lc
Length Under Neck
L1
Shank Diameter
d
Square Part Length
Lk
Square Part Width
K
Quantity/
pack
M2 0.4 4 RM4 40 9 - 3. 5 2.5 5 Pieces
M3 0.5 2

4
RM5 46 9 18 4. 6 3.2
M4 0.7 RM6 52 10 20 5. 7 4.
M5 0.8 RM6 60 11 22 5.5 7 4.5
M6 1 RM7 62 12 24 6. 7 4.5
M8 1.25 RM7 70 22 35 6.2 8 5.
M10 1.5 RM7 75 24 39 7. 8 5.5

[ ! ]This product is only sold in units of packs.
[ ! ]M6 or below (depth of bite 4 only) have protruding centers.
[ ! ]The pilot hole diameter for a roll tap is different from that of a cutting tap.
[ ! ]For details about roll tapping accuracy RM, refer to the technical information (>>Click here).

For Cutting Conditions, Refer to >>Click here.

Funkcje i przykłady użycia

More Information


It is used as a thread forming tap that does not discharge cuttings.
Supports a wide range of work materials ranging from general steel to non-ferrous alloys.
The TiN coating provides excellent wear resistance and welding resistance.
