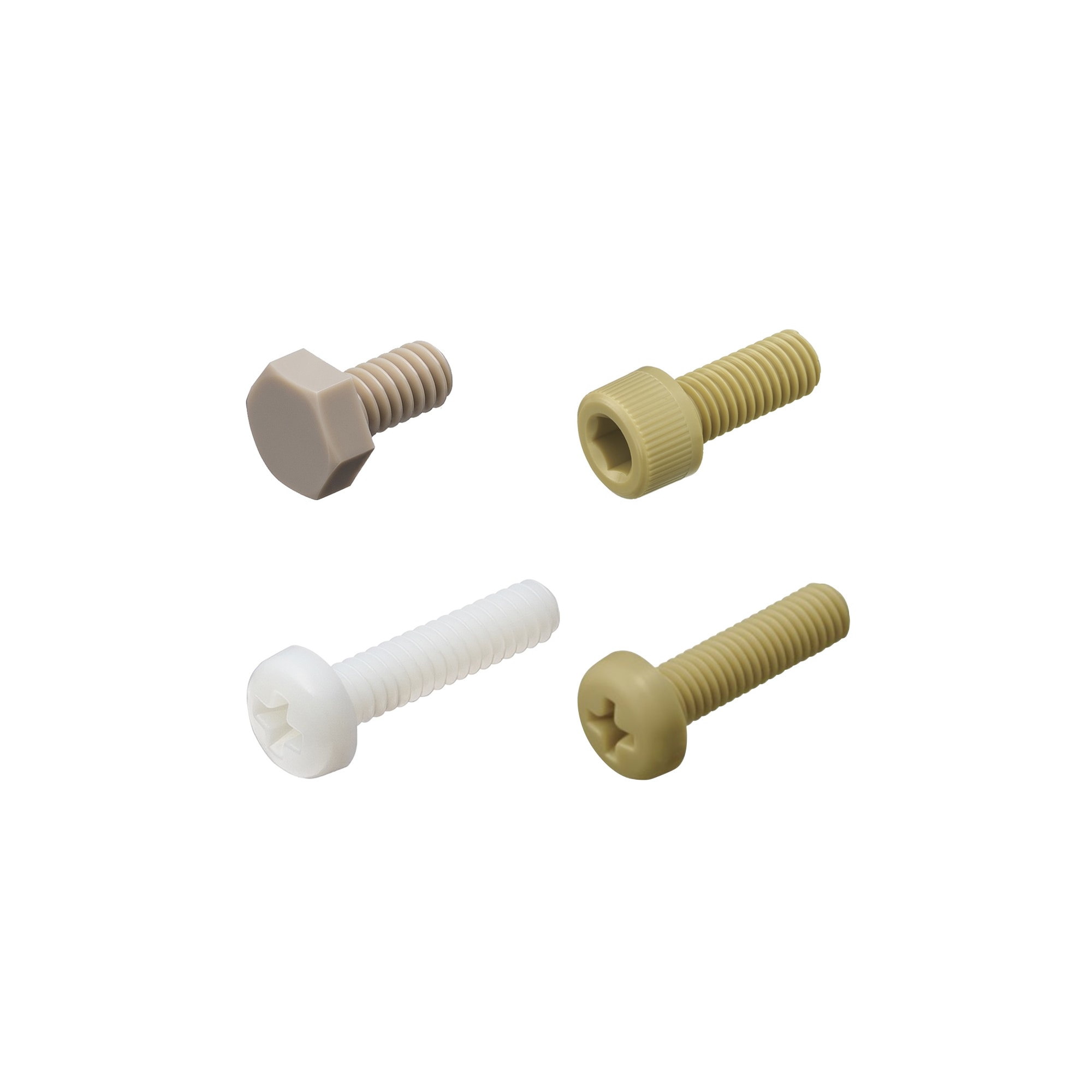

Resin Inch Bolt, Hex Bolt / Hex Socket Head Bolt / Pan Head Screw

Warunki filtrowania

Type
Detailed Shape
- Standard
- Pan Head
Properties / applications
Length L (inch)
- 1/4
- 5/16
- 3/8
- 1/2
- 5/8
- 3/4
- 7/8
- 1
- 1 1/4
- 1 1/2
Mounting Hole Shape
Hex Socket
Hex Socket
Cross Recessed
Not Provided
Basic Shape
Standard (Round)
Standard (Round)
Hex
Screw Nominal (inch)
Number of Threads (inch)
- 20
- 32
- 40
Plastic Material
CAD
- 2D
- 3D
Szacowane dni wysyłki
- Wszystko
- W ciągu 5 dni robocze

MISUMI

Resin Inch Bolt, Hex Bolt / Hex Socket Head Bolt / Pan Head Screw【100 szt.】

Umieść kursor myszy nad ilustracją, aby ją powiększyć

Poprzednia strona

Następna strona

Przestroga

Black spots (sludge) may appear on the external appearance, but this does not affect performance.
Heat resistance and chemical resistance vary depending on the conditions of use, so be sure to perform a test in the state of use in advance.
The color may change slightly depending on the lot and various conditions.

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 56.

Rysunek konturowy i tabela specyfikacji
Lista numerów części
Szczegółowe informacje

Rysunek konturowy i tabela specyfikacji

PACK-PEKH (Hex Screw)	PACK-RENP/PACK-REGP (Pan Head Screws)
PACK-PEGB (Hex Socket Head Cap Screw)

[ ! ] Sometimes black spots on the surface may be seen, which does not affect its performance.
[ ! ] Heat resistance and chemical resistance vary depending on conditions of use.
[ ! ] The color may change depending on production lot and other conditions.

Type			Material
PACK-PEKH (Hex Screw)	—	—	PEEK (Polyetheretherketone)
—	PACK-PEGB (Hex Socket Head Cap Screw)	PACK-PEGP (Pan Head Screw)	PEEK (Polyetheretherketone) GF30
—	—	PACK-RENP (Pan Head Screw)	RENY (Glassfiber Reinforced Polyamide MXD6)

Specification Table

Part Number

PACK-PEKH1/4-20 × 3/8
PACK-PEGB6-32 × 1/4
PACK-RENP4-40 × 1/4
PACK-PEGP6-32 × 1/4

■ Hex Screws

Part Number		B (inch)	H (inch)
Type	Nominal Dia. - Number of Threads × L (inch)
PACK-PEKH	1/4- 20 × 3/8	0.438	11/64
	20 × 1/2
	20 × 5/8
	20 × 3/4
	20 × 7/8
	20 × 1
	20 × 1-1/4
	20 × 1-1/2

■ Hex Socket Head Cap Screws

Part Number		B (inch)	D (inch)	H (inch)
Type	Nominal Dia. - Number of Threads × L (inch)
PACK-PEGB	4- 40 × 1/4	3/32	0.183	0.112
	40 × 5/16
	40 × 3/8
	40 × 1/2
	40 × 5/8
	40 × 3/4
	40 × 7/8
	40 × 1
	6- 32 × 1/4	7/64	0.226	0.138
	32 × 5/16
	32 × 3/8
	32 × 1/2
	32 × 5/8
	32 × 3/4
	32 × 7/8
	32 × 1

■ Pan Head Screws (RENY)

Part Number		D (inch)	H (inch)
Type	Nominal Dia. - Number of Threads × L (inch)
PACK-RENP	4- 40 × 1/4	0.219	0.080
	40 × 5/16
	40 × 3/8
	40 × 1/2
	40 × 5/8
	40 × 3/4
	40 × 7/8
	40 × 1
	6- 32 × 1/4	0.270	0.097
	32 × 5/16
	32 × 3/8
	32 × 1/2
	32 × 5/8
	32 × 3/4
	32 × 7/8
	32 × 1

■ Pan Head Screws (PEEK-GF30)

Part Number		D (inch)	H (inch)
Type	Nominal Dia. - Number of Threads × L (inch)
PACK-PEGP	4- 40 × 1/4	0.219	0.080
	40 × 5/16
	40 × 3/8
	40 × 1/2
	40 × 5/8
	40 × 3/4
	40 × 7/8
	40 × 1
	6- 32 × 1/4	0.270	0.097
	32 × 5/16
	32 × 3/8
	32 × 1/2
	32 × 5/8
	32 × 3/4
	32 × 7/8
	32 × 1

Lista numerów części

Liczba pozycji

Numer części

PACK-PEKH1/4-20X1-1/2

PACK-PEKH1/4-20X1-1/4

Detailed Shape	Properties / applications	Length L (inch)	Mounting Hole Shape	Basic Shape	Screw Nominal (inch)	Number of Threads (inch)	Plastic Material	Minimalna wielkość zamówienia

Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1/2	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1/4	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	3/4	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	3/8	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	5/8	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	5/16	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	7/8	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1/2	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1/4	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	3/4	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	3/8	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	5/8	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	5/16	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	7/8	[Hex Socket] Hex Socket	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1/2	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1/4	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	3/4	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	3/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	5/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	5/16	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	7/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1/2	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1/4	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	3/4	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	3/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	5/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	5/16	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Pan Head	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	7/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	PEEK GF30	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1	Not Provided	Hex	1/4	20	PEEK	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1 1/2	Not Provided	Hex	1/4	20	PEEK	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1 1/4	Not Provided	Hex	1/4	20	PEEK	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	1/2	Not Provided	Hex	1/4	20	PEEK	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	3/4	Not Provided	Hex	1/4	20	PEEK	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	3/8	Not Provided	Hex	1/4	20	PEEK	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	5/8	Not Provided	Hex	1/4	20	PEEK	1 opak. 100 szt.
Standard	Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-Resistance	7/8	Not Provided	Hex	1/4	20	PEEK	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	1	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	1/2	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	1/4	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	3/4	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	3/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	5/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	5/16	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	7/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 4	40	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	1	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	1/2	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	1/4	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	3/4	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	3/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	5/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	5/16	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	RENY	1 opak. 100 szt.
Pan Head	Insulation Property / Non-Magnetic	7/8	Cross Recessed	[Standard (Round)] Standard (Round)	No. 6	32	RENY	1 opak. 100 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

209.52 € ( 249.33 € )	5 dni robocze
87.30 € ( 103.89 € )	5 dni robocze
79.37 € ( 94.45 € )	5 dni robocze
146.03 € ( 173.78 € )	5 dni robocze
84.92 € ( 101.05 € )	5 dni robocze
116.67 € ( 138.84 € )	5 dni robocze
82.54 € ( 98.22 € )	5 dni robocze
196.03 € ( 233.28 € )	5 dni robocze
217.46 € ( 258.78 € )	5 dni robocze
111.11 € ( 132.22 € )	5 dni robocze
103.17 € ( 122.77 € )	5 dni robocze
150.79 € ( 179.44 € )	5 dni robocze
108.73 € ( 129.39 € )	5 dni robocze
142.86 € ( 170.00 € )	5 dni robocze
106.35 € ( 126.56 € )	5 dni robocze
201.59 € ( 239.89 € )	5 dni robocze
150.79 € ( 179.44 € )	5 dni robocze
82.54 € ( 98.22 € )	5 dni robocze
87.19 € ( 103.76 € )	5 dni robocze
108.73 € ( 129.39 € )	5 dni robocze
92.92 € ( 110.57 € )	5 dni robocze
103.17 € ( 122.77 € )	5 dni robocze
90.07 € ( 107.18 € )	5 dni robocze
146.03 € ( 173.78 € )	5 dni robocze
180.16 € ( 214.39 € )	5 dni robocze
100.79 € ( 119.94 € )	5 dni robocze
90.48 € ( 107.67 € )	5 dni robocze
134.92 € ( 160.55 € )	5 dni robocze
98.41 € ( 117.11 € )	5 dni robocze
126.98 € ( 151.11 € )	5 dni robocze
92.86 € ( 110.50 € )	5 dni robocze
174.60 € ( 207.77 € )	5 dni robocze
463.49 € ( 551.55 € )	5 dni robocze
503.17 € ( 598.77 € )	5 dni robocze
476.19 € ( 566.67 € )	5 dni robocze
376.19 € ( 447.67 € )	5 dni robocze
423.81 € ( 504.33 € )	5 dni robocze
344.44 € ( 409.88 € )	5 dni robocze
396.83 € ( 472.23 € )	5 dni robocze
450.00 € ( 535.50 € )	5 dni robocze
41.48 € ( 49.36 € )	5 dni robocze
38.61 € ( 45.95 € )	5 dni robocze
31.19 € ( 37.12 € )	5 dni robocze
41.48 € ( 49.36 € )	5 dni robocze
35.76 € ( 42.55 € )	5 dni robocze
41.48 € ( 49.36 € )	5 dni robocze
32.33 € ( 38.47 € )	5 dni robocze
41.48 € ( 49.36 € )	5 dni robocze
50.04 € ( 59.55 € )	5 dni robocze
41.48 € ( 49.36 € )	5 dni robocze
35.76 € ( 42.55 € )	5 dni robocze
47.19 € ( 56.16 € )	5 dni robocze
35.76 € ( 42.55 € )	5 dni robocze
44.34 € ( 52.76 € )	5 dni robocze
35.76 € ( 42.55 € )	5 dni robocze
50.04 € ( 59.55 € )	5 dni robocze

Szczegółowe informacje

Podstawowe informacje

Podstawowe informacje

100 pcs. included, useful for in-house inventory or for large numbers to use.

Przestroga

Black spots (sludge) may appear on the external appearance, but this does not affect performance.
Heat resistance and chemical resistance vary depending on the conditions of use, so be sure to perform a test in the state of use in advance.
The color may change slightly depending on the lot and various conditions.
