Locating pins / round, diamond-shaped / with collar / chamfered flat head / press-fit spigot(Lista numerów części: str. 3)

Warunki filtrowania

Shape (Head, Outline View)
- Round
- Diamond
[D] Diameter (Mounting Side)(mm)
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 15
- 16
- 18
- 20
- 22
ISO Tolerance (Mounting Side)
- p6
- m6
- h7
- g6
[P] Diameter (Head)(mm)
[2–23/0.01mm jedn.]
B(mm)
[1–30/0.1mm jedn.]
L(mm)
[3–31/1mm jedn.]
Type
- APJA
- APJD
- APJGA
- APJGD
- APJHA
- APJHD
- APJPA
- APJPD
CAD
- 2D
- 3D
Szacowane dni wysyłki
- Wszystko
- W ciągu 7 dni robocze

MISUMI

Locating pins / round, diamond-shaped / with collar / chamfered flat head / press-fit spigot(Lista numerów części: str. 3)

Katalog

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 128.

Rysunek konturowy i tabela specyfikacji
Lista numerów części
Szczegółowe informacje

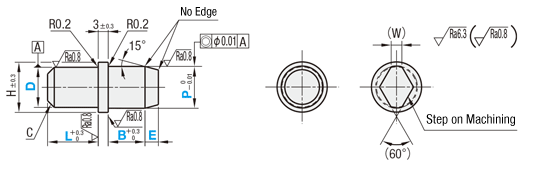

Rysunek konturowy i tabela specyfikacji

Press Fit

(Round)

(Diamond)

Locating Pin - Stainless Steel, austenitic (35 HRC or More), Shouldered, Tapered, Press Fit: Related Image

[ ! ] A machining step remains on the shoulder top for Diamond Shape.

[ ! ] When L < Pitch × 2, the incomplete threaded portion (Pitch x 2) is included in M x 1.5.
[ ! ] When B + E > 20 mm, the P dim. tolerance is 0-0.02.
[ ! ]For Tapped Type, unless described otherwise on the drawing, the spec. design is the same as for Press Fit Type.
[ ! ]P-2EtanA ≥ 0.73 (Tip Diameter ø0.73 or more)
Reference: tan15° ≒ 0.267, tan30° ≒ 0.577
tan45° = 1, tan60° ≒ 1.732

[M] Material	[H] Hardness	Pin Config.	Press Fit
			D Tol.
			m6	p6	g6	h7
Stainless Steel, austenitic (35 HRC or More)	35HRC or more	Round	APJA	APJPA	APJGA	APJHA
		Diamond	APJD	APJPD	APJGD	APJHD

[ ! ] When the dia. exceeds ø10, the center hardness may become 30HRC or more.

Specification Table

	Part Number			P	—	L	—	B	—	E
			—
	Type	D
E dim. (Not Configurable)	APUA	6	—	P4.01	—	L8	—	B5.0
E dim. (Configurable)	APUA	6	—	P4.01	—	L8	—	B5.0	—	E5.0

■ Tolerance

D or P	m6	p6	g6	h7
1.00 Up to 3.00	+0.008 +0.002	+0.012 +0.006	－0.002 －0.008	0 －0.010
3.01 Up to 6.00	+0.012 +0.004	+0.020 +0.012	－0.004 －0.012	0 －0.012
6.01 Up to 10.00	+0.015 +0.006	+0.024 +0.015	－0.005 －0.014	0 －0.015
10.01 Up to 18.00	+0.018 +0.007	+0.029 +0.018	－0.006 －0.017	0 －0.018
18.01 Up to 25.50	+0.021 +0.008	+0.035 +0.022	－0.007 －0.020	0 －0.021

■ Press Fit

Part Number		P 0.01 mm Increments	L 1 mm Increments	B 0.1 mm Increments	E		C	H	(W)
Type	D				Not Configurable	0.1 mm Increments
[Round] APJA (m6) APJPA (p6) APJGA (g6) APJHA (h7) [Diamond] APJD (m6) APJPD (p6) APJGD (g6) APJHD (h7)	3	2.00 to 4.00	3 (4)Up to 16	1.0 (2.0)Up to 15.0	2.0	0.5 to 10.0	0.5	6	1
	4			1.0 to 30.0 (2.0) ～ (20.0)	3.0		1		1.2
	5	3.00 to 6.00			3.0			8	1.5
	6				3.0				1.8
	7	3.00 to 7.00			3.0			9
	8	5.00 to 9.00	4 (5)Up to 16		4.0		1.5	11	2.2
	9				4.0
	10	6.00 to 11.00	5 to 25		4.0		2	13	3
	11				4.0
	12	7.00 to 13.00			4.0			15	3.2
	13		13 to 25		4.0
	15	7.00 to 15.00	15 to 25		4.0			17	3.5
	16	13.00 to 17.00	16 to 25		4.0		3	19	4
	18	15.00 to 19.00	18 to 27		4.0			21
	20	16.00 to 21.00	20 to 30		4.0			23	5
	22	18.00 to 23.00	22 to 31		4.0			25

[ ! ] L, B dimensions in () are applicable to Diamond Shape

Alterations

Alterations
Code

Alteration Details

Application Conditions

Ordering Example

Wrench Flats Alteration

Locating Pin - High Hardness Stainless Steel, Shouldered, Tapered, Press Fit: Related Image

HC = 0.5 mm Increments
[ ! ]HC > D HC > P

APJA10-P8.01-L12-B10.0-HC12

RAC

Adds a hex socket

" ! " S + 3 ≤ P - 2 × Etan15° (≒0.27)
Values in ( ) are applicable to Tapped Type

[NG] Combination with LAC is not available

D	Applicable Dimensions	Hex Hole Dimensions
D	B	S	e
8 to 9	7.0 (12.0) ～	4	2.5
10 to 11	8.0 (13.0) ～	5	3
12 to 16	9.0 (13.0) ～	6	4
17 to 19	9.0 (13.0) ～	6	4
20 to 25	9.0 (13.0) ～	6	4

APJA10-P8.01-L12-B10.0-RAC

LAC

Adds a wrench hole

[ ! ] Diamond Shape Hole is drilled on the diamond head vertically
but with arbitrary orientation of their diamond surfaces against those of the diamond head.

[ ! ] Applicable to D ≥ 6 [ NG ] Combination with RAC is not available

Applicable Dimensions		Wrench Dimensions
P	B	Q
Up to 9.99	5.0 to 9.9	2
Up to 9.99	10.0 to 30.0	2.5
10.00 or more	5.0 to 7.9	2
	8.0 to 11.9	2.5
	12.0 to 30.0	3.5

APJA10-P8.01-L12-B10.0-LAC

TBA

Shoulder Thickness

Shoulder thickness changed from 2.51 to 10.0　
0.1 mm Increments
[ ! ] Shoulder Thickness Tolerance: ±0.05
[ ! ] Applicable when D ≥ 4

APJA10-P8.01-L12-B10.0-TBA5

TBH

Shoulder Dimension Change

Reduces the shoulder dimension
0.5 mm Increments
[ ! ]D+0.5 < TBH < H [ ! ]P+0.5 < TBH < H
[ ! ] The shoulder tolerance is ±0.3 mm

APJA10-P8.01-L12-B10.0-TBH12

Lista numerów części

Liczba pozycji

Poprzednia

Numer części

APJPD11-P[6-11/0.01]-L[5-25/1]-B[2-20/0.1]

APJPD12-P[7-13/0.01]-L[5-25/1]-B[2-20/0.1]

APJPD13-P[7-13/0.01]-L[13-25/1]-B[2-20/0.1]

APJPD15-P[7-15/0.01]-L[15-25/1]-B[2-20/0.1]

APJPD16-P[13-17/0.01]-L[16-25/1]-B[2-20/0.1]

APJPD18-P[15-19/0.01]-L[18-27/1]-B[2-20/0.1]

APJPD20-P[16-21/0.01]-L[20-30/1]-B[2-20/0.1]

APJPD22-P[18-23/0.01]-L[22-31/1]-B[2-20/0.1]

Shape (Head, Outline View)

[D] Diameter (Mounting Side)

(mm)

ISO Tolerance (Mounting Side)

[P] Diameter (Head)

(mm)

Minimalna wielkość zamówienia

Diamond	11	p6	6 ～ 11	2 ～ 20	5 ～ 25	1 szt.
Diamond	12	p6	7 ～ 13	2 ～ 20	5 ～ 25	1 szt.
Diamond	13	p6	7 ～ 13	2 ～ 20	13 ～ 25	1 szt.
Diamond	15	p6	7 ～ 15	2 ～ 20	15 ～ 25	1 szt.
Diamond	16	p6	13 ～ 17	2 ～ 20	16 ～ 25	1 szt.
Diamond	18	p6	15 ～ 19	2 ～ 20	18 ～ 27	1 szt.
Diamond	20	p6	16 ～ 21	2 ～ 20	20 ～ 30	1 szt.
Diamond	22	p6	18 ～ 23	2 ～ 20	22 ～ 31	1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

- ( - )	7 dni robocze
- ( - )	7 dni robocze
- ( - )	7 dni robocze
- ( - )	7 dni robocze
- ( - )	7 dni robocze
- ( - )	7 dni robocze
- ( - )	7 dni robocze
- ( - )	7 dni robocze

Poprzednia

Podstawowe informacje

Shouldered and Tapered Type has been newly added to the High Hardness Stainless Steel Locating Pin product line-up. For orders of up to 500 pcs., 5th day shipping is available.

Kontury i specyfikacja

General Information - Locating Pins / Positioning Pins / Centring Pins

Selection details of receiving pins/locating pins/ centering pins

- Material: steel, stainless steel, aluminum, plastic
- Coatings: burnished, nickel-plated, hard chrome-plated, polished, hard chrome-plated and polished, clear anodized
- Heat treatment: carburized, quenched
- ISO tolerances mounting side: m6, n6, p6, g6, h6, h7
- Head diameter: 1 to 30 mm
- Basic form: wide head, narrow head, cylindrical, with collar, with hole, with flange, double guide
- Assembly side form: fit, external thread, internal thread, circumferential groove, notch, flat surface
- Head shape: round, diamond-shaped (sword shape), triangular
- Tip shape: fastened, rounded, conical, round, spherical, flattened, ball attachment, projectile-shaped

Description/Basics

centering pins are used to fix the position and limit the degrees of freedom of the objects to be positioned. The precisely manufactured centering pins enable highly precise positioning of the assembly parts. centering pins can position objects as side stopper or center them by insertion. This allows positioning them in the X, Y and Z axes.

Application example: centering pin as work piece stopper - (1) work piece, (2) threaded receiving pin

A straight centering pin is only sufficient for the X and Y axis to determine the position of an assembly part. In order to additionally adjust the position in the Z axis, a centering pin with a collar can be used. This combination can reduce the variety of components, since there is no need for an additional support pin.

Application example for a centering pin with collar

In most cases a plug-in connection uses a centering pin to protect the work piece or the application during multiple joining and positioning. The centering bushings protect the component from unwanted wear, especially if the objects to be placed are made of a soft material. Therefore, positioning bushings make an application more maintenance-friendly. Wear should always be considered when planning an application. The material and the surface coating of centering pins should be selected according to the application.

Positioning bushing - receiving bushing – centering bushing

Application example for a centering bushing - (1) centering bushing

Function

If objects cannot be placed straight, but slightly inclined on centering pins, a round or chamfered head shape can be used. This helps ensure that the objects do not jam with the centering pins and the process runs smoothly. A round or chamfered head shape is also advisable for applications that are highly repetitive (cycles).

Receiving pin with collar - threaded receiving pin - receiving pin with collar - receiving pin with thread

Application example for an inclined infeed - (1) centering pin rounded head, (2) workpiece

For the highest possible positioning accuracy centering pins should be used in pairs as much as possible. The respective distance between the centering pins also influences the position accuracy. If it is chosen large, it can improve the accuracy of the object’s positioning. If there is a large distance between the centering pins (B), one of the locating pins should have a diamond-shaped head (sword pin), since a sword pin almost prevents tilting. The use of a third centering pin in an L-shaped (triangular) arrangement may improve the positioning accuracy even further. In order to ensure that the centering pins are not interchanged, centering pins with different diameters should be selected.

Application example for a sword pin - (1) sword pin (diamond-shaped), (2) centering pin (round)

MISUMI offers various mounting variants for centering pins in order to keep applications maintenance-friendly. Centering pins with internal threads can be interchangeably fastened with a screw through the mounting plate from underneath. If access to the underside is difficult, a centering pin or sword pin with external thread can be used. The assembly and disassembly of the centering pins can thus be easily designed by means of the various mounting versions.

Threaded locating pin - external threaded locating pin - internal threaded locating pin

Centering pin with external thread/ centering pin with internal thread

Areas of Application

centering pins are used in work piece carriers as well as the highly accurate positioning of components in test benches. centering pins enable highly precise positioning of objects with all degrees of freedom, thanks to the versatile and highly configurable shapes. The wide variety of MISUMI centering pins offers a suitable shape for every application. Centering pins are used for thin sheets as well as for heavy and complex components. This means that centering pins can be used across almost all industries of plant engineering and mechanical engineering. In many applications, centering pins are indispensable, as they enable a highly accurate positioning of the components.

Materials

The MISUMI centering pins are available in the following materials: steel, stainless steel, aluminum, plastic . Pins made of steel and aluminum are available in both hardened and coated versions. With a high number of cycles, the use of a hardened material is recommended, as these have a higher wear resistance.

Corrosion resistance

The following salt water spray test was performed on the raw material (see table) of the centering pins and mounting pins. Corrosion resistance was determined based on the test times of 48 and 96 hours.

	EN 1.4305 equivalent	EN 1.4301 equivalent	EN 1.4125 equivalent	EN 1.2510 equivalent
Before the test
48h
96h

centering pin salt water spray test (according to JIS Z2371)

Shear load in comparison

During a test procedure, the shear load of a centering pin was tested with different steels. The tested centering pin was based on JPBB8-10 and was tested for a shear load in a device (see figure). The following table lists the test results for comparison purposes.

Receiving pin – centering pin – centering bolt

Application example for the shear load of receiving bolts

Materials	Shear load	Hardness
EN 1.2510 equivalent	65 kN	60 ~ 63 HRC
EN 1.4301 equivalent	27 kN	10 ~ 20 HRC
EN 1.4125 equivalent	56 kN	50 ~ 55 HRC

Comparison table for shear loads on receiving pins, reference values

Coatings

MISUMI locating pins are available in burnished, hard chrome-plated or anodized to protect them from corrosion. Locating pins that have to withstand many cycles can be hard chrome-plated. The hard chrome plating provides a high surface hardness and provides the locating pin with high wear resistance. The selectable polished surface also ensures good surface roughness of the cylinder pins and helps to achieve good sliding properties. Aluminum locating pins are translucent anodized to protect them from corrosion and wear.

Dimensions

Locating pin with wide head

two-stage locating pin - stepped locating pin - double locating pin

Locating pin, two-stage

Locating pin with narrow head

Locating pin with collar

Cylindrical locating pin

Locating pin with fastening hole

Flanged locating pin

Locating pin - locating pin with flange - locating pin with cone

Conical flanged locating pin

Instructions for Use / Installation Information - Locating Pins / Positioning Pins / Centring Pins

Maintenance

To facilitate maintenance for the centering pins, V-shaped wear grooves can be applied to the centering pin. The 0.2 mm deep grooves serve as a wear indicator of the usable surface. This makes the visual wear on the centering pin comprehensible and makes it easier to maintain the accuracy of the device. The wear grooves of the centering pins are only available with hardened and round centering pins.
