Warunki filtrowania
- Grade
- Finishing Method
- T Dimension Tolerance
- A(mm)[20–600/1mm jedn.]
- B(mm)[20–500/1mm jedn.]
- F(mm)[4.5–595.5/0.5mm jedn.]
- G(mm)[4.5–495.5/0.5mm jedn.]
- M
- 3
- 4
- 5
- 6
- 8
- 10
- N
- 3
- 4
- 5
- 6
- 8
- 10
- T(mm)
- 5
- 6
- 8
- 9
- 10
- 12
- 15
- 19
- 20
- 25
- 30
[5–29/0.1mm jedn.] - Z
- 3
- 4
- 5
- 6
- 8
- 10
- CAD
- 2D
- 3D
POM Plates(Lista numerów części: str. 2)
Przestroga
- Following a change in material standards, the 6-mm plate thickness (T dimension) of the PACA type has an updated T dimension tolerance (+0 mm or more).Orders have been suspended due to the possibility of it becoming the same standard as the 9-mm T dimension as a result of the change. If a T dimension of 6 mm is required, select PACA2F, the upper-lower surface finished product as the recommended alternative. The PACA type's 6-mm T dimension will have its standards integrated with the 9-mm T dimension going forward.
Numer części:

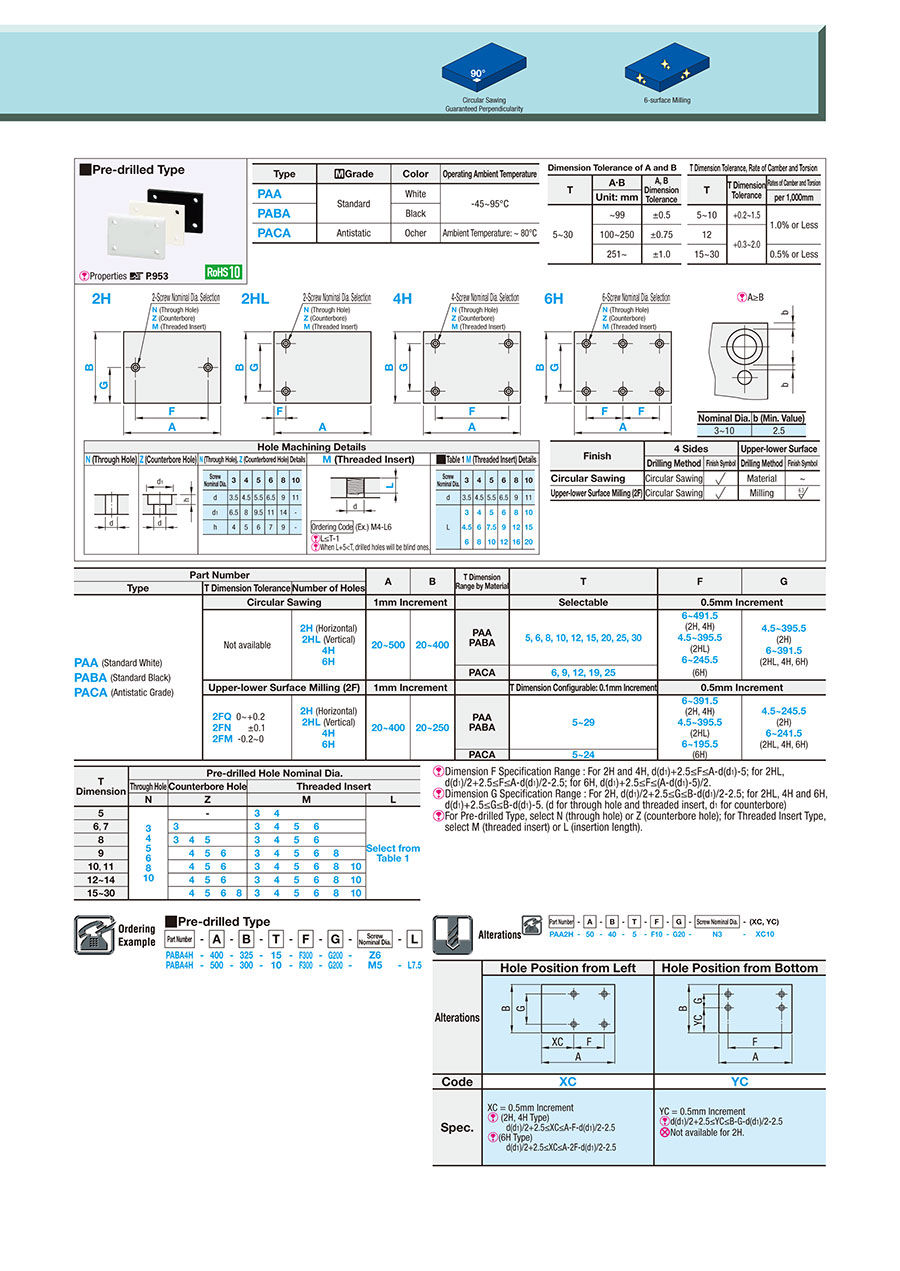

.Rysunek konturowy i tabela specyfikacji
| Type | Grade | Color | Operating Ambient Temperature |
| PAA | Standard | White | -45~95°C |
| PABA | Black | ||
| PACA | Antistatic | Ocher | Ambient Temperature: ~ 80°C |
Specifications
■ Pre-drilled Type
| Part Number | - | A | - | B | - | T | - | F | - | G | - | Screw Nominal Dia. | - | L |
| PABA4H PABA4H | - - | 400 500 | - - | 325 300 | - - | 15 10 | - - | F300 F300 | - - | G200 G200 | - - | Z6 M5 | - | L7.5 |
| Part Number | A | B | T Dimension Range by Material | T | F | G | ||
| Type | T Dimension Tolerance | Number of Holes | ||||||
| PAA (Standard White) PABA (Standard Black) PACA (Antistatic Grade) | Circular Sawing | 1mm Increment | Selectable | 0.5mm Increment | ||||
| Not available | 2H (Horizontal) 2HL (Vertical) 4H 6H | 20~500 | 20~400 | PAA PABA | 5, 6, 8, 10, 12, 15, 20, 25, 30 | 6~491.5 | 4.5~395.5 (2H) 6~391.5 (2HL, 4H, 6H) | |
| (2H, 4H) | ||||||||
| 4.5~395.5 | ||||||||
| (2HL) | ||||||||
| 6~245.5 | ||||||||
| PACA | 6, 9, 12, 19, 25 | (6H) | ||||||
| Upper-lower Surface Milling (2F) | 1mm Increment | T Dimension Configurable: 0.1mm Increment | 0.5mm Increment | |||||
| 2FQ 0~+0.2 2FN ±0.1 2FM -0.2~0 | 2H (Horizontal) 2HL (Vertical) 4H 6H | 20~400 | 20~250 | PAA PABA | 5~29 | 6~391.5 | 4.5~245.5 (2H) 6~241.5 (2HL, 4H, 6H) | |
| (2H, 4H) | ||||||||
| 4.5~395.5 | ||||||||
| (2HL) | ||||||||
| 6~195.5 | ||||||||
| PACA | 5~24 | (6H) | ||||||
Dimension G Specification Range : For 2H, d(d1)/2+2.5≤G≤B-d(d1)/2-2.5; for 2HL, 4H and 6H, d(d1)+2.5≤G≤B-d(d1)-5. (d for through hole and threaded insert, d1 for counterbore)
For Pre-drilled Type, select N (through hole) or Z (counterbore hole); for Threaded Insert Type, select M (threaded insert) or L (insertion length).
| T Dimension | Pre-drilled Hole Nominal Dia. | ||||||||||||
| Through Hole | Counterbore Hole | Threaded Insert | |||||||||||
| N | Z | M | L | ||||||||||
| 5 | 3 4 5 6 8 10 | - | 3 | 4 | Select from Table 1 | ||||||||
| 6, 7 | 3 | 3 | 4 | 5 | 6 | ||||||||
| 8 | 3 | 4 | 5 | 3 | 4 | 5 | 6 | ||||||
| 9 | 4 | 5 | 6 | 3 | 4 | 5 | 6 | 8 | |||||
| 10, 11 | 4 | 5 | 6 | 3 | 4 | 5 | 6 | 8 | 10 | ||||
| 12~14 | 4 | 5 | 6 | 3 | 4 | 5 | 6 | 8 | 10 | ||||
| 15~30 | 4 | 5 | 6 | 8 | 3 | 4 | 5 | 6 | 8 | 10 | |||
Alterations
Lista numerów części
Liczba pozycji
| Numer części |
|---|
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem) | Standardowa data wysyłki |
|---|
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
- ( - ) | 9 dni robocze |
