MISUMI

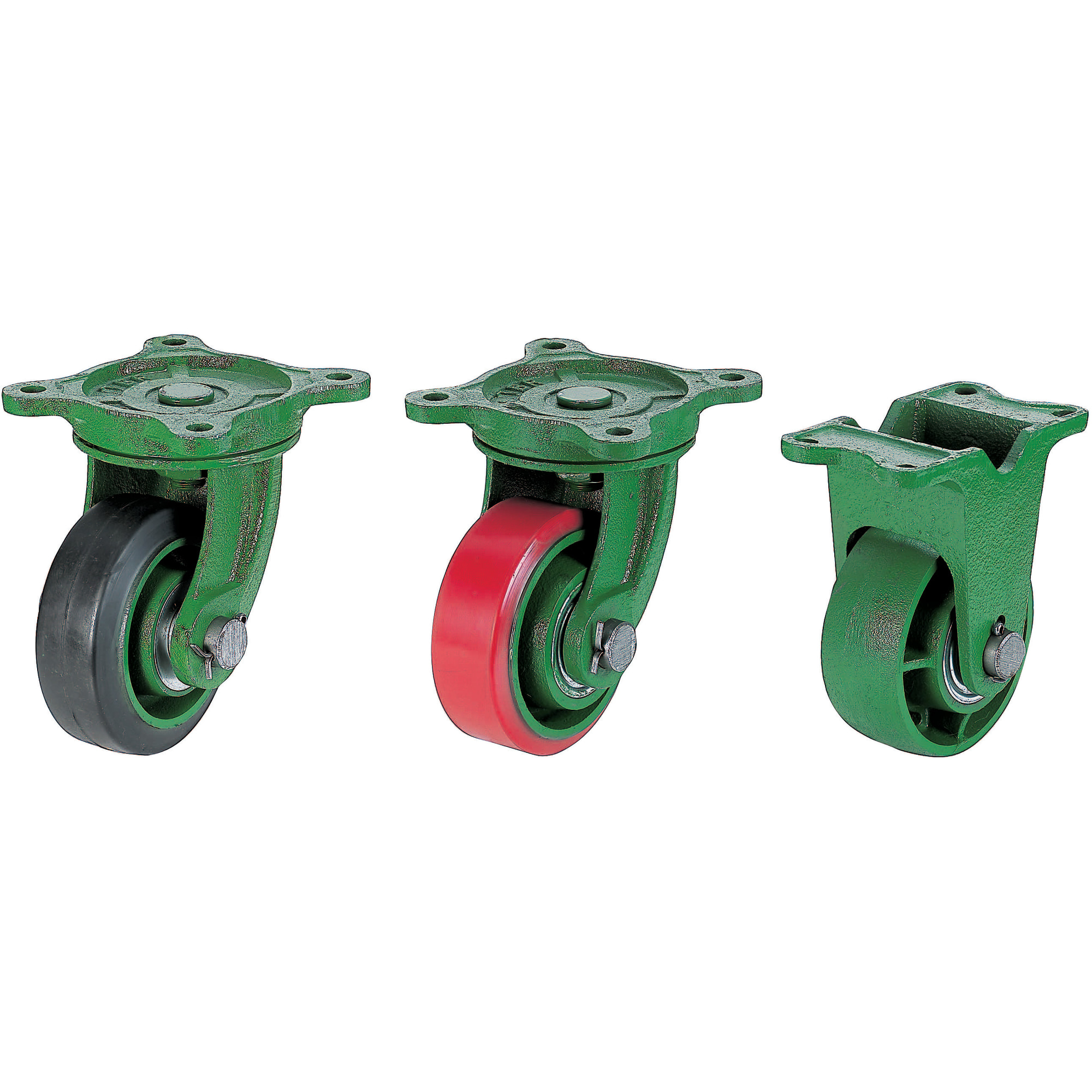

Cast Castors / Heavy Load / Swivel Type

Umieść kursor myszy nad ilustracją, aby ją powiększyć

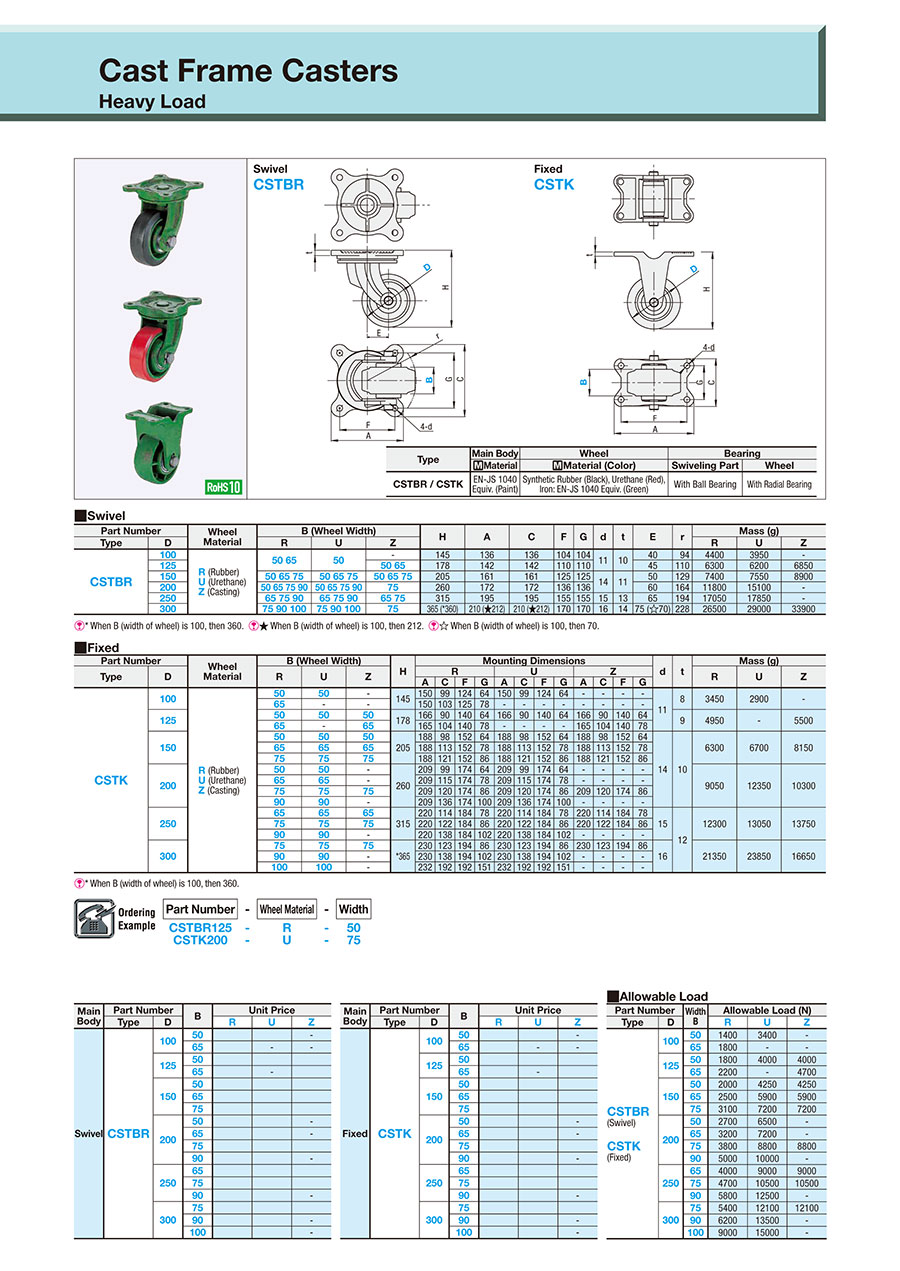

KatalogS. 2-1098

Przestroga

Please check the content on our website as the PDF does not contain the most up-to-date information.

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 82.

Rysunek konturowy i tabela specyfikacji
Lista numerów części
Szczegółowe informacje
Katalog

Rysunek konturowy i tabela specyfikacji

Swivel
CSTBR

Fixed
CSTK

Cast Caster, Heavy Load Type: Related Image

Type	Main Body	Wheel	Bearing
Type	[M] Material	[M]Material (Color)	Swiveling Part	Wheel
CSTBR·CSTK	EN−JS 1040 Equiv. (Coating)	Synthetic Rubber (Black), Urethane (Red), Iron: EN−JS 1040 Equiv. (Green)	With Ball Bearing	With Radial Bearing

Specification Table

Part Number	—	Wheel Material	—	Width
CSTBR125 CSTK200	— —	R U	— —	50 75

■Swivel

Part Number		Wheel Material	B (Wheel Width)			H	A	C	F	G	d	t	E	r	Mass (g)
Type	D		R	U	Z										R	U	Z
CSTBR	100	R(Rubber) U (Urethane) Z (Casting)	50	50	-	145	136	136	104	104	11	10	40	94	3630	4170	—
			65	—	—										4050	—	—
	125		50	50	50	178	142	142	110	110			45	110	5155	5705	5905
			65	—	65										5580	—	6280
	150		50	50	50	205	161	161	125	125	14	11	50	129	6105	6405	7255
			65	65	65										6680	6930	7980
			75	75	75										7350	7650	8950
	200		50	50	—	260	172	172	136	136			60	164	8530	8800	—
			65	65	—										9360	9830	—
			75	75	75										9930	10450	11950
			90	90	—										11280	12050	—
	250		65	65	65	315	195	195	155	155	15	13	65	194	13740	14640	16140
			75	75	75										14640	15340	17140
			90	90	—										16090	16390	—
	300		75	75	75	365(＊360)	210(★212)	210(★212)	170	170	16	14	75(☆70)	228	18590	20090	21790
			90	90	—										19640	21740	—
			100	100	—										22780	25000	—

[!]*When B (width of wheel) is 100, then 360. [!]*When B (width of wheel) is 100, then 212. [!]*When B (width of wheel) is 100, then 70.
■Standard Type

Part Number		Wheel Material	B (Wheel Width)			H	Mounting Dimensions												d	t	Mass (g)
Type	D		R	U	Z		R				U				Z						R	U	Z
Type	D		R	U	Z		A	C	F	G	A	C	F	G	A	C	F	G			R	U	Z
CSTK	100	R(Rubber) U (Urethane) Z (Casting)	50	50	—	145	150	99	124	64	150	99	124	64	—	—	—	—	11	8	2635	3175	—
	100		65	—	—	145	150	103	125	78	—	—	—	—	—	—	—	—	11	8	3030	—	—
	125		50	50	50	178	166	90	140	64	166	90	140	64	166	90	140	64	11	9	3805	4355	4555
	125		65	—	65	178	166	104	140	78	—	—	—	—	166	104	140	78	11	9	4240	—	4940
	150		50	50	50	205	188	98	152	64	188	98	152	64	188	98	152	64	14	10	4255	4555	5405
			65	65	65		188	113	152	78	188	113	152	78	188	113	152	78	14	10	4940	5190	6240
			75	75	75		188	121	152	86	188	121	152	86	188	121	152	86	14	10	5600	5900	7200
	200		50	50	—	260	209	99	174	64	209	99	174	64	—	—	—	—	14	10	5915	6185	—
			65	65	—		209	115	174	78	209	115	174	78	—	—	—	—	14	10	6570	7040	—
			75	75	75		209	120	174	86	209	120	174	86	209	120	174	86	14	10	7330	7850	9350
			90	90	—		209	136	174	100	209	136	174	100	—	—	—	—	14	10	8280	9050	—
	250		65	65	65	315	220	114	184	78	220	114	184	78	220	114	184	78	15	12	9690	10590	12090
			75	75	75		220	122	184	86	220	122	184	86	220	122	184	86	15	12	10740	11440	13240
			90	90	—		220	138	184	102	220	138	184	102	—	—	—	—	15	12	11740	12040	—
	300		75	75	75	365(＊360)	230	123	194	86	230	123	194	86	230	123	194	86	16	12	12440	13940	15640
			90	90	—		230	138	194	102	230	138	194	102	—	—	—	—	16	12	13640	15740	—
			100	100	—		232	192	192	151	232	192	192	151	—	—	—	—	16	12	18280	20500	—

[ ! ]*When B (width of wheel) is 100, then 360.

■Allowable Load

Part Number		Width B	Allowable Load (N)
Type	D	Width B	R	U	Z
CSTBR (Swivel) CSTK (Fixed)	100	50	1400	3400	—
	100	65	1800	—	—
	125	50	1800	4000	4000
	125	65	2200	—	4700
	150	50	2000	4250	4250
		65	2500	5900	5900
		75	3100	7200	7200
	200	50	2700	6500	—
		65	3200	7200	—
		75	3800	8800	8800
		90	5000	10000	—
	250	65	4000	9000	9000
		75	4700	10500	10500
		90	5800	12500	—
	300	75	5400	12100	12100
		90	6200	13500	—
		100	9000	15000	—

Lista numerów części

Liczba pozycji

Dalej

Numer części

Caster Type

[H] Mounting Height

(mm)

Load Range

(daN)

Allowable Load

(daN)

Wheel Material

Mounting Hole Pitch, Longitudinal Direction

(mm)

Mounting Hole Pitch, Transverse Direction

(mm)

Plate Length

(mm)

Plate Width

(mm)

[D] Wheel Diameter

(mm)

Wheel Width B

(mm)

Load Category

RoHS?

Minimalna wielkość zamówienia

Plate Type Swivel	145	80.01 to 140.00	140	[Synthetic Rubber] Synthetic Rubber (General)	104	104	136	136	100	50	Medium Load	10	1 szt.
Plate Type Swivel	145	140.01 to 220.00	180	[Synthetic Rubber] Synthetic Rubber (General)	104	104	136	136	100	65	Medium Load	10	1 szt.
Plate Type Swivel	145	320.01 to 485.00	340	[Urethane] Urethane (General)	104	104	136	136	100	50	Medium Load	10	1 szt.
Plate Type Swivel	178	140.01 to 220.00	180	[Synthetic Rubber] Synthetic Rubber (General)	110	110	142	142	125	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	178	140.01 to 220.00	220	[Synthetic Rubber] Synthetic Rubber (General)	110	110	142	142	125	65	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	178	320.01 to 485.00	400	[Urethane] Urethane (General)	110	110	142	142	125	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	178	320.01 to 485.00	400	[Steel] EN-JS 1040 Equiv.	110	110	142	142	125	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	178	320.01 to 485.00	470	[Steel] EN-JS 1040 Equiv.	110	110	142	142	125	65	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	205	140.01 to 220.00	200	[Synthetic Rubber] Synthetic Rubber (General)	125	125	161	161	150	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	205	220.01 to 320.00	250	[Synthetic Rubber] Synthetic Rubber (General)	125	125	161	161	150	65	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	205	220.01 to 320.00	310	[Synthetic Rubber] Synthetic Rubber (General)	125	125	161	161	150	75	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	205	320.01 to 485.00	425	[Urethane] Urethane (General)	125	125	161	161	150	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	205	485.01 to 750.00	590	[Urethane] Urethane (General)	125	125	161	161	150	65	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	205	485.01 to 750.00	720	[Urethane] Urethane (General)	125	125	161	161	150	75	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	205	320.01 to 485.00	425	[Steel] EN-JS 1040 Equiv.	125	125	161	161	150	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	205	485.01 to 750.00	590	[Steel] EN-JS 1040 Equiv.	125	125	161	161	150	65	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	205	485.01 to 750.00	720	[Steel] EN-JS 1040 Equiv.	125	125	161	161	150	75	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Swivel	260	220.01 to 320.00	270	[Synthetic Rubber] Synthetic Rubber (General)	136	136	172	172	200	50	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	260	220.01 to 320.00	320	[Synthetic Rubber] Synthetic Rubber (General)	136	136	172	172	200	65	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	260	320.01 to 485.00	380	[Synthetic Rubber] Synthetic Rubber (General)	136	136	172	172	200	75	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	260	485.01 to 750.00	500	[Synthetic Rubber] Synthetic Rubber (General)	136	136	172	172	200	90	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	260	485.01 to 750.00	650	[Urethane] Urethane (General)	136	136	172	172	200	50	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	260	485.01 to 750.00	720	[Urethane] Urethane (General)	136	136	172	172	200	65	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	260	750.01 or More	880	[Urethane] Urethane (General)	136	136	172	172	200	75	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	260	750.01 or More	1000	[Urethane] Urethane (General)	136	136	172	172	200	90	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	260	750.01 or More	880	[Steel] EN-JS 1040 Equiv.	136	136	172	172	200	75	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	315	320.01 to 485.00	400	[Synthetic Rubber] Synthetic Rubber (General)	155	155	195	195	250	65	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	315	320.01 to 485.00	470	[Synthetic Rubber] Synthetic Rubber (General)	155	155	195	195	250	75	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	315	485.01 to 750.00	580	[Synthetic Rubber] Synthetic Rubber (General)	155	155	195	195	250	90	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	315	750.01 or More	900	[Urethane] Urethane (General)	155	155	195	195	250	65	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	315	750.01 or More	1050	[Urethane] Urethane (General)	155	155	195	195	250	75	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	315	750.01 or More	1250	[Urethane] Urethane (General)	155	155	195	195	250	90	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	315	750.01 or More	900	[Steel] EN-JS 1040 Equiv.	155	155	195	195	250	65	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	315	750.01 or More	1050	[Steel] EN-JS 1040 Equiv.	155	155	195	195	250	75	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	365	485.01 to 750.00	540	[Synthetic Rubber] Synthetic Rubber (General)	170	170	210	210	300	75	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	365	485.01 to 750.00	620	[Synthetic Rubber] Synthetic Rubber (General)	170	170	210	210	300	90	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	360	750.01 or More	900	[Synthetic Rubber] Synthetic Rubber (General)	170	170	212	212	300	100	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	365	750.01 or More	1210	[Urethane] Urethane (General)	170	170	210	210	300	75	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	365	750.01 or More	1350	[Urethane] Urethane (General)	170	170	210	210	300	90	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	360	750.01 or More	1500	[Urethane] Urethane (General)	170	170	212	212	300	100	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Swivel	365	750.01 or More	1210	[Steel] EN-JS 1040 Equiv.	170	170	210	210	300	75	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Fixed	145	80.01 to 140.00	140	[Synthetic Rubber] Synthetic Rubber (General)	124	64	150	99	100	50	Medium Load	10	1 szt.
Plate Type Fixed	145	140.01 to 220.00	180	[Synthetic Rubber] Synthetic Rubber (General)	125	78	150	103	100	65	Medium Load	10	1 szt.
Plate Type Fixed	145	320.01 to 485.00	340	[Urethane] Urethane (General)	124	64	150	99	100	50	Medium Load	10	1 szt.
Plate Type Fixed	178	140.01 to 220.00	180	[Synthetic Rubber] Synthetic Rubber (General)	140	64	166	90	125	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	178	140.01 to 220.00	220	[Synthetic Rubber] Synthetic Rubber (General)	140	78	165	104	125	65	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	178	320.01 to 485.00	400	[Urethane] Urethane (General)	140	64	166	90	125	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	178	320.01 to 485.00	400	[Steel] EN-JS 1040 Equiv.	140	64	166	90	125	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	178	320.01 to 485.00	470	[Steel] EN-JS 1040 Equiv.	140	78	165	104	125	65	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	205	140.01 to 220.00	200	[Synthetic Rubber] Synthetic Rubber (General)	152	64	188	98	150	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	205	220.01 to 320.00	250	[Synthetic Rubber] Synthetic Rubber (General)	152	78	188	113	150	65	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	205	220.01 to 320.00	310	[Synthetic Rubber] Synthetic Rubber (General)	152	86	188	121	150	75	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	205	320.01 to 485.00	425	[Urethane] Urethane (General)	152	64	188	98	150	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	205	485.01 to 750.00	590	[Urethane] Urethane (General)	152	78	188	113	150	65	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	205	485.01 to 750.00	720	[Urethane] Urethane (General)	152	86	188	121	150	75	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	205	320.01 to 485.00	425	[Steel] EN-JS 1040 Equiv.	152	64	188	98	150	50	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	205	485.01 to 750.00	590	[Steel] EN-JS 1040 Equiv.	152	78	188	113	150	65	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	205	485.01 to 750.00	720	[Steel] EN-JS 1040 Equiv.	152	86	188	121	150	75	[Heavy Load] Heavy Load	10	1 szt.
Plate Type Fixed	260	220.01 to 320.00	270	[Synthetic Rubber] Synthetic Rubber (General)	174	64	209	99	200	50	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.
Plate Type Fixed	260	220.01 to 320.00	320	[Synthetic Rubber] Synthetic Rubber (General)	174	78	209	115	200	65	[Ultra Heavy Load] Ultra Heavy Load	10	1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

56.17 € ( 66.84 € )	10 dni robocze
59.95 € ( 71.34 € )	10 dni robocze
74.81 € ( 89.02 € )	10 dni robocze
79.59 € ( 94.71 € )	10 dni robocze
85.01 € ( 101.16 € )	10 dni robocze
92.07 € ( 109.56 € )	10 dni robocze
77.96 € ( 92.77 € )	10 dni robocze
83.50 € ( 99.36 € )	10 dni robocze
92.70 € ( 110.31 € )	10 dni robocze
101.26 € ( 120.50 € )	10 dni robocze
106.68 € ( 126.95 € )	10 dni robocze
113.22 € ( 134.73 € )	10 dni robocze
124.79 € ( 148.50 € )	10 dni robocze
135.13 € ( 160.80 € )	10 dni robocze
95.58 € ( 113.74 € )	10 dni robocze
102.76 € ( 122.28 € )	10 dni robocze
110.70 € ( 131.73 € )	10 dni robocze
122.67 € ( 145.98 € )	10 dni robocze
138.29 € ( 164.57 € )	10 dni robocze
145.58 € ( 173.24 € )	12 dni robocze
160.19 € ( 190.63 € )	12 dni robocze
160.32 € ( 190.78 € )	10 dni robocze
176.32 € ( 209.82 € )	10 dni robocze
193.44 € ( 230.19 € )	12 dni robocze
285.64 € ( 339.91 € )	10 dni robocze
147.73 € ( 175.80 € )	12 dni robocze
198.10 € ( 235.74 € )	10 dni robocze
207.04 € ( 246.38 € )	10 dni robocze
222.67 € ( 264.98 € )	12 dni robocze
282.35 € ( 336.00 € )	10 dni robocze
293.82 € ( 349.65 € )	10 dni robocze
368.63 € ( 438.67 € )	10 dni robocze
196.71 € ( 234.08 € )	10 dni robocze
202.13 € ( 240.53 € )	10 dni robocze
255.90 € ( 304.52 € )	10 dni robocze
275.19 € ( 327.48 € )	10 dni robocze
376.69 € ( 448.26 € )	10 dni robocze
404.15 € ( 480.94 € )	10 dni robocze
435.76 € ( 518.55 € )	10 dni robocze
611.06 € ( 727.16 € )	10 dni robocze
245.46 € ( 292.10 € )	10 dni robocze
38.54 € ( 45.86 € )	10 dni robocze
43.32 € ( 51.55 € )	10 dni robocze
57.04 € ( 67.88 € )	10 dni robocze
59.06 € ( 70.28 € )	10 dni robocze
65.23 € ( 77.62 € )	10 dni robocze
71.29 € ( 84.84 € )	10 dni robocze
57.31 € ( 68.20 € )	10 dni robocze
63.48 € ( 75.54 € )	10 dni robocze
67.37 € ( 80.17 € )	10 dni robocze
76.57 € ( 91.12 € )	10 dni robocze
82.74 € ( 98.46 € )	10 dni robocze
87.79 € ( 104.47 € )	10 dni robocze
100.13 € ( 119.15 € )	10 dni robocze
111.33 € ( 132.48 € )	10 dni robocze
102.52 € ( 122.00 € )	10 dni robocze
78.08 € ( 92.92 € )	10 dni robocze
87.28 € ( 103.86 € )	10 dni robocze
86.02 € ( 102.36 € )	10 dni robocze
102.76 € ( 122.28 € )	10 dni robocze
