Silicon Rubber / Urethane Molded Bearings / Flat / with Threaded Shaft(Lista numerów części: str. 5)

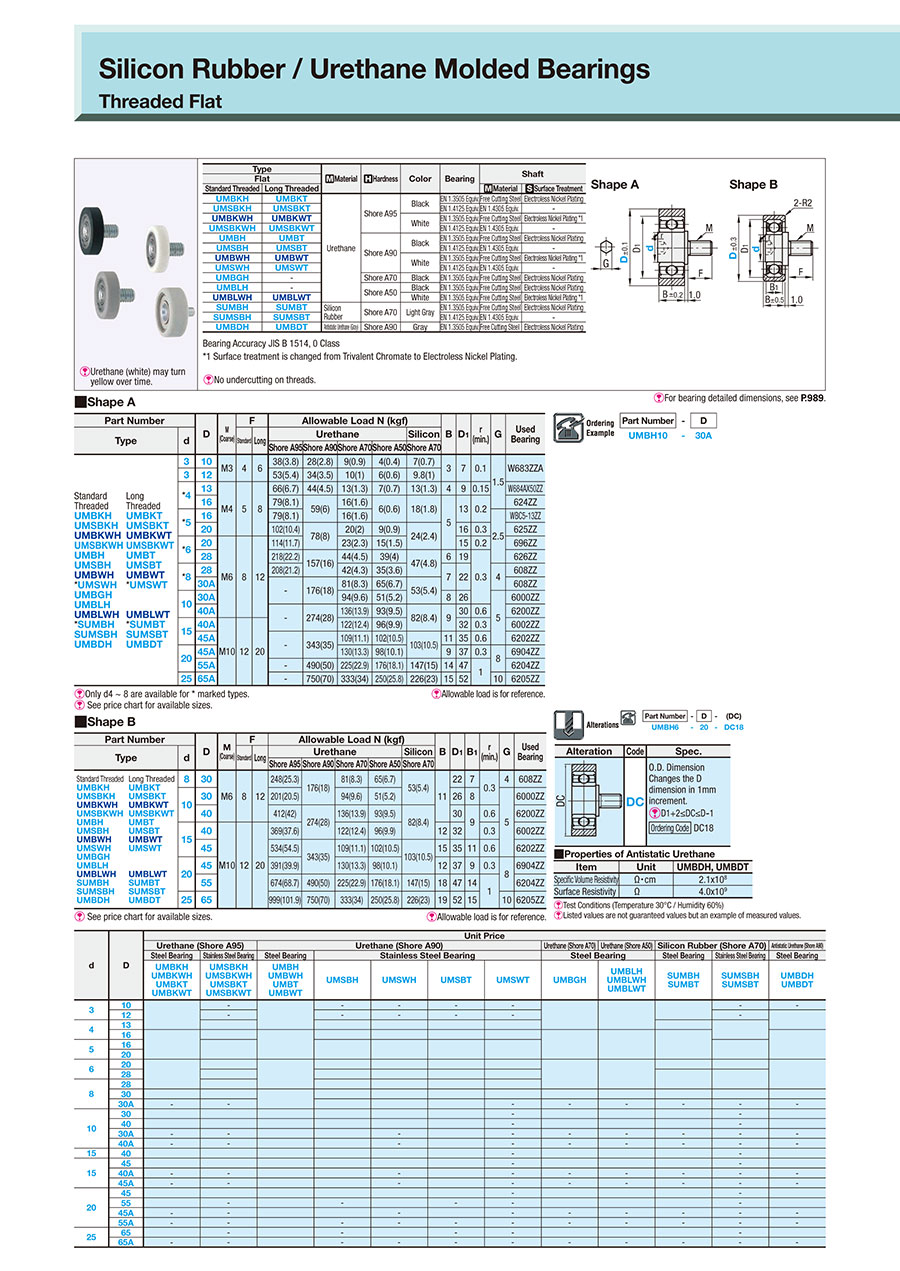

KatalogS. 1-1153

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 432.

Rysunek konturowy i tabela specyfikacji
Lista numerów części
Szczegółowe informacje
Katalog

Rysunek konturowy i tabela specyfikacji

Silicon Rubber/Urethane Molded Bearings/Flat/with Threaded Shaft:Related Image

Type		Material	Hardness	Color	Bearing	Shaft
Flat						Shaft
Standard Threaded	Long Threaded					Material	Surface Treatment
UMBKH	UMBKT	Urethane	Shore A95	Black	EN 1.3505 Equiv.	Free Cutting Steel	Electroless Nickel Plating
UMSBKH	UMSBKT			Black	EN 1.4125 Equiv.	EN 1.4305 Equiv.	-
UMBKWH	UMBKWT			White	EN 1.3505 Equiv.	Free Cutting Steel	Electroless Nickel Plating *1
UMSBKWH	UMSBKWT			White	EN 1.4125 Equiv.	EN 1.4305 Equiv.	-
UMBH	UMBT		Shore A90	Black	EN 1.3505 Equiv.	Free Cutting Steel	Electroless Nickel Plating
UMSBH	UMSBT			Black	EN 1.4125 Equiv.	EN 1.4305 Equiv.	-
UMBWH	UMBWT			White	EN 1.3505 Equiv.	Free Cutting Steel	Electroless Nickel Plating *1
UMSWH	UMSWT			White	EN 1.4125 Equiv.	EN 1.4305 Equiv.	-
UMBGH	-		Shore A70	Black	EN 1.3505 Equiv.	Free Cutting Steel	Electroless Nickel Plating
UMBLH	-		Shore A50	Black	EN 1.3505 Equiv.	Free Cutting Steel	Electroless Nickel Plating
UMBLWH	UMBLWT		Shore A50	White	EN 1.3505 Equiv.	Free Cutting Steel	Electroless Nickel Plating *1
SUMBH	SUMBT	Silicon Rubber	Shore A70	Light Gray	EN 1.3505 Equiv.	Free Cutting Steel	Electroless Nickel Plating
SUMSBH	SUMSBT	Silicon Rubber	Shore A70	Light Gray	EN 1.4125 Equiv.	EN 1.4305 Equiv.	-
UMBDH	UMBDT	Antistatic Urethane (Gray)	Shore A90	Gray	EN 1.3505 Equiv.	Free Cutting Steel	Electroless Nickel Plating

■Properties of Antistatic Urethane

Item	Unit	UMBDH, UMBDT
Specific Volume Resistivity	Ω • cm	2.1x10⁸
Surface Resistivity	Ω	4.0x10⁹

Test Conditions (Temperature 30°C / Humidity 60%)
Listed values are not guaranteed values but an example of measured values.

Specifications

Part Number	-	D
UMBH10	-	30A

■ Shape A

Part Number			D	M (Coarse)	F		Allowable Load N (kgf)					B	D₁	r (min.)	G	Used Bearing
Type		d			Standard	Long	Urethane				Silicon
							Shore A95	Shore A90	Shore A70	Shore A50	Shore A70
Standard Threaded UMBKH UMSBKH UMBKWH UMSBKWH UMBH UMSBH UMBWH UMSWH UMBGH UMBLH UMBLWH SUMBH SUMSBH UMBDH	Long Threaded UMBKT UMSBKT UMBKWT UMSBKWT UMBT UMSBT UMBWT UMSWT UMBLWT SUMBT SUMSBT UMBDT	3	10	M3	4	6	38(3.8)	28(2.8)	9(0.9)	4(0.4)	7(0.7)	3	7	0.1	1.5	W683ZZA
		3	12				53(5.4)	34(3.5)	10(1)	6(0.6)	9.8(1)
		*4	13	M4	5	8	66(6.7)	44(4.5)	13(1.3)	7(0.7)	13(1.3)	4	9	0.15		W684AX50ZZ
			16				79(8.1)	59(6)	16(1.6)	6(0.6)	18(1.8)	5	13	0.2		624ZZ
		*5	16				79(8.1)		16(1.6)						2.5	WBC5-13ZZ
			20				102(10.4)	78(8)	20(2)	9(0.9)	24(2.4)		16	0.3		625ZZ
		*6	20	M6	8	12	114(11.7)		23(2.3)	15(1.5)			15	0.2		696ZZ
			28				218(22.2)	157(16)	44(4.5)	39(4)	47(4.8)	6	19	0.3		626ZZ
		*8	28				208(21.2)		42(4.3)	35(3.6)		7	22		4	608ZZ
			30A				-	176(18)	81(8.3)	65(6.7)	53(5.4)					608ZZ
		10	30A						94(9.6)	51(5.2)		8	26		5	6000ZZ
			40A				-	274(28)	136(13.9)	93(9.5)	82(8.4)	9	30	0.6		6200ZZ
		15	40A	M10	12	20			122(12.4)	96(9.9)			32	0.3		6002ZZ
			45A				-	343(35)	109(11.1)	102(10.5)	103(10.5)	11	35	0.6		6202ZZ
		20	45A						130(13.3)	98(10.1)		9	37	0.3	8	6904ZZ
			55A				-	490(50)	225(22.9)	176(18.1)	147(15)	14	47	1		6204ZZ
		25	65A				-	750(70)	333(34)	250(25.8)	226(23)	15	52		10	6205ZZ

Only d4 ~ 8 are available for * marked types.
See price chart for available sizes.
Allowable load is for reference.

■ Shape B

Part Number			D	M (Coarse)	F		Allowable Load N (kgf)					B	D₁	B₁	r (min.)	G	Used Bearing
Type		d			Standard	Long	Urethane				Silicon
							Shore A95	Shore A90	Shore A70	Shore A50	Shore A70
Standard Threaded UMBKH UMSBKH UMBKWH UMSBKWH UMBH UMSBH UMBWH UMSWH UMBGH UMBLH UMBLWH SUMBH SUMSBH UMBDH	Long Threaded UMBKT UMSBKT UMBKWT UMSBKWT UMBT UMSBT UMBWT UMSWT UMBLWT SUMBT SUMSBT UMBDT	8	30	M6	8	12	248(25.3)	176(18)	81(8.3)	65(6.7)	53(5.4)	11	22	7	0.3	4	608ZZ
		10	30				201(20.5)		94(9.6)	51(5.2)			26	8		5	6000ZZ
			40				412(42)	274(28)	136(13.9)	93(9.5)	82(8.4)		30	9	0.6		6200ZZ
		15	40	M10	12	20	369(37.6)		122(12.4)	96(9.9)		12	32		0.3		6002ZZ
			45				534(54.5)	343(35)	109(11.1)	102(10.5)	103(10.5)	15	35	11	0.6		6202ZZ
		20	45				391(39.9)		130(13.3)	98(10.1)		12	37	9	0.3	8	6904ZZ
			55				674(68.7)	490(50)	225(22.9)	176(18.1)	147(15)	18	47	14	1		6204ZZ
		25	65				999(101.9)	750(70)	333(34)	250(25.8)	226(23)	19	52	15		10	6205ZZ

See price chart for available sizes.
Allowable load is for reference.
