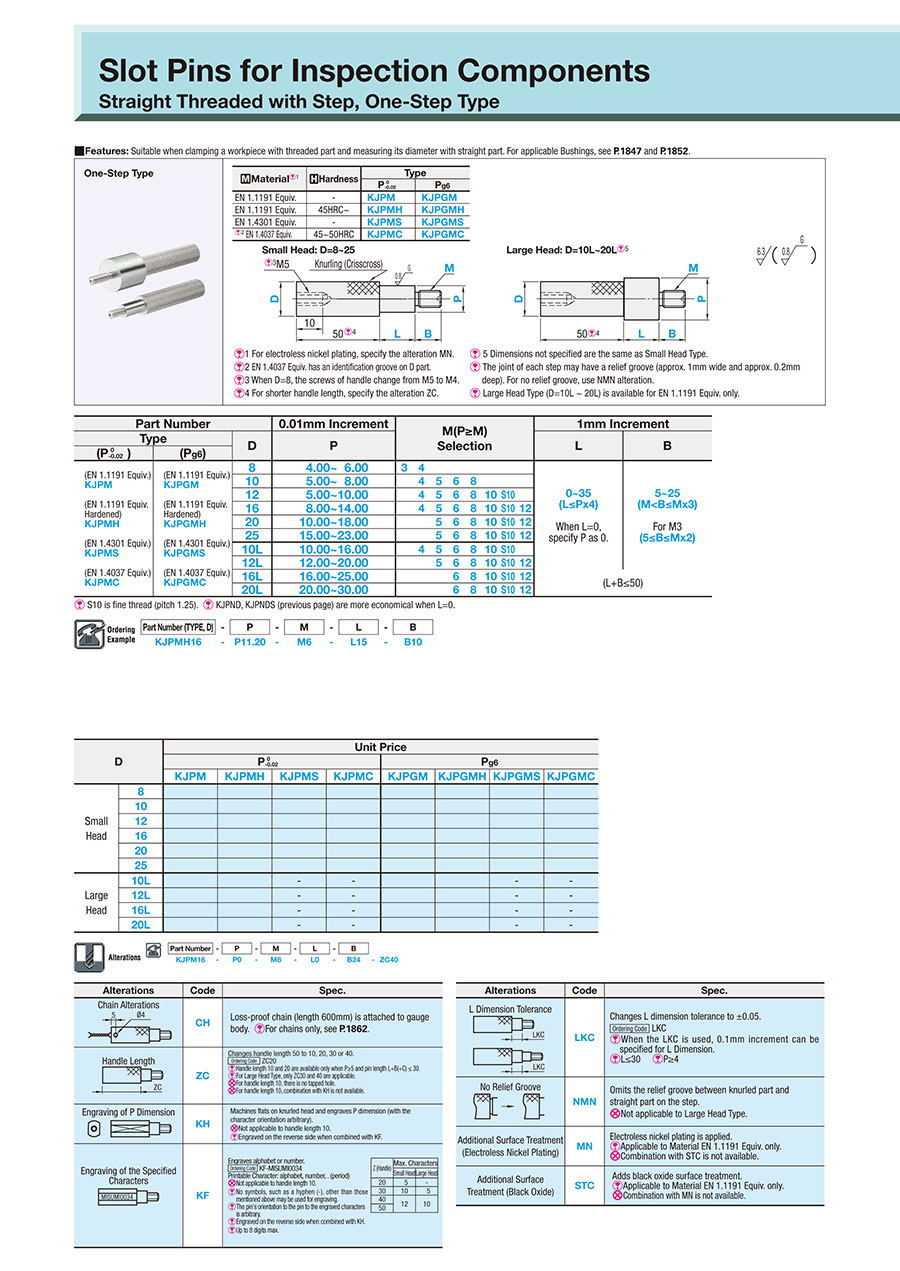

Slot Pins for Inspection Jigs / Stepped and Threaded Type(Lista numerów części: str. 2)
Numer części:
.Rysunek konturowy i tabela specyfikacji
Small Head: D = 8 to 25
Large Head: D = 10 L to 20 L" ! "5
[ ! ]3
[ ! ]6
[ ! ]4
[ ! ]6
[ ! ]4
[ ! ] 2. EN 1.4125 Equiv. or 13Cr stainless steel has an identification groove on D part.
[ ! ] 3. When D = 8, the screws of handle change from M5 to M4.
[ ! ] 4. For shorter handle length, specify the alteration ZC.
[ ! ] 5. Dimensions not specified are the same as those of Small Head Type.
[!] 6. There is a relief groove that is approx. 1 mm wide (approx. 0.2 mm deep). To eliminate relief groove, specify the alteration NMN.
[ ! ] Large Head Type (D = 10 L to 20 L) is available for EN 1.1191 Equiv. only.
[!] This product is hardened for the entire part.
[ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m. However, tapped depth is excluded.
| [M]Material [!] 1 | [H] Hardness | TYPE | |
| P 0 −0.02 | Pg6 | ||
| EN 1.1191 Equiv. | - | KJPM | KJPGM |
| EN 1.1191 Equiv. | 45HRC or more | KJPMH | KJPGMH |
| EN 1.4301 Equiv. | - | KJPMS | KJPGMS |
| [ ! ] 2 EN 1.4125 Equiv. or 13Cr Stainless Steel | 45 to 50HRC | KJPMC | KJPGMC |
Specification Table
| Part Number (TYPE·D) | — | P | — | M | — | L | — | B |
| KJPMH16 | — | P11.20 | — | M6 | — | L15 | — | B10 |
| Part Number | 0.01 mm Increments | M (P ≥ M) Selection | 1 mm Increments | ||||||||||
| Type | D | P | L | B | |||||||||
| (P 0 −0.02) | (Pg6) | ||||||||||||
| (EN 1.1191 Equiv.) KJPM (EN 1.1191 Equiv. (hardened)) KJPMH (EN 1.4301 Equiv.) KJPMS (EN 1.4125 Equiv. or 13Cr Stainless Steel) KJPMC | (EN 1.1191 Equiv.) KJPGM (EN 1.1191 Equiv. (hardened)) KJPGMH (EN 1.4301 Equiv.) KJPGMS (EN 1.4125 Equiv. or 13Cr Stainless Steel) KJPGMC | 8 | 4.00 to 6.00 | 3 | 4 | 0 2 to 35 (L ≤ P × 4) When L = 0, Specify P = 0. | 5 to 25 (M < B ≤ M × 3) For M3 (5 ≤ B ≤ M × 2) | ||||||
| 10 | 5.00 to 8.00 | 4 | 5 | 6 | 8 | ||||||||
| 12 | 5.00 to 10.00 | 4 | 5 | 6 | 8 | 10 | S10 | ||||||
| 16 | 8.00 to 14.00 | 4 | 5 | 6 | 8 | 10 | S10 | 12 | |||||
| 20 | 10.00 to 18.00 | 5 | 6 | 8 | 10 | S10 | 12 | ||||||
| 25 | 15.00 to 23.00 | 5 | 6 | 8 | 10 | S10 | 12 | ||||||
| 10 L | 10.00 to 16.00 | 4 | 5 | 6 | 8 | 10 | S10 | ||||||
| 12 L | 12.00 to 20.00 | 5 | 6 | 8 | 10 | S10 | 12 | ||||||
| 16 L | 16.00 to 25.00 | 6 | 8 | 10 | S10 | 12 | (L+B ≤ 50) | ||||||
| 20 L | 20.00 to 30.00 | 6 | 8 | 10 | S10 | 12 | |||||||
Alterations
| Part Number | — | P | — | M | — | L | — | B | ||
| KJPM16 | — | P0 | — | M8 | — | L0 | — | B24 | — | ZC40 |
| Alterations | Code | Spec. | |||||||||||||||
Chain | CH | Loss-proof chain (length 600 mm) is attached to gauge body. | |||||||||||||||
Handle Length | ZC | Changes handle length 50 to 10, 20, 30 or 40. Ordering Code ZC20 [ ! ] Handle length 10 and 20 are available only when P ≥ 5 and pin length L + B (+ C) ≤ 30. [ ! ] For Large Head Type, only ZC30 and 40 are applicable[ NG ] For handle length 10, there is no tapped hole. [ NG ] For handle length 10, combination with KH is not available. | |||||||||||||||
Engraving of P Dimension | KH | Machines flats on knurled head and engraves P dimension (with the character orientation arbitrary). [ NG ] Not applicable to handle length 10 [ ! ] Engraved on the reverse side when combined with KF | |||||||||||||||
Engraving of the Specified Characters | KF | Engraves alphabet or number. Ordering Code KF-MISUMI0034 Printable Character: alphabet, number, . (period) [ NG ] Not applicable to handle length 10 [ ! ] No symbols, such as a hyphen (-), other than those mentioned above may be used for engraving. [ ! ] The pin's orientation toward the engraved characters is arbitrary. [ ! ] Engraved on the reverse side when combined with KH. [ ! ] Up to 8 digits max.
| |||||||||||||||
| Alterations | Code | Spec. |
L Dimension Tolerance | LKC | Changes L dimension tolerance to ±0.05. Ordering Code LKC [ ! ] When the LKC is used, L Dimension can be configured in 0.1 mm increments [ ! ]L ≤ 30 [ ! ]P ≥ 4 |
No Relief Groove | NMN | Omits the relief groove between knurled part and straight part on the step. [ NG ] Not applicable to Large Head Type |
| Additional Surface Treatment (Electroless Nickel Plating) | MN | Electroless nickel plating is applied. [ ! ] Applicable to Material EN 1.1191 Equiv. only [ NG ] Combination with STC is not available. |
| Additional Surface Treatment (Black Oxide) | STC | Adds black oxide surface treatment. [ ! ] Applicable to Material EN 1.1191 Equiv. only [ NG ]Combination with MN is not available. |
KF Alteration (Engraving of Specified Characters) Precautions
(1) Please enter the characters you want after "KF-".
(2) Printable characters are alphabets, numbers, and periods (.).
(3) Numbers can be up to 8 characters.
(4) When combining with other alterations, enter KF last.
(5) You cannot use more than 1 period (.).
[Example]
OK: KJPGSH16-P9.34-L30-STT-KH-KF-246625.5020
NG: KJPGSH16-P9.34-L30-STT-KH-KF-246625..5020
NG: KJPGSH16-P9.34-L30-STT-KH-KF-246.625.5020
(2) Printable characters are alphabets, numbers, and periods (.).
(3) Numbers can be up to 8 characters.
(4) When combining with other alterations, enter KF last.
(5) You cannot use more than 1 period (.).
[Example]
OK: KJPGSH16-P9.34-L30-STT-KH-KF-246625.5020
NG: KJPGSH16-P9.34-L30-STT-KH-KF-246625..5020
NG: KJPGSH16-P9.34-L30-STT-KH-KF-246.625.5020
