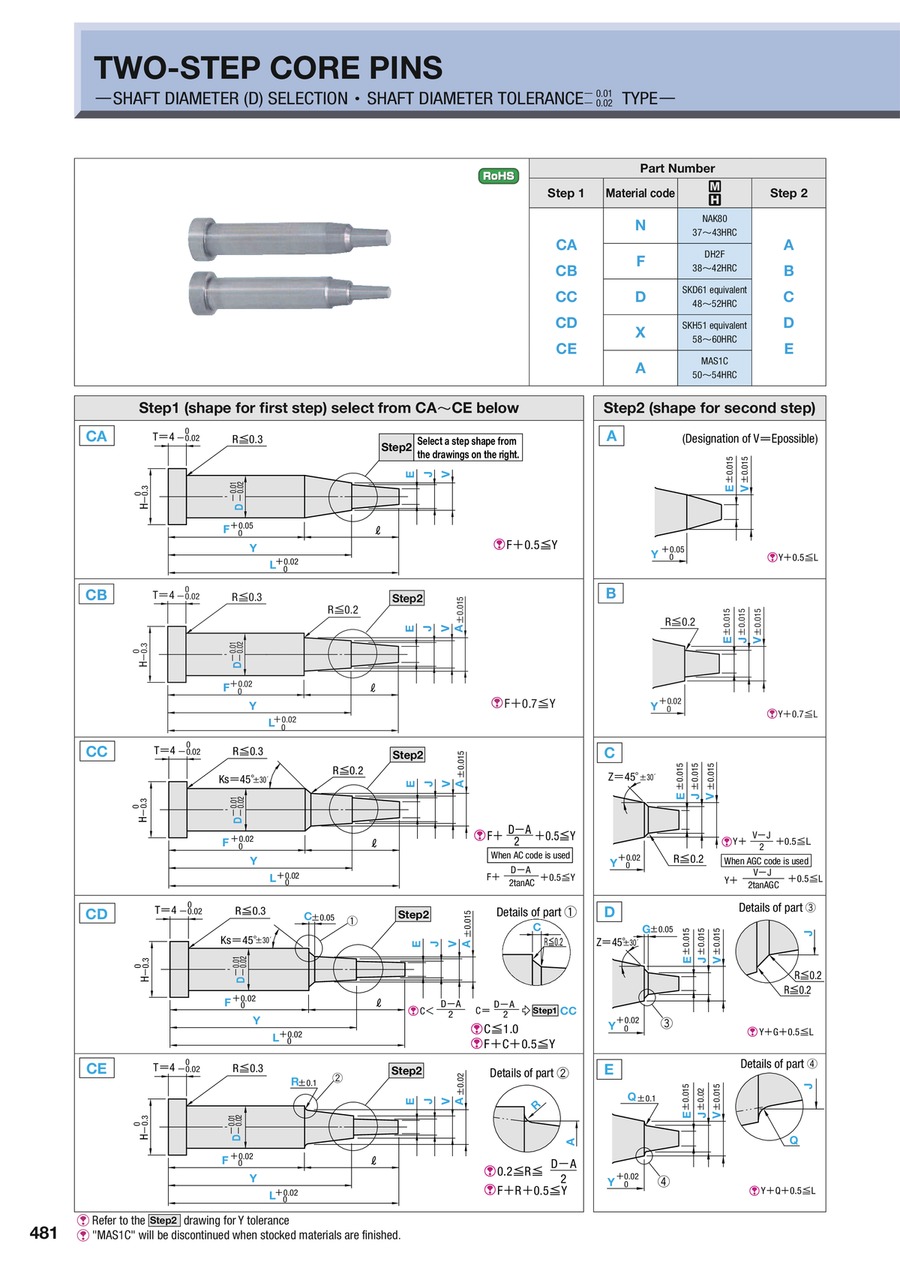

Contour core pins / cylindrical / HSS, tool steel / L 0.01mm / double stepped / conical face shape selectable(Lista numerów części: str. 6)

Material

D/P (Shaft diameter)

(mm)

Step (Step shape of the first step)

Step (Step shape of the second step)

A (Type of the first step diameter)

(mm)

C (First step shape taper width)

(mm)

E (Tip diameter)

(mm)

F (Bearing bore length)

(mm)

G (C chamfering width of the second step shape)

(mm)

J (Type of the second step)

(mm)

L (L dimension)

(mm)

Q (Second step shape R chamfering)

(mm)

R (First step type R)

(mm)

V (Type of the second step)

(mm)

Y

(mm)
