Indexing Plungers (Body Material: Steel Strona 3)

•

  NORELEM

  Indexing plungers, steel or stainless steel with plastic T-grip and locknut (03090)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use· High stability· Ergonomic grip· Material: steel or stainless steel

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Special Knobs	-	-	-	Steel	-	-	12x1.5 ～ 20x1.5	6 ～ 10

  Cena (bez VAT) od:

  9.55 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers ECO, steel or stainless steel, short version with plastic mushroom grip (03090)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use· High stability· Ideal where space is restricted:· Material: steel or stainless steel

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	-	-	-	Steel	-	-	6 ～ 16	3.5 ～ 8

  Cena (bez VAT) od:

  5.00 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers, steel or stainless steel with plastic cam lever and locknut (03090)

  · Simple and quick operation· Suitable for high temperature applications· With integrated detent function

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Lever Type	-	-	-	Steel	-	-	10x1 ～ 20x1.5	5 ～ 10

  Cena (bez VAT) od:

  12.64 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers steel or stainless steel with plastic mushroom grip, locking slot and status sensor, hardwired (03090-20)

  · electronic status monitoring· No interfering edges· short switching distance

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	-	-	-	Steel	-	-	10x1 ～ 20x1.5	5 ～ 12

  Cena (bez VAT) od:

  113.46 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers steel or stainless steel with plastic mushroom grip, locknut, locking slot and status sensor, hardwired (03090-20)

  · electronic status monitoring· No interfering edges· short switching distance

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	-	-	-	Steel	-	-	10x1 ～ 20x1.5	5 ～ 12

  Cena (bez VAT) od:

  113.46 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers, steel with draw hook (03091)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use· High stability

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  W/o Knob	-	-	-	Steel	-	-	6 ～ 16	9.5 ～ 25

  Cena (bez VAT) od:

  6.79 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers, steel or stainless steel with stainless steel pull ring (03092)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use· High stability· Key ring to operate the indexing plungers· Material: steel or stainless steel

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  With Ring	-	-	-	Steel	-	-	8x1 ～ 20x1.5	4 ～ 10

  Cena (bez VAT) od:

  6.25 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers, steel or stainless steel with stainless steel pull ring and locknut (03092)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use· High stability· Key ring to operate the indexing plungers· Material: steel or stainless steel

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  With Ring	-	-	-	Steel	-	-	8x1 ～ 20x1.5	4 ～ 10

  Cena (bez VAT) od:

  6.36 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers, steel or stainless steel, pneumatic (03095)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology· High stability· Automatable· Application temperature: -20 °C to +80 °C

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  W/o Knob	-	-	-	Steel	-	-	20x1.5	10 ～ 15

  Cena (bez VAT) od:

  84.39 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers, steel or stainless steel, without collar, with threaded pin and locknut (03096)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use· High stability· Threaded pins enable the indexing plunger to be operated· Material: steel or stainless steel

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  W/o Knob	-	-	-	Steel	-	-	6x0.75 ～ 24x2	3.5 ～ 16

  Cena (bez VAT) od:

  7.44 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers with grip, Form B and D (03099)

  · Can be used for all types of locking and fixating· The lock is released by turning the grip 180°· Indexing notch for holding the position· Indexing pin hardened

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Lever Type	-	-	-	Steel	-	-	10 ～ 20x1.5	-

  Cena (bez VAT) od:

  14.71 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers ECO, steel or stainless steel, with plastic mushroom grip and locking slot (03089)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use· High stability· Material: steel or stainless steel· Inexpensive version

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	-	-	-	Steel	-	-	6 ～ 12x1.5	3.5 ～ 8

  Cena (bez VAT) od:

  4.55 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers, steel or stainless steel with plastic mushroom grip and thread lock (03089)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use· High stability· The thread lock enables the depth to be adjusted without additional stops· Material: steel or stainless steel

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	-	-	-	Steel	-	-	6x0.75 ～ 24x2	3.5 ～ 16

  Cena (bez VAT) od:

  9.05 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers steel or stainless steel, with plastic eyelet grip, Form A (03089-05)

  · Grip form with good haptics· Controlled actuation in pull direction· Inexpensive version· High stability

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Special Knobs	-	-	-	Steel	-	-	8 ～ 16x1.5	4 ～ 8

  Cena (bez VAT) od:

  9.60 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Cam-action indexing plungers, Form E, without grip cap (03099-10)

  · Turning the grip through 180° retracts the indexing pin.· Smooth sleeve, Connecting option via adapter sleeve· Smooth sleeve, Connecting option via adapter sleeve

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Lever Type	-	-	-	Steel	-	-	-	-

  Cena (bez VAT) od:

  14.63 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Cam-action indexing plungers, Form A, without grip cap or nut (03099-11)

  · Turning the grip through 180° retracts the indexing pin.· Mounted via the external thread.· Mounted via the external thread.

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Lever Type	-	-	-	Steel	-	-	-	-

  Cena (bez VAT) od:

  14.56 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Cam-action indexing plunger, steel with hexagon, Form B (03099-12)

  · Turning the grip through 180° retracts the indexing pin.· Optionally available with coloured plastic grip caps· Sleeves with a hexagon serve as assembly aids

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Lever Type	-	-	-	Steel	-	-	10 ～ 20x1.5	-

  Cena (bez VAT) od:

  16.20 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Cam-action indexing plungers, steel with internal guide, Form A, without grip cap, with nut (03099-35)

  · Turning the grip through 180° retracts the indexing pin.· The closed design prevents dirt from entering the threaded sleeve.· The hexagon on the sleeve facilitates easy installation of the indexing plunger

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Lever Type	-	-	-	Steel	-	-	10x1 ～ 20x1.5	-

  Cena (bez VAT) od:

  17.47 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers, Form A, inch (03089)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use· High stability· Easy handling· Material: steel or stainless steel

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	-	-	-	Steel	-	-	-	3.5 ～ 16

  Cena (bez VAT) od:

  10.81 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Cam-action indexing plungers, Form C, inch (03099)

  · Can be used for all types of locking and fixating· The lock is released by turning the grip 180°· Indexing notch for holding the position· Indexing pin hardened

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Lever Type	-	-	-	Steel	-	-	-	-

  Cena (bez VAT) od:

  19.68 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers with extended indexing pin, Form A, inch (03089)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use· Material: steel or stainless steel

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	-	-	-	Steel	-	-	-	5 ～ 24

  Cena (bez VAT) od:

  11.37 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  NORELEM

  Indexing plungers with extended indexing pin, Form B, inch (03089)

  · Indexing plungers facilitate indexing and locking· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use· High stability· Material: steel or stainless steel

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	-	-	-	Steel	-	-	-	5 ～ 24

  Cena (bez VAT) od:

  11.47 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  KIPP

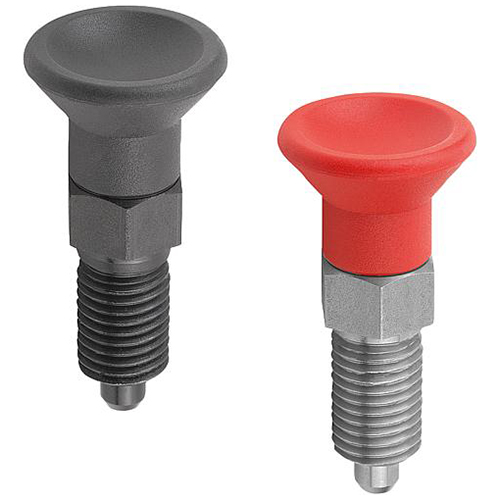

  Indexing plungers, steel or stainless steel with plastic mushroom grip (K0338 A inch)

  Product description: Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. Some examples of this are for length, height and position indexing in machines, equipment, furniture and special vehicle construction. A new indexed position can only be moved to after the pin has been manually retracted. Style C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back. The materials used enable a wide range of applications. Indexing plungers made from A4 stainless steel are recommended for applications with very high corrosion resistance requirements. Material: Steel version: Grub screw and indexing pin steel. Stainless steel version: Indexing pin hardened: Threaded sleeve 1.4305 (AISI 303 equivalent). Indexing pin 1.4034 (AISI 420 equivalent). Indexing pin not hardened: Threaded sleeve 1.4305 (AISI 303 equivalent). Indexing pin 1.4305 (AISI 303 equivalent). Mushroom knob thermoplastic, black-gray or traffic red RAL 3020. Version: Steel version: Threaded sleeve, black oxidised. Indexing pin hardened, ground and black oxidised. Stainless steel version: Threaded sleeve, bright. Indexing pin hardened, ground and bright. Indexing pin not hardened, ground and bright. Note: Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Style C or D is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back. On request: Special versions. Accessory: Spacer rings K0665.

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  -	-	-	-	Steel	-	-	-	-

  Cena (bez VAT) od:

  9.00 €

  Standardowa data wysyłki:

  5 dni robocze

  Konfiguruj
•

  KIPP

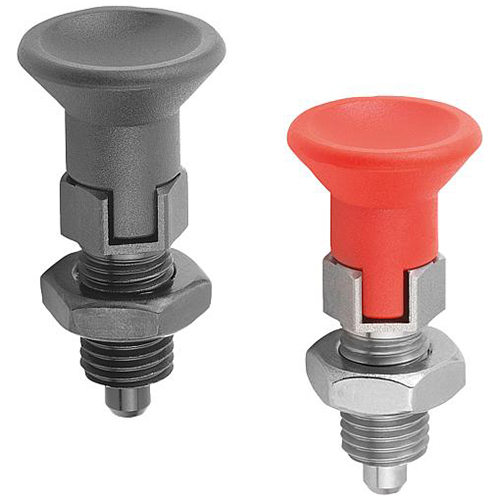

  Indexing plungers, steel or stainless steel with plastic mushroom grip and locking slot (K0338 C inch)

  Product description: Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. Some examples of this are for length, height and position indexing in machines, equipment, furniture and special vehicle construction. A new indexed position can only be moved to after the pin has been manually retracted. Style C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back. The materials used enable a wide range of applications. Indexing plungers made from A4 stainless steel are recommended for applications with very high corrosion resistance requirements. Material: Steel version: Grub screw and indexing pin steel. Stainless steel version: Indexing pin hardened: Threaded sleeve 1.4305 (AISI 303 equivalent). Indexing pin 1.4034 (AISI 420 equivalent). Indexing pin not hardened: Threaded sleeve 1.4305 (AISI 303 equivalent). Indexing pin 1.4305 (AISI 303 equivalent). Mushroom knob thermoplastic, black-gray or traffic red RAL 3020. Version: Steel version: Threaded sleeve, black oxidised. Indexing pin hardened, ground and black oxidised. Stainless steel version: Threaded sleeve, bright. Indexing pin hardened, ground and bright. Indexing pin not hardened, ground and bright. On request: Special versions. Accessory: Spacer rings K0665.

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  -	-	-	-	Steel	-	-	-	-

  Cena (bez VAT) od:

  11.33 €

  Standardowa data wysyłki:

  5 dni robocze

  Konfiguruj
•

  KIPP

  Indexing plungers, steel or stainless steel with plastic mushroom grip and locknut (K0338 B inch)

  Product description: Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. Some examples of this are for length, height and position indexing in machines, equipment, furniture and special vehicle construction. A new indexed position can only be moved to after the pin has been manually retracted. Style C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back. The materials used enable a wide range of applications. Indexing plungers made from A4 stainless steel are recommended for applications with very high corrosion resistance requirements. Material: Steel version: Grub screw and indexing pin steel. Stainless steel version: Indexing pin hardened: Threaded sleeve 1.4305 (AISI 303 equivalent). Indexing pin 1.4034 (AISI 420 equivalent). Indexing pin not hardened: Threaded sleeve 1.4305 (AISI 303 equivalent). Indexing pin 1.4305 (AISI 303 equivalent). Mushroom knob thermoplastic, black-gray or traffic red RAL 3020. Version: Steel version: Threaded sleeve, black oxidised. Indexing pin hardened, ground and black oxidised. Stainless steel version: Threaded sleeve, bright. Indexing pin hardened, ground and bright. Indexing pin not hardened, ground and bright. On request: Special versions. Accessory: Spacer rings K0665.

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  -	-	-	-	Steel	-	-	-	-

  Cena (bez VAT) od:

  9.15 €

  Standardowa data wysyłki:

  5 dni robocze

  Konfiguruj
•

  KIPP

  Indexing plungers, steel or stainless steel with plastic mushroom grip, locking slot and locknut (K0338 D inch)

  Product description: Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. Some examples of this are for length, height and position indexing in machines, equipment, furniture and special vehicle construction. A new indexed position can be only be moved to after the pin has been manually retracted. Style C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back. The materials used enable a wide range of applications. Indexing plungers made from A4 stainless steel are recommended for applications with very high corrosion resistance requirements. Material: Steel version: Grub screw and indexing pin steel. Stainless steel version: Indexing pin hardened: Threaded sleeve 1.4305 (AISI 303 equivalent). Indexing pin 1.4034 (AISI 420 equivalent). Indexing pin not hardened: Threaded sleeve 1.4305 (AISI 303 equivalent). Indexing pin 1.4305 (AISI 303 equivalent). Mushroom knob thermoplastic, black-gray or traffic red RAL 3020. Version: Steel version: Threaded sleeve, black oxidised. Indexing pin hardened, ground and black oxidised. Stainless steel version: Threaded sleeve, bright. Indexing pin hardened, ground and bright. Indexing pin not hardened, ground and bright. On request: Special versions. Accessory: Spacer rings K0665.

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  -	-	-	-	Steel	-	-	-	-

  Cena (bez VAT) od:

  11.45 €

  Standardowa data wysyłki:

  5 dni robocze

  Konfiguruj
•

  KIPP

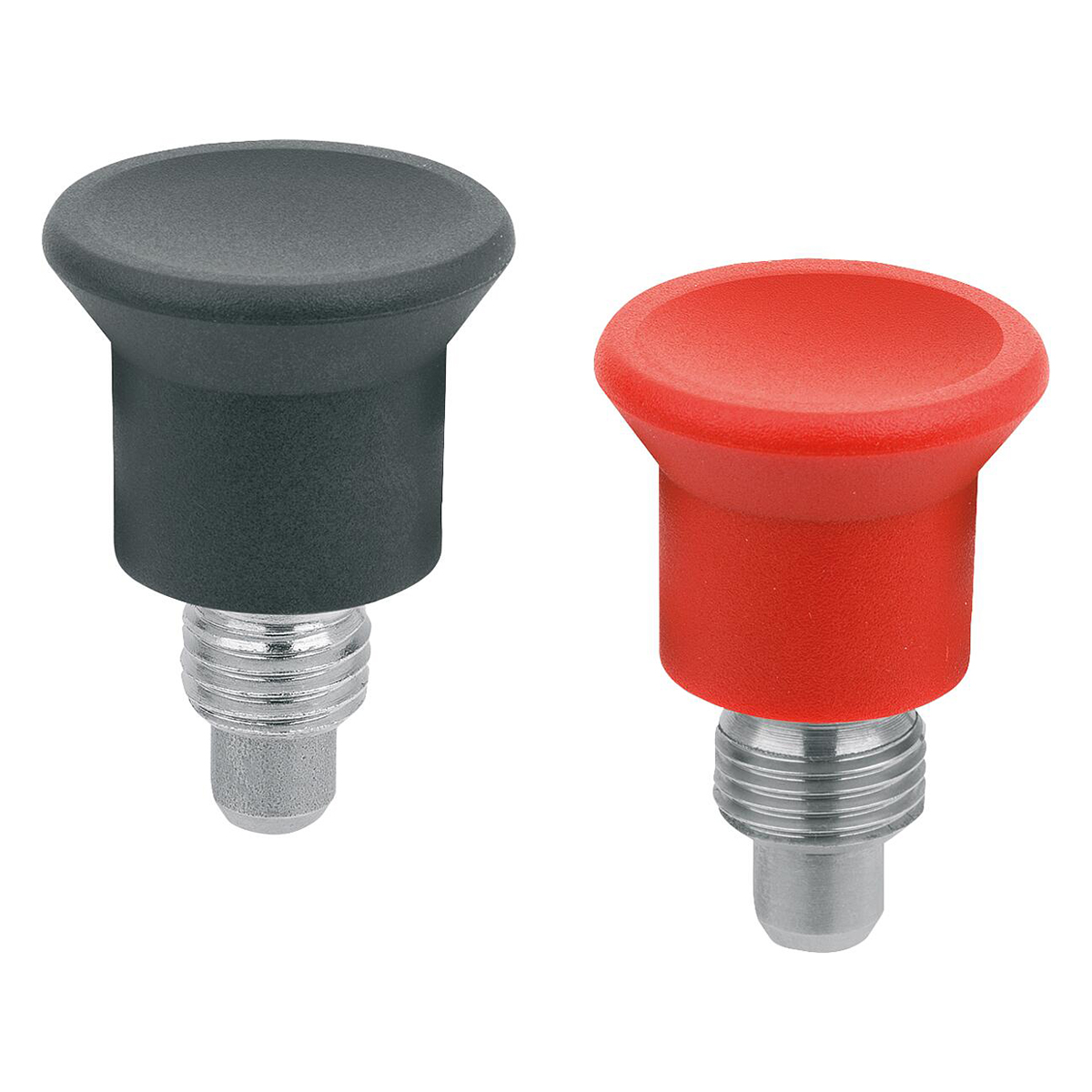

  Indexing plunger mini, steel or stainless steel with plastic mushroom grip and locking slot (K2000 C)

  Product description: Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. Some examples of this are for length, height and position indexing in machines, equipment, furniture and special vehicle construction. Indexing plungers mini enable a wide range of applications, especially in small installation spaces. They are a space-saving and cost-effective alternative to the familiar standard designs. Material: Steel version: Threaded sleeve machining steel. Indexing pin stainless steel 1.4305. Stainless steel version: Threaded sleeve and indexing pin stainless steel 1.4305. Compression spring stainless steel 1.4568. Mushroom grip thermoplastic. Version: Steel version: Threaded sleeve blue passivated. Indexing pin bright. Stainless steel version: Threaded sleeve and indexing pin bright. Type of operation: In Form C, the mushroom grip can be rotated by 30° to hold the indexing pin in pulled position. Assembly: The indexing pin must be pulled out for installation with an open-end spanner. Accessory: Spacer rings K0665. Hexagon nuts, low profile DIN 439 / ISO 4035, K0700. Positioning bushes for indexing plunger K1290.

  Czytaj dalej

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  -	-	-	-	Steel	-	-	-	4 ～ 10

  Cena (bez VAT) od:

  4.11 €

  Standardowa data wysyłki:

  4 dni robocze

  Konfiguruj
•

  • ZNIŻKA
  • Volume Discount
  • Order quantities extended (D-JIT)

  MISUMI

  Indexing Plungers / Resin Knob

  [Features] The pin can be pushed in and out manually with a knob or lever. Suitable for temporary positioning of workpieces.

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	With Locking Nose / Without Locking Nose	Screw-In	Short	Steel	-	Steel	12 ～ 16	6 ～ 8

  Cena (bez VAT) od:

  18.00 €

  Cena specjalna

  Standardowa data wysyłki:

  Towar dostępny w magazynie: 1 dzień roboczy

  Niektóre pozycje mogą zostać wysłane tego samego dnia

  Konfiguruj
•

  • Volume Discount

  IMAO CORPORATION

  Index Plunger (NDX)

  Standard index plunger. Available in steel and stainless steel.

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	Not Provided	Screw-In	Standard	Steel	Not Compliant	Steel	10 ～ 20	5 ～ 10

  Cena (bez VAT) od:

  26.30 €

  Standardowa data wysyłki:

  6 dni robocze

  Konfiguruj
•

  • Volume Discount

  IMAO CORPORATION

  Index Plunger (Short Model Nose Model Lock) (NDXNS-L)

  This has the nose-locking style that keeps the pin in a retracted state. The threaded part is short so it is ideal for mounting to plates and such. [Features]- It is a hand operated index plunger. Pull the knob and the nose retracts and the position release is easily done, let go of the knob and the nose returns to the original state by the force of the internal spring. - The nose locking type can be locked (fixed) by rotating the knob 90° while it is pulled and the nose is retracted. - Recess processing has been performed on the threaded part

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	With Locking Nose	Screw-In	Short	Steel	Not Compliant	Steel	8 ～ 20	4 ～ 10

  Cena (bez VAT) od:

  23.98 €

  Standardowa data wysyłki:

  6 dni robocze

  Konfiguruj
•

  • Volume Discount

  IMAO CORPORATION

  Index Plunger (With No Knob) (NDX-N)

  The operating unit can be remotely operated by connecting with screws. Available in steel and stainless steel. [Features]- A hand operated spring plunger where you pull the knob and the nose retracts to easily release the positioning, while if the knob is released, it reverts to the original state by the force of the internal spring.- If performing remote operation, it can be joined with the operation screw part.

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  W/o Knob	Not Provided	Screw-In	Standard	Steel	Not Compliant	Steel	8 ～ 20	4 ～ 10

  Cena (bez VAT) od:

  21.30 €

  Standardowa data wysyłki:

  8 dni robocze

  Konfiguruj
•

  • Volume Discount

  IMAO CORPORATION

  Index Plunger (Nose Lock Model) (NDXN-L)

  This has the nose-locking style that keeps the pin in a retracted state. Various types are available, including a nose hardening type, a no-bake type and made of stainless steel.. [Features]- It is a hand operated index plunger. Pull the knob and the nose retracts and the position release is easily done, let go of the knob and the nose returns to the original state by the force of the internal spring. - The nose locking type can be locked (fixed) by rotating the knob 90° while it is pulled and the nose is retracted.

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	With Locking Nose	Screw-In	Standard	Steel	Not Compliant	Steel	6 ～ 20	3.5 ～ 10

  Cena (bez VAT) od:

  18.05 €

  Standardowa data wysyłki:

  6 dni robocze

  Konfiguruj
•

  • Volume Discount

  IMAO CORPORATION

  Index Plunger (NDX-L)

  This has the nose-locking style that keeps the pin in a retracted state. Available in steel and stainless steel.

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	With Locking Nose	Screw-In	Standard	Steel	Not Compliant	Steel	10 ～ 20	5 ～ 10

  Cena (bez VAT) od:

  34.24 €

  Standardowa data wysyłki:

  6 dni robocze

  Konfiguruj
•

  • Volume Discount

  IMAO CORPORATION

  Index Plunger (Short Model) (NDXNS)

  The threaded part is short so it is ideal for mounting to plates, etc. [Features]- With the index plunger hand operation, when the knob is pulled the nose retracts but can easily be released. Let go and the nose returns to the original state by means of the internal spring. - Recess processing has been performed on the threaded part

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	Not Provided	Screw-In	Short	Steel	Not Compliant	Steel	8 ～ 20	4 ～ 10

  Cena (bez VAT) od:

  17.83 €

  Standardowa data wysyłki:

  6 dni robocze

  Konfiguruj
•

  • Volume Discount

  IMAO CORPORATION

  Index Plunger (SDX)

  Features- There is no hexagonal part so it can be mounted in a small space.- Mounting is easy by using the special wrench (SDX-Z).- Full thread type

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	Not Provided	Screw-In	Standard	Steel	Not Compliant	Steel	10 ～ 20	5 ～ 10

  Cena (bez VAT) od:

  17.63 €

  Standardowa data wysyłki:

  8 dni robocze

  Konfiguruj
•

  • Volume Discount

  IMAO CORPORATION

  Index Plunger (SDXN)

  No hexagonal part, so can be mounted to conserve space. Can be mounted with special wrench (SDX-Z). [Features]- Hand operated spring plunger. When the knob is pulled the nose retracts but can easily be released. Let go and the nose returns to the original state by means of the internal spring.

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	Not Provided / Without Locking Nose	Screw-In	Standard	Steel	Not Compliant	-	10 ～ 20	5 ～ 10

  Cena (bez VAT) od:

  13.87 €

  Standardowa data wysyłki:

  6 dni robocze

  Konfiguruj
•

  • Volume Discount

  IMAO CORPORATION

  Index Plunger (Long Stroke) (NDXNE)

  As the nose length is long, It can be inserted deeply into the other side. Available in steel and stainless steel. [Features]- With the spring plunger hand operation, when the knob is pulled the nose retracts but can easily be released. Let go and the nose returns to the original state by means of the internal spring.

  Czytaj dalej

  CAD:

  2D

  /3D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	Without Locking Nose	Screw-In	Standard	Steel	Not Compliant	-	6 ～ 20	5 ～ 15

  Cena (bez VAT) od:

  18.83 €

  Standardowa data wysyłki:

  6 dni robocze

  Konfiguruj
•

  NABEYA

  Indexing Plungers

  Rotating the operation knob 90° enables fixation with the pin retracted.[Features]· Pulling and rotating the operation knob 90° enables locking with the pin retracted.· To unlock, pull the operation knob a little and rotate it by 90°.· Returns to its original position via internal spring action

  Czytaj dalej

  CAD:

  2D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	With Locking Nose	Screw-In	Standard	Steel	Not Compliant	Steel	10 ～ 16	5 ～ 8

  Cena (bez VAT) od:

  52.83 €

  Standardowa data wysyłki:

  8 dni robocze

  Konfiguruj
•

  • ZNIŻKA
  • Volume Discount

  KONISHI MFG

  Indexing Plungers Simple Ring Type IPR

  Pulling the ring retracts the center pin; releasing it returns the center pin to its original position by using the force of the spring. Can be used to calculate and select the position of jigs.

  Czytaj dalej

  CAD:

  2D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Special Knobs	Not Provided	Screw-In	Standard	Steel	Not Compliant	Stainless Steel	6 ～ 12	4 ～ 8

  Cena (bez VAT) od:

  16.81 €

  Cena specjalna

  Standardowa data wysyłki:

  Towar dostępny w magazynie: 1 dzień roboczy

  Niektóre pozycje mogą zostać wysłane tego samego dnia

  Konfiguruj
•

  • ZNIŻKA
  • Volume Discount

  KONISHI MFG

  Indexing Plungers Without Hexagonal Collar IPN, IPN-Sus

  Pulling the knob retracts the center pin; releasing it returns it to its original position via spring force. Use to calculate and adjust jig positions. All screws are embedded into the device, only leaving the knob on the surface and making it look more attractive.

  Czytaj dalej

  CAD:

  2D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	Not Provided	Screw-In	Standard	Steel	Not Compliant	Steel	20	10

  Cena (bez VAT) od:

  37.45 €

  Cena specjalna

  Standardowa data wysyłki:

  Towar dostępny w magazynie: 1 dzień roboczy

  Możliwa wysyłka tego samego dnia

  Konfiguruj
•

  • ZNIŻKA
  • Volume Discount

  KONISHI MFG

  Indexing Plunger IP-1

  Pulling the knob retracts the center pin; releasing it returns it to its original position via spring force. Use to calculate and adjust jig positions.

  Czytaj dalej

  CAD:

  2D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Standard Knob	Not Provided	Screw-In	Standard	Steel	Not Compliant	Steel	8 ～ 16	4 ～ 8

  Cena (bez VAT) od:

  12.25 €

  Cena specjalna

  Standardowa data wysyłki:

  Towar dostępny w magazynie: 1 dzień roboczy

  Niektóre pozycje mogą zostać wysłane tego samego dnia

  Konfiguruj
•

  • ZNIŻKA
  • Volume Discount

  KONISHI MFG

  Indexing Plunger IP-6

  Indexing plungers with no tee handle attached to the knob.

  Czytaj dalej

  CAD:

  2D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Special Knobs	Not Provided	Screw-In	Standard	Steel	Not Compliant	Steel	12 ～ 20	6 ～ 10

  Cena (bez VAT) od:

  40.09 €

  Cena specjalna

  Standardowa data wysyłki:

  Towar dostępny w magazynie: 1 dzień roboczy

  Niektóre pozycje mogą zostać wysłane tego samego dnia

  Konfiguruj
•

  KONISHI MFG

  Indexing Plungers IPWN

  Pulling the knob retracts the center pin; releasing it returns it to its original position via spring force. Use to calculate and adjust jig positions when welding or fuse mounting.

  Czytaj dalej

  CAD:

  2D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  W/o Knob	Not Provided	Press Fit	Standard	Steel	Not Compliant	Steel	18	8

  Cena (bez VAT) od:

  41.35 €

  Standardowa data wysyłki:

  8 dni robocze

  Konfiguruj
•

  • Volume Discount

  KONISHI MFG

  Indexing Lever Plungers ILP

  Rotate the lever 180° to retract the center pin and engage the lock. Use to calculate and adjust the position of jigs.

  Czytaj dalej

  CAD:

  2D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  Lever Type	With Locking Nose	Screw-In	Standard	Steel	Not Compliant	Steel	16 ～ 20	10 ～ 12

  Cena (bez VAT) od:

  78.00 €

  Standardowa data wysyłki:

  7 dni robocze

  Konfiguruj
•

  • ZNIŻKA
  • Volume Discount

  KONISHI MFG

  Indexing Plunger IP-3

  This is a buttonless indexing plunger (IP-3). A lock nut is included.

  Czytaj dalej

  CAD:

  2D

  Type	Locking Mechanism	Mounting Method	Overall Length	Body Material	All Stainless	Tip Material	Body O.D./Thread M(mm)	Stroke S(mm)
  W/o Knob	Not Provided	Screw-In	Standard	Steel	Not Compliant	Steel	10 ～ 20	5 ～ 10

  Cena (bez VAT) od:

  17.63 €

  Cena specjalna

  Standardowa data wysyłki:

  Towar dostępny w magazynie: 1 dzień roboczy

  Niektóre pozycje mogą zostać wysłane tego samego dnia

  Konfiguruj
