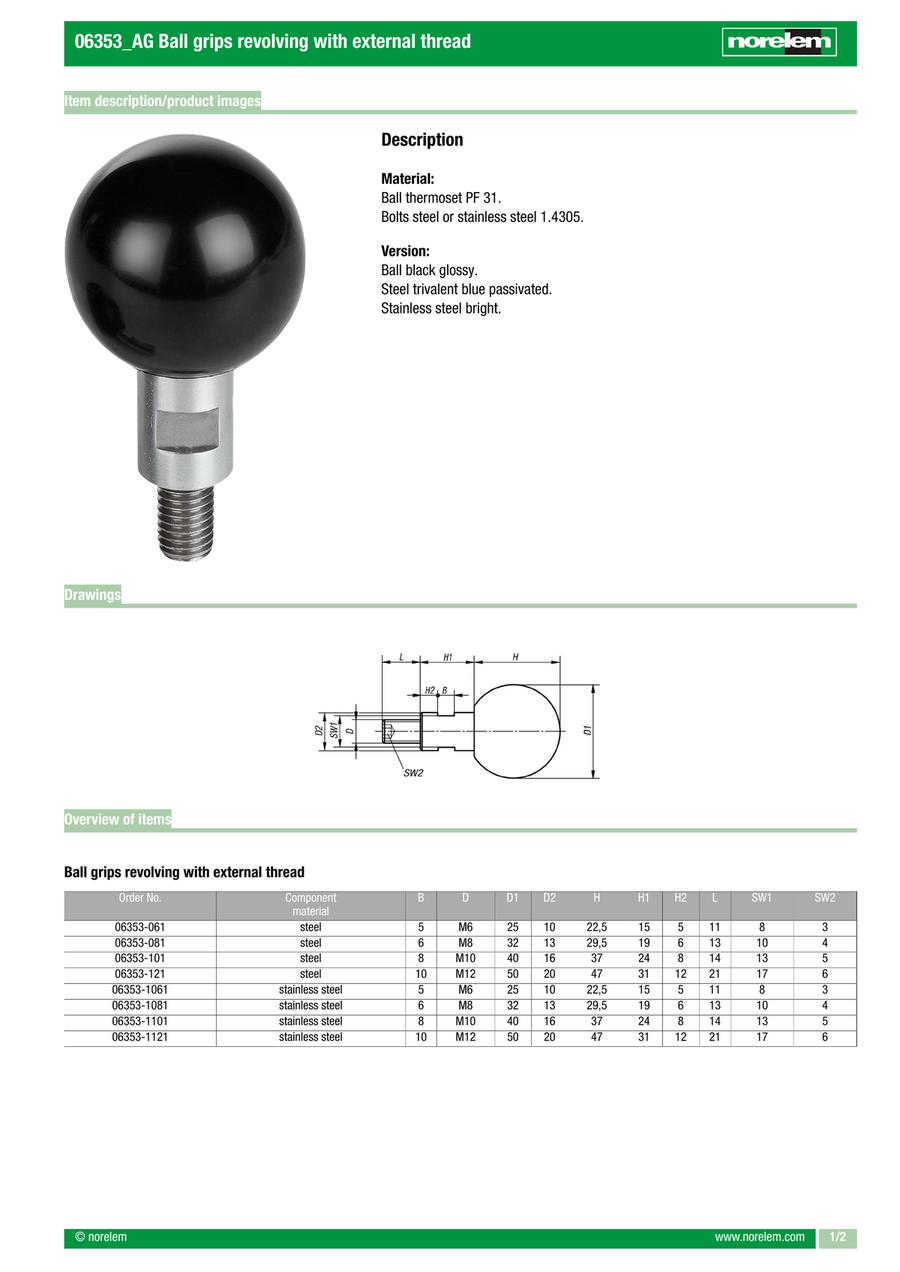

Ball grips revolving with male thread (06353)
· Application fields: machine, plant and fixture construction, toolmaking
· Bushes and pins, steel or stainless steel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06353-061 |
| 06353-081 |
| 06353-101 |
| 06353-1061 |
| 06353-1081 |
| 06353-1101 |
| 06353-1121 |
| 06353-121 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Thread Nominal M | Component material | B (mm) | D1=Outside diameter (mm) | D2 (mm) | H=Height (mm) | H1 (mm) | H2 (mm) | L=thread length (mm) | SW (mm) | SW1 (mm) | SW2 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.71 € | 1 | 4 Days | M6 | Steel | 5 | 25 | 10 | 22.5 | 15 | 5 | 11 | 3 | 8 | 3 | ||
7.92 € | 1 | 4 Days | M8 | Steel | 6 | 32 | 13 | 29.5 | 19 | 6 | 13 | 4 | 10 | 4 | ||
9.05 € | 1 | 4 Days | M10 | Steel | 8 | 40 | 16 | 37 | 24 | 8 | 14 | 5 | 13 | 5 | ||
9.80 € | 1 | 4 Days | M6 | Stainless steel | 5 | 25 | 10 | 22.5 | 15 | 5 | 11 | - | 8 | 3 | ||
11.41 € | 1 | 4 Days | M8 | Stainless steel | 6 | 32 | 13 | 29.5 | 19 | 6 | 13 | - | 10 | 4 | ||
14.85 € | 1 | 4 Days | M10 | Stainless steel | 8 | 40 | 16 | 37 | 24 | 8 | 14 | - | 13 | 5 | ||
18.42 € | 1 | 4 Days | M12 | Stainless steel | 10 | 50 | 20 | 47 | 31 | 12 | 21 | - | 17 | 6 | ||
13.80 € | 1 | 4 Days | M12 | Steel | 10 | 50 | 20 | 47 | 31 | 12 | 21 | 6 | 17 | 6 |
Loading...
Basic information
| Main material | Duroplast |
|---|
Configure
Basic Attributes
-
Thread Nominal M
- M6
- M8
- M10
- M12
-
Component material
- Stainless steel
- Steel
-
B(mm)
- 5
- 6
- 8
- 10
-
D1=Outside diameter(mm)
-
D2(mm)
-
H=Height(mm)
- 22.5
- 29.5
- 37
- 47
-
H1(mm)
- 15
- 19
- 24
- 31
-
H2(mm)
- 5
- 6
- 8
- 12
-
L=thread length(mm)
-
SW(mm)
-
SW1(mm)
- 8
- 10
- 13
- 17
-
SW2(mm)
- 3
- 4
- 5
- 6
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
