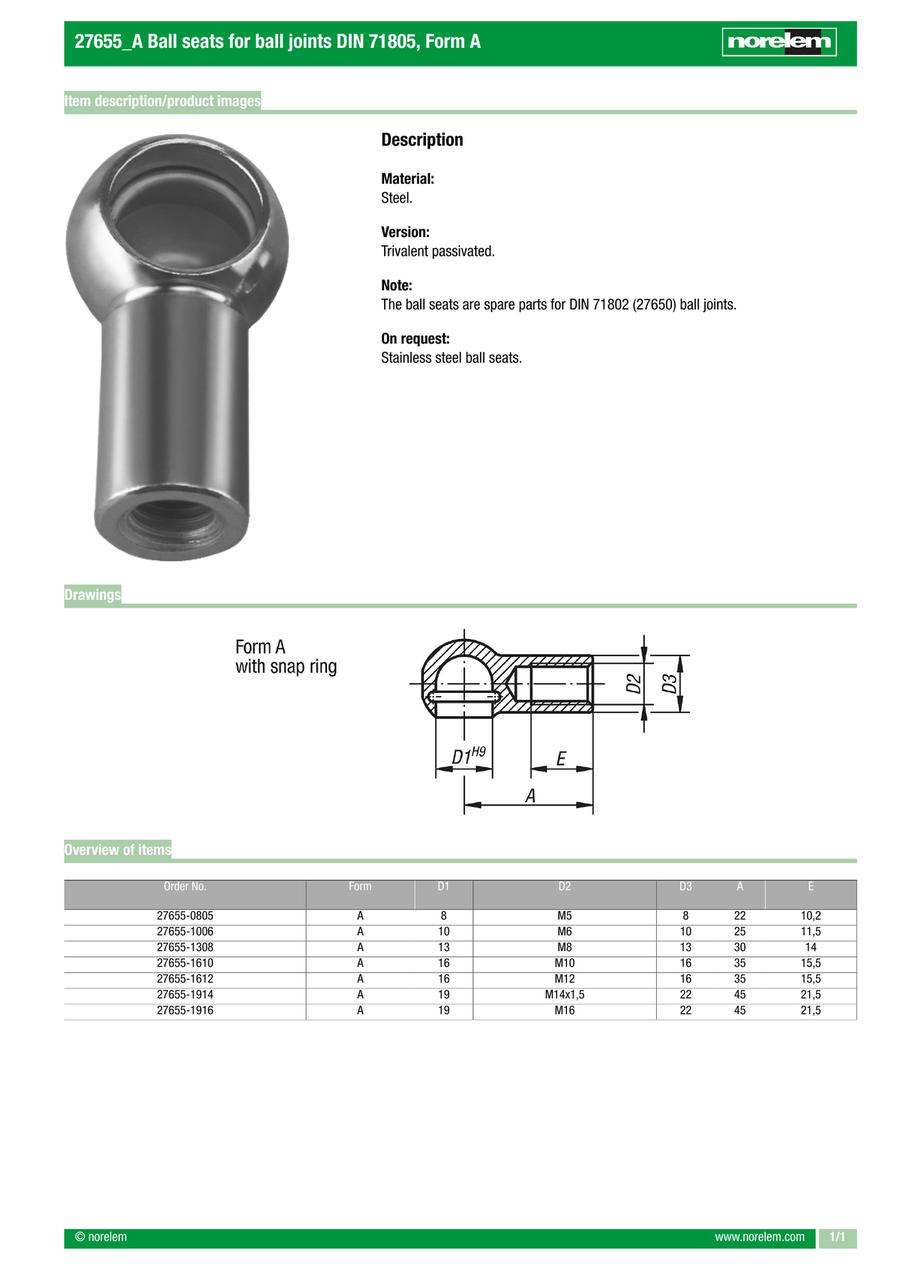

Ball seats for angle joints DIN 71805 Form A (27655)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 27655-0805 |
| 27655-1006 |
| 27655-1308 |
| 27655-1610 |
| 27655-1612 |
| 27655-1914 |
| 27655-1916 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Thread M | A (mm) | D1=Pan (mm) | D2=Thread | D3 (mm) | E (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
0.86 € | 1 | 4 Days | M5 | 22 | 8 | M5 | 8 | 10.2 | ||
0.95 € | 1 | 4 Days | M6 | 25 | 10 | M6 | 10 | 11.5 | ||
1.50 € | 1 | 4 Days | M8 | 30 | 13 | M8 | 13 | 14 | ||
2.35 € | 1 | 4 Days | M10 | 35 | 16 | M10 | 16 | 15.5 | ||
2.65 € | 1 | 4 Days | M12 | 35 | 16 | M12 | 16 | 15.5 | ||
5.66 € | 1 | 4 Days | M14 | 45 | 19 | M14x1,5 | 22 | 21.5 | ||
7.45 € | 1 | 4 Days | M16 | 45 | 19 | M16 | 22 | 21.5 |
Loading...
Basic information
| Main Body Material | Steel | Main material | Steel | Surface finish body | galvanised and passivated |
|---|---|---|---|---|---|
| Form | A |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
