Pressed Steel Swivel Head with Top Plate Fitting, DK-L Series

BLICKLE

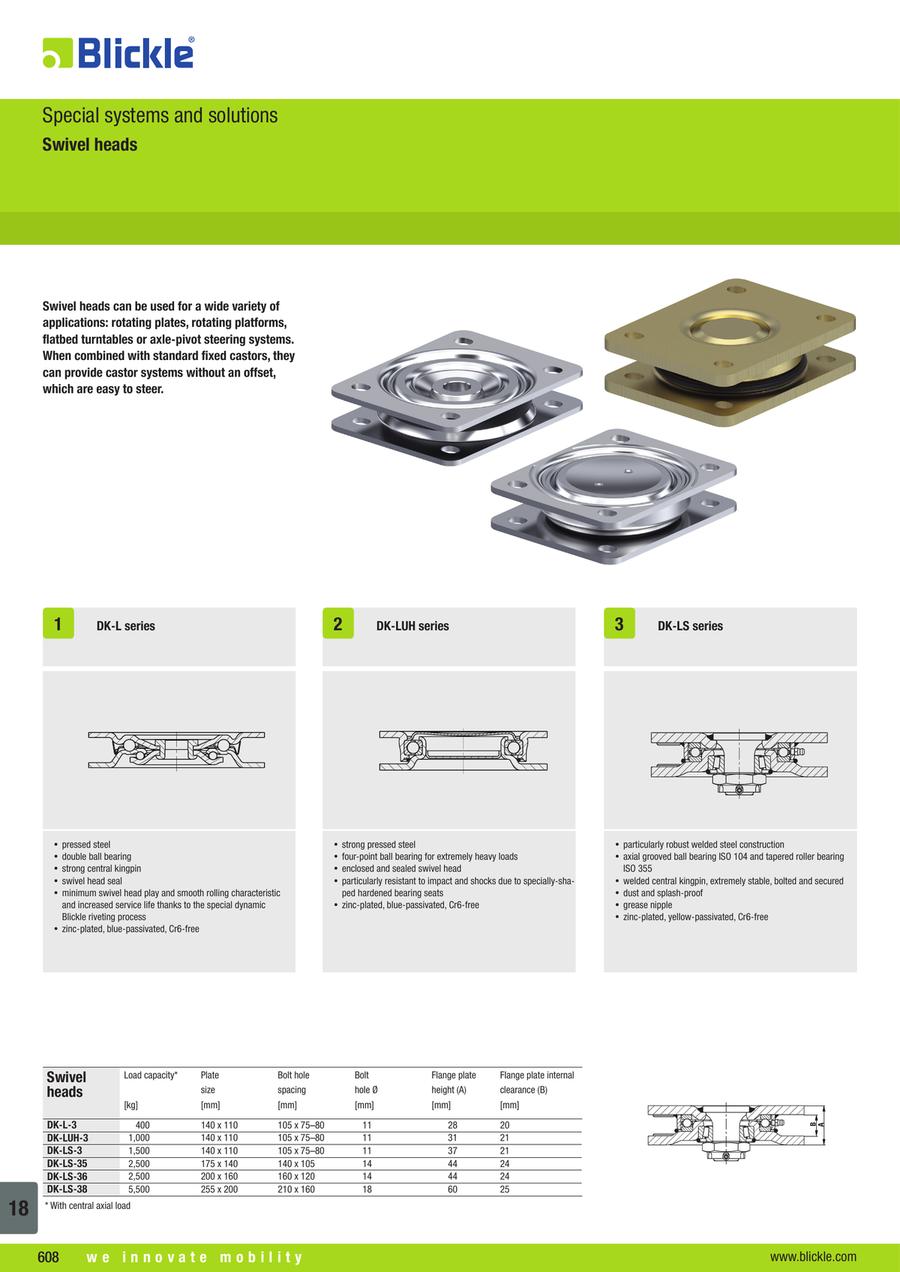

Pressed Steel Swivel Head with Top Plate Fitting

pressed steel
double ball bearing in the swivel head
strong central kingpin
swivel head seal
minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
zinc-plated, blue-passivated, Cr6-free
Combination with a fixed castor results in a swivel castor with no offset
For all applications

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

DK-L-3

Save
Similar products
Product data
CAD data not available

Products homepage

Data to be displayed: 30; 45; 60

Part Number
DK-L-3

Part Number	Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?
	43.94 €	1		5 Days

Basic information

Caster Type	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Related Components / Rotation Type	Mounting Height H(mm)	72	Plate Length L(mm)	140
Plate Width W(mm)	110	Wheel Dia. D(mm)	45	Wheel Width B(mm)	18
Product type	Swivel head	Weight(g)	1145

This page is Pressed Steel Swivel Head with Top Plate Fitting, DK-L Series, part number DK-L-3.
You can find the detail information about specifications and dimensions on part number DK-L-3.
