SMC

Air Cylinder CS2 Series

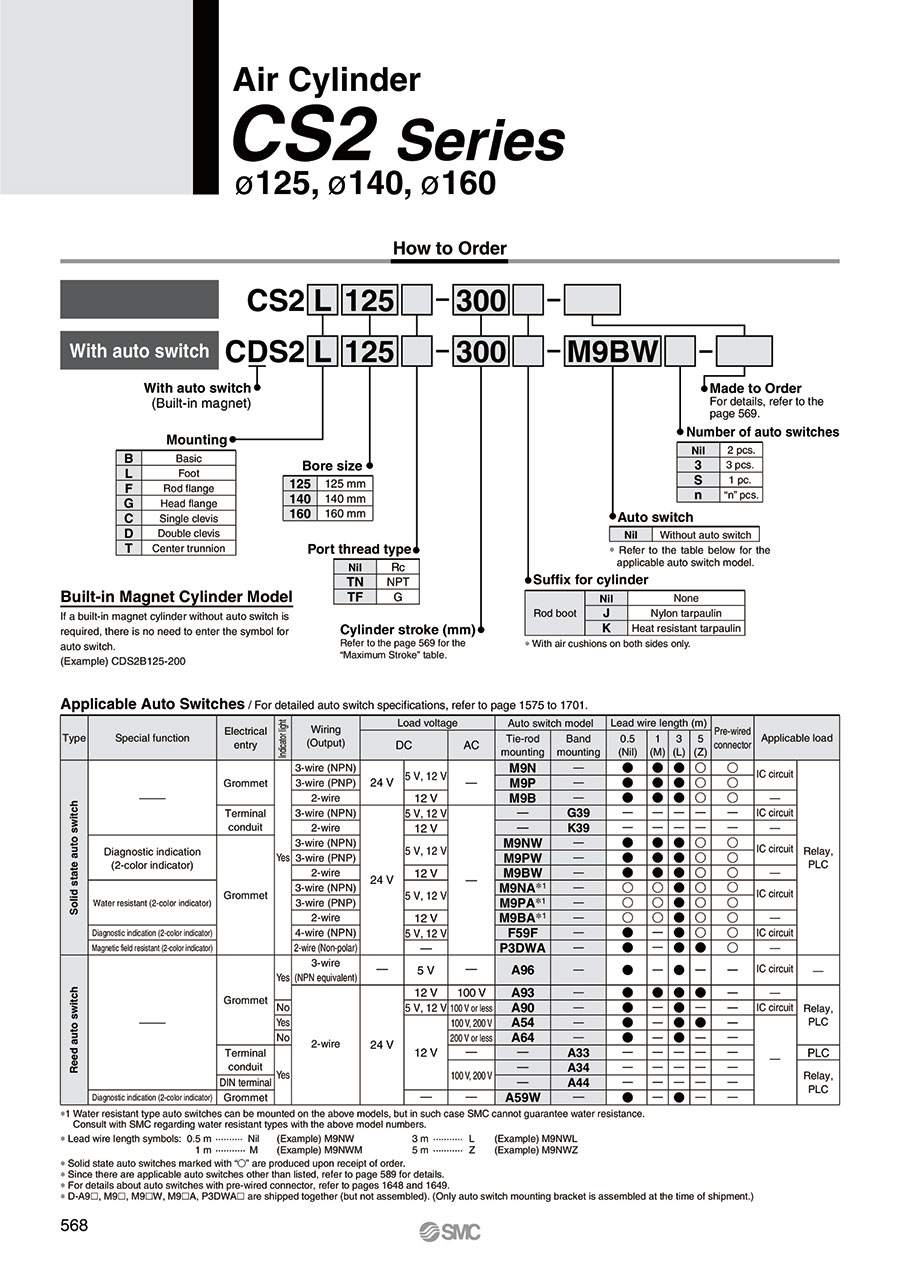

Katalog

Przestroga

See catalog for specification details.
CAD data is not supported for some model numbers.
Product pictures are representations.

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 892.

Informacje o produkcie
Lista numerów części
Szczegółowe informacje
Katalog

Informacje o produkcie

Air Cylinder CS2 Series Specifications

Appearance of air cylinder CS2 series

JIS symbol for air cylinder CS2 series double acting type air cushion

Specifications

Tube Inner Diameter (mm)	125
Action	Double acting, single rod
Fluid	Air
Proof Pressure	1.57 MPa
Maximum operating pressure	0.97 MPa
Minimum operating pressure	0.05 MPa
Piston Speed	50 to 500 mm/s
Cushioning	Air cushion
Ambient and fluid temperature	Without auto switch	0 to 70°C (no freezing)
Ambient and fluid temperature	With auto switch	0 to 60°C (without freezing)
Lubrication	Not required (non-lubricated)
Stroke Length Tolerance (mm)	Stroke	Tolerance
	250 or Less	+1.0 0
	251 to 1,000	+1.4 0
	1,001 to 1,500	+1.8 0
	1,501 to 1,600	+2.2 0
Mounting type	Basic type, foot type, rod-end flange type, head-end flange type Single clevis type, double clevis type, center trunnion type

Maximum Stroke Table

(Units: mm)

Tube inner diameter	Mounting bracket
	Maximum Stroke
	Basic Type / Head Flange Type Single Clevis Type / Double Clevis Type Center trunnion type	Foot type Rod-end flange type
125	1,000 or less	1,600 or less
140	1,000 or less
160	1,200 or less

Structural Drawing

Components

Number	Name	Material	Notes
1	Rod cover	Aluminum diecast	Chromate
2	Head cover	Aluminum diecast	Chromate
3	Cylinder Tube	Aluminum alloy	Hard anodized aluminum
4	Piston	Aluminum alloy	Chromate
5	Piston rod	Carbon steel	Hard chrome plating
6	Bushing	Resin/Copper alloy (Multiple layers)	—
7	Tie-rod	Carbon steel	Zinc chromate
8	Tie-rod nut	Rolled steel	Nickel plated
9	Cushion Ring	Stainless steel	—
10	Cushion valve	Rolled steel	Nickel plated
11	Piston Nut	Carbon steel	Nickel plated
12	Plain washer	Carbon steel	Nickel plated
13	Wear Ring	Resin	—
14	magnet *	—	—
15	Retaining Ring	Spring steel	Phosphate coating
16	Rod packing	NBR	—
17	Cushion Seal	Urethane	—
18	Piston packing	NBR	—
19	Valve packing	NBR	—
20	Tube gasket	NBR	—
21	Piston gasket	NBR	—

*Built-in magnet type with auto switch

Replacement Parts / Seal Kit

Tube Inner Diameter (mm)	Order Number	Details
125	CS2-125A-PS	A set of part numbers (16), (17), (18), (20)
140	CS2-140A-PS
160	CS2-160A-PS

* The seal kit includes a grease pack (40 g).
Order with the following part number when only the grease pack is needed.
Grease pack part number: GR-S-010 (10 g), GR-S-020 (20 g)

* For other external dimensions and specifications, refer to P. 573 of the catalog.

■ Auto switch: For details regarding connector types and pins, please see below.

■ Refer to the table below for details about lead wire / connector specifications.

■ Made-to-order specifications: For details regarding special placement of port locations, please see below.

■Made to Order Specifications: Please refer to the following for details on changing the mounting position of the trunnion bracket.

■Made to Order Specifications: Please refer to the following for details on the rod tip with metal fittings.

Lista numerów części

Liczba pozycji

...

Dalej

Numer części

Cylinder (Tube) Inner Diameter

(Ø)

Stroke

(mm)

Environment, Applications

Specifications

Port thread type

Auto Switch

Lead Wire Length

(m)

Number of Switches

Rod Tip Metal Fitting

Type of Mount Support

Bellows

Custom-made Specifications

Customized specification (port positions)

Connector type

Made-to-order specification (cushion valve position)

Minimalna wielkość zamówienia

125	25	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	30	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	40	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	50	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	80	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	100	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	1,000	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	120	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	120	Standard	-	Rc	None	-	-	-	Basic type	Nylon tarpaulin	None	-	-	-	1 szt.
125	125	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	140	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	150	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	160	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	170	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	175	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	180	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	200	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	220	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	250	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	255	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	300	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	300	Standard	-	Rc	None	-	-	-	Basic type	None	Material: stainless steel (piston rod: with hard chrome plating)	-	-	-	1 szt.
125	320	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	340	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	345	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	350	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	360	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	380	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	400	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	400	Standard	-	Rc	None	-	-	-	Basic type	None	With powerful scraper	-	-	-	1 szt.
125	400	Standard	-	Rc	None	-	-	-	Basic type	Nylon tarpaulin	None	-	-	-	1 szt.
125	460	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	480	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	500	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	550	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	575	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	600	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	650	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	700	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	750	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	75	Standard	Built-in magnet	G	None	-	-	None	Basic type	None	None	None	None	None	1 szt.
125	80	Standard	-	G	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	100	Standard	-	G	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	125	Standard	-	G	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	150	Standard	-	G	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	200	Standard	-	G	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	200	Standard	-	G	None	-	-	-	Basic type	Nylon tarpaulin	None	-	-	-	1 szt.
125	250	Standard	-	G	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	300	Standard	-	G	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	350	Standard	-	G	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	400	Standard	-	G	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
125	500	Standard	Built-in magnet	G	None	-	-	None	Basic type	None	None	None	None	None	1 szt.
140	30	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
140	40	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
140	50	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
140	60	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
140	75	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
140	80	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
140	90	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.
140	100	Standard	-	Rc	None	-	-	-	Basic type	None	None	-	-	-	1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

451.55 € ( 537.34 € )	28 dni robocze
451.55 € ( 537.34 € )	24 dni robocze
451.53 € ( 537.32 € )	7 dni robocze
451.53 € ( 537.32 € )	7 dni robocze
451.55 € ( 537.34 € )	7 dni robocze
451.55 € ( 537.34 € )	28 dni robocze
891.97 € ( 1,061.44 € )	28 dni robocze
476.05 € ( 566.50 € )	28 dni robocze
541.69 € ( 644.61 € )	28 dni robocze
476.05 € ( 566.50 € )	28 dni robocze
476.03 € ( 566.48 € )	17 dni robocze
476.03 € ( 566.48 € )	28 dni robocze
500.48 € ( 595.57 € )	28 dni robocze
500.48 € ( 595.57 € )	28 dni robocze
500.48 € ( 595.57 € )	28 dni robocze
500.48 € ( 595.57 € )	28 dni robocze
500.48 € ( 595.57 € )	11 dni robocze
524.98 € ( 624.73 € )	28 dni robocze
524.98 € ( 624.73 € )	11 dni robocze
549.44 € ( 653.83 € )	28 dni robocze
549.44 € ( 653.83 € )	7 dni robocze
644.76 € ( 767.26 € )	24 dni robocze
573.92 € ( 682.96 € )	28 dni robocze
573.94 € ( 682.99 € )	28 dni robocze
573.92 € ( 682.96 € )	28 dni robocze
573.92 € ( 682.96 € )	7 dni robocze
598.39 € ( 712.08 € )	28 dni robocze
598.39 € ( 712.08 € )	28 dni robocze
598.39 € ( 712.08 € )	11 dni robocze
621.73 € ( 739.86 € )	42 dni robocze
719.65 € ( 856.38 € )	28 dni robocze
647.31 € ( 770.30 € )	28 dni robocze
647.31 € ( 770.30 € )	28 dni robocze
647.31 € ( 770.30 € )	11 dni robocze
696.26 € ( 828.55 € )	28 dni robocze
696.26 € ( 828.55 € )	28 dni robocze
696.26 € ( 828.55 € )	28 dni robocze
745.19 € ( 886.78 € )	28 dni robocze
745.19 € ( 886.78 € )	28 dni robocze
794.15 € ( 945.04 € )	28 dni robocze
451.55 € ( 537.34 € )	28 dni robocze
451.55 € ( 537.34 € )	28 dni robocze
451.55 € ( 537.34 € )	28 dni robocze
476.03 € ( 566.48 € )	28 dni robocze
476.03 € ( 566.48 € )	28 dni robocze
500.48 € ( 595.57 € )	28 dni robocze
577.23 € ( 686.90 € )	28 dni robocze
524.98 € ( 624.73 € )	28 dni robocze
549.44 € ( 653.83 € )	26 dni robocze
573.92 € ( 682.96 € )	28 dni robocze
598.39 € ( 712.08 € )	28 dni robocze
647.31 € ( 770.30 € )	26 dni robocze
538.29 € ( 640.57 € )	28 dni robocze
538.31 € ( 640.59 € )	7 dni robocze
538.31 € ( 640.59 € )	28 dni robocze
538.29 € ( 640.57 € )	28 dni robocze
538.31 € ( 640.59 € )	19 dni robocze
538.29 € ( 640.57 € )	28 dni robocze
538.29 € ( 640.57 € )	11 dni robocze
538.31 € ( 640.59 € )	23 dni robocze

...

Dalej

Szczegółowe informacje

Podstawowe informacje

Podstawowe informacje

[Features]
· Lighter weight makes it possible to reduce device weight
· Die cast rod cover and head cover used for greater weight reduction
· Rod diameter has been changed to suit the application, allowing for greater weight reduction
· Allowable lateral load equal to the CS1 series
· Function remains equal to the CS1 series even if rod diameter is changed to suit the application
· Improved operability after installation
Operability has been improved by placing the piping port and cushion valve operating position on the same side
· Interchangeable with CS1 series
Cylinder mounting dimensions and rod-end thread sizes are interchangeable with the CS1 series
· Maintenance improved by making cushion seals replaceable
· Compact auto switches can be mounted

Przestroga

See catalog for specification details.
CAD data is not supported for some model numbers.
Product pictures are representations.

Katalog

Katalog (arkusz dwustronny)
