Informacje o produkcie

Model Number Notation

Air Cylinder, Non-Rotating Rod Type: Double Acting, Single Rod, CA2K Series Specifications

Appearance of CA2K series

JIS symbol of CA2K series (air cushion)

Tube Inner Diameter (mm)	40	50	63
Fluid	Air
Proof Pressure	1.5 MPa
Maximum operating pressure	1.0 MPa
Minimum operating pressure	0.05 MPa
Ambient and fluid temperature	Without auto switch -10 to 70°C with auto switch -10 to 60°C *
Piston Speed	50 to 500 mm/s
Cushioning	Air cushion
Stroke Length Tolerance	Up to 250^st: (0- + 1.0), 251-600^st: (0 to +1.4)
Rod Non-rotating Accuracy	±0.8°
Allowable rotational torque	0.44N·m or Less
Lubrication	Not required (non-lubricated)
Mounting type	Basic type, axial foot type, rod-end flange type, head-end flange type, single clevis type, double clevis type, center trunnion type

*No freezing.

Weight Table

(Unit: kg)

Tube Inner Diameter (mm)		40	50	63
Basic weight	Basic Type	0.88	1.32	1.91
	Axial foot type	1.07	1.54	2.25
	Flange	1.25	1.77	2.70
	Single clevis	1.11	1.66	2.54
	Double clevis type	1.15	1.75	2.70
	Trunnion type	1.24	1.80	2.71
Additional weight per 50 mm of stroke		0.20	0.25	0.30
Accessories	Single knuckle joint	0.23	0.26	0.26
Accessories	Double knuckle joint (with pin)	0.37	0.43	0.43

Calculation

(Example) CA2KL40-100

Basic weight: 1.07 (Axial foot type ⌀40 (tube inner diameter 40 mm))
Additional weight: 0.20 / 50 stroke
Cylinder stroke: 100 stroke

1.07 + 0.20 x 100/50 = 1.47 kg

Rod Boot Material

Rod boot material (J): nylon tarpaulin, maximum ambient temperature 70°C
Rod boot material (K): heat-resistant tarpaulin, maximum ambient temperature 110°C*

*Maximum ambient temperature for the rod boot unit.

Structural Drawing

CA2K Series structural drawing

Number	Name	Material	Notes
1	Rod cover	Aluminum alloy	Metallic coating
2	Head cover	Aluminum diecast	Metallic coating
3	Cylinder Tube	Aluminum alloy	Hard anodized aluminum
4	Piston rod	Carbon steel	Hard chrome plating
5	Piston	Aluminum alloy	Chromate
6	Cushion Ring A	Rolled steel	Zinc chromate
7	Cushion Ring B	Rolled steel	Zinc chromate
8	Non-Rotating Guide	Oil-impregnated sintered alloy	—
9	Cushion valve	Steel wire	Zinc trivalent chromate
10	Tie-rod	Carbon steel	Zinc trivalent chromate
11	Spring Washer	Steel wire	Zinc trivalent chromate
12	Piston Nut	Rolled steel	Zinc trivalent chromate
13	Retaining Ring	Spring steel	Phosphate Coated
14	Spring Washer	Steel wire	Zinc trivalent chromate
15	Tie-rod nut	Rolled steel	Zinc trivalent chromate
16	Wear Ring	Resin	—
17	Cushion seal holder	Aluminum alloy	—
18	Cushion Seal	Urethane	—
19	Rod packing	NBR	—
20	Piston packing	NBR	—
21	Cushion valve seal	NBR	—
22	Cylinder Tube Gasket	NBR	—
23	Piston gasket	NBR	O-ring
24	Rod end nut	Rolled steel	Zinc trivalent chromate

*Do not disassemble the trunnion type. Please refer to the catalog for details.

Dimensions

(Units: mm)

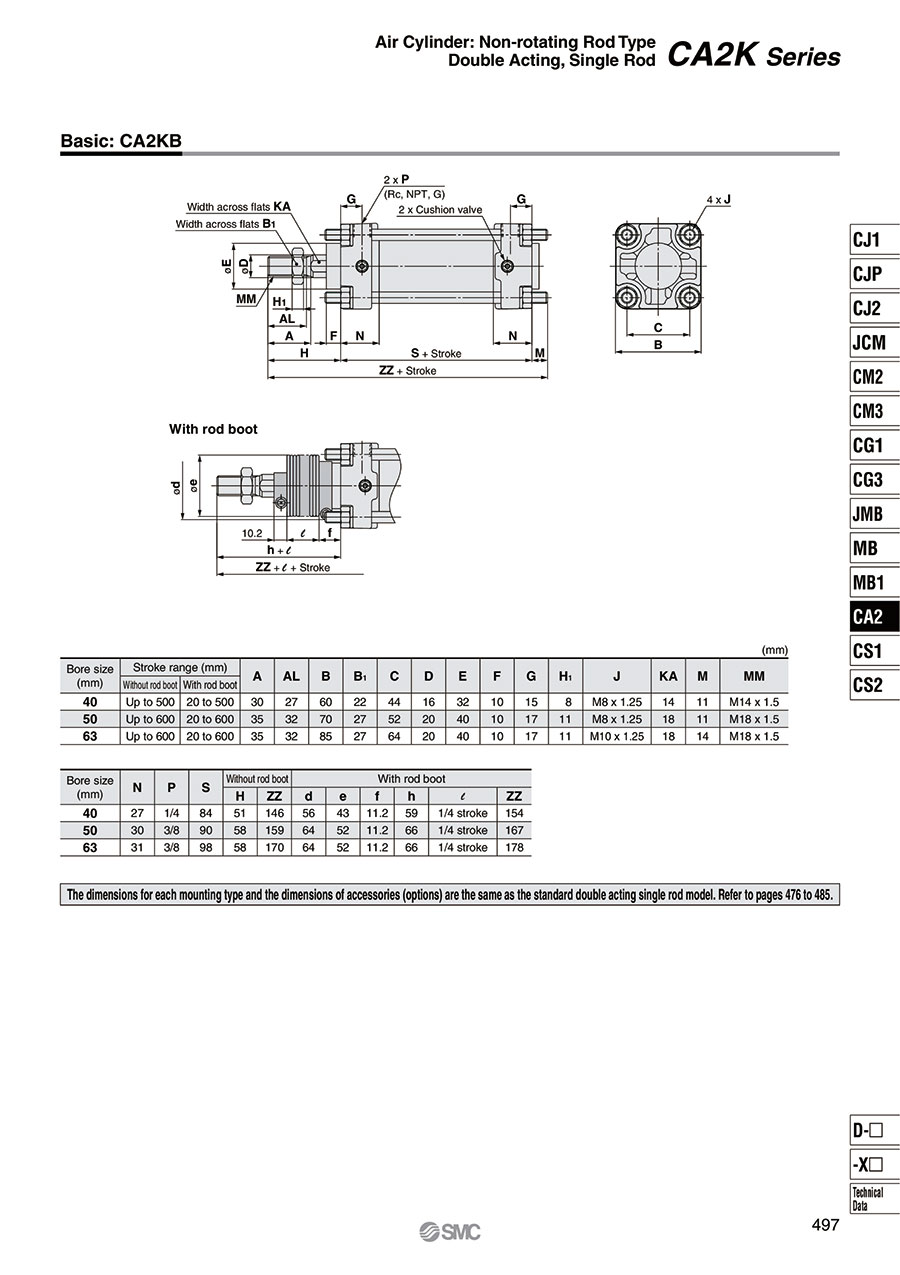

Basic type CA2KB dimensional drawing

(Units: mm)

Tube inner diameter (mm)	Stroke range (mm)		A	AL	B	B₁	C	D	E	F	G	H₁	J	KA	M	MM
Tube inner diameter (mm)	Without rod boot	With bellows	A	AL	B	B₁	C	D	E	F	G	H₁	J	KA	M	MM
40	Up to 500	20 to 500	30	27	60	22	44	16	32	10	15	8	M8 × 1.25	14	11	M14 × 1.5
50	Up to 600	20 to 600	35	32	70	27	52	20	40	10	17	11	M8 × 1.25	18	11	M18 × 1.5
63	Up to 600	20 to 600	35	32	85	27	64	20	40	10	17	11	M10 × 1.25	18	14	M18 × 1.5

(Units: mm)

Tube inner diameter (mm)	N	P	S	Without rod boot		With bellows
Tube inner diameter (mm)	N	P	S	H	ZZ	d	e	f	h	L	ZZ
40	27	1/4	84	51	146	56	43	11.2	59	1/4 stroke	154
50	30	3/8	90	58	159	64	52	11.2	66	1/4 stroke	167
63	31	3/8	98	58	170	64	52	11.2	66	1/4 stroke	178

* Please refer to the catalog as the external dimensions of the accessories (options) for each mounting support type are the same as the standard type / double moving piece rod.

Notes

Minimum Stroke for Auto Switch Mounting

*The minimum stroke for mounting varies with the auto switch type and cylinder mounting type. In particular, the center trunnion type requires careful attention. (Refer to the catalog for details.)

Usage Precautions

* Avoid using it to give rotational torque to the piston rod. The detent guide will be deformed and the non-rotation accuracy will increase. Also, when screwing the nut into the threaded part at the tip of the piston rod, make sure that the piston rod is pulled in to the final end and hook the spanner on the part that protrudes from the parallel part of the rod.
At this time, be careful not to apply the tightening torque to the detent guide when tightening.

Correct installation drawing

Wrong installation drawing

Disassembly/Replacement

* To replace the rod packing, please contact our manufacturer's support center. Air leakage may occur depending on the position where the rod packing is installed. please contact our support center when replacing it.
Do not replace the detent guide. The detent guide is press-fitted, so when replacing it, replace it with the cover assembly.

Other

* Please be sure to check "safety precautions", "actuators / common precautions" and "auto switch / common precautions" in the catalog before use.
*Product images are representative models.
*See the SMC catalog for information other than that detailed above.

■ Refer to the table below for details about lead wire / connector specifications.

■Made to Order Specifications: Please refer to the following for details on changing the mounting position of the trunnion bracket.

Lista numerów części

Liczba pozycji

Poprzednia

Numer części

Zamówienie zawieszone

CDA2KL40-160

Zamówienie zawieszone

Cylinder (Tube) Inner Diameter

(Ø)

Stroke

(mm)

Cushion

Specifications

Port thread type

Auto Switch

Lead Wire Length

(m)

Number of Switches

Type of Mount Support

Bellows

Connector type

Type

Minimalna wielkość zamówienia

63	100	Air cushion	Built-in magnet	Rc	None	-	-	Rod-end flange type	None	-	-	1 szt.
63	200	Air cushion	Built-in magnet	Rc	None	-	-	Rod-end flange type	None	-	-	1 szt.
50	100	Air cushion	Built-in magnet	Rc	None	-	-	Head-end flange	None	-	-	1 szt.
40	75	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	None	-	-	1 szt.
40	100	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	None	-	-	1 szt.
40	150	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	None	-	-	1 szt.
40	150	Air cushion	Built-in magnet	Rc	A53	3	2	Axial foot type	None	-	-	1 szt.
40	160	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	None	-	-	1 szt.
40	200	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	None	-	-	1 szt.
40	300	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	None	-	-	1 szt.
40	500	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	None	-	-	1 szt.
50	80	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	None	-	-	1 szt.
50	150	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	None	-	-	1 szt.
63	50	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	None	-	-	1 szt.
63	50	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	Nylon tarpaulin	-	-	1 szt.
63	80	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	Nylon tarpaulin	-	-	1 szt.
63	80	Air cushion	Built-in magnet	Rc	M9BW	5	2	Axial foot type	Nylon tarpaulin	-	-	1 szt.
63	150	Air cushion	Built-in magnet	Rc	None	-	-	Axial foot type	Nylon tarpaulin	-	-	1 szt.
63	115	Air cushion	Built-in magnet	Rc	None	-	-	Center trunnion type	None	-	-	1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

310.10 € ( 369.02 € )	32 dni robocze
341.68 € ( 406.60 € )	11 dni robocze
261.58 € ( 311.28 € )	46 dni robocze
189.52 € ( 225.53 € )	32 dni robocze
194.05 € ( 230.92 € )	32 dni robocze
203.00 € ( 241.57 € )	32 dni robocze
260.42 € ( 309.90 € )	32 dni robocze
207.53 € ( 246.96 € )	46 dni robocze
212.03 € ( 252.32 € )	46 dni robocze
230.10 € ( 273.82 € )	24 dni robocze
266.19 € ( 316.77 € )	32 dni robocze
261.60 € ( 311.30 € )	32 dni robocze
277.37 € ( 330.07 € )	24 dni robocze
294.26 € ( 350.17 € )	32 dni robocze
340.55 € ( 405.25 € )	32 dni robocze
363.13 € ( 432.12 € )	32 dni robocze
441.95 € ( 525.92 € )	32 dni robocze
385.65 € ( 458.92 € )	32 dni robocze
340.48 € ( 405.17 € )	24 dni robocze

Poprzednia

Szczegółowe informacje

Podstawowe informacje

Podstawowe informacje

[Features]
· Weight has been reduced by up to 15% by changing the shape of the rod cover and head cover
· Easy air cushion control
· Various switches such as compact auto switches and strong magnetic field resistant switches can be mounted
· With auto switch (CDA2K)
