SMC

JC(D)Q, Compact Cylinder, Double Acting Single Rod

JC(D)Q, Compact Cylinder, Double Acting Single Rod

Przestroga

  • ■ SMC Product Line
    Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
  • Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 586.
Ilość:

Informacje o produkcie

Compact Cylinder, Double Acting, Single Rod, Ø12, Ø16, Ø20, Ø25, Ø32, Ø40, Ø50, Ø63, Ø80, Ø100, JCQ Series Specifications

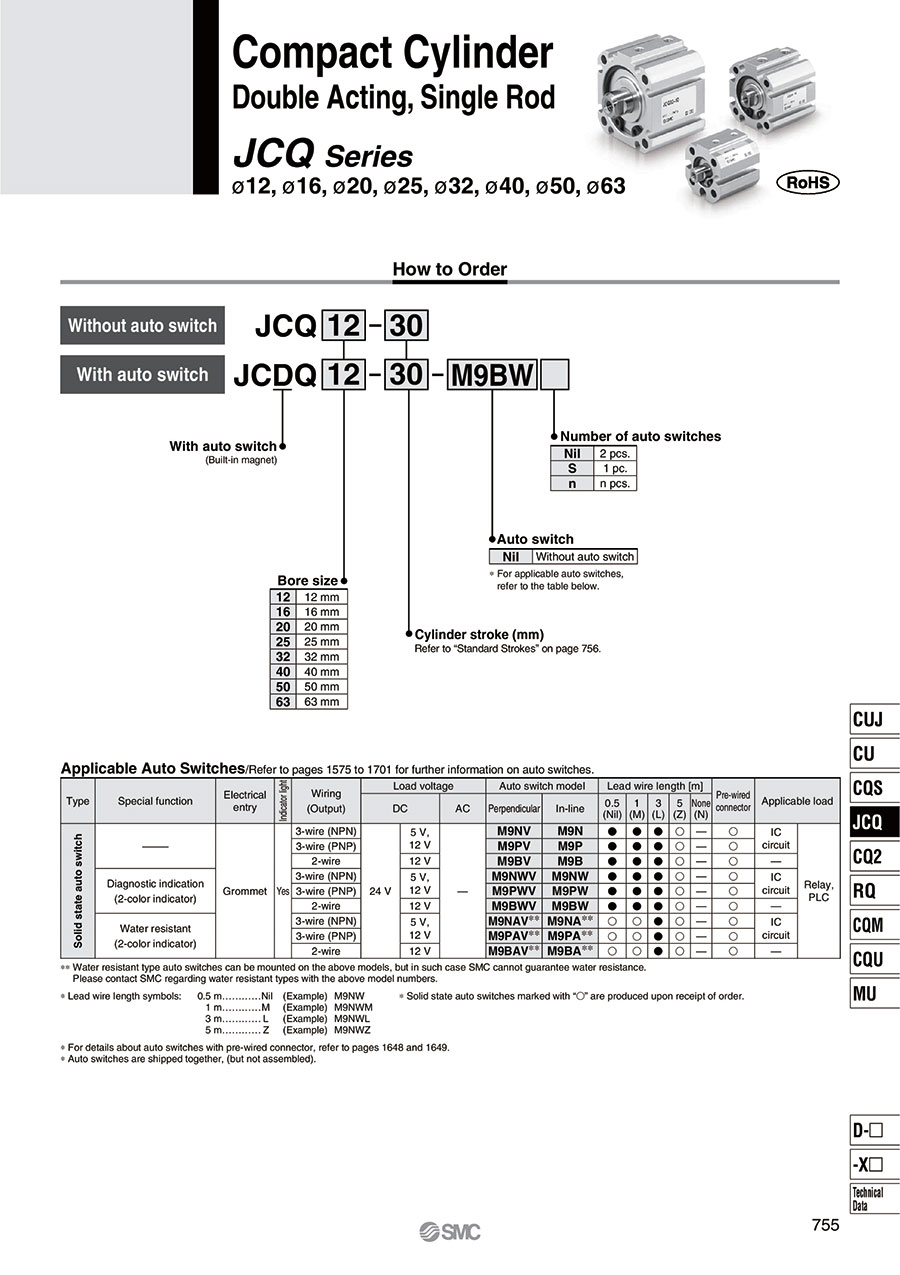

How to Order

Specifications

Bore size [mm]121620253240506380100
ActionDouble acting, Single rod
FluidAir
Proof pressure1.0 MPa
Maximum operating pressure0.7 MPa ∗1
Minimum operating pressure0.07 MPa0.05 MPa
Ambient and fluid temperature5 to 60 ℃
LubricationNot required (Non-lube)
Piston speed∗50 to 500 mm/s ∗150 to 300 mm/s ∗1
CushionRubber bumper
Allowable kinetic energy [J]0.0220.0380.0550.090.150.260.460.771.362.27
Rod end threadFemale thread
Stroke length tolerance0 to +1.3 mm Note)
Note) Stroke length tolerance does not include the deflection of the bumper.

∗ Depending on the system configuration selected, the specified speed may not be satisfied.
∗1 Maximum operating pressure and piston speed are different from the current product (CQ2 series).

Symbol


Rubber bumper

Standard Strokes

Bore size [mm]Standard stroke [mm]
12, 165, 10, 15, 20, 25, 30
20, 25, 32, 405, 10, 15, 20, 25, 30, 35, 40, 45, 50
50, 63, 80, 10010, 15, 20, 25, 30, 35, 40, 45, 50

Bore Size Ø12, Ø16

Standard (Through-hole): JCQ, JCDQ
Both ends tapped: JCQA, JCDQA
(mm)
Bore sizeO1R
12M4 x 0.77
16M4 x 0.77
Standard
(mm)
Bore sizeStroke rangeWithout magnet for auto switchWith magnet for auto switchCDEFGHIJKLMNQWZ
ABAB
125 to 3019.5162319.56623421.5M3 x 0.5261.553.5143.57238
165 to 3020.5172420.56626425M3 x 0.5311.553.5173.5826.58

Bore Size Ø20 to Ø40

Standard (Through-hole): JCQ, JCDQ
Both ends tapped: JCQA, JCDQA
(mm)
Bore sizeO1R
20M4 x 0.77
25M4 x 0.77
32M5 x 0.88
40M5 x 0.88
Standard
(mm)
Bore sizeStroke rangeWithout magnet for auto switchWith magnet for auto switchCDEFGHIJKLMNQWZ
ABAB
205 to 502117.527.5248830529.5M4 x 0.7362.563.5213.57.5328
255 to 5023.5193025.571033.55-M5 x 0.8402.584.5243.58368
325 to 50262132.527.51212415-M6 x 1.0512.5105314.5943.510
405 to 50312537.531,51314476-M8 x 1.25603.5126374.51150.510

Bore Size Ø50 to Ø100

Standard (Through-hole): JCQ, JCDQ
Both ends tapped: JCQA, JCDQA
(mm)
Bore sizeO1R
50M6 x 1.010
63M6 x 1.010
80M10 x 1.518
100M10 x 1.518
Standard
(mm)
Bore sizeStroke rangeWithout magnet for auto switchWithout magnet for auto switchCDEFGHIJKLMNPQWZ
ABAB
5010 to 50372942.534.51518579-M10 x 1.5746.5168465.51/81363.515
6310 to 5041.533.546.538.515187010-M10 x 1.5886.5168565.51/81476.515
8010 to 504940554621228912-M14 x 2.011391997091/4149819
10010 to 5056466252212610912105.5M16 x 2.013412.522108591/41911819

Lista numerów części

Liczba pozycji
  • 1
  • 2
  • 3
  • 4
  • 5
    • ...
    10
  • Dalej
    • Numer części
    JCDQ12-5
    JCDQ12-5-M9BV
    Zamówienie zawieszone
    JCDQ12-5-M9BVS
    JCDQ12-5-M9NV
    JCDQ12-5-M9PV
    JCDQ12-10
    JCDQ12-10-M9BV
    JCDQ12-10-M9NV
    Zamówienie zawieszone
    JCDQ12-10-M9NVL
    JCDQ12-15
    JCDQ12-15-M9B
    JCDQ12-15-M9BL
    JCDQ12-15-M9BLS
    JCDQ12-15-M9BS
    JCDQ12-15-M9BV
    JCDQ12-20
    Zamówienie zawieszone
    JCDQ12-20-M9B
    JCDQ12-20-M9BW
    JCDQ12-25
    Zamówienie zawieszone
    JCDQ12-25-M9B
    Zamówienie zawieszone
    JCDQ12-25-M9BL
    JCDQ12-30
    JCDQ12-30-M9B
    JCDQ16-5
    JCDQ16-10
    JCDQ16-10-M9BV
    JCDQ16-15
    Zamówienie zawieszone
    JCDQ16-15-M9B
    JCDQ16-15-M9N
    JCDQ16-20
    JCDQ16-20-M9B
    JCDQ16-25
    JCDQ16-30
    JCDQ20-5
    Zamówienie zawieszone
    JCDQ20-5-M9BVL
    Zamówienie zawieszone
    JCDQ20-5-M9NV
    JCDQ20-10
    Zamówienie zawieszone
    JCDQ20-10-M9BV
    Zamówienie zawieszone
    JCDQ20-10-M9BVM
    JCDQ20-10-M9NVL
    JCDQ20-15
    JCDQ20-15-M9BL
    JCDQ20-15-M9BV
    JCDQ20-20
    JCDQ20-20-M9B
    Zamówienie zawieszone
    JCDQ20-20-M9N
    JCDQ20-25
    Zamówienie zawieszone
    JCDQ20-25-M9B
    JCDQ20-30
    JCDQ20-35
    JCDQ20-40
    JCDQ20-40-M9BL
    JCDQ20-45
    JCDQ20-50
    JCDQ20-50-M9B
    JCDQ20-50-M9BAL
    JCDQ20-50-M9BL
    JCDQ20-50-M9PL
    JCDQ25-5
    JCDQ25-10

    Cylinder (Tube) Inner Diameter

    (Ø)

    Stroke

    (mm)

    Operating Pressure

    (MPa)

    Port thread type

    Auto Switch

    Lead Wire Length

    (m)

    Number of Switches

    Type of Mount Support

    Mounting bolt

    Connector type

    		Minimalna wielkość zamówienia
    12
    5
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    5
    0.07～0.7
    M Screw
    M9BV
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    5
    0.07～0.7
    M Screw
    M9BV
    0.5
    1 pc.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    5
    0.07～0.7
    M Screw
    M9NV
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    5
    0.07～0.7
    M Screw
    M9PV
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    10
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    10
    0.07～0.7
    M Screw
    M9BV
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    10
    0.07～0.7
    M Screw
    M9NV
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    10
    0.07～0.7
    M Screw
    M9NV
    3
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    15
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    15
    0.07～0.7
    M Screw
    M9B
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    15
    0.07～0.7
    M Screw
    M9B
    3
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    15
    0.07～0.7
    M Screw
    M9B
    3
    1 pc.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    15
    0.07～0.7
    M Screw
    M9B
    0.5
    1 pc.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    15
    0.07～0.7
    M Screw
    M9BV
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    20
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    20
    0.07～0.7
    M Screw
    M9B
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    20
    0.07～0.7
    M Screw
    M9BW
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    25
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    25
    0.07～0.7
    M Screw
    M9B
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    25
    0.07～0.7
    M Screw
    M9B
    3
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    30
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    12
    30
    0.07～0.7
    M Screw
    M9B
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    16
    5
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    16
    10
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    16
    10
    0.07～0.7
    M Screw
    M9BV
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    16
    15
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    16
    15
    0.07～0.7
    M Screw
    M9B
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    16
    15
    0.07～0.7
    M Screw
    M9N
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    16
    20
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    16
    20
    0.07～0.7
    M Screw
    M9B
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    16
    25
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    16
    30
    0.07～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    5
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    5
    0.05～0.7
    M Screw
    M9BV
    3
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    5
    0.05～0.7
    M Screw
    M9NV
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    10
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    10
    0.05～0.7
    M Screw
    M9BV
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    10
    0.05～0.7
    M Screw
    M9BV
    1
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    10
    0.05～0.7
    M Screw
    M9NV
    3
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    15
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    15
    0.05～0.7
    M Screw
    M9B
    3
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    15
    0.05～0.7
    M Screw
    M9BV
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    20
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    20
    0.05～0.7
    M Screw
    M9B
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    20
    0.05～0.7
    M Screw
    M9N
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    25
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    25
    0.05～0.7
    M Screw
    M9B
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    30
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    35
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    40
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    40
    0.05～0.7
    M Screw
    M9B
    3
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    45
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    50
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    50
    0.05～0.7
    M Screw
    M9B
    0.5
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    50
    0.05～0.7
    M Screw
    M9BA
    3
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    50
    0.05～0.7
    M Screw
    M9B
    3
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    20
    50
    0.05～0.7
    M Screw
    M9P
    3
    2 pcs.
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    25
    5
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    25
    10
    0.05～0.7
    M Screw
    Without auto switch (built-in magnet)
    None
    None
    Through-hole (standard)
    Without mounting bolt
    None
    1 szt.
    Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)
    Standardowa data wysyłki
    23.02 €
    ( 27.39 € )
    4 dni robocze
    97.85 €
    ( 116.44 € )
    24 dni robocze
    60.44 €
    ( 71.92 € )
    24 dni robocze
    97.85 €
    ( 116.44 € )
    24 dni robocze
    97.85 €
    ( 116.44 € )
    13 dni robocze
    26.48 €
    ( 31.51 € )
    4 dni robocze
    101.31 €
    ( 120.56 € )
    24 dni robocze
    101.31 €
    ( 120.56 € )
    13 dni robocze
    120.89 €
    ( 143.86 € )
    17 dni robocze
    31.71 €
    ( 37.73 € )
    4 dni robocze
    96.77 €
    ( 115.16 € )
    13 dni robocze
    104.53 €
    ( 124.39 € )
    5 dni robocze
    68.13 €
    ( 81.07 € )
    5 dni robocze
    64.24 €
    ( 76.45 € )
    24 dni robocze
    106.53 €
    ( 126.77 € )
    26 dni robocze
    37.06 €
    ( 44.10 € )
    4 dni robocze
    102.11 €
    ( 121.51 € )
    24 dni robocze
    108.02 €
    ( 128.54 € )
    24 dni robocze
    38.15 €
    ( 45.40 € )
    31 dni robocze
    103.19 €
    ( 122.80 € )
    24 dni robocze
    110.97 €
    ( 132.05 € )
    17 dni robocze
    39.40 €
    ( 46.89 € )
    31 dni robocze
    104.47 €
    ( 124.32 € )
    26 dni robocze
    25.40 €
    ( 30.23 € )
    4 dni robocze
    29.00 €
    ( 34.51 € )
    4 dni robocze
    103.82 €
    ( 123.55 € )
    24 dni robocze
    32.73 €
    ( 38.95 € )
    4 dni robocze
    97.77 €
    ( 116.35 € )
    5 dni robocze
    99.66 €
    ( 118.60 € )
    5 dni robocze
    38.71 €
    ( 46.06 € )
    31 dni robocze
    103.76 €
    ( 123.47 € )
    26 dni robocze
    39.97 €
    ( 47.56 € )
    31 dni robocze
    40.61 €
    ( 48.33 € )
    36 dni robocze
    31.45 €
    ( 37.43 € )
    4 dni robocze
    125.85 €
    ( 149.76 € )
    17 dni robocze
    106.29 €
    ( 126.49 € )
    24 dni robocze
    33.44 €
    ( 39.79 € )
    4 dni robocze
    108.26 €
    ( 128.83 € )
    24 dni robocze
    128.00 €
    ( 152.32 € )
    24 dni robocze
    127.82 €
    ( 152.11 € )
    13 dni robocze
    36.31 €
    ( 43.21 € )
    4 dni robocze
    109.15 €
    ( 129.89 € )
    13 dni robocze
    111.15 €
    ( 132.27 € )
    24 dni robocze
    39.34 €
    ( 46.81 € )
    4 dni robocze
    104.39 €
    ( 124.22 € )
    26 dni robocze
    106.29 €
    ( 126.49 € )
    17 dni robocze
    40.61 €
    ( 48.33 € )
    4 dni robocze
    105.66 €
    ( 125.74 € )
    24 dni robocze
    41.18 €
    ( 49.00 € )
    4 dni robocze
    44.82 €
    ( 53.34 € )
    24 dni robocze
    47.79 €
    ( 56.87 € )
    4 dni robocze
    120.61 €
    ( 143.53 € )
    5 dni robocze
    48.98 €
    ( 58.29 € )
    25 dni robocze
    50.81 €
    ( 60.46 € )
    4 dni robocze
    115.87 €
    ( 137.89 € )
    13 dni robocze
    163.24 €
    ( 194.26 € )
    13 dni robocze
    123.65 €
    ( 147.14 € )
    5 dni robocze
    125.65 €
    ( 149.52 € )
    5 dni robocze
    37.56 €
    ( 44.70 € )
    4 dni robocze
    39.21 €
    ( 46.66 € )
    4 dni robocze
  • 1
  • 2
  • 3
  • 4
  • 5
    • ...
    10
  • Dalej

    • Szczegółowe informacje

    Podstawowe informacje

    [Features]
    · Compact (compared to CDQS Series; overall length reduced by 6.5 mm, width by 6 mm, height by 4 mm).
    · Maximum weight 45% lighter (from 150 g to 82 g compared to CDQS Series ø25, 10‑mm stroke).

    Przestroga

    • ■ SMC Product Line
      Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
    • Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.
