2-Colour Display Digital Pressure Switch for General Fluids, ZSE80 / ISE80 Series

Warunki filtrowania

Type
- Pressure Switch
- Metal fittings
Fluid Type
Sensor/Monitor Configuration
Integrated Type
Integrated Type
Output Method
Analog Output Specification
- Voltage
- Current
Pipe Port Type
Threads
Male thread
Plumbing Thread Type
Rc (R)
R
TSJ
URJ
Nominal Pipe Thread Size
1/4
1/4
No. of Inputs
- 1
No. of Outputs
- 2
- 3
Power Supply Type
- DC
Power Supply Voltage(V)
12 to 24
12 to 24 ±10%
Pipe Connection Direction
Under
Down Direction
Back
Liquid contact parts material
Stainless Steel
Pressure Sensor
Application
Unit Specifications
- SI unit fixed
- With unit conversion function
Bracket
- None
Piping Specification
- bottom piping
Custom-made Specifications
Details Type
- Bracket
Option
- None
Instruction Manual
- Included
- Yes
Calibration Certificate
- None
Output Specification
Female thread compatible
- With M5 female thread
Type
CAD
- 2D
- 3D
Szacowane dni wysyłki
- Wszystko
- W ciągu 4 dni robocze
- W ciągu 12 dni robocze
- W ciągu 98 dni robocze

SMC

2-Colour Display Digital Pressure Switch for General Fluids, ZSE80 / ISE80 Series

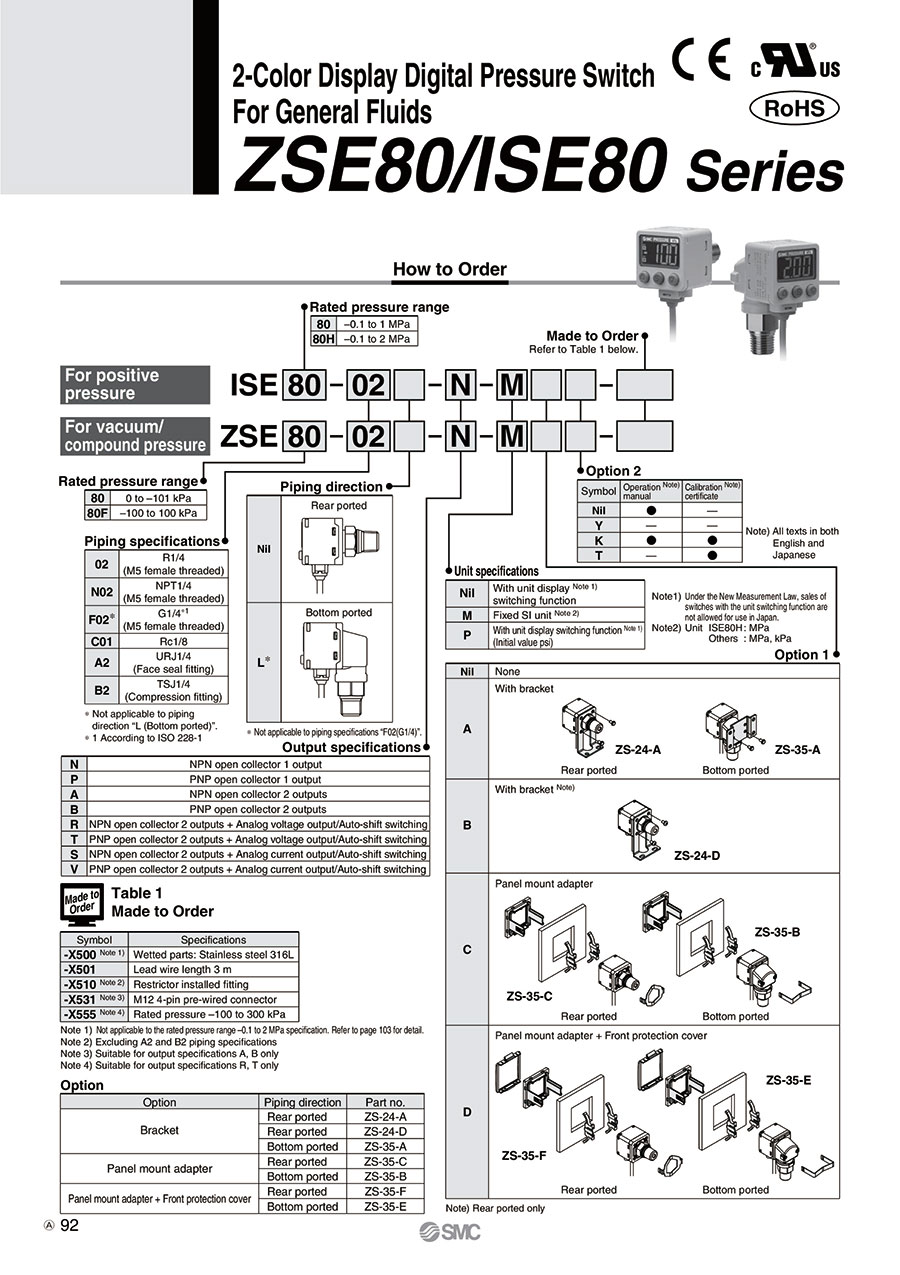

Katalog

Przestroga

Product images may be representative images. Refer to the catalog for details.

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 8.

Lista numerów części
Szczegółowe informacje
Katalog

Lista numerów części

Liczba pozycji

Numer części

Type

Fluid Type

Sensor/Monitor Configuration

Output Method

Analog Output Specification

Pipe Port Type

Plumbing Thread Type

Nominal Pipe Thread Size

Fluid Characteristics

Pressure Resistance

(MPa)

Operating Temperature Range

(℃)

Operating Humidity Range

(%)

No. of Inputs

No. of Outputs

Power Supply Type

Power Supply Voltage

(V)

Pipe Connection Direction

Liquid contact parts material

Mounting Hole

Display

Drive Component

Lamp

Liquid contact parts seal material

Acquired Standards

Protective Structure

Application

Unit Specifications

Bracket

Piping Specification

Custom-made Specifications

Details Type

Option

Instruction Manual

Calibration Certificate

Output Specification

Female thread compatible

Minimalna wielkość zamówienia

Pressure Switch

Air / Water / Lubricant / Nitrogen Gas / Argon

[Integrated Type] Integrated Type

NPN Open Collector / Analog

Voltage

[Threads] Male thread

[Rc (R)] R

[1/4] 1/4

Noncorrosive

[12 to 24] 12 to 24 ±10%

Back

[Stainless Steel] Pressure Sensor

Available

IP65

For positive pressure [-0.1 to 1.0 MPa]

With unit conversion function

None

Lead wire length 3m

None

Included

None

PNP open collector 2 output + Analog voltage output / Auto-shift switching

With M5 female thread

1 szt.

Pressure Switch

Air / Water / Lubricant / Nitrogen Gas / Argon

[Integrated Type] Integrated Type

PNP Open Collector

[Threads] Male thread

URJ

[1/4] 1/4

Noncorrosive

35～85

[12 to 24] 12 to 24 ±10%

Back

[Stainless Steel] Pressure Sensor

Available

Digital

Available

[Nitrile Rubber] NBR

IP65

For positive pressure [-0.1 to 1.0 MPa]

With unit conversion function

None

Yes

None

PNP open collector 2 outputs

1 szt.

Pressure Switch

Air / Water / Lubricant / Nitrogen Gas / Argon

[Integrated Type] Integrated Type

NPN Open Collector / Analog

Current

[Threads] Male thread

[Rc (R)] R

[1/4] 1/4

Noncorrosive

[12 to 24] 12 to 24 ±10%

[Under] Down Direction

[Stainless Steel] Pressure Sensor

Available

IP65

For positive pressure [-0.1 to 2.0 MPa]

With unit conversion function

None

Included

None

PNP open collector 2 output + Analog current output / Auto-shift switching

With M5 female thread

1 szt.

Metal fittings

bottom piping

Bracket

1 szt.

Pressure Switch

Air / Water / Lubricant / Nitrogen Gas / Argon

[Integrated Type] Integrated Type

PNP Open Collector

[Threads] Male thread

URJ

[1/4] 1/4

Noncorrosive

[12 to 24] 12 to 24 ±10%

Back

[Stainless Steel] Pressure Sensor

Available

IP65

For vacuum [1 to -101 kPa]

With unit conversion function

None

Included

None

PNP open collector 2 outputs

1 szt.

Pressure Switch

Air / Water / Lubricant / Nitrogen Gas / Argon

[Integrated Type] Integrated Type

PNP Open Collector

[Threads] Male thread

URJ

[1/4] 1/4

Noncorrosive

[12 to 24] 12 to 24 ±10%

[Under] Down Direction

[Stainless Steel] Pressure Sensor

Available

IP65

For vacuum [1 to -101 kPa]

With unit conversion function

None

Included

None

PNP open collector 2 outputs

1 szt.

Pressure Switch

Air / Water / Lubricant / Nitrogen Gas / Argon

[Integrated Type] Integrated Type

PNP Open Collector

[Threads] Male thread

URJ

[1/4] 1/4

Noncorrosive

[12 to 24] 12 to 24 ±10%

Back

[Stainless Steel] Pressure Sensor

Available

IP65

For vacuum [-100 to 100 kPa]

With unit conversion function

None

Included

None

PNP open collector 2 outputs

1 szt.

Pressure Switch

Air / Water / Lubricant / Nitrogen Gas / Argon

[Integrated Type] Integrated Type

NPN Open Collector

[Threads] Male thread

TSJ

[1/4] 1/4

Noncorrosive

0.5

0～50

35～85

[12 to 24] 12 to 24 ±10%

Back

[Stainless Steel] Pressure Sensor

Available

Digital

Available

[Nitrile Rubber] NBR

IP65

For compound pressure [-100.0 to 100.0 kPa]

SI unit fixed

None

Lead wire length 3 m

None

Yes

None

NPN open collector 2 outputs

1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

292.18 € ( 347.69 € )	4 dni robocze
362.76 € ( 431.68 € )	98 dni robocze
302.02 € ( 359.40 € )	4 dni robocze
11.82 € ( 14.07 € )	12 dni robocze
351.08 € ( 417.79 € )	4 dni robocze
396.65 € ( 472.01 € )	4 dni robocze
396.65 € ( 472.01 € )	4 dni robocze
335.87 € ( 399.69 € )	98 dni robocze

Szczegółowe informacje

Podstawowe informacje

Podstawowe informacje

2-Color Display Digital Pressure Switch For General Fluids ZSE80/ISE80 Series that has adopted use of a stainless steel diaphragm.
[Features]
· 2-color display that makes abnormal values easy to see at a glance
· Choice of 2 piping directions, rear and bottom.
· Sensor and fitting parts are electron-beam welded.
· Includes a secret code function that ensures only authorized persons can operate the switch when the key is locked.
· Resolution switching function prevents minor variations in display value.
· A power-saving mode that turns off the display to reduce power consumption.
· MPa/kPa switching function that allows the indication unit for vacuum pressure, compound pressure and positive pressure to be unified into either MPa or kPa.
