Transport Castors (L420)(Lista numerów części: str. 2)

Umieść kursor myszy nad ilustracją, aby ją powiększyć

Poprzednia strona

Następna strona

Katalog

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 70.

Informacje o produkcie
Lista numerów części
Szczegółowe informacje
Katalog

Informacje o produkcie

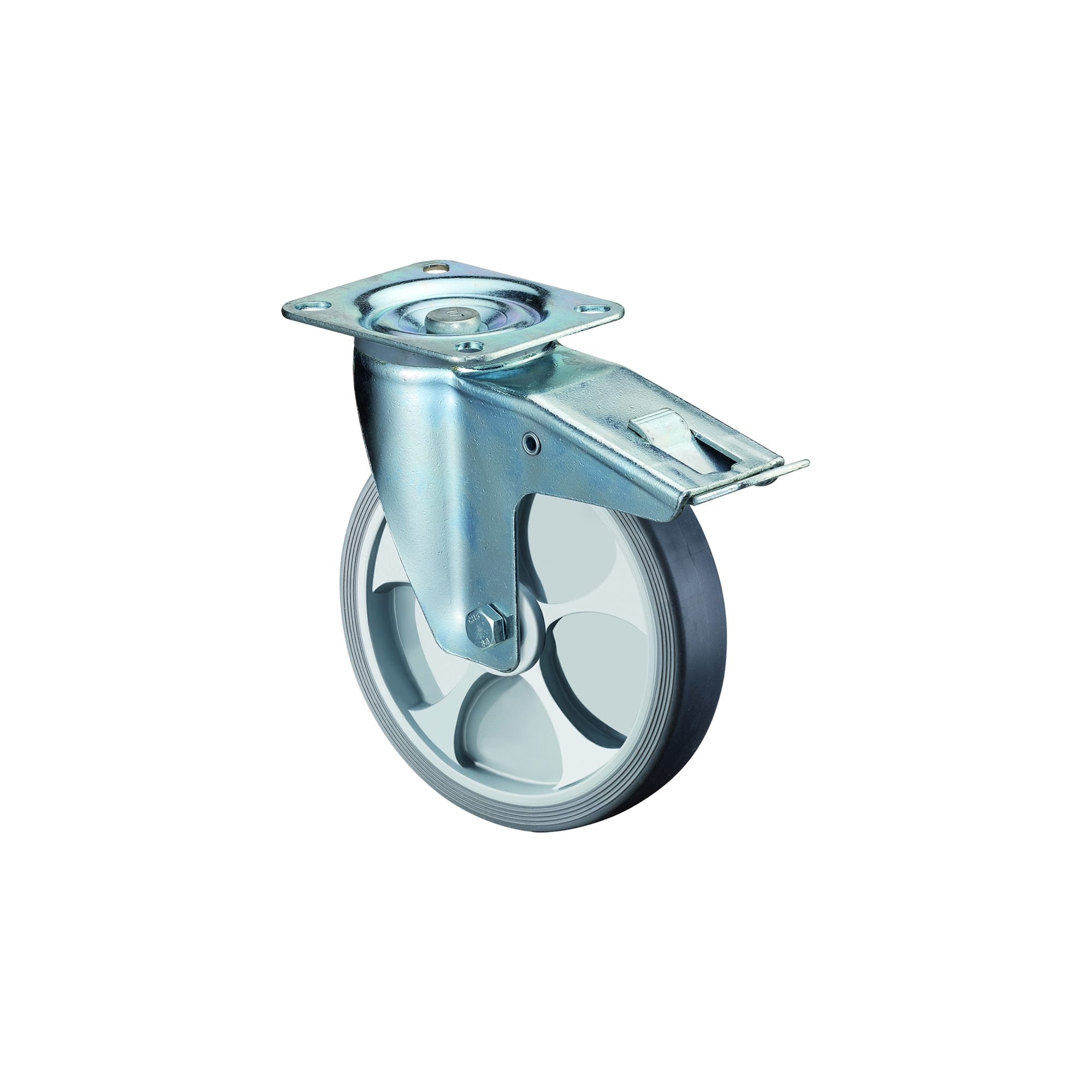

Transport Castors

Product Description

∙ Fork of sheet steel
∙ Zinc-chromatised
∙ Dual-row ball bearings collar in fork head

Model

∙ Swivel castor
∙ Fixed castor
∙ Swivel castor with total brake

Technical Data

Tread: Plastic / Wheel Body: Plastic / Bearing: Roller bearing (Ø 58 mm plain bearing)

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Project	A320
mm	mm	kg	mm	mm	mm	mm		Swivel caster with lock
80	30	125	105	104x80	84x64/76x56	9	34	L420.B10.080
100	35	125	128	104x80	84x64/76x56	9	34	L420.B10.100
125	35	175	155	105x80	84x64/76x56	9	34	L420.B10.125
150	50	300	190	135x110	105x75/80	11	48	L420.B10.150
175	45	300	215	135x110	105x75/80	11	57	L420.B10.175
200	50	300	235	135x110	105x75/80	11	58	L420.B10.200
250	50	600	303	138x110	105x75	11	55	L400.B10.250

Tread: Polyurethane, red 98 +/- 4 Shore A / Wheel Body: Plastic / Bearing: Roller bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Project	A320
mm	mm	kg	mm	mm	mm	mm		Swivel caster with lock
80	28	125	105	104x80	84x64/76x56	9	34	L420.B31.080
100	30	125	128	104x80	84x64/76x56	9	34	L420.B31.100
125	32	150	155	105x80	84x64/76x56	9	34	L420.B31.125
150	35	240	190	135x110	105x75/80	11	48	L420.B31.150
200	45	300	235	135x110	105x75/80	11	58	L420.B31.200

Tread: Rubber, black / Bearing: Roller bearing / Wheel Body: Steel rim, Ø 80 up to 200 mm with thread guard

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
80	25	50	105	104x80	84x64/76x56	9	34	L420.B55.081
100	30	70	128	104x80	84x64/76x56	9	34	L420.B55.101
125	37	100	155	105x80	84x64/76x56	9	34	L420.B55.126
125	37	100	155	115x85	80x55/60	9	34	LS420.B55.126
140	37,5	115	175	105x80	80x55/60	9	40	L420.B55.141
160	40	135	195	135x110	105x75/80	11	48	L420.B55.161
180	45	170	218	138x109	105x75/80	11	48	L420.B55.181
200	50	205	235	135x110	105x75/80	11	58	L420.B55.201
250	50	250	290	135x110	105x80	11	66	L420.B55.250
250	60	300	311	186x170	140x105	14	80	L420.B55.251
280	70	350	325	186x170	140x105	14	80	L420.B55.280

Tread: Thermoplastic rubber, light grey / Wheel Body: Plastic, orange / Bearing: Roller bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
80	32	100	105	104x80	84x64/76x56	9	34	L420.B44.081.02
100	32	110	128	104x80	84x64/76x56	9	34	L420.B44.101.02
125	32	120	155	104x80	84x64/76x56	9	34	L420.B44.126.02
160	45	200	195	135x110	105x75/80	11	48	L420.B44.161.02
200	45	220	235	135x110	105x75/80	11	58	L420.B44.201.02

Tread: Thermoplastic rubber, grey / Wheel Body: Plastic, red / Bearing: Roller bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
80	32	100	105	104x80	84x64/76x56	9	34	L420.B44.081.03
100	32	110	128	104x80	84x64/76x56	9	34	L420.B44.101.03
125	32	120	155	104x80	84x64/76x56	9	34	L420.B44.126.03
160	45	200	195	135x110	105x75/80	11	48	L420.B44.161.03
200	45	220	235	135x110	105x75/80	11	58	L420.B44.201.03

Tread: Thermoplastic rubber, green / Wheel Body: Plastic, black / Bearing: Roller bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
80	32	100	105	104x80	84x64/76x56	9	34	L420.B44.081.04
100	32	110	128	104x80	84x64/76x56	9	34	L420.B44.101.04
125	32	120	155	104x80	84x64/76x56	9	34	L420.B44.126.04
160	45	200	195	135x110	105x75/80	11	48	L420.B44.161.04
200	45	220	235	135x110	105x75/80	11	58	L420.B44.201.04

Tread: Thermoplastic rubber, light blue / Wheel Body: Plastic, nature / Bearing: Roller bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
80	32	100	105	104x80	84x64/76x56	9	34	L420.B44.081.05
100	32	110	128	104x80	84x64/76x56	9	34	L420.B44.101.05
125	32	120	155	104x80	84x64/76x56	9	34	L420.B44.126.05
160	45	200	195	135x110	105x75/80	11	48	L420.B44.161.05
200	45	220	235	135x110	105x75/80	11	58	L420.B44.201.05

Tread: Thermoplastic, rubber / Wheel Body: Plastic / Bearing: Ball bearing, grey

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
80	32	100	105	104x80	84x64/76x56	9	34	L420.A85.082
100	32	110	128	104x80	84x64/76x56	9	34	L420.A85.102
125	32	120	155	104x80	84x64/76x56	9	34	L420.A85.127
125	32	120	155	115x85	80x55/60	9	34	LS420.A85.127
160	45	200	195	135x110	105x75/80	11	48	L420.A85.162
200	45	220	235	135x110	105x75/80	11	58	L420.A85.202
250	45	300	292	135x110	105x75/80	12	60	L420.A85.250

Tread: Elastic rubber, black / Wheel Body: Plastic / Bearing: Roller bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
100	30	140	127	104x80	84x64/76x56	9	34	L420.B60.100
125	45	150	155	115x85	80x55/60	9	34	LS420.B60.125
125	50	300	166	138x109	105x75/80	11	48	LSS420.B60.125
160	50	250	195	135x110	105x75/80	11	48	L420.B60.160
200	50	300	235	135x110	105x75/80	11	58	L420.B60.200

Tread: Elastic rubber, blue / Wheel Body: Plastic (100 mm Ø with thread guards) / Bearing: Roller bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
125	45	140	155	115x85	80x55/60	9	34	LS420.B61.125
125	50	300	166	138x109	105x75/80	11	45	LSS420.B61.125
160	42	300	195	135x110	105x75/80	11	48	L420.B61.160
200	50	350	235	135x110	105x75/80	11	58	L420.B61.200

Tread: Elastic, rubber black / Wheel Body: Aluminium / Bearing: Ball bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
100	40	150	137	105x85	80x60	8	34	L420.B80.100
125	40	150	155	115x85	80x55/60	9	34	LS420.B80.125
125	50	220	166	138x109	105x75/80	11	45	LSS420.B80.125
160	50	300	195	135x110	105x75/80	11	48	L420.B80.160
180	50	300	239	135x110	105x75/80	11	58	L420.B80.180
200	50	350	235	135x110	105x75/80	11	57	L420.B80.200
250	50	450	304	135x110	105x80	12	70	L420.B80.251

Tread: Elastic rubber grey / Wheel Body: Aluminium / Bearing: Ball bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
100	40	150	137	105x85	80x60	9	34	L420.B83.100
125	40	150	155	115x85	80x55/60	9	34	LS420.B83.125
125	50	220	166	138x109	105x75/80	11	45	LSS420.B83.125
125	40	300	157	105x85	80x60	11	36	LB520.B83.125
160	50	300	195	135x110	105x75/80	12	51	L420.B83.160
200	50	350	235	135x110	105x75/80	11	58	L420.B83.200

Tread: Prothane® cast polyurethane 95 +/- 3 Shore A / Wheel Body: Aluminium / Bearing: Ball bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
80	20	120	105	104x80	84x64/76x56	9	34	L420.B90.080
100	30	125	128	104x80	84x64/76x56	9	34	L420.B90.100
125	30	200	155	115x85	80x55/60	9	34	LS420.B90.125
125	50	300	166	138x109	105x75/80	11	48	LSS420.B90.125
150	40	250	181	138x109	105x75/80	11	58	L420.B90.150
150	50	300	190	135x110	105x75/80	11	48	L420.B90.151
150	50	450	195	138x110	105x75	11	45	L420.B90.152
160	50	300	195	135x110	105x75/80	11	58	L420.B90.160
160	50	400	200	138x110	105x80	11	43	L420.B90.162
200	50	300	235	135x110	105x75/80	11	58	L420.B90.200
200	50	400	235	138x109	105x80	11	57	L420.B90.202

Tread: Prothane® cast polyurethane 95 +/- 3 Shore A / Wheel Body: Cast iron / Bearing: Ball bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
80	20	120	105	104x80	84x64/76x56	9	34	L420.C10.080
100	30	125	128	104x80	84x64/76x56	9	34	L420.C10.100
125	30	200	155	115x85	80x55/60	11	48	LS420.C10.125
125	40	300	166	138x109	105x75/80	11	48	LSS420.C10.125
150	50	450	195	135x110	105x80	11	43	L420.C10.152
200	50	300	235	135x110	105x75/80	11	58	L420.C10.200
200	50	450	235	135x110	105x80	11	57	L420.C10.202

Tread: Pneumatic tyre, black rubber / Wheel Body: Steel rim / Bearing: Roller bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
200	50	75	235	135x105	105x75	11	55	L420.C90.200
230	65	130	255	135x105	105x75	11	61	L420.C90.230
260	85	130	295	175x175	140x140	15	70	L420.C90.260
260	85	130	295	175x175	140x140	15	70	L420.C90.261

Tread: Polyurethane / Wheel Body: Steel rim alusilver powder coated/ Bearing: Roller bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	Tyre	A320
mm	mm	kg	mm	mm	mm	mm			Swivel castor with lock
200	50	75	235	138x109	105x75/80	11	58	Black	L420.C91.200
260	85	160	295	175x175	140x140	15	70	Blue	L420.C91.262

Tread: Polyurethane, blue / Wheel Body: Plastic red / Bearing: Roller bearing

Wheel Ø	Wheel width	Load capacity	Construction height	Plate size	Screw hole removal	Screw hole Ø	Projection	A320
mm	mm	kg	mm	mm	mm	mm		Swivel castor with lock
260	85	160	295	175x175	140x140	15	70	L420.D16.260

Lista numerów części

Liczba pozycji

Poprzednia

Numer części

Powiązane

Mounting Height H

(mm)

Load Range

(daN)

Plate Length L

(mm)

Plate Width W

(mm)

Wheel Dia. D

(mm)

Wheel Width B

(mm)

Minimalna wielkość zamówienia

Data sheet	195	320.01 to 485.00	135	110	150	50	1 szt.
Data sheet	235	220.01 to 320.00	138	109	200	50	1 szt.
Data sheet	235	320.01 to 485.00	138	109	200	50	1 szt.
Data sheet	235	35.01 to 80.00	135	105	200	50	4 szt.
Data sheet	255	80.01 to 140.00	135	105	230	65	1 szt.
Data sheet	295	140.01 to 220.00	175	175	260	85	4 szt.
Data sheet	295	80.01 to 140.00	175	175	260	85	1 szt.
Data sheet	235	35.01 to 80.00	138	109	200	50	4 szt.
Data sheet	295	140.01 to 220.00	175	175	260	85	4 szt.
Data sheet	295	140.01 to 220.00	175	175	260	85	1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

88.88 € ( 105.77 € )	3 dni robocze
100.00 € ( 119.00 € )	3 dni robocze
106.76 € ( 127.04 € )	3 dni robocze
48.90 € ( 58.19 € )	2 dni robocze
81.54 € ( 97.03 € )	3 dni robocze
115.38 € ( 137.30 € )	2 dni robocze
114.52 € ( 136.28 € )	3 dni robocze
57.20 € ( 68.07 € )	2 dni robocze
102.06 € ( 121.45 € )	2 dni robocze
102.76 € ( 122.28 € )	3 dni robocze

Poprzednia

Szczegółowe informacje

Podstawowe informacje

Podstawowe informacje

Transport castor, version as swivel castor with total brake, with galvanised-chromated fork made of sheet steel and double-row ball and cage assembly in the fork head, fastening with screw-on plate. Installed wheel A85, B10, B31, B44, B55, B60, B61, B80, B83 or B90, with plain bearing, roller bearing or ball bearing and tread made of thermoplastic rubber, rubber, plastic, polyurethane or elastic rubber.
