Pin Cylinder, Double Acting, Single Rod CJP2 Series(Lista numerów części: str. 16)

Kliknij obraz, aby wyświetlić go w powiększeniu

Katalog

Przestroga

See catalog for specification details.
Product pictures are representations. CAD data is not supported for some model numbers.

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 1,006.

Informacje o produkcie
Lista numerów części
Szczegółowe informacje
Katalog

Informacje o produkcie

Pin Cylinder, Double Acting, Single Rod CJP2 Series Specifications

Pin Cylinder, Double Acting, Single Rod CJP2 Series external appearance

Double acting / Single rod, rubber bumper image

Action		Double acting, single rod
Maximum operating pressure		0.7 MPa
Minimum operating pressure	ø4 (diameter 4 mm)	0.15 MPa
	ø6 (diameter 6 mm)	0.12 MPa
	ø10 (diameter 10 mm), ø16 (diameter 16 mm)	0.06 MPa
Proof pressure		1 MPa
Ambient and fluid temperature		Without auto switch: -10°C to 70°C, With auto switch: -10°C to 60°C (No freezing)
Lubrication		Not required (non-lube)
Stroke length tolerance		+1.0 0
Rod-end type		With thread, without thread
Piston speed		10 to 500 mm/s
Cushion		Rubber cushion
Mounting^Note)		Basic, flange, foot, clevis, trunnion

Note) Bore size of ø4 (4‑mm diameter) is available with basic mounting only. The piston speed for a bore size of ø4 (4‑mm diameter) is 50 to 500 mm/s.

Weight

(Unit: g)

Stroke (mm) Mounting		Bore Size (mm)
Stroke (mm) Mounting		4	6	10	16
Basic Weight	5	11	16	27	42
	10	13	18	29	46
	15	15	21	32	50
	20	17	23	35	54
	25	-	25	37	58
	30	-	-	40	63
	35	-	-	43	67
	40	-	-	45	71
Bracket Weight	Flange	-	5	6	16
	Foot	-	7	9	24
	Clevis Shape	-	2	5	8
	Trunnion (with pin)	-	15	25	70
Additional weight for built-in magnet		2	3	5	7

Standard stroke

Bore size (mm)	Stroke (mm)
4	5, 10, 15, 20^Note)
6	5, 10, 15, 20, 25
10, 16	5, 10, 15, 20, 25, 30, 35, 40

Note) 20 stroke of bore size 4 mm is standard type only.

Standard Equipment Accessories

Mounting	Accessories
Mounting	Mounting nut (1 pc.)	Rod-end nut (2 pcs.) (with thread)	Trunnion (with pin)
Basic	●	●	-
Flange	●	●	-
Foot	●	●	-
Clevis	-	●	-
Trunnion	-	●	●

Dimensional Outline Drawing: Basic Mounting (ø4)

(Unit: mm)

Standard: CJP2B4 dimensional drawing

Without rod-end thread (CJP2B4)

Built-in magnet: CDJP2B4 dimensional drawing

Without rod-end thread (CDJP2B4)

Dimensional Outline Drawing: Basic Mounting (ø6 to ø16)

Standard: CJP2B6 to 16 dimensional drawing

Without rod-end thread (CJP2B6 to 16)

(Unit: mm)

Bore Size	Symbol
Bore Size	A	A’	B	B₁	B₂	C	D	E	F	F’	GA	GB	H	J	MM	NN	P	S	W	Z
6	7	9	14	14	5.5	2	3	16.5	8	6.5	5.5	6.5	17	6	M3 × 0.5	M10 × 1.0	M3 × 0.5	16	3	33
10	10	12	15	17	7	2.5	4	19	8	6.5	6	7	20	7	M4 × 0.7	M12 × 1.0	M3 × 0.5	19.5	3	39.5
16	12	14	20	19	8	3	6	24.5	10	8.5	6.5	7.5	24	10	M5 × 0.8	M14 × 1.0	M5 × 0.8	19.5	4	43.5

Built-in magnet: CDJP2B6 to 16 dimensional drawing

Without rod-end thread (CDJP2B6 to 16)

(Unit: mm)

Bore Size	Symbol
Bore Size	A	A’	B	B₁	B₂	C	D	E	F	F’	GA	GB	H	J	MM	NN	P	S	W	Z
6	7	9	14	14	5.5	2	3	16.5	8	6.5	5.5	6.5	17	6	M3 × 0.5	M10 × 1.0	M3 × 0.5	21	3	38
10	10	12	15	17	7	2.5	4	19	8	6.5	6	7	20	7	M4 × 0.7	M12 × 1.0	M3 × 0.5	24.5	3	44.5
16	12	14	20	19	8	3	6	24.5	10	8.5	6.5	7.5	24	10	M5 × 0.8	M14 × 1.0	M5 × 0.8	24.5	4	48.5

*See the manufacturer's catalog for product information other than the above.

Lista numerów części

Liczba pozycji

Poprzednia

...

Dalej

Numer części

Cylinder (Tube) Inner Diameter

(Ø)

Stroke

(mm)

Environment, Applications

Operating Temperature

(℃)

Operating Pressure

(MPa)

Specifications

Auto Switch

Lead Wire Length

(m)

Number of Switches

Type of Mount Support

Rod Tip Shape

Custom-made Specifications

Connector type

Minimalna wielkość zamówienia

6	10	Heat Resistant	-10～70	0.12 to 0.7	Standard type	-	-	-	Flange type	With thread	Heat-resistant cylinder (150°C)	-	1 szt.
6	15	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
6	15	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
6	20	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
6	20	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
6	25	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
6	25	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	None	1 szt.
10	5	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
10	10	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
10	10	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
10	15	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
10	20	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
10	20	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
10	25	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
10	30	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
10	35	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
10	35	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
10	40	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
10	40	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
16	5	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
16	10	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
16	10	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
16	15	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
16	15	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
16	20	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
16	20	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
16	25	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
16	25	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
16	30	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
16	30	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
16	35	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
16	40	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	With thread	None	-	1 szt.
16	40	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Flange type	Without thread	None	-	1 szt.
6	5	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
6	5	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Foot	Without thread	None	-	1 szt.
6	5	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Foot type	With thread	Cold-resistant cylinder	None	1 szt.
6	10	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
6	10	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Foot	Without thread	None	-	1 szt.
6	10	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Foot type	With thread	Cold-resistant cylinder	None	1 szt.
6	15	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
6	20	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
6	25	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
6	25	Standard	-10～70	0.12 to 0.7	Standard type	-	-	-	Foot	Without thread	None	-	1 szt.
10	5	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
10	10	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
10	10	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	Without thread	None	-	1 szt.
10	10	Heat Resistant	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	Heat-resistant cylinder (150°C)	-	1 szt.
10	10	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	Cold-resistant cylinder	-	1 szt.
10	15	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
10	15	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	Without thread	None	-	1 szt.
10	15	Heat Resistant	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	Heat-resistant cylinder (150°C)	-	1 szt.
10	20	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
10	20	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	Without thread	None	-	1 szt.
10	25	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
10	30	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
10	30	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	Without thread	None	-	1 szt.
10	35	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
10	40	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.
10	40	Heat Resistant	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	Heat-resistant cylinder (150°C)	-	1 szt.
16	5	Standard	-10～70	0.06 to 0.7	Standard type	-	-	-	Foot	With thread	None	-	1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

36.68 € ( 43.65 € )	24 dni robocze
31.98 € ( 38.06 € )	19 dni robocze
31.98 € ( 38.06 € )	21 dni robocze
32.98 € ( 39.25 € )	19 dni robocze
32.98 € ( 39.25 € )	22 dni robocze
33.90 € ( 40.34 € )	21 dni robocze
33.89 € ( 40.33 € )	11 dni robocze
32.98 € ( 39.25 € )	21 dni robocze
33.90 € ( 40.34 € )	19 dni robocze
33.89 € ( 40.33 € )	19 dni robocze
34.82 € ( 41.44 € )	19 dni robocze
35.82 € ( 42.63 € )	21 dni robocze
35.82 € ( 42.63 € )	21 dni robocze
36.74 € ( 43.72 € )	21 dni robocze
37.61 € ( 44.76 € )	19 dni robocze
38.60 € ( 45.93 € )	17 dni robocze
38.61 € ( 45.95 € )	21 dni robocze
39.53 € ( 47.04 € )	19 dni robocze
39.53 € ( 47.04 € )	21 dni robocze
36.74 € ( 43.72 € )	5 dni robocze
37.61 € ( 44.76 € )	5 dni robocze
37.61 € ( 44.76 € )	19 dni robocze
38.61 € ( 45.95 € )	21 dni robocze
38.61 € ( 45.95 € )	21 dni robocze
39.53 € ( 47.04 € )	5 dni robocze
39.52 € ( 47.03 € )	21 dni robocze
40.45 € ( 48.14 € )	21 dni robocze
40.45 € ( 48.14 € )	24 dni robocze
41.45 € ( 49.33 € )	21 dni robocze
41.45 € ( 49.33 € )	24 dni robocze
42.37 € ( 50.42 € )	11 dni robocze
43.31 € ( 51.54 € )	21 dni robocze
43.31 € ( 51.54 € )	22 dni robocze
30.11 € ( 35.83 € )	5 dni robocze
30.11 € ( 35.83 € )	21 dni robocze
43.26 € ( 51.48 € )	11 dni robocze
31.06 € ( 36.96 € )	19 dni robocze
31.05 € ( 36.95 € )	21 dni robocze
44.18 € ( 52.57 € )	11 dni robocze
31.98 € ( 38.06 € )	19 dni robocze
32.98 € ( 39.25 € )	21 dni robocze
33.90 € ( 40.34 € )	21 dni robocze
33.89 € ( 40.33 € )	11 dni robocze
32.97 € ( 39.23 € )	5 dni robocze
33.90 € ( 40.34 € )	5 dni robocze
33.90 € ( 40.34 € )	21 dni robocze
42.37 € ( 50.42 € )	22 dni robocze
49.85 € ( 59.32 € )	22 dni robocze
34.82 € ( 41.44 € )	19 dni robocze
34.82 € ( 41.44 € )	19 dni robocze
43.31 € ( 51.54 € )	24 dni robocze
35.82 € ( 42.63 € )	5 dni robocze
35.82 € ( 42.63 € )	21 dni robocze
36.74 € ( 43.72 € )	19 dni robocze
37.61 € ( 44.76 € )	21 dni robocze
37.61 € ( 44.76 € )	21 dni robocze
38.61 € ( 45.95 € )	21 dni robocze
39.53 € ( 47.04 € )	21 dni robocze
48.02 € ( 57.14 € )	24 dni robocze
36.74 € ( 43.72 € )	21 dni robocze

Poprzednia

...

Dalej

Szczegółowe informacje

Podstawowe informacje

Podstawowe informacje

An air cylinder that can be connected to ø2 (2‑mm diameter) one-touch fittings.
[Features]
· Can be connected to a speed controller.
*See the manufacturer's catalog for detailed specifications.
*Product pictures are representations. CAD data is not supported for some model numbers.

Przestroga

See catalog for specification details.
Product pictures are representations. CAD data is not supported for some model numbers.

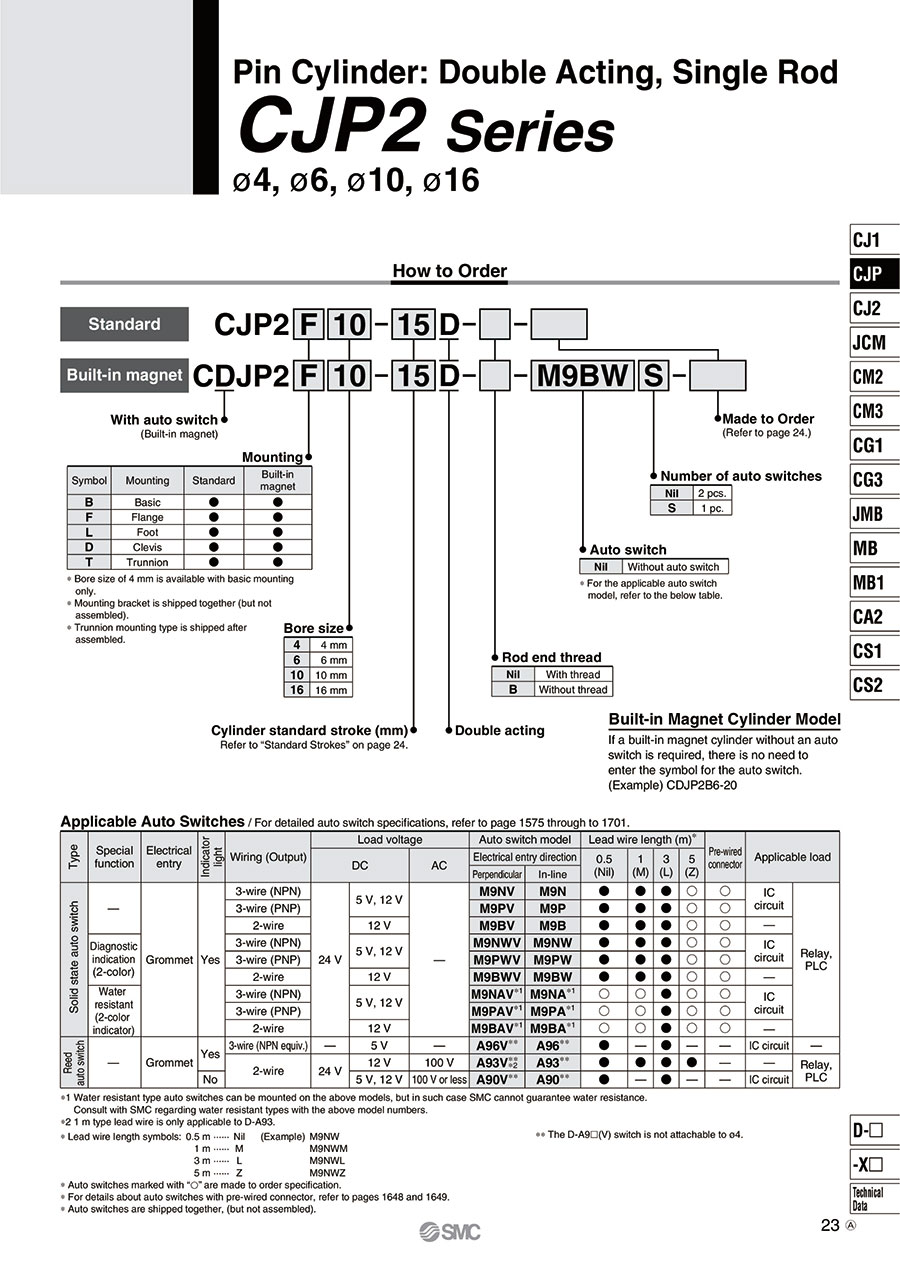

Katalog

Katalog (arkusz dwustronny)
