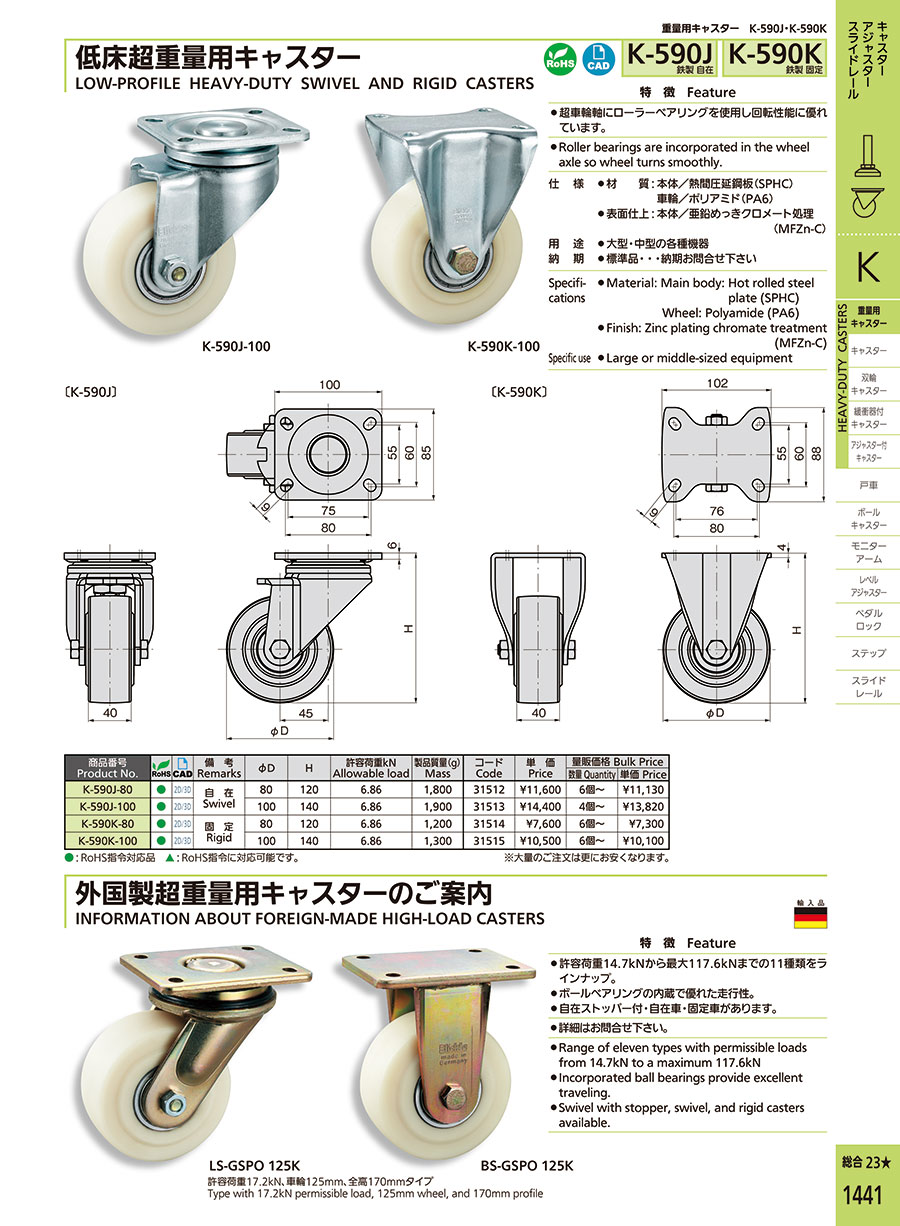

Low Floor Fixed Castors for Super Heavy Weights Without Stopper K-590K

Caster for super heavy items

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

K-590K-80

Products homepage

Data to be displayed: 30; 45; 60

Part Number
K-590K-80

Part Number	Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?
	115.84 €	1		19 Days

Basic information

Caster Type	Plate Type Fixed	Mounting height(mm)	120	Properties	Low Floor Heavy Load
Allowable Load Range(daN)	485.01~750.00	Stopper	NA	Allowable Load(daN)	686
Wheel Material	Polyamide	Wheel Characteristics	Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance	Fitting Material	Hot-rolled Sheet Steel
Mounting Hole Type	Long Hole	Mounting Hole Pitch Longitudinal direction P1(mm)	75(80)	Mounting Hole Pitch Transverse Direction P2(mm)	55(60)
Plate Length L1(mm)	102	Plate Width W1(mm)	88	Wheel Dia. D(mm)	80
Wheel Width(mm)	40	Application	Commercial Facilities Display / Streamlining of Logistics, Hand Truck / OA equipment, information and communication equipment	Load Category	For Heavy Load
Product CD	31514

This page is Low Floor Fixed Castors for Super Heavy Weights Without Stopper K-590K, part number K-590K-80.
You can find the detail information about specifications and dimensions on part number K-590K-80.
