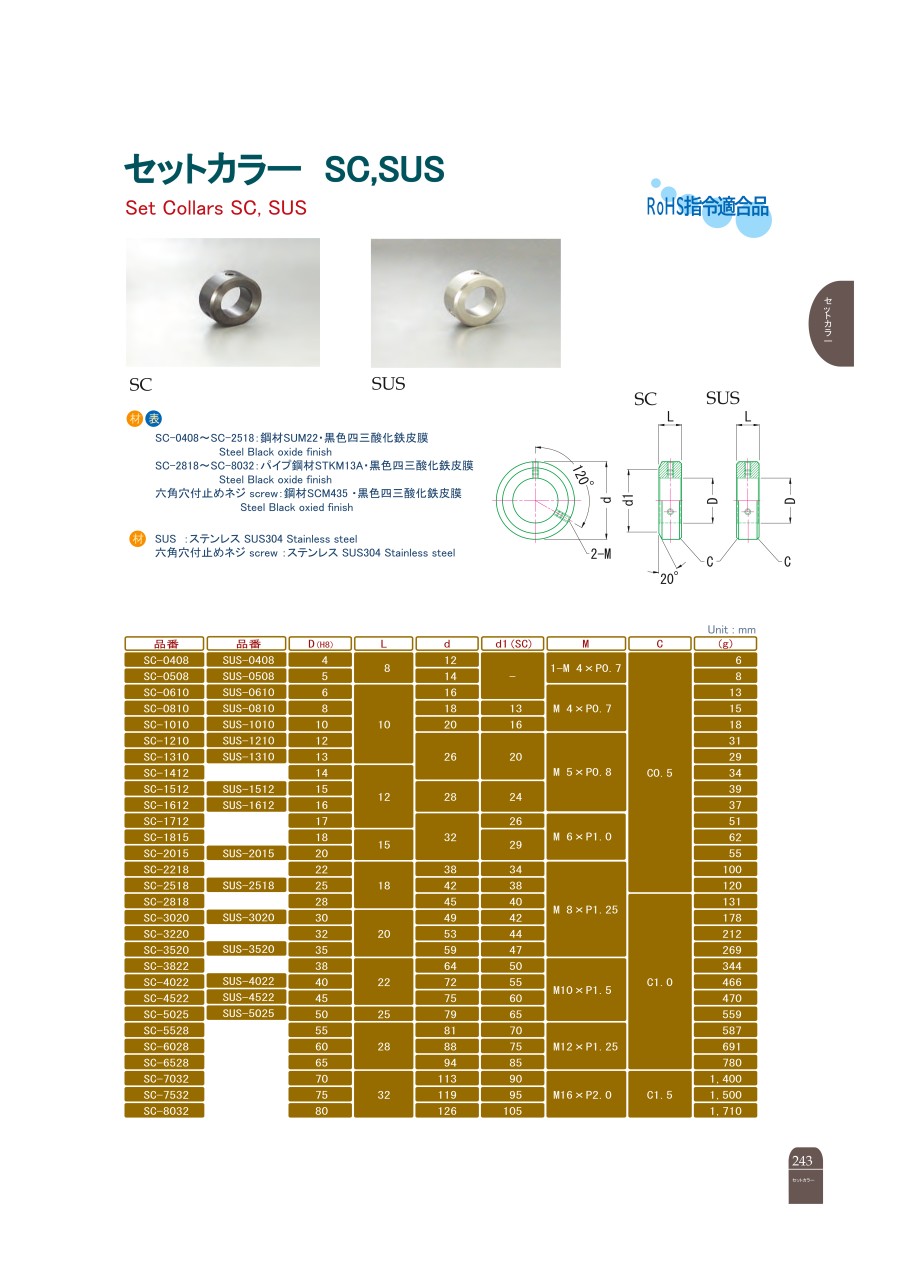

Set collars / steel / double set screw / SC

Promotional pricing
Volume Discount

[Features] It is used for positioning round shafts. [Features] SC-0408 to SC-2518, material: EN 1.0715 Equiv. steel, surface treatment: black oxide coating, SC-2818 to SC-8032, material: JIS-STKM (tubular steel)13A tubular steel material, surface treatment: black oxide coating, hexagon socket screw, material: EN 1.7220 Equiv. steel material, surface treatment: black oxide coating.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Products homepage

Data to be displayed: 30; 45; 60

Part Number
SC-0408
SC-0508
SC-0610
SC-0810
SC-1010
SC-1210
SC-1310
SC-1412
SC-1512
SC-1612
SC-1712
SC-1815
SC-2015
SC-2218
SC-2518
SC-2818
SC-3020
SC-3220
SC-3520
SC-3822
SC-4022
SC-4522
SC-5025
SC-5528
SC-6028
SC-6528
SC-7032
SC-7532
SC-8032

Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?	RoHS	I.D. (mm)	Outer Diameter D (mm)	Width L (mm)	Material
2.18 €	1	Available	5 Days	10	4	12	8	Steel EN 1.0715 Equiv.
12.55 €	1	Available	6 Days	10	5	14	8	Steel EN 1.0715 Equiv.
6.44 €	1	Available	6 Days	10	6	16	10	Steel EN 1.0715 Equiv.
7.00 €	1	Available	Same day Stock	10	8	18	10	Steel EN 1.0715 Equiv.
7.17 €	1	Available	Same day Stock	10	10	20	10	Steel EN 1.0715 Equiv.
7.74 €	1	Available	Same day Stock	10	12	26	10	Steel EN 1.0715 Equiv.
12.20 €	1	Available	6 Days	10	13	26	10	Steel EN 1.0715 Equiv.
6.70 € 1.94 €	1	Available	Same day Stock	10	14	26	12	Steel EN 1.0715 Equiv.
7.39 €	1	Available	5 Days	10	15	28	12	Steel EN 1.0715 Equiv.
9.68 €	1		5 Days	10	16	28	12	Steel EN 1.0715 Equiv.
12.37 €	1	Available	5 Days	10	17	32	12	Steel EN 1.0715 Equiv.
6.52 €	1	Available	6 Days	10	18	32	15	Steel EN 1.0715 Equiv.
8.85 €	1	Available	Same day Stock	10	20	32	15	Steel EN 1.0715 Equiv.
8.63 €	1	Available	6 Days	10	22	38	18	Steel EN 1.0715 Equiv.
10.42 €	1	Available	Same day Stock	10	25	42	18	Steel EN 1.0715 Equiv.
12.65 €	1		5 Days	10	28	45	18	Pipe Steel Material EN 1.0480 Equiv.
12.28 € 4.18 €	1	Available	Same day Stock	10	30	49	20	Pipe Steel Material EN 1.0480 Equiv.
12.90 € 3.87 €	1	Available	Same day Stock	10	32	53	20	Pipe Steel Material EN 1.0480 Equiv.
14.27 €	1	Available	5 Days	10	35	59	20	Pipe Steel Material EN 1.0480 Equiv.
17.58 €	1		6 Days	10	38	64	22	Pipe Steel Material EN 1.0480 Equiv.
21.40 €	1		5 Days	10	40	72	22	Pipe Steel Material EN 1.0480 Equiv.
19.48 € 8.77 €	1	Available	Same day Stock	10	45	75	22	Pipe Steel Material EN 1.0480 Equiv.
23.02 €	1	Available	5 Days	10	50	79	25	Pipe Steel Material EN 1.0480 Equiv.
29.94 €	1		6 Days	10	55	81	28	Pipe Steel Material EN 1.0480 Equiv.
32.59 €	1		11 Days	10	60	88	28	Pipe Steel Material EN 1.0480 Equiv.
40.38 €	1	Available	6 Days	10	65	94	28	Pipe Steel Material EN 1.0480 Equiv.
60.33 €	1		6 Days	10	70	113	32	Pipe Steel Material EN 1.0480 Equiv.
74.62 €	1		6 Days	10	75	119	32	Pipe Steel Material EN 1.0480 Equiv.
77.28 €	1		6 Days	10	80	126	32	Pipe Steel Material EN 1.0480 Equiv.

Basic information

Tightening Method	Set Screw	Specifications	Standard	Material	Iron
Surface Treatment	Surface Treatment	Thickness	Standard Type	Surface Treatment	Black Oxide
