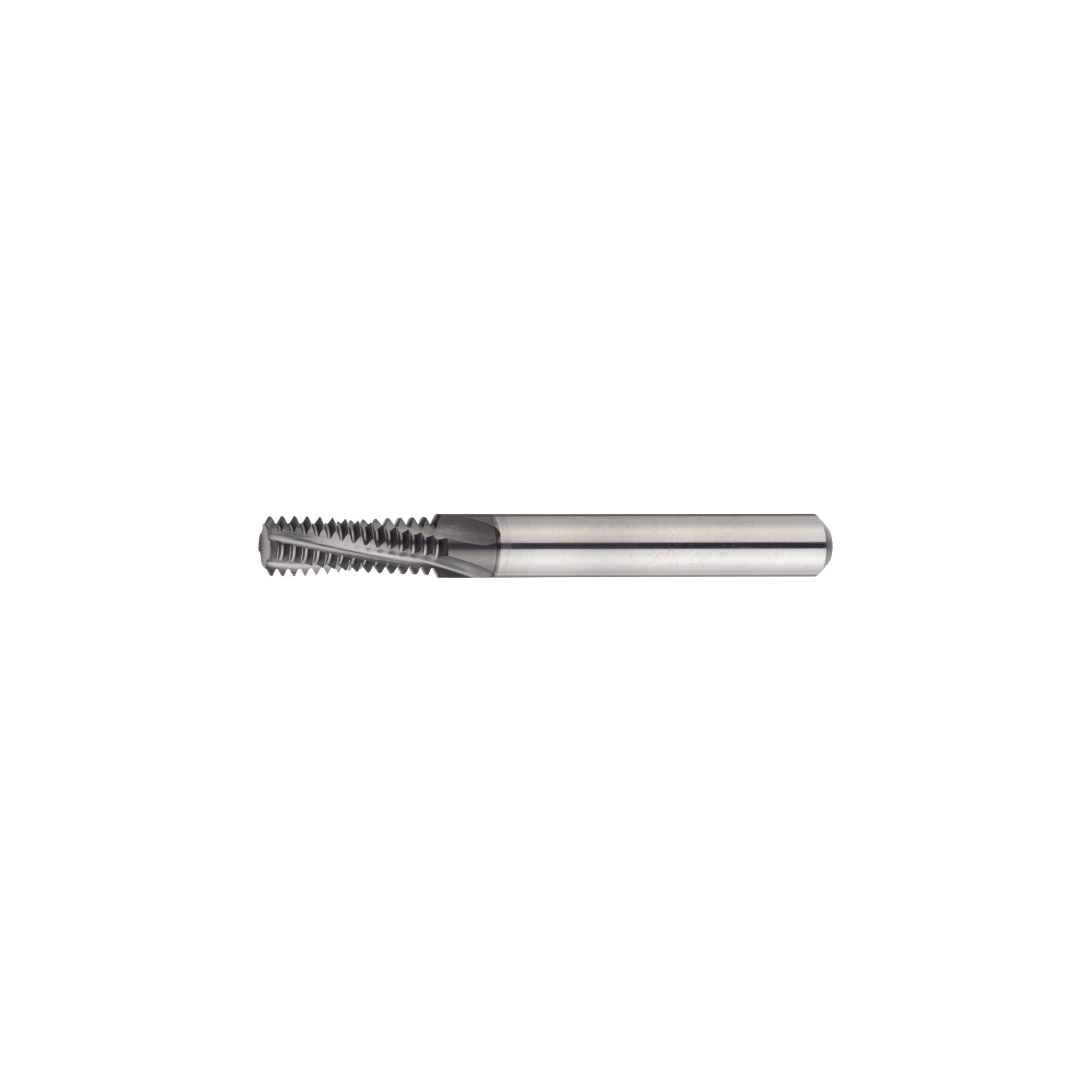

DLC Coated Carbide Threading Cutter for Aluminium Machining, for Internal Metric Threads / 2D Model

DLC Coated Carbide Threading Cutter for Aluminium Machining, for Internal Metric Threads / 2D Model

Umieść kursor myszy nad ilustracją, aby ją powiększyć

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 8.
Ilość:

Rysunek konturowy

DLC Coated Carbide Threading Cutter for Aluminum Machining, for Internal Metric Threads / 2D Model:Related Image

Lista numerów części

Liczba pozycji

Nominal

Pitch, Number of Threads

(mm)

Overall Length (L)

(mm)

Major Diameter

(φ)

Thread Length

Shank Diameter

(φ)

No. of Grooves

Minimalna wielkość zamówienia
M3
0.5
57
2.2
5
6
3
1 szt.
M4
0.7
57
2.9
7
6
3
1 szt.
M5
0.8
57
3.8
8
6
3
1 szt.
M6
1
57
4.5
13
6
3
1 szt.
M8
1.25
65
6
17.5
6
3
1 szt.
M10
1.5
72
7.5
21
8
4
1 szt.
M12
1.75
80
9.5
26.3
10
4
1 szt.
M16
2
92
12
34
12
4
1 szt.
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)
Standardowa data wysyłki
152.95 €
( 182.01 € )
5 dni robocze
152.95 €
( 182.01 € )
5 dni robocze
152.95 €
( 182.01 € )
5 dni robocze
152.95 €
( 182.01 € )
5 dni robocze
110.98 €
( 132.07 € )
5 dni robocze
122.25 €
( 145.48 € )
5 dni robocze
154.60 €
( 183.97 € )
5 dni robocze
212.87 €
( 253.32 € )
5 dni robocze

Szczegółowe informacje

Podstawowe informacje

[Features]
-Carbide thread cutter for stable high speed machining
-Can be used for both blind holes and through holes
-DLC coating with excellent abrasion resistance and chip weld resistance makes it ideal for non-steel metals such as aluminium and copper.

Specyfikacja i cena

Specifications

DLC Coated Carbide Threading Cutter for Aluminum Machining, for Internal Metric Threads / 2D Model:Related Image

Model Number
DLC-ALCTM

Nominal M x P Major Diameter
D
Overall Length
L
Thread Length
Lc
Shank Diameter
d
No. of Grooves
M3 0.5 2.2 57 5 6 3
M4 0.7 2.9 57 7 6 3
M5 0.8 3.8 57 8 6 3
M6 1 4.5 57 13 6 3
M8 1.25 6 65 17.5 6 3
M10 1.5 7.5 72 21 8 4
M12 1.75 9.5 80 26.3 10 4
M16 2 12 92 34 12 4
M20 2.5 16 105 42.5 16 5



Funkcje i przykłady użycia

More Information


The DLC coating has excellent wear resistance and deposition resistant properties that make it ideal for machining non-ferrous metals such as aluminum and copper.
The processing time is reduced since high speed cutting is possible.
It can be used both for blind holes and through-holes.

■Misumi Threading Cutter Product CNC Program Download Services

Click here

Dodatkowe opcje i powłoka

Alterations

DLC Coated Carbide Threading Cutter for Aluminum Machining, for Internal Metric Threads / 2D Model:Related Image Specified Range


DLC Coated Carbide Threading Cutter for Aluminum Machining, for Internal Metric Threads / 2D Model:Related Image

Model Number
T-TAC-CTM / T-TAC-CTML / T-DLC-ALCTM

Nominal M x P Shank Relief
-ZC
1 mm Increment Designation
Figure
M3 0.5 5 ~ 15 1
M4 0.7 5 ~ 15 1
M5 0.8 5 ~ 15 1
M6 1 5 ~ 15 1
M8 1.25 5 ~ 20 2
M10 1.5 5 ~ 20 1
M12 1.75 5 ~ 30 1
M16 2 5 ~ 30 2
M20 2.5 5 ~ 30 2
