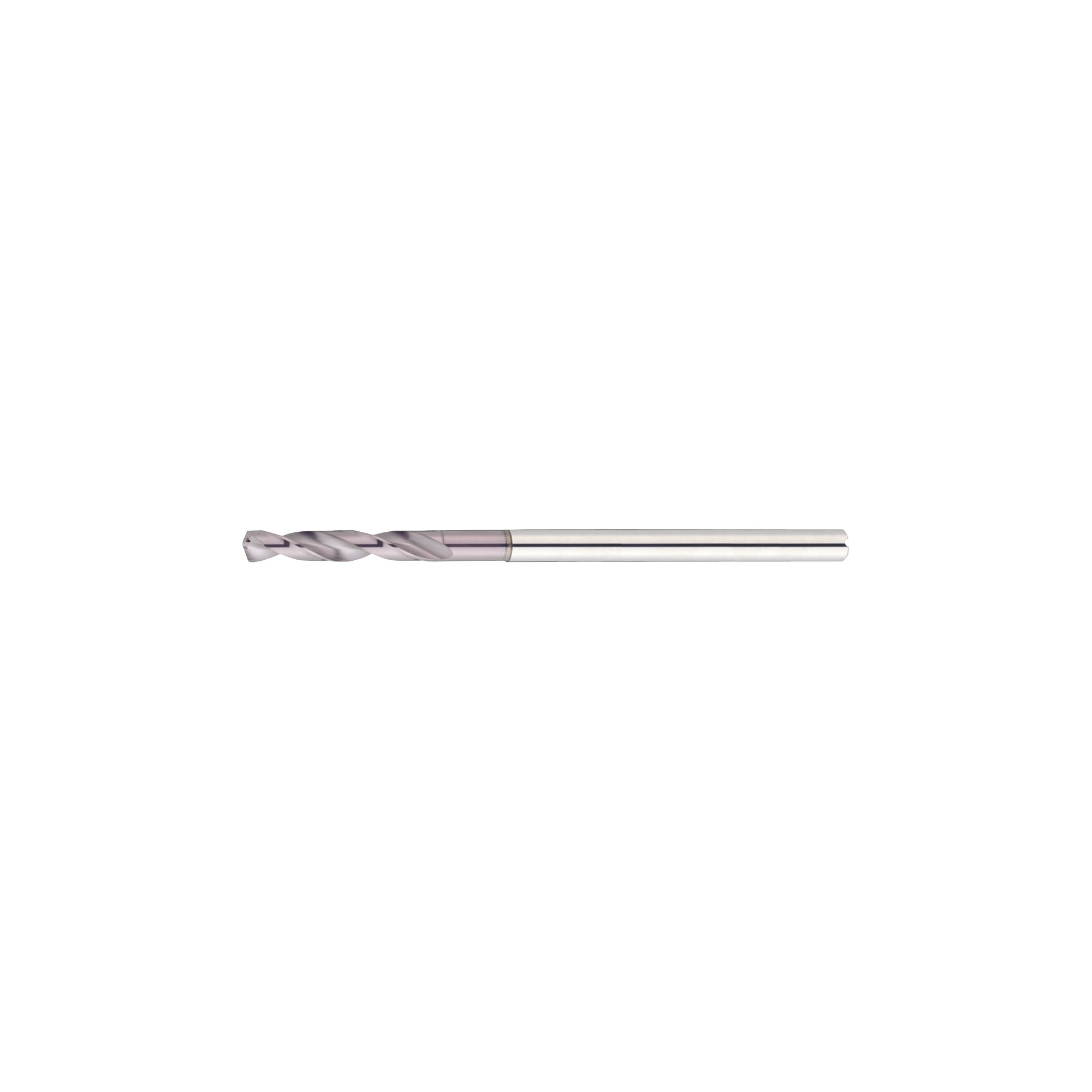

TiAlN Coated Carbide Drill, Regular Model with Oil Holes

TiAlN Coated Carbide Drill, Regular Model with Oil Holes

Umieść kursor myszy nad ilustracją, aby ją powiększyć

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 18.
Ilość:

Rysunek konturowy

TiAlN Coated Carbide Drill, Regular Model with Oil Holes:Related Image

Lista numerów części

Liczba pozycji

Hole diameter (drill diameter) D

(mm)

Groove Length L

(mm)

Overall Length L

(mm)

Shank Diameter d

Diameter Tolerance

Tolerance of Shank Diameter

Minimalna wielkość zamówienia
3
28
66
6
0 ~ -0.018
0 ~ -0.008
1 szt.
4.2
36
74
6
0 ~ -0.018
0 ~ -0.008
1 szt.
4.3
36
74
6
0 ~ -0.018
0 ~ -0.008
1 szt.
5.2
44
82
6
0 ~ -0.018
0 ~ -0.008
1 szt.
5.8
44
82
6
0 ~ -0.018
0 ~ -0.008
1 szt.
6.6
53
91
8
0 ~ -0.022
0 ~ -0.009
1 szt.
6.9
53
91
8
0 ~ -0.022
0 ~ -0.009
1 szt.
7
53
91
8
0 ~ -0.022
0 ~ -0.009
1 szt.
8
53
91
8
0 ~ -0.022
0 ~ -0.009
1 szt.
8.5
61
103
10
0 ~ -0.022
0 ~ -0.009
1 szt.
8.6
61
103
10
0 ~ -0.022
0 ~ -0.009
1 szt.
9
61
103
10
0 ~ -0.022
0 ~ -0.009
1 szt.
9.8
61
103
10
0 ~ -0.022
0 ~ -0.009
1 szt.
10
61
103
10
0 ~ -0.022
0 ~ -0.009
1 szt.
10.4
71
118
12
0 ~ -0.027
0 ~ -0.011
1 szt.
11
71
118
12
0 ~ -0.027
0 ~ -0.011
1 szt.
11.8
71
118
12
0 ~ -0.027
0 ~ -0.011
1 szt.
13
77
124
14
0 ~ -0.027
0 ~ -0.011
1 szt.
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)
Standardowa data wysyłki
79.21 €
( 94.26 € )
5 dni robocze
84.04 €
( 100.01 € )
5 dni robocze
84.04 €
( 100.01 € )
5 dni robocze
95.75 €
( 113.94 € )
5 dni robocze
95.75 €
( 113.94 € )
5 dni robocze
101.39 €
( 120.65 € )
5 dni robocze
94.30 €
( 112.22 € )
5 dni robocze
94.41 €
( 112.35 € )
5 dni robocze
101.50 €
( 120.78 € )
5 dni robocze
139.59 €
( 166.11 € )
5 dni robocze
139.59 €
( 166.11 € )
5 dni robocze
139.59 €
( 166.11 € )
5 dni robocze
169.96 €
( 202.25 € )
5 dni robocze
169.96 €
( 202.25 € )
5 dni robocze
213.30 €
( 253.83 € )
5 dni robocze
213.30 €
( 253.83 € )
5 dni robocze
155.56 €
( 185.12 € )
5 dni robocze
186.26 €
( 221.65 € )
5 dni robocze

Szczegółowe informacje

Podstawowe informacje

[Features]
-Internal lubrication efficiently evacuates chips and improves tool life
-Supports a wide range of materials, from general steel to stainless steel
-Achieves excellent strength by adopting a straight cutting edge
-Demonstrates high centripetal force by using three chip and X-type thinning
-The combination of superfine carbide alloy and TiAlN coating provides excellent abrasion resistance and enables high-speed machining.

Specyfikacja i cena

Specifications

TiAlN Coated Carbide Drill, Regular Model with Oil Holes:Related Image

Model Number Groove Length
Overall Length
L
Shank Diameter
d
Diameter
D
TAC-HESDR32866

6

4.236746
4.336746
5.244826
5.844826
6.653918
6.953918
753918
853918
8.56110310
8.66110310
96110310
9.86110310
106110310
10.47111812
10.57111812
117111812
11.87111812
137712414


For Cutting Conditions, Refer to >>Click here.

Funkcje i przykłady użycia

More Information


Internal lubrication enables cutting chips to be discharged efficiently, and the lifetime of the tool is extended.
It supports a wide range of work materials ranging from general steel to stainless steel.
Adopting a straight cutting edge achieves outstanding strength.
With three rakes + X-model thinning, it demonstrates good centripetal properties and regrinding is simple.
Using a combination of ultrafine particulate carbide + TiAℓN coat, it has superior wear resistance, which allows for high-speed machining.
