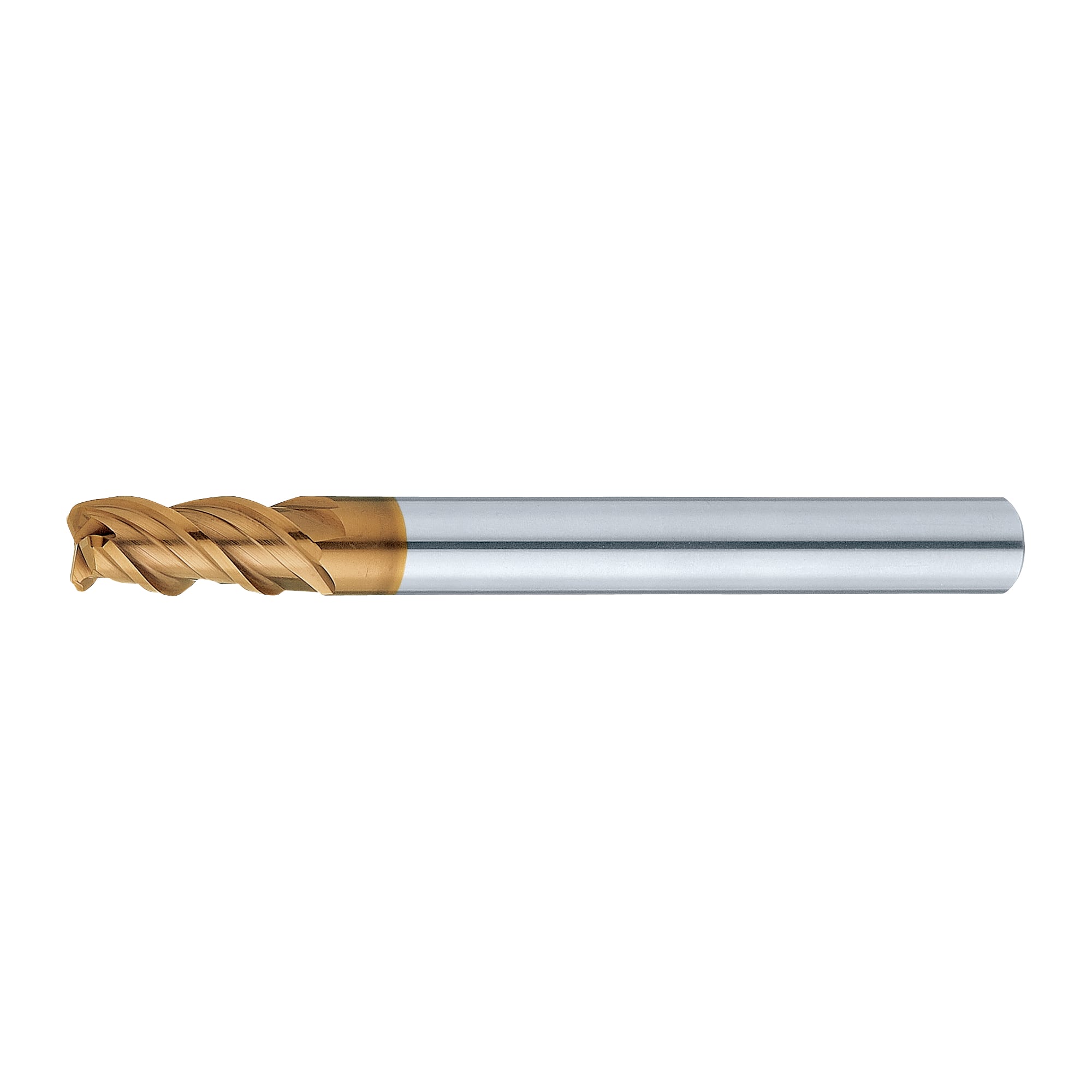

TSC series carbide radius end mill, 3-flute, 45° spiral / short model
Umieść kursor myszy nad ilustracją, aby ją powiększyć
Numer części:
.Rysunek konturowy
Lista numerów części
| Numer części |
|---|
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem) | Standardowa data wysyłki |
|---|
93.25 € ( 110.97 € ) | 5 dni robocze |
126.23 € ( 150.21 € ) | 5 dni robocze |
133.62 € ( 159.01 € ) | 5 dni robocze |
147.57 € ( 175.61 € ) | 5 dni robocze |
123.66 € ( 147.16 € ) | 5 dni robocze |
146.09 € ( 173.85 € ) | 5 dni robocze |
206.53 € ( 245.77 € ) | 5 dni robocze |
Szczegółowe informacje
Podstawowe informacje
The popular radius type for stainless steel processing is also effective in preventing chipping
Specyfikacja i cena
Specifications
| Model Number | Flute Length ℓ |
Overall Length L |
Shank Diameter d |
Figure | ||
| Outer Diameter D |
Radius R |
|||||
| TSC-FMS-HREM3S | 3 | 0.5 | 7 | 60 | 6 | 1 |
| 4 | 0.5 | 9 | 60 | 6 | 1 | |
| 5 | 0.8 | 11 | 60 | 6 | 1 | |
| 6 | 1 | 14 | 60 | 6 | 2 | |
| 8 | 1.5 | 16 | 80 | 8 | 2 | |
| 10 | 2 | 18 | 80 | 10 | 2 | |
| 12 | 2 | 18 | 100 | 12 | 2 |
For Cutting Conditions, Refer to >>Click here.
Funkcje i przykłady użycia
More Information
●An original MISUMI shape that is ideal for machining SUS304 work materials. For work materials with low thermal conductivity that are easily heated up, the proprietary blade shape suppresses the effects of heat on the blade tip, dramatically improving wear resistance and reducing the chances of melting and becoming stuck.
●The TS coating consisting of a nitride composite film with a fully crystalline structure means that it yields a high oxidation resistance temperature and high hardness. It achieves a longer lifespan for high speed machining and dry machining of SUS work materials.
●The radial blade tip is also useful to prevent chipping.
[ ! ]This product has a special shape with a performance that may not be reproducible without the use of Misumi's dedicated re-grinding.
