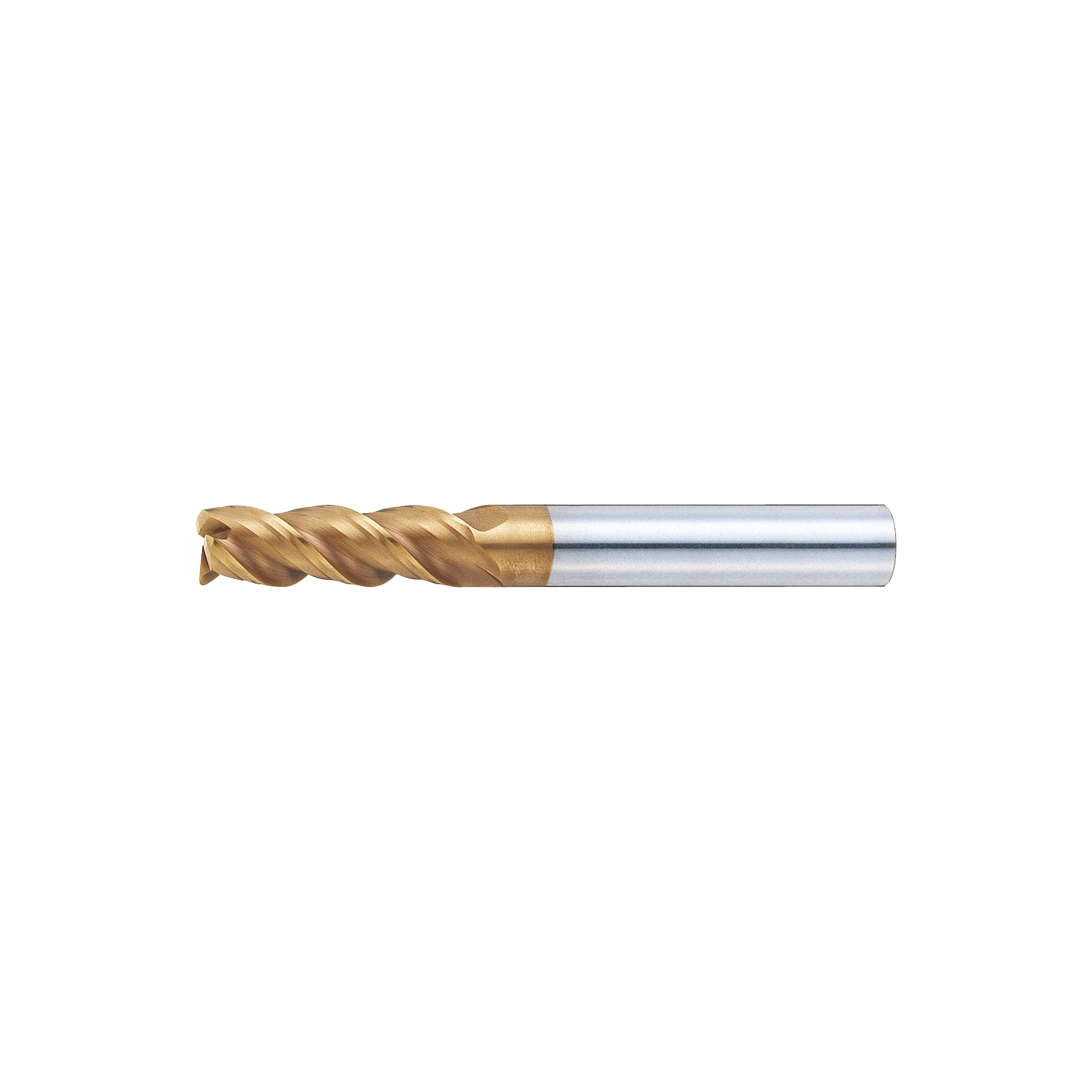

TSC series carbide radius end mill, 3-flute, 45° spiral / regular model
Umieść kursor myszy nad ilustracją, aby ją powiększyć
Numer części:
.Rysunek konturowy
Lista numerów części
| Numer części |
|---|
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem) | Standardowa data wysyłki |
|---|
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
72.13 € ( 85.83 € ) | 5 dni robocze |
60.88 € ( 72.45 € ) | 5 dni robocze |
50.63 € ( 60.25 € ) | 5 dni robocze |
51.66 € ( 61.48 € ) | 5 dni robocze |
47.23 € ( 56.20 € ) | 5 dni robocze |
52.91 € ( 62.96 € ) | 5 dni robocze |
68.78 € ( 81.85 € ) | 5 dni robocze |
74.44 € ( 88.58 € ) | 5 dni robocze |
74.07 € ( 88.14 € ) | 5 dni robocze |
74.07 € ( 88.14 € ) | 5 dni robocze |
63.00 € ( 74.97 € ) | 5 dni robocze |
59.10 € ( 70.33 € ) | 5 dni robocze |
68.15 € ( 81.10 € ) | 5 dni robocze |
67.83 € ( 80.72 € ) | 5 dni robocze |
Szczegółowe informacje
Podstawowe informacje
[Features]
-Radius multi-function cutter
-The 3-flute shape makes it resistant to chatter and can be used continuously from plunging to grooving
-Unique chip groove shape allows grooving with a depth of cut equivalent to that of 2 flutes
-Compared to square cutters with 30° helix angle, both rotation and feed are more than twice as fast
-Radius flute is also effective in suppressing chips.
Specyfikacja i cena
Specifications
Model Number
TSC-CR-HEM3R (Stocked Product) / T-TSC-HEM3R (Manufactured Product)
| Outer Diameter D |
Radius | R Select (Stocked Product) | Flute Length ℓ |
Overall Length L |
Shank Diameter d |
Figure | ● Stocked Product □ Manufactured Product |
| CR 0.1 mm Increment Designation (Manufactured Product) |
|||||||
| 3 | 0.2 0.3 0.5 | 16 | 60 | 6 | 1 | ● | |
| 4 | 0.2 0.3 0.5 1 | 18 | 60 | 6 | 1 | ● | |
| 0.1 ~ 0.4 | □ | ||||||
| 5 | 0.3 0.5 1 | 21 | 60 | 6 | 1 | ● | |
| 0.1 ~ 0.4 | □ | ||||||
| 6 | 0.3 0.5 1 1.5 | 21 | 60 | 6 | 2 | ● | |
| 0.1 ~ 0.9 | □ | ||||||
| 7 | 0.1 ~ 1.0 | 24 | 70 | 8 | 1 | □ | |
| 7.5 | 0.1 ~ 1.0 | 24 | 70 | 8 | 1 | □ | |
| 8 | 0.3 0.5 1 1.5 2 | 26 | 75 | 8 | 2 | ● | |
| 0.1 - 1.4 | □ | ||||||
| 9 | 0.1 ~ 1.5 | 26 | 80 | 10 | 1 | □ | |
| 10 | 0.3 0.5 1 1.5 2 | 34 | 90 | 10 | 2 | ● | |
| 0.1 ~ 1.9 | □ | ||||||
| 11 | 0.1 ~ 2.0 | 34 | 100 | 12 | 1 | □ | |
| 12 | 0.3 0.5 1 1.5 2 | 38 | 100 | 12 | 2 | ● | |
| 0.1 ~ 2.5 | □ | ||||||
| 16 | 0.5 1 | 48 | 110 | 16 | 2 | ● | |
| 0.1 ~ 3.0 | □ | ||||||
| 20 | 0.5 1 | 56 | 130 | 20 | 2 | ● | |
| 0.1 ~ 3.0 | □ | ||||||
[ ! ]The flute length (ℓ) and total length (L) are approximately D x 0.5 shorter (up to approximately 5 mm) for manufactured products.
[ ! ]Manufactured products do not have a coating. Refer to >>Click here. for information about re-coating during additional processing.
For Cutting Conditions, Refer to >>Click here.
Funkcje i przykłady użycia
More Information
● It has a TS film coating with much greater oxidation resistance and hardness than conventional films, resulting in a longer operational life and ideal for high speed machining / dry machining.
● A multi-functional end mill product with added curvature.
● Has a 3-flute shape to be strong against chatter and is capable of stepless grooving.
● The unique tip pocket shape allows for the cutting of grooves to be achieved with 2 flutes in parallel at the cutting depth.
● Compared to 30° twisted square end mills, both rotation and feed capacity are more than double for higher speed machining.
● The radial blade tip is useful to prevent chipping.
