TSC series carbide composite radius end mill, for high-feed machining, 3-flute, 45° spiral / short model

TSC series carbide composite radius end mill, for high-feed machining, 3-flute, 45° spiral / short model

Umieść kursor myszy nad ilustracją, aby ją powiększyć

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 5.
Ilość:

Rysunek konturowy

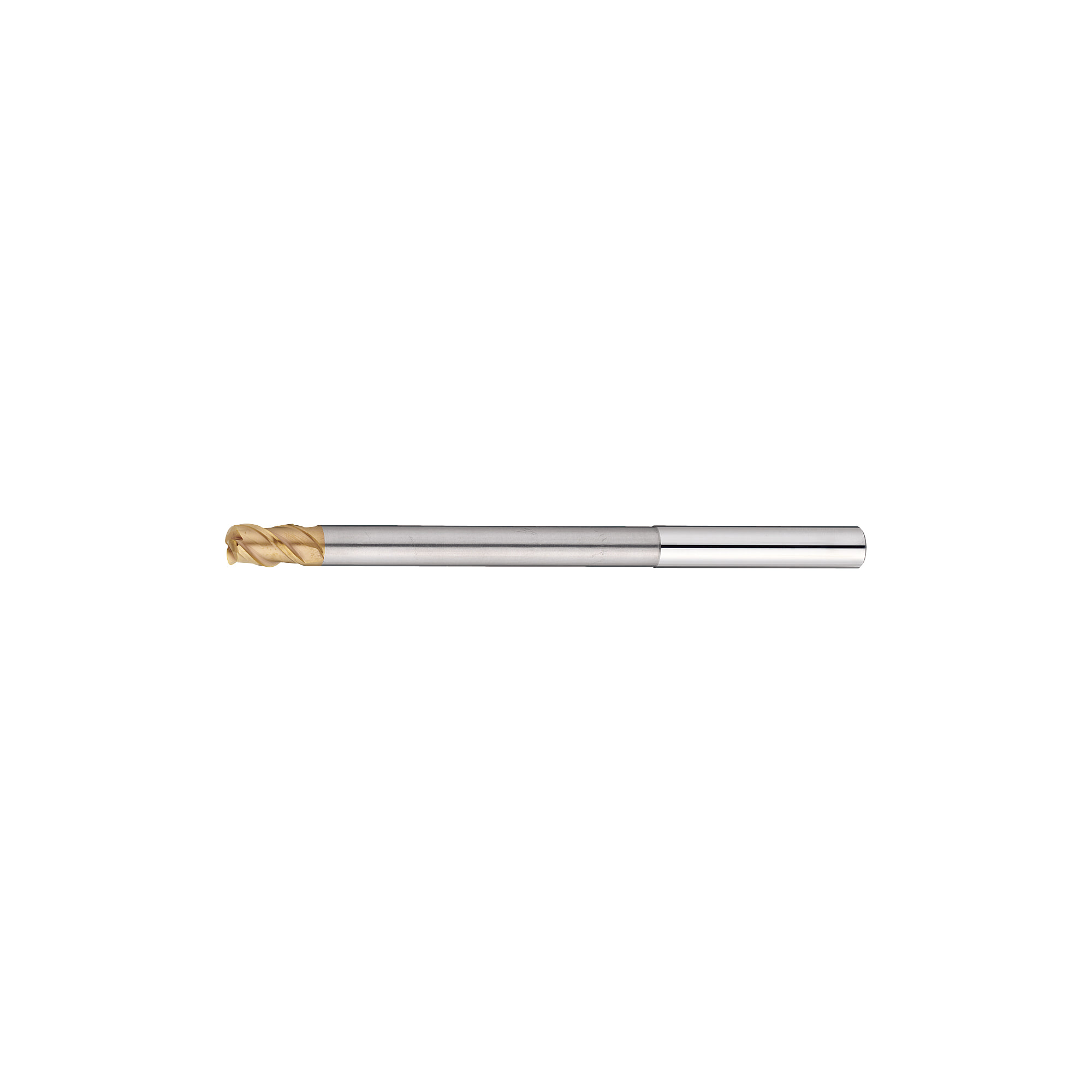

 TSC series carbide composite radius end mill, for high-feed machining, 3-flute, 45° spiral / short model:Related Image

Lista numerów części

Liczba pozycji

Outer Diameter (D)

(φ)

R Size

(mm)

Flute Length (ℓ)

(mm)

Overall Length (L)

(mm)

Shank Diameter (d)

(mm)

Length Under Neck (ℓ1)

(mm)

Figure

Shoulder Radius R1

(mm)

Base Radius R2

(mm)

Approximate R-Value

(mm)

Under Neck Diameter d1

(mm)

Minimalna wielkość zamówienia
4
0.813
8
80
6
35
1
0.5
4
0.813
3.8
1 szt.
6
1.219
10
120
6
70
1
0.5
9
1.219
5.7
1 szt.
8
1.625
16
135
8
85
2
1
12
1.625
7.6
1 szt.
10
2.031
20
150
10
100
2
1.5
15
2.031
9.5
1 szt.
12
2.438
24
160
12
108
2
1.5
18
2.438
11.5
1 szt.
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)
Standardowa data wysyłki
93.37 €
( 111.11 € )
5 dni robocze
124.50 €
( 148.16 € )
5 dni robocze
99.34 €
( 118.21 € )
5 dni robocze
193.97 €
( 230.82 € )
5 dni robocze
259.45 €
( 308.75 € )
5 dni robocze

Szczegółowe informacje

Podstawowe informacje

[Features]
-Combined corner radius shape of shoulder R and bottom R, (1) Cutting chips are thin when milling bottom surface, which enables high-speed feed (2) Minimizing cusp height (unmachined part) when contour milling reduces the number of middle finishing operations
-Long neck type, which avoids tool interference, achieves high efficiency even when milling deep cavities
-Can be reground. Please refer to the "Regrinding Service" page for information on application procedures, range of services, prices, etc.

Specyfikacja i cena

Specifications

TSC series carbide composite radius end mill, for high-feed machining, 3-flute, 45° spiral / short model:Related Image

Model Number
TSC-MCR-LS-HFEM3S (3 Flutes)

Outer Diameter
D
Shoulder
Radius
R1
Base
Radius
R2
Approximate R-Value Flute Length
Under Neck Diameter
d1
Length Under Neck
ℓ1
Overall Length
L
Shank Diameter
d
Figure
4 0.5 4 0.813 8 3.8 35 80 6 1
6 0.5 9 1.219 10 5.7 70 120 6 1
8 1 12 1.625 16 7.6 85 135 8 2
10 1.5 15 2.031 20 9.5 100 150 10 2
12 1.5 18 2.438 24 11.5 108 160 12 2



For Cutting Conditions, Refer to >>Click here.

Funkcje i przykłady użycia

More Information


The shoulder R and base R composite radius eliminate the medium finishing process by (1), enabling high-speed feeding due to thin chippings when bottom-surface machining, and by (2), minimizing the cusp height (leftover) when machining lines at the same height.
The long neck models not only avoid tool interference, but can also achieve increased efficiency when machining deep grooves.
The TS coating consisting of a nitride-based composite film with a fully crystalline structure means that it yields a high oxidation resistance temperature and high hardness. Ideal for high speed machining and dry machining of anything from raw carbon steel materials to heat-treated / high hardness steel.
[ ! ]This product has a special groove shape with a performance that may not be reproducible without the use of Misumi's dedicated re-grinding.


TSC series carbide composite radius end mill, for high-feed machining, 3-flute, 45° spiral / short model:Related Image
