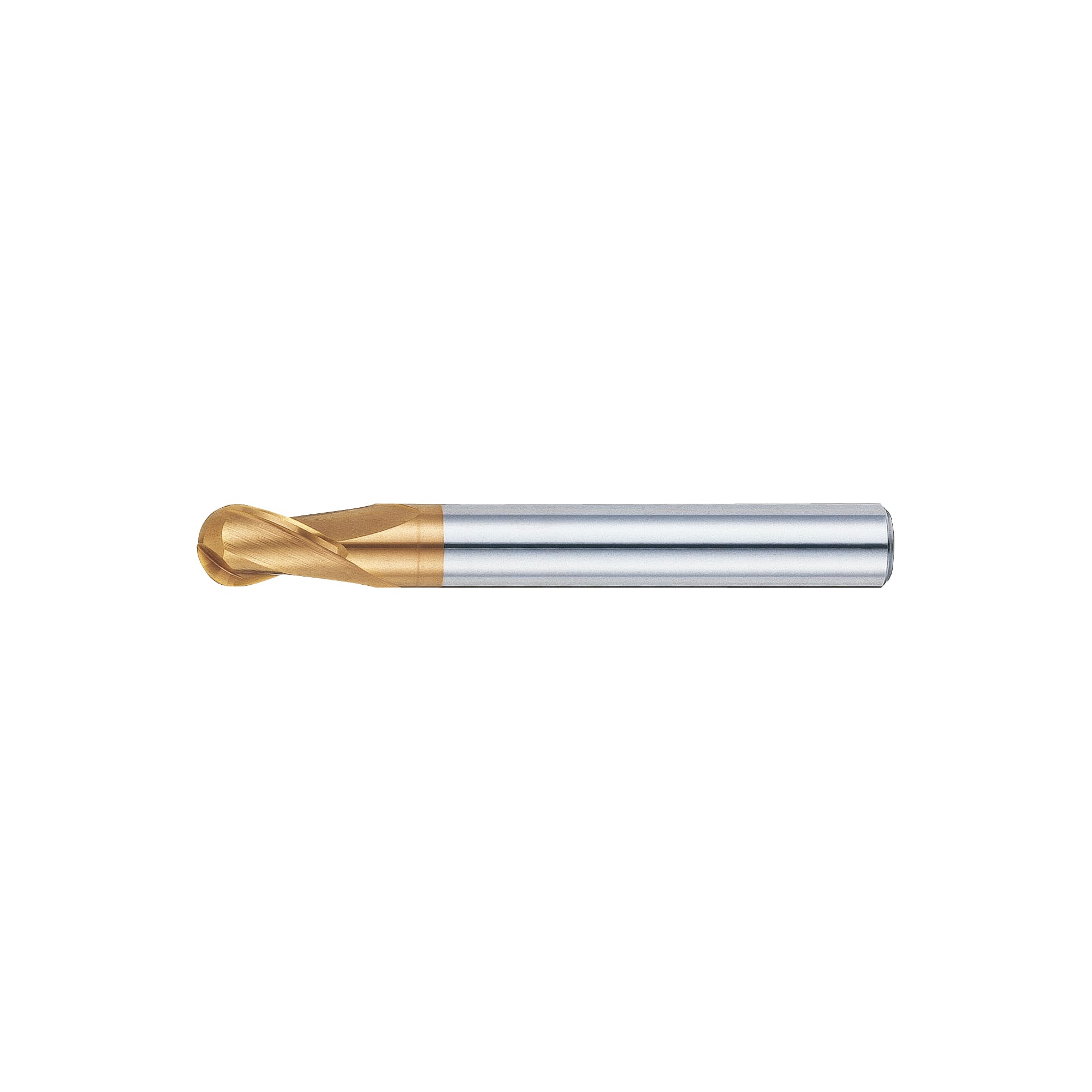

TSC series carbide ball end mill, short model
Umieść kursor myszy nad ilustracją, aby ją powiększyć
Numer części:
.Rysunek konturowy
Lista numerów części
| Numer części |
|---|
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem) | Standardowa data wysyłki |
|---|
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
- ( - ) | 7 dni robocze |
52.13 € ( 62.03 € ) | 5 dni robocze |
38.91 € ( 46.30 € ) | 5 dni robocze |
60.53 € ( 72.03 € ) | 5 dni robocze |
22.17 € ( 26.38 € ) | 5 dni robocze |
41.23 € ( 49.06 € ) | 5 dni robocze |
27.80 € ( 33.08 € ) | 5 dni robocze |
29.47 € ( 35.07 € ) | 5 dni robocze |
21.90 € ( 26.06 € ) | 5 dni robocze |
28.66 € ( 34.11 € ) | 5 dni robocze |
17.80 € ( 21.18 € ) | 5 dni robocze |
25.52 € ( 30.37 € ) | 5 dni robocze |
31.27 € ( 37.21 € ) | 5 dni robocze |
30.46 € ( 36.25 € ) | 5 dni robocze |
27.18 € ( 32.34 € ) | 5 dni robocze |
38.48 € ( 45.79 € ) | 5 dni robocze |
28.22 € ( 33.58 € ) | 5 dni robocze |
20.41 € ( 24.29 € ) | 5 dni robocze |
42.24 € ( 50.27 € ) | 5 dni robocze |
44.99 € ( 53.54 € ) | 5 dni robocze |
41.38 € ( 49.24 € ) | 5 dni robocze |
55.56 € ( 66.12 € ) | 5 dni robocze |
22.20 € ( 26.42 € ) | 5 dni robocze |
35.43 € ( 42.16 € ) | 5 dni robocze |
42.31 € ( 50.35 € ) | 5 dni robocze |
42.31 € ( 50.35 € ) | 5 dni robocze |
22.65 € ( 26.95 € ) | 5 dni robocze |
30.02 € ( 35.72 € ) | 5 dni robocze |
57.87 € ( 68.87 € ) | 5 dni robocze |
53.21 € ( 63.32 € ) | 5 dni robocze |
56.77 € ( 67.56 € ) | 5 dni robocze |
55.57 € ( 66.13 € ) | 5 dni robocze |
54.74 € ( 65.14 € ) | 5 dni robocze |
19.95 € ( 23.74 € ) | 5 dni robocze |
21.66 € ( 25.78 € ) | 5 dni robocze |
55.52 € ( 66.07 € ) | 5 dni robocze |
59.89 € ( 71.27 € ) | 5 dni robocze |
46.61 € ( 55.47 € ) | 5 dni robocze |
59.95 € ( 71.34 € ) | 5 dni robocze |
45.68 € ( 54.36 € ) | 5 dni robocze |
32.87 € ( 39.12 € ) | 5 dni robocze |
Szczegółowe informacje
Podstawowe informacje
[Features]
-Good surface finish can be expected for the rough surface of the workpiece after machining
It has a coating with high oxidation resistance and high hardness, and achieves long service life. Effective in high-speed machining and dry machining as coating properties
-Can be reground. Please refer to the "Regrinding Service" page for application procedures, range of services, prices, etc.
Specyfikacja i cena
Specifications
| Model Number | Shank Diameter d |
Flute Length ℓ |
Outer Diameter D |
Overall Length L |
Under Neck Angle θ |
Figure | ||
| Tip R |
Shank Diameter d |
|||||||
| TSC-BEM2S | 0.05 | - | 3 | 0.2 | 0.1 | 40 | 10° | 1 |
| 0.1 | - | 3 | 0.4 | 0.2 | 40 | 10° | 1 | |
| 0.1 | 6 | 6 | 0.4 | 0.2 | 50 | 15° | 1 | |
| 0.15 | - | 3 | 0.6 | 0.3 | 40 | 10° | 1 | |
| 0.2 | - | 3 | 0.8 | 0.4 | 40 | 10° | 1 | |
| 0.2 | 6 | 6 | 0.8 | 0.4 | 50 | 15° | 1 | |
| 0.25 | - | 3 | 1 | 0.5 | 40 | 10° | 1 | |
| 0.3 | - | 3 | 1.2 | 0.6 | 40 | 10° | 1 | |
| 0.3 | 6 | 6 | 1.2 | 0.6 | 50 | 15° | 1 | |
| 0.35 | - | 3 | 1.4 | 0.7 | 40 | 10° | 1 | |
| 0.4 | - | 3 | 1.6 | 0.8 | 40 | 10° | 1 | |
| 0.4 | 6 | 6 | 1.6 | 0.8 | 50 | 15° | 1 | |
| 0.45 | - | 3 | 1.8 | 0.9 | 40 | 10° | 1 | |
| 0.5 | - | 4 | 2 | 1 | 40 | 10° | 1 | |
| 0.5 | 6 | 6 | 2 | 1 | 50 | 15° | 1 | |
| 0.55 | - | 4 | 2.2 | 1.1 | 40 | 10° | 1 | |
| 0.6 | - | 4 | 2.4 | 1.2 | 40 | 10° | 1 | |
| 0.65 | - | 4 | 2.6 | 1.3 | 40 | 10° | 1 | |
| 0.7 | - | 4 | 2.8 | 1.4 | 40 | 10° | 1 | |
| 0.75 | - | 4 | 3 | 1.5 | 40 | 10° | 1 | |
| 0.75 | 6 | 6 | 3 | 1.5 | 50 | 15° | 1 | |
| 0.8 | - | 4 | 3 | 1.6 | 40 | 10° | 1 | |
| 0.85 | - | 4 | 3 | 1.7 | 40 | 10° | 1 | |
| 0.9 | - | 4 | 3 | 1.8 | 40 | 10° | 1 | |
| 0.95 | - | 4 | 3 | 1.9 | 40 | 10° | 1 | |
| 1 | - | 4 | 3 | 2 | 40 | 10° | 1 | |
| 1 | 6 | 6 | 3 | 2 | 50 | 15° | 1 |
[ ! ]For shank diameter (d) specifications listed in blue, specify both a tip (R) and shank diameter (d).
| Model Number | Shank Diameter d |
Flute Length ℓ |
Outer Diameter D |
Overall Length L |
Under Neck Angle θ |
Figure | ||
| Tip R |
Shank Diameter d |
|||||||
| TSC-BEM2S | 1.05 | - | 4 | 3 | 2.1 | 40 | 10° | 1 |
| 1.1 | - | 4 | 3 | 2.2 | 40 | 10° | 1 | |
| 1.15 | - | 4 | 3 | 2.3 | 40 | 10° | 1 | |
| 1.2 | - | 4 | 3 | 2.4 | 40 | 10° | 1 | |
| 1.25 | - | 4 | 3.5 | 2.5 | 40 | 10° | 1 | |
| 1.3 | - | 4 | 3.5 | 2.6 | 40 | 10° | 1 | |
| 1.4 | - | 4 | 3.5 | 2.8 | 40 | 10° | 1 | |
| 1.45 | - | 4 | 3.5 | 2.9 | 40 | 10° | 1 | |
| 1.5 | - | 4 | 4 | 3 | 40 | 10° | 1 | |
| 1.5 | 6 | 6 | 4 | 3 | 60 | 10° | 1 | |
| 1.55 | - | 4 | 4 | 3.1 | 40 | 10° | 1 | |
| 1.6 | - | 4 | 4 | 3.2 | 40 | 10° | 1 | |
| 1.65 | - | 4 | 4 | 3.3 | 40 | 10° | 1 | |
| 1.7 | - | 4 | 4 | 3.4 | 40 | 10° | 1 | |
| 1.75 | - | 4 | 5 | 3.5 | 40 | 10° | 1 | |
| 1.8 | - | 4 | 5 | 3.6 | 40 | 10° | 1 | |
| 1.85 | - | 4 | 5 | 3.7 | 40 | 10° | 1 | |
| 1.9 | - | 4 | 5 | 3.8 | 40 | 10° | 1 | |
| 2 | 4 | 4 | 6 | 4 | 50 | - | 2 | |
| 2 | - | 6 | 6 | 4 | 50 | 10° | 1 | |
| 2.15 | - | 6 | 6 | 4.3 | 50 | 10° | 1 | |
| 2.2 | - | 6 | 6 | 4.4 | 50 | 10° | 1 | |
| 2.3 | - | 6 | 6 | 4.6 | 50 | 10° | 1 | |
| 2.35 | - | 6 | 6 | 4.7 | 50 | 10° | 1 | |
| 2.4 | - | 6 | 6 | 4.8 | 50 | 10° | 1 | |
| 2.5 | - | 6 | 8 | 5 | 50 | 10° | 1 | |
| 2.6 | - | 6 | 8 | 5.2 | 50 | 10° | 1 | |
| 2.75 | - | 6 | 8 | 5.5 | 50 | 10° | 1 | |
| 3 | - | 6 | 10 | 6 | 60 | - | 2 | |
| 3.5 | - | 8 | 12 | 7 | 60 | 10° | 1 | |
| 4 | - | 8 | 13 | 8 | 60 | - | 2 | |
| 4.5 | - | 10 | 14 | 9 | 70 | 10° | 1 | |
| 5 | - | 10 | 15 | 10 | 80 | - | 2 | |
| 5.5 | - | 12 | 15 | 11 | 80 | 10° | 1 | |
| 6 | - | 12 | 15 | 12 | 80 | - | 2 | |
| 7 | - | 12 | 15 | 14 | 80 | - | 3 | |
| 8 | - | 16 | 20 | 16 | 150 | - | 2 | |
| 10 | - | 20 | 25 | 20 | 150 | - | 2 |
[ ! ]For shank diameter (d) specifications listed in blue, specify both a tip (R) and shank diameter (d).
For Cutting Conditions, Refer to >>Click here.
Funkcje i przykłady użycia
More Information
● It has a TS film coating with much greater oxidation resistance and hardness than conventional films, resulting in a longer operational life and ideal for high speed machining / dry machining.
● Delivers a finish with a very good working surface roughness after machining.
