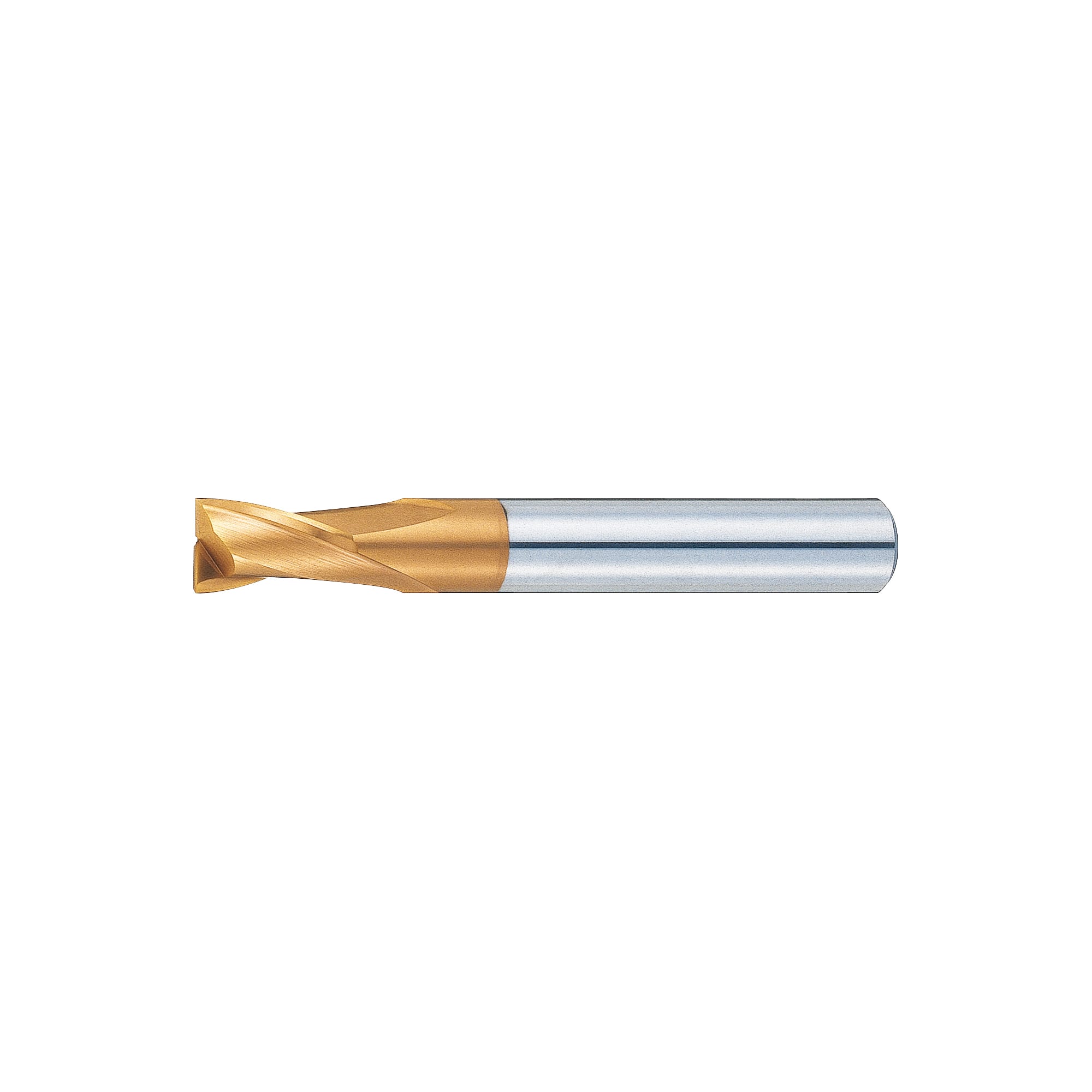

TSC series carbide end mill for key grooves, 2-flute / short model
Umieść kursor myszy nad ilustracją, aby ją powiększyć
Numer części:
.Rysunek konturowy
Lista numerów części
| Numer części |
|---|
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem) | Standardowa data wysyłki |
|---|
40.86 € ( 48.62 € ) | 5 dni robocze |
45.59 € ( 54.25 € ) | 5 dni robocze |
50.26 € ( 59.81 € ) | 5 dni robocze |
54.11 € ( 64.39 € ) | 5 dni robocze |
66.74 € ( 79.42 € ) | 5 dni robocze |
75.71 € ( 90.09 € ) | 5 dni robocze |
86.91 € ( 103.42 € ) | 5 dni robocze |
98.52 € ( 117.24 € ) | 5 dni robocze |
137.35 € ( 163.45 € ) | 5 dni robocze |
106.73 € ( 127.01 € ) | 5 dni robocze |
40.62 € ( 48.34 € ) | 5 dni robocze |
54.92 € ( 65.35 € ) | 5 dni robocze |
53.86 € ( 64.09 € ) | 5 dni robocze |
54.29 € ( 64.61 € ) | 5 dni robocze |
58.36 € ( 69.45 € ) | 5 dni robocze |
80.42 € ( 95.70 € ) | 5 dni robocze |
72.28 € ( 86.01 € ) | 5 dni robocze |
95.17 € ( 113.25 € ) | 5 dni robocze |
136.28 € ( 162.17 € ) | 5 dni robocze |
106.73 € ( 127.01 € ) | 5 dni robocze |
Szczegółowe informacje
Podstawowe informacje
[Features]
-Demonstrates high performance in machining general steel, EN 1.4301 Equiv. (sintered) and heat-treated steel (up to 50 HRC)
-2-flute end mill for machining keyways
-The shape of the end cutting edge is almost flat so that the workpiece can be machined flat.
-Short cutting edge length that is resistant to chattering (1. 5 times longer than the cutting edge diameter)
-Since the cutting edge has been machined into a sharp corner, corner edges can also be machined
-Optimal for low to medium speed machining due to the universal 30° helix angle
-The coating has high oxidation resistance and high hardness and achieves long life. Effective in high-speed machining and dry machining as coating characteristics.
Specyfikacja i cena
Specifications
| Model Number | Flute Length ℓ |
Overall Length L |
Shank Diameter d |
Figure | |
| Outer Diameter D |
|||||
| TSC-KPEM2S (+ Tolerance) TSC-KMEM2S (- Tolerance) |
2 | 3 | 45 | 6 | 1 |
| 3 | 5 | 45 | 6 | 1 | |
| 4 | 7 | 45 | 6 | 1 | |
| 5 | 8 | 50 | 6 | 1 | |
| 6 | 8 | 50 | 6 | 2 | |
| 7 | 10 | 60 | 8 | 1 | |
| 8 | 11 | 60 | 8 | 2 | |
| 10 | 13 | 70 | 10 | 2 | |
| 12 | 16 | 75 | 12 | 2 | |
| 14 | 21 | 75 | 16 | 1 |
For Cutting Conditions, Refer to >>Click here.
Funkcje i przykłady użycia
More Information
● It has a TS film coating with much greater oxidation resistance and hardness than conventional films, resulting in a longer operational life and ideal for high speed machining / dry machining.
● A 2-flute end-mill especially for key grooving.
● Has a nearly flat bottom blade shape that allows for a flat finish on the workpiece.
● Has a short blade length that is strong against chatter (length 1.5 times greater than blade diameter).
● The blade tip has a sharp edge allowing corner edges to also be machined.
