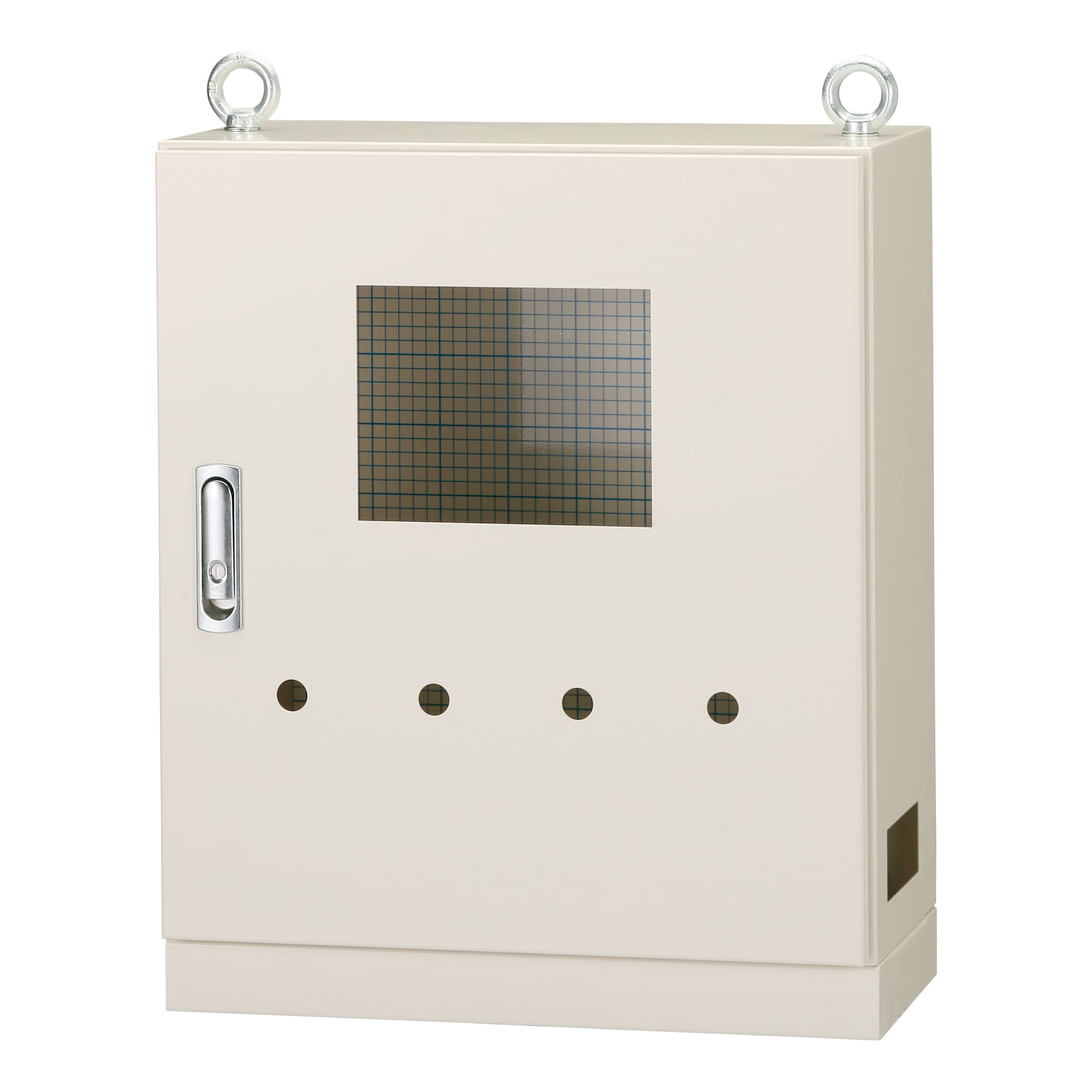

Free-Size Independent Board Box FJSA Series
Umieść kursor myszy nad ilustracją, aby ją powiększyć
Numer części:
.Specyfikacja produktu
Specification Table
Disclaimer on Lead Time
The working days for this product do not include weekends or public holidays.
Check our WOS (Web Order System) for shipping date details.
The working days for this product do not include weekends or public holidays.
Check our WOS (Web Order System) for shipping date details.
The "−" size is not available.
| D | W H | ¥ Normal Unit Price | |||||||
| 400 to 499 | 500 to 599 | 600 to 699 | 700 to 799 | 800 to 899 | 900 to 1,000 | 1,001 to 1,100 | 1,101 to 1,200 | ||
| 250 to 295 | 400 to 499 | ー | ー | ー | |||||
| 500 to 599 | |||||||||
| 600 to 699 | |||||||||
| 700 to 799 | |||||||||
| 800 to 899 | |||||||||
| 900 to 1,000 | |||||||||
| 300 to 350 | 400 to 499 | ー | ー | ー | |||||
| 500 to 599 | |||||||||
| 600 to 699 | |||||||||
| 700 to 799 | |||||||||
| 800 to 899 | |||||||||
| 900 to 1,000 | |||||||||
| 355 to 400 | 400 to 499 | ー | ー | ー | |||||
| 500 to 599 | |||||||||
| 600 to 699 | |||||||||
| 700 to 799 | |||||||||
| 800 to 899 | |||||||||
| 900 to 1,000 | |||||||||
Basic Specifications
Lista numerów części
Liczba pozycji
| Numer części |
|---|
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem) | Standardowa data wysyłki |
|---|
- ( - ) | 8 dni robocze |
- ( - ) | 8 dni robocze |
Szczegółowe informacje
Podstawowe informacje
A self-standing panel with an opening for cable entry and a plate that closes the opening on the underside. Thick plate type of t1.6.
Free-Standing Boxes Available with Configurable Sizes
● Configurable size free-standing boxes with 1.6 mm plate thickness.
● Tapping can be done on all surfaces except for the bottom.
Frame is not included.
· There is a risk of falling over in the event of a storm or earthquake, depending on the weight and position of the equipment installed on free standing panels.
· In addition to the specified anchor bolt, take fall prevention countermeasures as necessary after mounting on the frame.
*1: Shipping time may vary depending on the nature of the machining and the number of units.
*2: If W is 871 mm or more, there may be areas at both ends which cannot be adhered.
*See the Web for details about the FJTA series with 2.3 mm plate thickness.
Frame is not included.
Sposób użycia
Usage Example
Wspólne specyfikacje
Base Processing
Details of MISUMI's Base Processing Service
Packing Type
Difference between Base Processing and Undercoating
Series Enabling Base Processing
● R Series Boxes
| Product Series/Shape | Opening and Closing Method | Product Model | Processing Method | Listed Page |
|---|---|---|---|---|
| Standard Steel Free-Standing Panel Type | Handle | RJSA | Zinc Phosphate Coating |  |
| Steel Handle Hinged Lock Type | Handle | RSAU | Ferric Coating | |
| Steel Handle + 2-Point Screw Type | Handle | RSH | Ferric Coating | |
| Steel Snap Lock Non-Draining Type | Snap Lock | RSC | Ferric Coating | |
| Steel Snap Lock Draining Type | Snap Lock | RSB | Ferric Coating | |
| Steel 4-Point Screw Type | Screw-Mount | RSDX | Ferric Coating | |
| Steel Relay Box/Fastened with Screws | Screw-Mount | RTE | Ferric Coating | |
● F Series Control Panel Boxes
| Product Series/Shape | Opening and Closing Method | Product Model | Processing Method | Listed Page |
|---|---|---|---|---|
| Standard Steel Free-Standing Panel Type Handle | Handle | HJSA | Zinc Phosphate Coating | |
| Steel Depth Compatible Board Type | Handle | FDLA | Zinc Phosphate Coating | |
| Free-Standing Steel Panel Box Quick Delivery Type | Handle | FJSA | Zinc Phosphate Coating | |
| Steel Frame Compatible with HJSA Series | - | HSCB | Zinc Phosphate Coating | |
| Steel Frame Compatible with FJSA Series | - | FSCB | Zinc Phosphate Coating | |
| Standard Type | Handle | FSA | Zinc Phosphate Coating | |
| Door Intermediate Plate | Handle | FST | Zinc Phosphate Coating | |
| Space-Saving Double Door Type | Handle | XASF, etc. | Zinc Phosphate Coating | |
| Thick Plate Type | Handle | FTA | Zinc Phosphate Coating | |
| Standard Type | Snap Lock | FSB | Zinc Phosphate Coating | |
| Control Panel Box without Intermediate Plate | Snap Lock | RFSB, RFSP | Zinc Phosphate Coating | |
| Control Panel Box without Draining | Snap Lock | FSP | Zinc Phosphate Coating | |
| Side handle | Side handle | FSG, FSE | Zinc Phosphate Coating | |
| Screw Fastening Control Panel Box | Screw-Mount | FSD | Zinc Phosphate Coating | |
| Medium Screw Type/Basic Screw Type | Screw-Mount | FSTM, FSTR, FSTX | Zinc Phosphate Coating | |
| Combined Type | Screw-Mount | FCS | Zinc Phosphate Coating | |
| Control Panel Box without Door | - | FSF | Zinc Phosphate Coating | |
Caution
Neither the base processing nor the undercoating are rustproof.
Rust may occur in a short period depending on the environment in which this product is stored. Apply a top coat without delay.
Rust may occur in a short period depending on the environment in which this product is stored. Apply a top coat without delay.
