Plates / PUR / Ether, Ester / A50, A70, A90, A95 / through holes, counter bores(Lista numerów części: str. 7)

Plates / PUR / Ether, Ester / A50, A70, A90, A95 / through holes, counter bores

Przestroga

  • For UTSME/UTSLE type products with thickness of 6, 8 or 10 mm and A or B dimension of 251 mm or more, the lead time is currently extended due to the material shortage.(Scheduled to be resolved around late April 2025)

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 367.
Ilość:

Rysunek konturowy i tabela specyfikacji

Dimensional Drawing

■ A, B Configurable■Characteristic Values of Antistatic Urethane
Standard

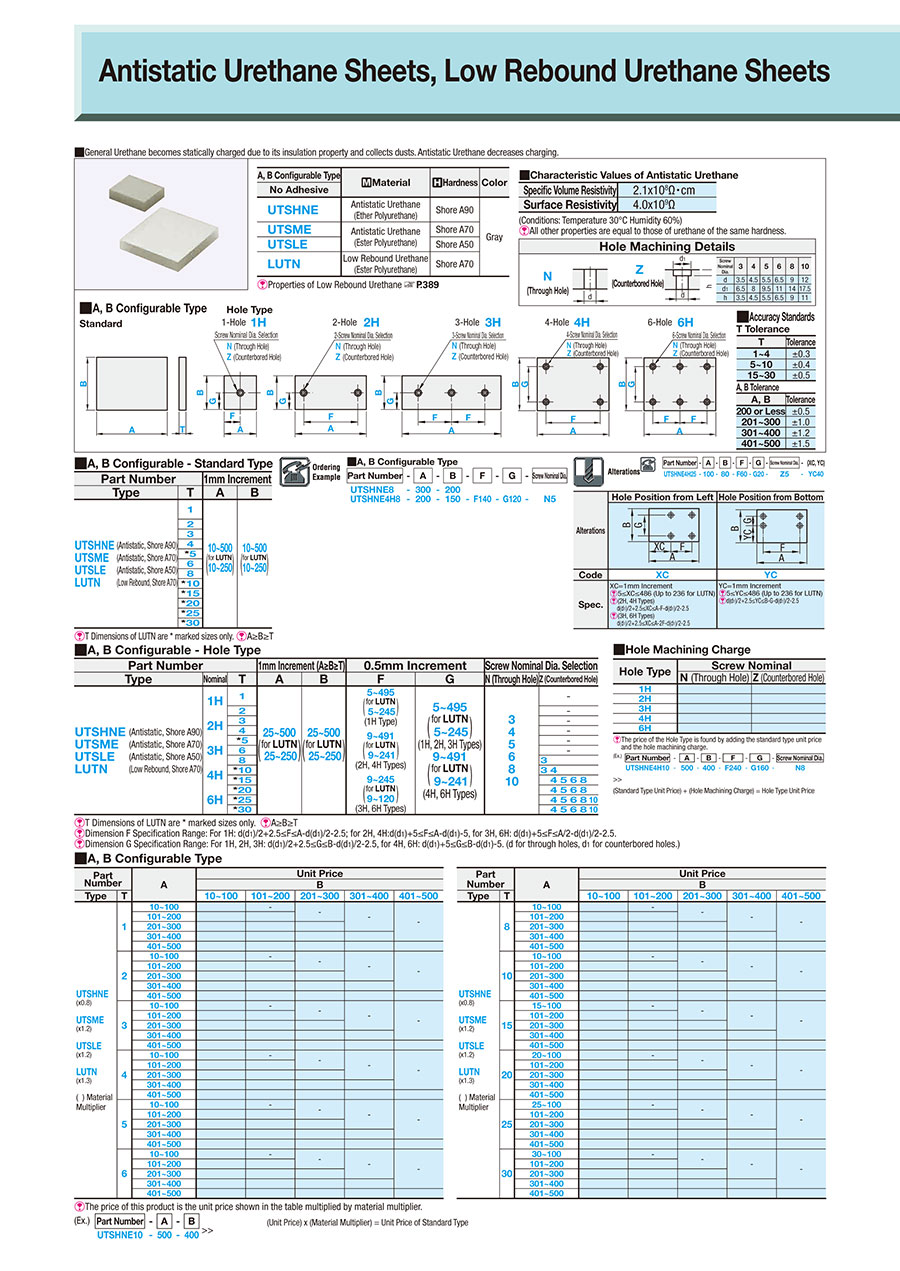

Dimensional Drawing of Antistatic Urethane Sheets, Low Rebound Urethane Sheets, A, B Configurable
Specific Volume Resistivity2.1 × 108Ω·cm
Surface Resistivity4.0 × 109Ω
(Conditions: Temperature 30°C Humidity 60%)
[ ! ]All other properties are equal to those of urethane of the same hardness.
Dimensional Drawing of Antistatic Urethane Sheets, Low Rebound Urethane Sheets, A, B Configurable
Hole Type
-1 Hole- 1H
-2 Holes- 2H
-3 Holes- 3H
-4 holes- 4H
-6 Holes- 6H
■ Accuracy Standards
T Tolerance
TTolerance
1 to 4±0.3
5 to 10±0.4
15 to 30±0.5
A, B Tolerance
A·BTolerance
200 or Less±0.5
201 to 300±1.0
301 to 400±1.2
401 to 500±1.5
Hole Machining Details
Related Images of Antistatic Urethane Sheets, Low Rebound Urethane Sheets, A, B Configurable
N
(Through Hole)
Z
(Counterbored Hole)
Screw
Nominal Dia.		3456810
d3.54.55.56.5912
d16.589.5111417.5
h3.54.55.56.5911
A, B Configurable[M] Material[H] HardnessColor
No Adhesive
UTSHNEAntistatic Urethane
(Ether Polyurethane)		Shore A90Gray
UTSMEAntistatic Urethane
(Ester Polyurethane)		Shore A70
UTSLEShore A50
LUTNLow Rebound Urethane
(Ether Polyurethane)		Shore A70

Specification Table

● A, B Configurable
Part Number—A—B—F—G—Screw Nominal Dia.
UTSHNE8
UTSHNE4H8		—
—		300
200		—
—		200
150
—
F140
—
G120
—
N5
■A, B Configurable - Standard Type
Part Number1 mm Increments
TypeTAB
UTSHNE
UTSME
UTSLE
LUTN		(Antistatic, Shore A90)
(Antistatic, Shore A70)
(Antistatic, Shore A50)
(Low Rebound, Shore A70)		110 to 500
(For LUTN,10 to 250)		10 to 500
(For LUTN,10 to 250)
2
3
4
* 5
6
8
* 10
* 15
* 20
* 25
* 30
[ ! ] T Dimensions of LUTN are * marked sizes only.
[ ! ]A ≥ B ≥ T
■A, B Configurable - Hole Type
Part Number1 mm Increments (A ≥ B ≥ T)0.5 mm IncrementsScrew Nominal Dia. Selection
TypeNominalTABFGN (Through Hole)Z (Counterbored Hole)
UTSHNE
UTSME
UTSLE
LUTN		(Antistatic, Shore A90)
(Antistatic, Shore A70)
(Antistatic, Shore A50)
(Low Rebound, Shore A70)		1H

2H

3H

4H

6H		125 to 500
(25 to 250 for LUTN)		25 to 500
(25 to 250 for LUTN)		5 to 495
(5 to 245 for LUTN)

(1H Type)
9 to 491
(9 to 241 for LUTN)

(2H, 4H Type)
9 to 245
(9 to 120 for LUTN)

(3H, 6H Type)		5 to 495
(5 to 245 for LUTN)

(1H, 2H, 3H Type)

9 to 491
(9 to 241 for LUTN)

(4H, 6H Type)		3
4
5
6
8
10		—
2—
3—
4—
* 5—
6—
83
* 1034
* 15 4568
* 20 4568
* 25 456810
* 30 456810
[!] T Dimensions of LUTN are * marked sizes only. [!]A ≥ B ≥ T
[!]Dimension F Specification Range – 1H type selection: d (d1)/2 + 2.5 ≤ F ≤ A − d (d1)/2−2.5, when selecting 2H/4H type: d (d1) + 5 ≤ F ≤ A - d (d1) - 5, 3H or 6H type selected: d (d1) + 5 ≤ F ≤ A/2−d (d1)/2−2.5 is required.
[!]Dimension G Specification Range – 1H/2H/3H type selection: d (d1)/2 + 2.5 ≤ G ≤ B - d (d1)/2 - 2.5, when selecting 4H/6H type: d (d1) + 5 ≤ G ≤ B−d (d1)−5 is required. (d for through holes, d1 for counterbored holes.)

Alterations

Alterations
Code		Alteration DetailsApplicable ConditionsAlteration Examples
XCHole Position From Left
Alterations of Antistatic Urethane Sheets, Low Rebound Urethane Sheets, A, B Configurable		XC = 1 mm Increments[ ! ]5 ≤ XC ≤ 486
(Up to 236 for LUTN)
" ! " (2H, 4H Type):
d (d1)/2 + 2.5 ≤ XC ≤ A-F-d (d1)/2-2.5
" ! " (3H, 6H Type):
d (d1)/2 + 2.5 ≤ XC ≤ A-2F-d (d1)/2-2.5		UTSHNE4H8-200-150-F120-G100-N5-XC55
YCHole Position From Bottom
Alterations of Antistatic Urethane Sheets, Low Rebound Urethane Sheets, A, B Configurable		YC = 1 mm Increments[ ! ]5 ≤ YC ≤ 486
(Up to 236 for LUTN)
[ ! ] d (d1 )/2 + 2.5 ≤ YC ≤ B-G-d (d1)/2-2.5		UTSHNE4H25-100-80-F60-G20-Z5-YC40

Lista numerów części

Liczba pozycji
  • Poprzednia
    • 1
    ...
  • 3
  • 4
  • 5
  • 6
  • 7
    • Numer części
    UTSME6H30-[25-500/1]-[25-500/1]-F[9-245/0.5]-G[9-491/0.5]-Z[4,5,6,8,10]
    UTSME8-[10-500/1]-[10-500/1]
    UTSME10-[10-500/1]-[10-500/1]
    UTSME15-[10-500/1]-[10-500/1]
    UTSME20-[10-500/1]-[10-500/1]
    UTSME25-[10-500/1]-[10-500/1]
    UTSME30-[10-500/1]-[10-500/1]

    Grade, Type

    Thickness T

    (mm)

    Width A

    (mm)

    Length B

    (mm)

    Hardness (Shore, Asker, Penetration)

    Hole Machining

    Counterbored Hole Nominal Dia. [Z]

    F

    (mm)

    G

    (mm)

    Through Hole Nominal Dia. [N]

    		RoHS?Minimalna wielkość zamówienia
    Antistatic Polyurethane
    30
    25 ～ 500
    25 ～ 500
    Shore A70
    6H (Six Holes)
    4 ～ 10
    9 ～ 245
    9 ～ 491
    -
    10
    1 szt.
    Antistatic Polyurethane
    8
    10 ～ 500
    10 ～ 500
    Shore A70
    No Drilling Alteration
    -
    -
    -
    -
    10
    1 szt.
    Antistatic Polyurethane
    10
    10 ～ 500
    10 ～ 500
    Shore A70
    No Drilling Alteration
    -
    -
    -
    -
    10
    1 szt.
    Antistatic Polyurethane
    15
    10 ～ 500
    10 ～ 500
    Shore A70
    No Drilling Alteration
    -
    -
    -
    -
    10
    1 szt.
    Antistatic Polyurethane
    20
    10 ～ 500
    10 ～ 500
    Shore A70
    No Drilling Alteration
    -
    -
    -
    -
    10
    1 szt.
    Antistatic Polyurethane
    25
    10 ～ 500
    10 ～ 500
    Shore A70
    No Drilling Alteration
    -
    -
    -
    -
    10
    1 szt.
    Antistatic Polyurethane
    30
    10 ～ 500
    10 ～ 500
    Shore A70
    No Drilling Alteration
    -
    -
    -
    -
    10
    1 szt.
    Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)
    Standardowa data wysyłki
    -
    ( - )
    8 dni robocze
    -
    ( - )
    8 dni robocze
    -
    ( - )
    8 dni robocze
    -
    ( - )
    8 dni robocze
    -
    ( - )
    8 dni robocze
    -
    ( - )
    8 dni robocze
    -
    ( - )
    8 dni robocze
  • Poprzednia
    • 1
    ...
  • 3
  • 4
  • 5
  • 6
  • 7

    • Szczegółowe informacje

    Podstawowe informacje

    Przestroga

    • For UTSME/UTSLE type products with thickness of 6, 8 or 10 mm and A or B dimension of 251 mm or more, the lead time is currently extended due to the material shortage.(Scheduled to be resolved around late April 2025)
    Dane techniczne

    Kontury i specyfikacja

    Back to the Category Panels (polyurethane rubber, rubber, foam, felt)

    Technical Drawing - Panels (polyurethane rubber, rubber, foam, felt)

    Antistatic/Low Rebound Urethane Sheets/Standard Sizes:Related Image
    Open the technical drawing in the new window

    Specification Tables - Panels (polyurethane rubber, rubber, foam, felt)

    ■A, B Configurable - Standard Type
    Part Number1mm Increment
    TypeTAB
    UTSHNE
    UTSME
    UTSLE
    LUTN    		(Antistatic, Shore A90)
    (Antistatic, Shore A70)
    (Antistatic, Shore A50)
    (Low Rebound, Shore A70)    		110~500
    for LUTN
    (10~250)    		10~500
    for LUTN
    (10~250)
    2
    3
    4
    *5
    6
    8
    *10
    *15
    *20
    *25
    *30
    T Dimensions of LUTN are * marked sizes only.
    A≥B≥T
    ■A, B Configurable - Hole Type
    Part Number1mm Increment (A≥B≥T)0.5mm IncrementScrew Nominal Dia. Selection
    TypeNominalTABFGN (Through
    Hole)    		Z (Counterbored
    Hole)
    UTSHNE
    UTSME
    UTSLE
    LUTN    		(Antistatic, Shore A90)
    (Antistatic, Shore A70)
    (Antistatic, Shore A50)
    (Low Rebound, Shore A70)    		1H

    2H

    3H

    4H

    6H    		125~500
    for LUTN
    ( 25~250 )    		25~500
    for LUTN
    ( 25~250 )    		5~495
    for LUTN
    ( 5~245 )
    (1H Type)
    9~491
    for LUTN
    ( 9~241 )
    (2H, 4H Types)
    9~245
    for LUTN
    ( 9~120 )
    (3H, 6H Types)    		5~495
    for LUTN
    ( 5~245 )
    (1H, 2H, 3H Types)
    9~491
    for LUTN
    ( 9~241 )
    (4H, 6H Types)    		3
    4
    5
    6
    8
    10    		-
    2-
    3-
    4-
    *5-
    6-
    83
    *1034
    *15 4568
    *20 4568
    *25 456810
    *30 456810
    T Dimensions of LUTN are * marked sizes only. A≥B≥T
    Dimension F Specification Range: For 1H: d(d1)/2+2.5≤F≤A-d(d1)/2-2.5; for 2H, 4H:d(d1)+5≤F≤A-d(d1)-5, for 3H, 6H: d(d1)+5≤F≤A/2-d(d1)/2-2.5.
    Dimension G Specification Range: For 1H, 2H, 3H: d(d1)/2+2.5≤G≤B-d(d1)/2-2.5, for 4H, 6H: d(d1)+5≤G≤B-d(d1)-5. (d for through holes, d1 for counterbored holes.)



    Alterations - Panels (polyurethane rubber, rubber, foam, felt)

    Antistatic/Low Rebound Urethane Sheets/Standard Sizes:Related Image

    General Information - Panels (polyurethane rubber, rubber, foam, felt)



    Selection details of panels (polyurethane rubber, rubber, foam, felt)

    - Material: polyurethane rubber (PU/PUR), heat-resistant polyurethane rubber, low-impact polyurethane rubber, abrasion-resistant polyurethane rubber, antistatic polyurethane, nitrile (NBR), chloroprene rubber (CR), polyethylene (EPDM), silicone (SI), fluorine (FPM), butyl rubber (IIR), natural rubber (NR), hard rubber, special synthetic rubber, polyurethane foam, head-insulating foam, polyethylene foam, low-rebound foam

    - Thickness (mm): 0.5 to 50

    - Width (mm): 3 to 500

    - Length (mm): 10 to 2000



    Description/Basics

    Foam plates and rubber plates are provided for damping or for sound proofing. MISUMI offers these in various Shore hardening for a wide variety of tasks. Due to the variety of materials, different resistances to environmental influences are possible depending on the application. The foam plates reduce sound in machines and can reduce the sound emissions of a system. For more information on foam characteristics, follow this link.
    Rubber plates or foam plates are also suitable in conveyor systems to absorb components to be transported at a dampened level or to protect them from damage as a lateral guide when the components bump into each other. Hard rubber panels or low-impact rubber or foam panels reduce the impact energy of the components. These minimize and lower the vibrations in an application.
    In addition, MISUMI offers highly abrasion-resistant polyurethane (Vulkollan), which has an abrasion resistance that is six times higher than with conventional polyurethane.
    Ceramic polyurethane plates contain ceramic particles. After machining, these can have a smooth surface despite low Shore hardness.
    The polyurethane rubber plates are also available antistatically. The specific resistance of antistatic polyurethane plates prevents static charging. This prevents any damage to electronic components.
    For applications with higher temperatures, MISUMI offers heat-resistant polyurethane rubber, which can withstand a temperature range of up to approx. ~120°C (see the product specifications for exact information).
    MISUMI also offers low-friction and anti-friction rubber plates. Low-friction rubber plates are often used in the gentle component guide for belt conveyors and roller conveyors.
    Felt plates have the property of absorbing or dispensing oil and other liquids via the capillary effect. This property can be used to remove, for example, excess oil on a belt conveyor.

    In addition, MISUMI offers rubber plates and foam plates that are self-adhesive for simplified assembly. Furthermore, you will find double-adhesive tape for attaching rubber plates and foam plates.

    Additional properties on foam panels and rubber plates can be found in the Properties PDF.

    MISUMI also offers these products in a round shape as discs and sleeves made of rubber, natural rubber, foam and felt.



    Application Examples - Panels (polyurethane rubber, rubber, foam, felt)

    Application example
    (1) Low-friction rubber plate (2) belt conveyor

    Application example
    (1) Vibration damping plate



    Industrial Applications

    3D printer industry
    Automotive industry
    Pharmaceutical industry
    Packaging industry
