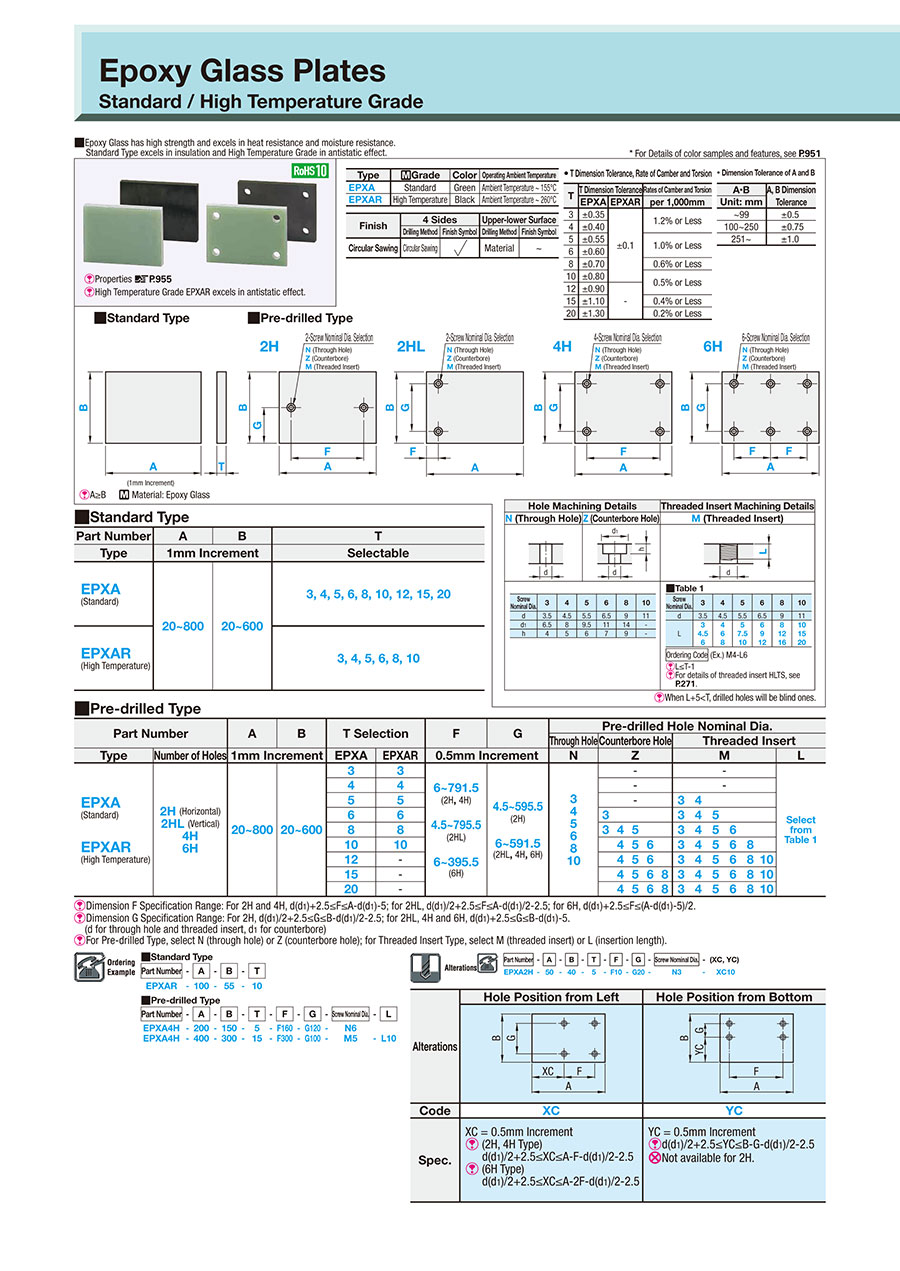

Epoxy Glass Plates

   Material: Epoxy Glass

 ■ Standard Type

Part Number	-	A	-	B	-	T
EPXAR	-	100	-	55	-	10

 ■ Pre-drilled Type

Part Number	-	A	-	B	-	T	-	F	-	G	-	Screw Nominal Dia.	-	L
EPXA4H EPXA4H	- -	200 400	- -	150 300	- -	5 15	- -	F160 F300	- -	G120 G100	- -	N6 M5	-	L10

 ■ Standard Type

Part Number	A	B	T
Type	1mm Increment		Selectable
EPXA (Standard)	20~800	20~600	3, 4, 5, 6, 8, 10, 12, 15, 20
EPXAR (High Temperature)			3, 4, 5, 6, 8, 10

 ■ Pre-drilled Type

Part Number		A	B	T Selection		F	G	Pre-drilled Hole Nominal Dia.
								Through Hole	Counterbore Hole					Threaded Insert
Type	Number of Holes	1mm Increment		EPXA	EPXAR	0.5mm Increment		N	Z					M						L
EPXA (Standard) EPXAR (High Temperature)	2H (Horizontal) 2HL (Vertical) 4H 6H	20~800	20~600	3	3	6~791.5 (2H, 4H) 4.5~795.5 (2HL) 6~395.5 (6H)	4.5~595.5 (2H) 6~591.5 (2HL, 4H, 6H)	3 4 5 6 8 10	-					-						Select from Table 1
				4	4				-					-
				5	5				-					3	4
				6	6				3					3	4	5
				8	8				3	4	5			3	4	5	6
				10	10					4	5	6		3	4	5	6	8
				12	-					4	5	6		3	4	5	6	8	10
				15	-					4	5	6	8	3	4	5	6	8	10
				20	-					4	5	6	8	3	4	5	6	8	10

  Dimension F Specification Range: For 2H and 4H, d(d₁)+2.5≤F≤A-d(d₁)-5; for 2HL, d(d₁)/2+2.5≤F≤A-d(d₁)/2-2.5; for 6H, d(d₁)+2.5≤F≤(A-d(d₁)-5)/2.
  Dimension G Specification Range: For 2H, d(d₁)/2+2.5≤G≤B-d(d₁)/2-2.5; for 2HL, 4H and 6H, d(d₁)+2.5≤G≤B-d(d₁)-5.
(d for through hole and threaded insert, d₁ for counterbore)
  For Pre-drilled Type, select N (through hole) or Z (counterbore hole); for Threaded Insert Type, select M (threaded insert) or L (insertion length).
