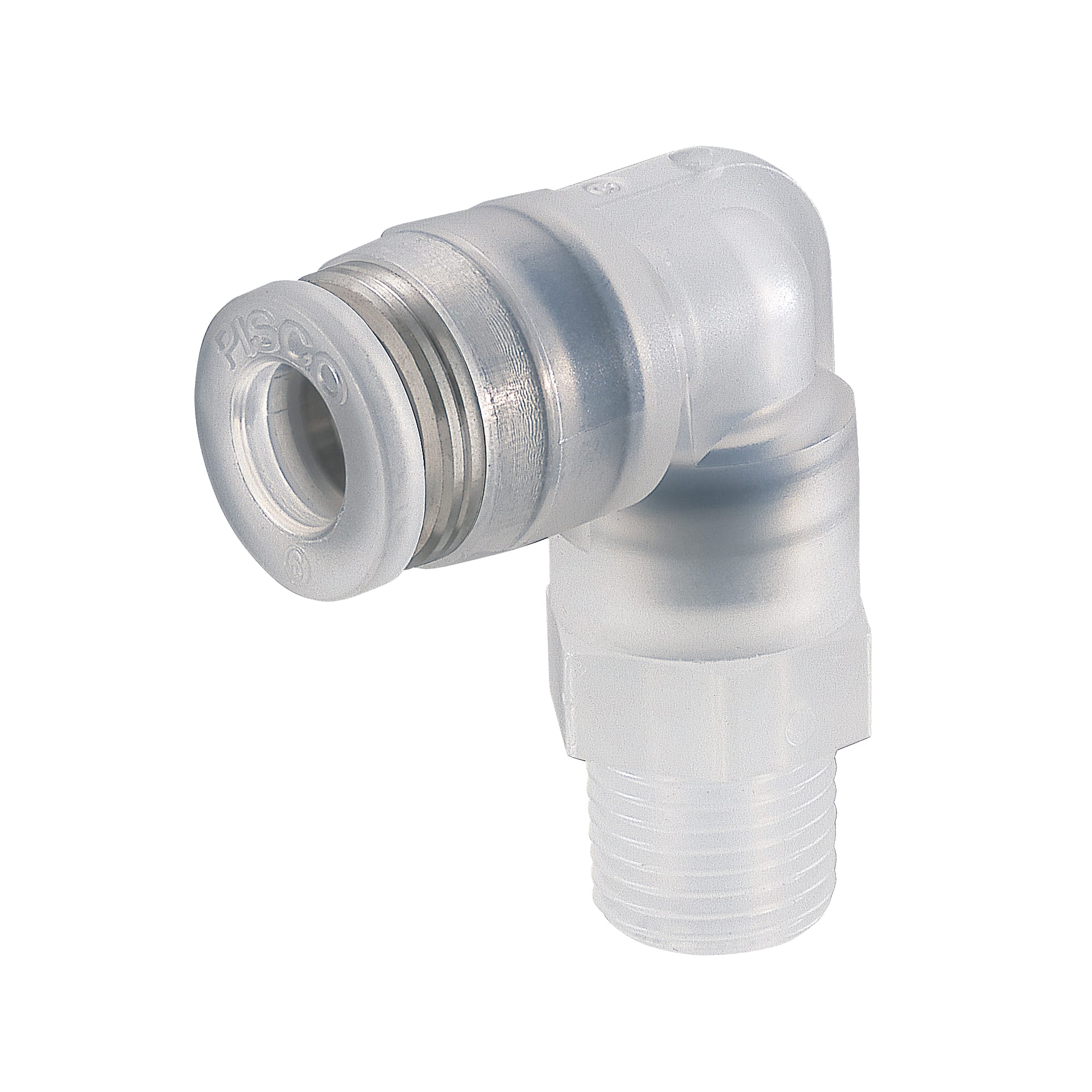

Quick-Connect Fitting for Clean Environment Friendly Piping, Elbow, Thread Section Material Polypropylene

Quick-Connect Fitting for Clean Environment Friendly Piping, Elbow, Thread Section Material Polypropylene

Umieść kursor myszy nad ilustracją, aby ją powiększyć

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 9.
Ilość:

Rysunek konturowy i tabela specyfikacji

PPCNL
One-Touch Couplings For Clean Applications - Elbows, Threads Material of Polypropylene: Related Image
[M]Material: Polypropylene

Specification Table

Part NumberNominal
PPCNL41
Part NumberNominalABLPESquare
H
Thread
size M
Effective Sectional Area
(mm2)
Mass
(g)
TypeD
PPCNL41823.324.31018.110R1/83.44
6182527.312.519.912R1/88.75
2112828.214R1/45.5
8182831.314.522.714R1/817.27
2113132.2R1/47.5
31232.833.717R3/88.5
102113638.717.526.417R1/425.912
3123739.4R3/813
123123943.22129.622R3/837.618

Lista numerów części

Liczba pozycji

Tube O.D. D (D1)

(Ø)

Connection Thread Nominal

RoHS?Minimalna wielkość zamówienia
4
1 (R1/8)
10
1 szt.
6
1 (R1/8)
10
1 szt.
6
2(R1/4)
10
1 szt.
8
1 (R1/8)
10
1 szt.
8
2(R1/4)
10
1 szt.
8
3(R3/8)
10
1 szt.
10
2(R1/4)
10
1 szt.
10
3(R3/8)
10
1 szt.
12
3(R3/8)
10
1 szt.
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)
Standardowa data wysyłki
5.65 €
(
6.72 €
)
5 dni robocze
5.65 €
(
6.72 €
)
5 dni robocze
5.65 €
(
6.72 €
)
5 dni robocze
6.30 €
(
7.50 €
)
5 dni robocze
6.30 €
(
7.50 €
)
5 dni robocze
6.66 €
(
7.93 €
)
5 dni robocze
7.06 €
(
8.40 €
)
5 dni robocze
7.18 €
(
8.54 €
)
5 dni robocze
8.31 €
(
9.89 €
)
5 dni robocze

Szczegółowe informacje

Podstawowe informacje

[Features] A quick connector suitable for clean environments. -The material of the threaded section is polypropylene.

Kontury i specyfikacja

Specifications / Overview

■ Features
·Clean environment compatible polypropylene (PP) is used for the main body.
·Plastic body is semitransparent so that fluid can be confirmed from the outside.
■ Precautions for Use
·For water or fluid, Inserts for Soft Tubes (PUIT / PUSIT) must be used. Keep the surge pressure to below max. pressure rating.
·If threaded portion is made of PP, tighten coupling by screwing hand tight, then giving 2 or 3 turns with a wrench.
 Over tightening may damage threads. Insufficient tightening may cause loosening or leaking.
·Due to creep deformation, screws may become loose and minute leakages may occur. Periodical tightening maintenance is recommended.
 If retightening does not work, then replace the coupling in use.
·If there is a possibility of machine and equipment damage due to fluid leakages, consider providing protective measures such as covers prior to use.
·No oil permitted.
■ Specifications
Applicable FluidAir, Water, Chemicals
Operating Temperature Range*0 to 80°C
Max. Operating Pressure0.9 MPa (20°C)
Operating Vacuum Level-100 kPa
*No freezing
■ Structure Diagram
One-Touch Couplings For Clean Applications - Elbows, Threads Material of Polypropylene: Related Image

[Recommended Tightening Torque]
Screw Main Body: Polypropylene
R1/8:0.5 N⋅m, R1/4:0.7 N⋅m, R3/8:1.0 N⋅m
Screw Main Body: EN 1.4301 Equiv.
R1/8: 7 to 9 N⋅m, R1/4: 12 to 14 N⋅m, R3/8: 22 to 24 N⋅m
(The values are for seal tape 2 rotations. Retighten by up to 2 additional rotations if required.)
