Pipe Nozzles / Threaded / Tapped Ends

Pipe Nozzles / Threaded / Tapped Ends

Umieść kursor myszy nad ilustracją, aby ją powiększyć

  • Pipe Nozzles / Threaded / Tapped Ends
  • Pipe Nozzles / Threaded / Tapped Ends
  • Pipe Nozzles / Threaded / Tapped Ends

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 39.
Ilość:

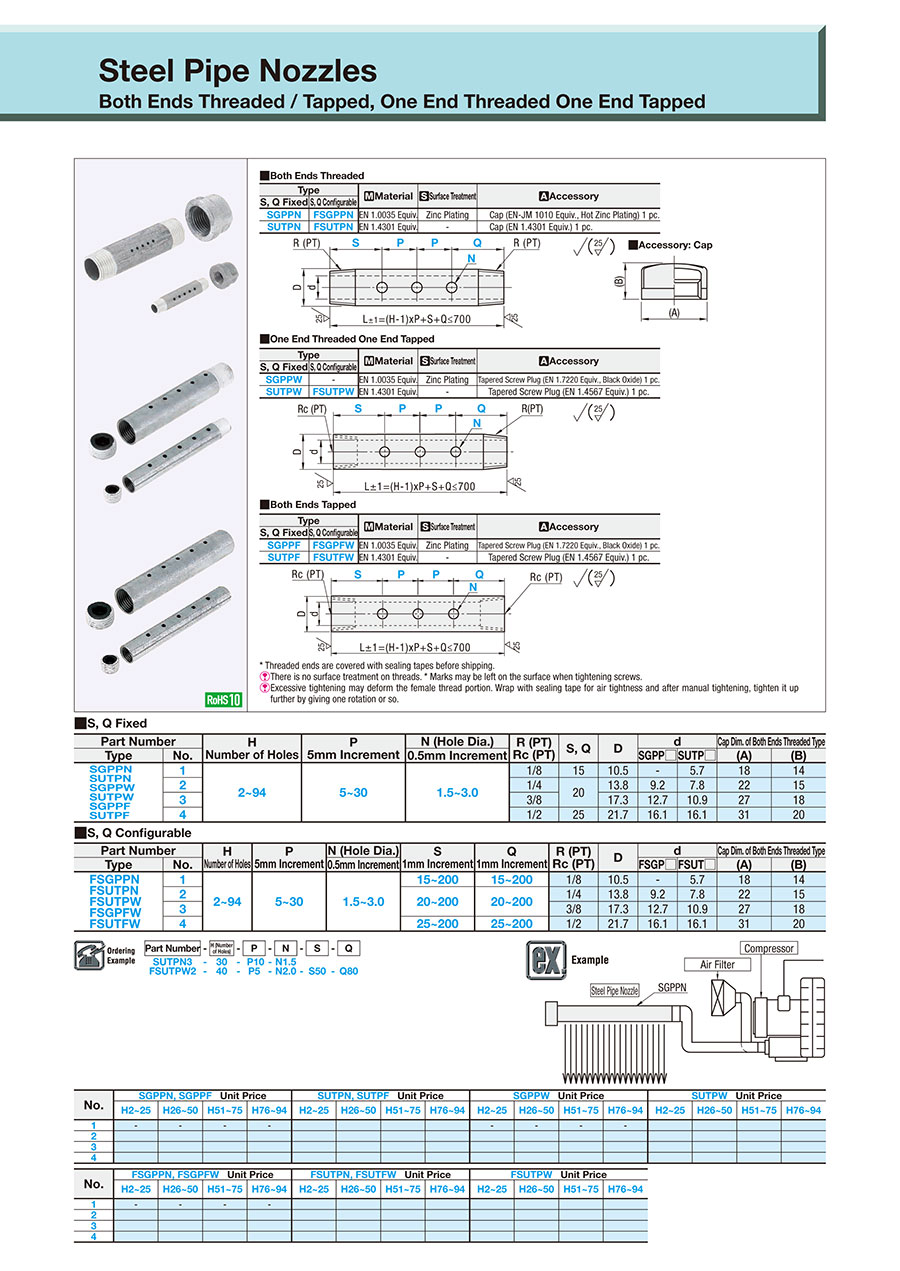

Rysunek konturowy i tabela specyfikacji
