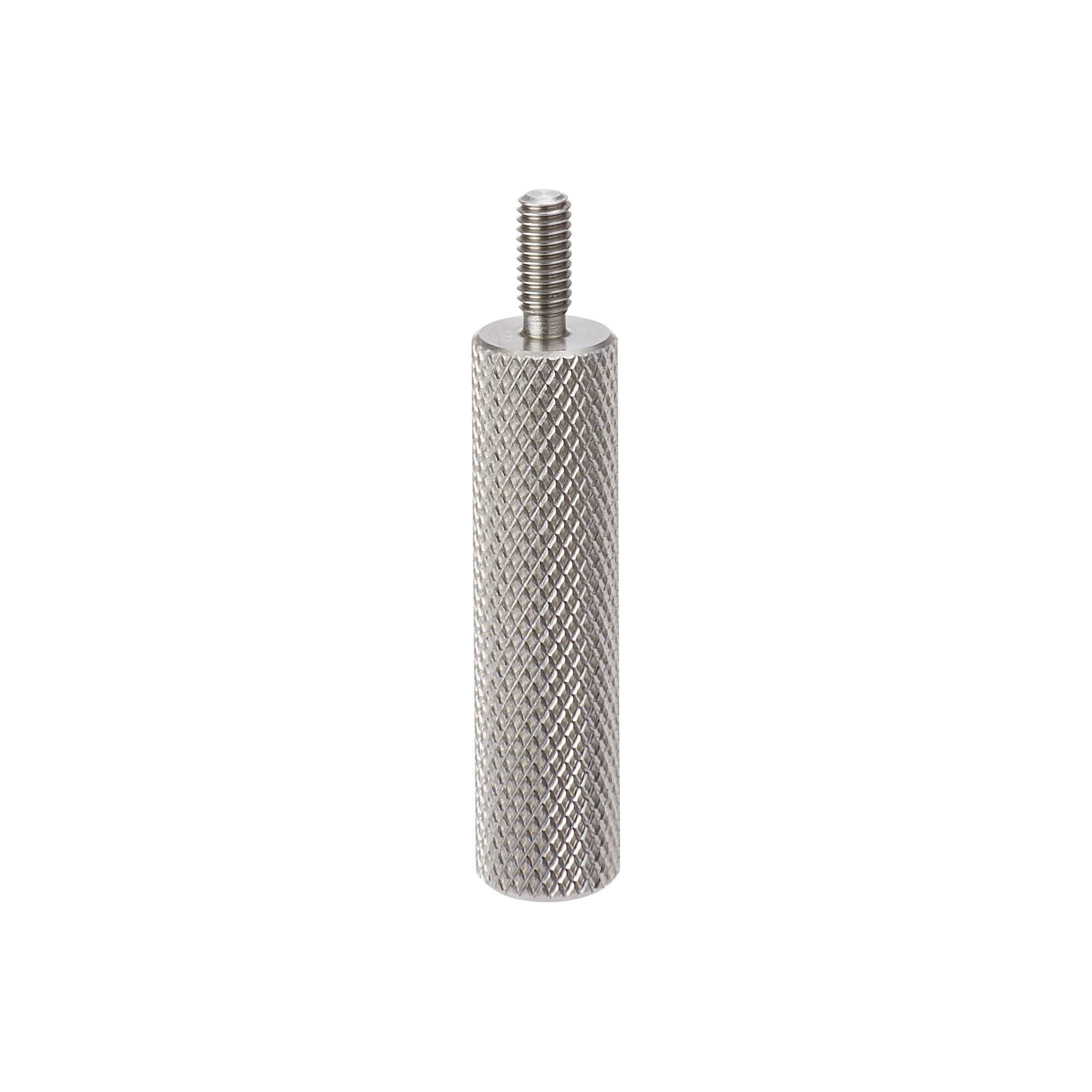

      Slot Pins for Inspection Jigs / Stepped and Threaded Type

      Slot Pins for Inspection Jigs / Stepped and Threaded Type

      Umieść kursor myszy nad ilustracją, aby ją powiększyć

      • Slot Pins for Inspection Jigs / Stepped and Threaded Type
      • Slot Pins for Inspection Jigs / Stepped and Threaded Type

      Numer części:

      Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 12.
      Ilość:

      Rysunek konturowy i tabela specyfikacji

      [ ! ]

      Slot Pins for Inspection Components - Threaded Pins: Related Image
      [ ! ] When L is less than 40, entire length is knurled.
      [ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m. However, tapped depth is excluded.
      [M] MaterialType
      EN 1.1191 Equiv.KJPND
      EN 1.4301 Equiv.KJPNDS

      Specification Table

      Part Number (TYPE·D)LMB
      KJPND10L80M4B10
      (Threaded Pin)
      Part NumberL
      10 mm Increments
      M
      Selection
      B
      1 mm Increments
      TYPED
      (EN 1.1191 Equiv.)
      KJPND
      (EN 1.4301 Equiv.)
      KJPNDS
      1030 to 150456810S105 to 15
      12
      16
      [!] S10 is fine thread (pitch 1.25). Others are coarse.

      Alterations

      Part NumberPMLBZ— (CH·KH, etc.)
      KJPGLM25P20M12L75B25Z50− KH
      Part NumberLMB(STC)
      KJPND10L80M4B10STC
      AlterationsCodeSpec.
      Engraving of S Dimension
      Slot Pins for Inspection Components - Threaded Pins: Related Image
      KHSMachines flats on knurled head and engraves S dimension.
      [ ! ] Engraved on the reverse side when combined with KH.
      [ ! ] Applicable to Threaded Straight Long Type only
      Engraving of P Dimension
      Slot Pins for Inspection Components - Threaded Pins: Related Image
      KHMachines flats on knurled head and engraves P dimension (with the character orientation arbitrary).

      [ ! ] Engraved on the reverse side when combined with KHS.

      [ ! ] Applicable to Threaded Straight Long Type only

      AlterationsCodeSpec.
      Chain
      Slot Pins for Inspection Components - Threaded Pins: Related Image
      CHLoss-proof chain (length 600 mm) is attached to gauge body.



      [ ! ] Applicable to Threaded Straight Long Type only

      Additional Surface Treatment
      (Black Oxide)
      STCAdds black oxide surface treatment.

      [ NG ] Not applicable to EN 1.4301 Equiv.

      Caution when making alterations to engraving (KHS, KH)
      Slot Pins for Inspection Components - Threaded Pins: Related Image
      [ ! ] If the pin and the knurled part are joined with an adhesive,
      10 mm of the tip is not machined flat because the tip is thin.

      Lista numerów części

      Liczba pozycji

      Material

      Outer Dia. D

      (Ø)

      B

      (mm)

      L

      (mm)

      Thread Dia. Selection (Coarse) [M]

      (mm)

      Thread Dia. Selection (Fine) [MS]

      (mm)

      RoHS?Minimalna wielkość zamówienia
      [Steel] EN 1.1191 Equiv.
      10
      5 - 15
      30 - 150
      4 - 10
      -
      10
      1 szt.
      [Steel] EN 1.1191 Equiv.
      10
      5 - 15
      30 - 150
      -
      10
      10
      1 szt.
      [Steel] EN 1.1191 Equiv.
      12
      5 - 15
      30 - 150
      4 - 10
      -
      10
      1 szt.
      [Steel] EN 1.1191 Equiv.
      12
      5 - 15
      30 - 150
      -
      10
      10
      1 szt.
      [Steel] EN 1.1191 Equiv.
      16
      5 - 15
      30 - 150
      4 - 10
      -
      10
      1 szt.
      [Steel] EN 1.1191 Equiv.
      16
      5 - 15
      30 - 150
      -
      10
      10
      1 szt.
      [Stainless Steel] EN 1.4301 Equiv.
      10
      5 - 15
      30 - 150
      4 - 10
      -
      10
      1 szt.
      [Stainless Steel] EN 1.4301 Equiv.
      10
      5 - 15
      30 - 150
      -
      10
      10
      1 szt.
      [Stainless Steel] EN 1.4301 Equiv.
      12
      5 - 15
      30 - 150
      4 - 10
      -
      10
      1 szt.
      [Stainless Steel] EN 1.4301 Equiv.
      12
      5 - 15
      30 - 150
      -
      10
      10
      1 szt.
      [Stainless Steel] EN 1.4301 Equiv.
      16
      5 - 15
      30 - 150
      4 - 10
      -
      10
      1 szt.
      [Stainless Steel] EN 1.4301 Equiv.
      16
      5 - 15
      30 - 150
      -
      10
      10
      1 szt.
      Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)
      Standardowa data wysyłki
      -
      (
      -
      )
      6 dni robocze
      -
      (
      -
      )
      6 dni robocze
      -
      (
      -
      )
      6 dni robocze
      -
      (
      -
      )
      6 dni robocze
      -
      (
      -
      )
      6 dni robocze
      -
      (
      -
      )
      6 dni robocze
      -
      (
      -
      )
      6 dni robocze
      -
      (
      -
      )
      6 dni robocze
      -
      (
      -
      )
      6 dni robocze
      -
      (
      -
      )
      6 dni robocze
      -
      (
      -
      )
      6 dni robocze
      -
      (
      -
      )
      6 dni robocze
