Oldham couplings / hub clamping / 1 disc: POM, compact / body: aluminium

Oldham couplings / hub clamping / 1 disc: POM, compact / body: aluminium

Umieść kursor myszy nad ilustracją, aby ją powiększyć

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 4.
Ilość:

Rysunek konturowy i tabela specyfikacji

Dimensional Drawing

SCOC
Coupling - Super Short, Oldham, Clamping: Related Image
[!] Operating Temperature: -20°C to 80°C
[ ! ] Tolerances for d1 and d2 are values before slit machining.
[ ! ] Recommended Fit Tolerance of Applicable Shaft Diameter: h6 and h7.
[ ! ] The lateral, angular, and axial misalignment values shown are for each occurring individually. When multiple misalignments are occurring simultaneously, the allowable maximum value of each will be reduced to 1/2.
[ ! ] For installing, use Coupling O.A.L. + 0.2 - 0.1 as a reference.

Parts[M] Material[S] Surface Treatment[A]Accessory
HubAluminum AlloyAnodizedHex Socket Head Cap Screw
Screw
SpacerPolyacetal

Specification Table

Part NumberShaft Bore Dia. d1Shaft Bore Dia. d2
SCOC25810
Part Numberd1, d2 Selection (However, d1 ≤ d2)LD1WFAClamp Screw
TypeDMTightening Torque
(N⋅m)
SCOC12345     13.5165.552.5420.5
163456    1821.586.53.255.52.51.0
20  566.3578 19278.86.83.46.5
25   66.35781022.533.510.5848.531.5
Part NumberAllowable Torque
(N⋅m)
Allowable
Angular Misalignment
(°)
Allowable
Lateral Misalignment
(mm)
Static Torsional
Spring Constant
(N·m/rad)
Max. Rotational Speed
(r/min)
Moment of Inertia
(kg⋅m2)
Mass
(g)
TypeD
SCOC120.31.50.318120000.1 × 10-64
160.80.55590000.42 × 10-69
201.01.09560001.05 × 10-615
251.61.216250003.04 × 10-628

Lista numerów części

Liczba pozycji

Allowable Torque Range

(N•m)

Shaft Bore Dia. 1 d1 (or d)

(mm)

Shaft Bore Dia. 2 d2 (or d)

(mm)

O.D. D

(mm)

Overall Length

(mm)

Max. Rotational Speed Range

(r/min)

Allowable Torque

(Nm)

Max. Rotational Speed

(r/min)

Allowable Lateral Misalignment Range

(mm)

Allowable Lateral Misalignment

(mm)

Moment of Inertia

(kg・m2)

RoHS?Minimalna wielkość zamówienia
0.05 to 1.00
3 - 5
3 - 5
12
13.5
10,001 to 78,000
0.3
12000
0.21 to 0.40
0.3
0.1x10-6
10
1 szt.
0.05 to 1.00
3 - 6
3 - 6
16
18
4,001 to 10,000
0.8
9000
0.41 to 1.0
0.5
0.42x10-6
10
1 szt.
0.05 to 1.00
5 - 8
5 - 8
20
19
4,001 to 10,000
1
6000
0.41 to 1.0
1
1.05x10-6
10
1 szt.
1.01 to 3.00
6 - 10
6 - 10
25
22.5
4,001 to 10,000
1.6
5000
1.1 to 3.0
1.2
3.04x10-6
10
1 szt.
Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)
Standardowa data wysyłki
-
(
-
)
7 dni robocze
-
(
-
)
7 dni robocze
-
(
-
)
7 dni robocze
-
(
-
)
7 dni robocze

Szczegółowe informacje

Podstawowe informacje

Kontury i specyfikacja

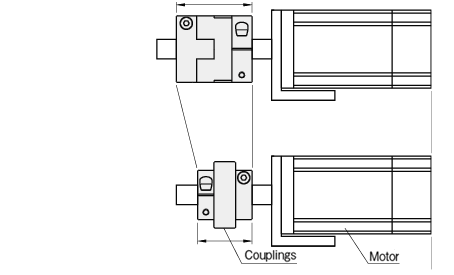

App. Example

Conventional Product
(CPOCG)
(SCOC)
SCOC type are up to 17% shorter in length compared to the conventional products, and can contribute to space saving design.

General Information - Claw Couplings

Shaft coupling - compensation coupling - Oldham coupling - slit coupling - chain coupling - disc coupling - bellow coupling - product assortment



Shaft Coupling Selection Details

- Material: aluminum, aluminum alloy, steel, stainless steel, plastic

- Coupling buffer material: polyacetal, polyurethane, nylon, aluminum bronze, carbon fibre reinforced polymer (CFRP)

- Disc material: stainless steel, polyimide, carbon fibre (carbon)

- Fastening: hub clamping, half shell clamping, threaded pin clamping, clamping sleeve, keyway

- Design: slit coupling, disc coupling (servo coupling), Oldham coupling, dog coupling, jaw coupling, bellow coupling, metal bellow coupling, elastomer coupling

- ISO tolerances: H8

- Shaft diameter: 1 to 45 mm

- Outer diameter: 6 to 95 mm

- Length: 8.4 to 100 mm

- Offset: angle offset, radial offset, axial offset

Design Overview



Description/Basics

A shaft coupling, also called a compensating coupling, is generally used for the transmission of torque for mechanical engineering. Flexible shaft couplings (non-rigid) can compensate for lateral, axial and angular offsets (misalignment). Therefore, these are common connecting elements between motors and axles/shafts or even ball screws.

There are various types of designs, such as the jaw couplings, disc couplings (servo couplings), slit couplings, bellow couplings, Oldham couplings and many others, which are selected depending on the type of misalignment. You can determine which design is the right one for transmission in your application with the Coupling Selection Method available as a PDF.

When the shaft coupling is professionally installed, the transmission of rotational forces should be slip-free. To do this, the appropriate shaft coupling must be selected depending on the application. Here, it is important to observe the degree of misalignment, the maximum speed of rotation and the permissible torque of the compensation coupling and not to exceed these values during operation. If several misalignments occur at the same time, it is recommended to reduce the maximum value of the specified misalignment by approximately half.

The most commonly used elastomer coupling is the jaw coupling, which consists of a plastic buffer with damping properties. As a result, shocks and vibrations in a drive system can be damped, which protects adjacent components in the transmission of force. Our product range offers you alternative materials for the elastomers. These include among others aluminum bronze and carbon fibre-reinforced plastic.

The different shaft connections on the compensation couplings allow various connection variants for assembly. For this purpose, hub clamping, half shell clamping, slot clamping, threaded pin clamping, chip sleeve and keyways are available.
If a keyway is selected for a MISUMI shaft coupling, it is recommended obtaining the MISUMI machine key, as it is best to combine these.

A shaft coupling can be used for precise positioning. These are often combined together with slide screws or ball screws. A disc clutch (servo coupling) is suitable for this application, since it has a high torsional rigidity.

In addition to the standardized diameter of the shaft bore, MISUMI offers the option LDC and RDC, which allows the drill diameter to be adjusted to the shaft end in 0.1 mm increments.



Application Examples - Claw Couplings

Application example: shaft coupling - disc coupling with servo motor - disc coupling with ball screw drive - shaft clutch with servo motor - shaft clutch with ball screw drive

Shaft coupling with servo motor and ball screw
(1) Servo motor, (2) disc coupling (servo coupling), (3) ball screw

Application example: shaft coupling with encoder - shaft coupling with bearing housing - slit coupling with encoder - slit coupling with bearing housing -

Slit coupling with encoder
(1) Bearing with housing, (2) shaft coupling, (3) motor, (4) axles/shafts

Application example - Performance test stand with shaft coupling - Oldham coupling with engine - test stand with Oldham coupling

Engine test stand with Oldham coupling
(1) X-axis positioning stage, (2) performance test station, (3) shaft coupling, (4) brackets, L-shaped

Application example: synchronous pulley with shaft coupling - shaft coupling with motor and gearbox

Shaft coupling with motor and gearbox
(1) Motor, (2) Shaft coupling, (3) Conversion/Reducing gears, (4) Timing pulleys / Idlers



Industrial Applications

3D printer industry
Automotive industry
Pharmaceutical industry
Packaging industry
