Push-Pull Toggle Clamps (Strona 2)
Horizontal push-clamps and pull-clamps are used when clamping and working on a part at a work bench. Horizontal push clamps have a shaft that extends and retracts to hold the part at right angles from the sides, clamping it in place. Pull clamps pull the part toward the clamp to clamp it in place for use. Toggle clamps are another style of clamp available. They clamp the part in place in a single action, enabling rapid attachment. Toggle clamps use parts such as bolts to clamp the part to a work bench or board, enabling smooth attachment. Since they attach easily, toggle clamps are known for being well-suited to applications such as clamping frequently replaced parts. Even small-sized models can exert a powerful force, enabling parts to be securely attached and clamped. They are suited for use with inspection instruments, assembly jigs and processing jigs.
Liczba pozycji: 307
* Informacje o dniach wysyłki, kosztach wysyłki i cenach.
- Volume Discount
GANTER
Latch type toggle clamps for pulling action
The stroke of GN 851.2 latch type toggle clamps can be adjusted within its range.In the clamped position the U-bolt latch and the clamping arm are horizontal to the vertical fixing plane.In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.1 series.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - - - - - - - - - KonfigurujCena (bez VAT) od:24.46 €Standardowa data wysyłki:7 dni robocze
- Volume Discount
GANTER
Push-Pull Type Toggle Clamps / GN 840 / Size 50
GN 840 push-pull type toggle clamps are known for their extremely low height regardless of the position of the operating handle.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - - - - - - - - - KonfigurujCena (bez VAT) od:21.90 €Standardowa data wysyłki:7 dni robocze
- Volume Discount
DESTACO
Destaco’s 375 Series pull action latch clamps are equipped with patented thumb control lever for one handed operation. These U-Hook style latch clamps are supplied with threaded U-Hooks for easy adjustment. Destaco® Toggle Lock Plus™ versions are available. Common applications include - molding, assembly, and closures for doors, lids, or covers.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 17800 - Steel - - - - - KonfigurujCena (bez VAT) od:131.47 €Standardowa data wysyłki:4 dni robocze
KIPP
Mini push-pull toggle clamp with mounting bracket (K1545)
· Locking in both closed and open positions· Used for thrust and traction· For particularly tight spaces· Compact construction (mini)Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - - - Stainless Steel ～ Steel - - - - - KonfigurujCena (bez VAT) od:13.86 €Standardowa data wysyłki:4 dni robocze
- Stock
GOODHANDCLAMP
Toggle Clamp, Push-Pull Type, Flange Base, Bolt Size M4, Tightening Force 450 N, GH-301-CML
MISUMI-VONA supplies carefully selected products made by leading Asian manufacturers, based on our customers' needs. Please select products according to your intended application. This product is made by a Taiwanese manufacturer, established in 1974, which mainly produces toggle clamps. As well as their own products, they supply OEM products for other manufacturers, and have expanded with manufacturing sites in Europe and North America. This manufacturer is a world leader in jig parts.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 450 Flange Base Steel Stationary M4 Steel + Rubber Pad Up to 1399 Bolt with Rubber KonfigurujCena (bez VAT) od:15.02 €Standardowa data wysyłki:6 dni robocze
- Stock
GOODHANDCLAMP
Toggle Clamp - Push-Pull - Flanged Base, Stroke 10 mm, Straight Handle, GH-36070
MISUMI-VONA supplies carefully selected products made by leading Asian manufacturers, based on our customers' needs. Please select products according to your intended application. This product is made by a Taiwanese manufacturer, established in 1974, which mainly produces toggle clamps. As well as their own products, they supply OEM products for other manufacturers, and have expanded with manufacturing sites in Europe and North America. This manufacturer is a world leader in jig parts.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 500 Flange Base Steel Stationary M5 Steel Up to 1399 Steel Bolt KonfigurujCena (bez VAT) od:9.93 €Standardowa data wysyłki:6 dni robocze
- Stock
GOODHANDCLAMP
Toggle Clamp - Push-Pull - Flanged Base, Stroke 30 mm, Straight Handle, GH-36020M
Push-pull type toggle clamp. The maximum clamping pressure is 1700 N. With a flanged base for easy mounting. This product is made by a Taiwanese manufacturer, established in 1974, which mainly produces toggle clamps. Supplying OEM products for various manufacturers, and with sites in Europe and North America, they have expanded their sales and gained an excellent reputation.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 1600 Flange Base Steel Stationary M8 Steel 1400 to 1999 Steel Bolt KonfigurujCena (bez VAT) od:19.53 €Standardowa data wysyłki:6 dni robocze
- Stock
GOODHANDCLAMP
Toggle Clamp - Pull Action Type - Flanged Base, U-Shaped Hook GH-40341 / GH-40341-SS
MISUMI-VONA supplies carefully selected products made by leading Asian manufacturers, based on our customers' needs. Please select products according to your intended application. This product is made by a Taiwanese manufacturer, established in 1974, which mainly produces toggle clamps. As well as their own products, they supply OEM products for other manufacturers, and have expanded with manufacturing sites in Europe and North America. This manufacturer is a world leader in jig parts.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Push-Pull 9000 Flange Base Stainless Steel ～ Steel - - - 3100 or More - KonfigurujCena (bez VAT) od:29.77 €Standardowa data wysyłki:6 dni robocze
- Volume Discount
KAKUTA
Horizontal Push-Type Clamp, No. FM50
Optimal for inspection, welding, assembly, and machining jigs.[Features]· All pressing forces are maximum values.· Regular bolts are used to measure the pressing force.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 900 Flange Base Steel Stationary M10 - Up to 1399 - KonfigurujCena (bez VAT) od:19.02 €Standardowa data wysyłki:6 dni robocze
- Volume Discount
KAKUTA
Horizontal Push-Pull Clamp, No. FM150
Optimal for inspection, welding, assembly, and machining jigs. [Features]· All pressing forces are maximum values.· Regular bolts are used to measure the pressing force.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 1500 Straight Base Steel Stationary - - 1400 to 1999 Not Provided KonfigurujCena (bez VAT) od:23.79 €Standardowa data wysyłki:6 dni robocze
- Volume Discount
DESTACO
Pull Action Latch Clamps 324, 334, 344 and 374
Destaco’s 324, 334, and 344 Series pull action latch clamps are equipped with patented thumb control lever for one handed operation. These U-Hook style latch clamps are supplied with threaded U-Hooks for easy adjustment. Destaco Toggle Lock Plus and stainless steel versions available. Common applications and uses include - molding, assembly, and closures for doors, lids, or covers.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 2200 ～ 8900 - Stainless Steel ～ Steel - - - - - KonfigurujCena (bez VAT) od:40.51 €Standardowa data wysyłki:15 dni robocze
- Volume Discount
DESTACO
Pull Action Latch Clamps 330, 351, 371 and 381
Destaco’s 330, 351, 371 and 381 Series pull action latch clamps are equipped with patented thumb control lever for one handed operation. These J-Hook style latch clamps are supplied with threaded J-Hooks for easy adjustment. Destaco® Toggle Lock Plus™ and stainless steel versions available. Common applications and uses include - molding, assembly, and closures for doors, lids, or covers.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 900 ～ 4450 - Stainless Steel ～ Steel - - - - - KonfigurujCena (bez VAT) od:40.10 €Standardowa data wysyłki:15 dni robocze
- Volume Discount
DESTACO
Straight Line Action Clamps 6001
Destaco’s 6001 Series straight line action clamps feature a heavy-duty design, 50% more holding capacity than the Model 601, and allow the handle to fall below the mounting plane to lock in retracted position. Common applications for these clamps include assembly, testing, soldering, and gluing.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 670 - Stainless Steel ～ Steel - - - - - KonfigurujCena (bez VAT) od:23.60 €Standardowa data wysyłki:9 dni robocze
- ZNIŻKA
- Volume Discount
DESTACO
Straight Line Action Clamps 6004
Destaco’s 6004 Series straight line action clamps feature 50% more holding capacity than the Model 604, may be mounted through a hole or inside a tapped hole, and lock over center in the extended and retracted position. Common applications for these clamps include assembly, fixture checking, welding, and tensioning devices.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 2000 - Steel - - - - - KonfigurujCena (bez VAT) od:100.05 €Cena specjalnaStandardowa data wysyłki:Towar dostępny w magazynie: 1 dzień roboczyNiektóre pozycje mogą zostać wysłane tego samego dnia
- Volume Discount
DESTACO
Straight Line Action Clamps 605
Destaco’s 605 Series straight line action clamps are designed for push/pull clamping and allow for handle rotation to fall below the mounting plane then lock in retracted position. Common applications for these clamps include assembly/testing, woodworking, and tensioning devices.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 1330 - Steel - - - - - KonfigurujCena (bez VAT) od:45.97 €Standardowa data wysyłki:44 dni robocze
- Volume Discount
DESTACO
Straight Line Action Clamps 607
Destaco’s 607 Series straight line action clamps feature a low profile, high holding capacity for its size, and allow the handle to rotate then fall below the mounting plane to lock in retracted position. These clamps are also available with round or square plunger to resist torsional loads. Common applications for these models include assembly/testing, welding, and tensioning devices.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 3560 - Steel - - - - - KonfigurujCena (bez VAT) od:71.56 €Standardowa data wysyłki:Towar dostępny w magazynie: 1 dzień roboczyNiektóre pozycje mogą zostać wysłane tego samego dnia
- Volume Discount
DESTACO
Straight Line Action Clamps 620
Destaco’s 620 Series straight line action clamps feature reverse handle action and a plunger that locks in the extended position as the handle is moved downward. Common applications for these clamps include assembly/testing, woodworking, and tensioning devices.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 2670 - Steel - - - - - KonfigurujCena (bez VAT) od:102.50 €Standardowa data wysyłki:30 dni robocze
- Volume Discount
MISUMI
Toggle Clamp, Side Push/Pull, Free Mounting Direction, Clamp Bolt Size M12, Clamping Force 3,000 N
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 3000 - - Stationary M12 Steel 3100 or More Steel Bolt KonfigurujCena (bez VAT) od:80.83 €Standardowa data wysyłki:Towar dostępny w magazynie: 1 dzień roboczyMożliwa wysyłka tego samego dnia
- ZNIŻKA
- Volume Discount
SUPER TOOL
Optimal for inspection, welding, assembly, and machining jigs.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Push-Pull 1700 ～ 7000 Flange Base Stainless Steel ～ Steel Adjustable M6 ～ M10 Steel 1400 to 1999 ～ 3100 or More Steel Bolt / Not Provided KonfigurujCena (bez VAT) od:15.53 €Cena specjalnaStandardowa data wysyłki:Towar dostępny w magazynie: 1 dzień roboczyNiektóre pozycje mogą zostać wysłane tego samego dnia
- Stock
GOODHANDCLAMP
Toggle Clamp, Push-Pull Type, Flange Base, Bolt Size M10, Tightening Force 3,860 N
MISUMI-VONA supplies carefully selected products made by leading Asian manufacturers, based on our customers' needs. Please select products according to your intended application. This product is made by a Taiwanese manufacturer, established in 1974, which mainly produces toggle clamps. As well as their own products, they supply OEM products for other manufacturers, and have expanded with manufacturing sites in Europe and North America. This manufacturer is a world leader in jig parts.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 3860 Flange Base Stainless Steel ～ Steel Stationary M10 Stainless Steel ～ Steel 3100 or More Steel Bolt / Stainless Steel Bolt KonfigurujCena (bez VAT) od:30.97 €Standardowa data wysyłki:6 dni robocze
- Volume Discount
- Stock
GOODHANDCLAMP
Toggle Clamp, Push-Pull Type, Flange Base, Bolt Size M8, Tightening Force 1,360 N
MISUMI-VONA supplies carefully selected products made by leading Asian manufacturers, based on our customers' needs. Please select products according to your intended application. This product is made by a Taiwanese manufacturer, established in 1974, which mainly produces toggle clamps. As well as their own products, they supply OEM products for other manufacturers, and have expanded with manufacturing sites in Europe and North America. This manufacturer is a world leader in jig parts.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 1360 Flange Base Stainless Steel ～ Steel Stationary M8 Stainless Steel ～ Steel Up to 1399 Steel Bolt / Stainless Steel Bolt KonfigurujCena (bez VAT) od:18.14 €Standardowa data wysyłki:Towar dostępny w magazynie: 1 dzień roboczyNiektóre pozycje mogą zostać wysłane tego samego dnia
- Volume Discount
AMF
6840S Push-pull type toggle clamp with safety latch
Push-pull type toggle clamp with safety latch For open and clamped positions. Without angle base. Push and pull-clamping (equal operation of rod and lever). Long rod-guide with attaching thread and nut. Rivets made of stainless steel, lever-parts and rod of tempered steel. Bearings are pre-lubricated. Ergonomic, oil-resistant handle with large grip surface and soft components. Complete with tempered, galvanized clamping screw no. 6880. The product is available per 1 peace.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - - - - - M8 - - - KonfigurujCena (bez VAT) od:88.85 €Standardowa data wysyłki:6 dni robocze
- Volume Discount
AMF
6844NI Push-pull type toggle clamp
Push-pull type toggle clamp short version. For push and pull-clamping.Stainless steel, polished. Long rod-guide with attaching thread and nut. Shoulder screws pasted into thread. Bearings are pre-lubricated. Ergonomic, oil-resistant handle with large grip surface and soft components.Supplied complete with stainless clamping screw no. 6880NI. Also suitable for use in the food industry. The product is available per 1 peace.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - - - - - M6 ～ M12 - - - KonfigurujCena (bez VAT) od:92.02 €Standardowa data wysyłki:4 dni robocze
- Volume Discount
DESTACO
Straight Line Action Clamps 670 and 690
Destaco’s 670 and 690 Series straight line action clamps feature precision clamping for high production, adjustable collet-type bushing that minimizes radial plunger movement, and plunger with a flat surface for anti rotation. These clamps are also designed with pre-load nut and hold open device. Common applications are assembly and welding projects.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 10680 ～ 22240 - Steel - - - - - KonfigurujCena (bez VAT) od:675.64 €Standardowa data wysyłki:20 dni robocze
- Volume Discount
DESTACO
Variable Stroke Straight Line Action G-Series
Destaco‘s G Series variable stroke, straight line clamps are used in applications where workpiece thicknesses and workpiece tolerances vary. These clamps are suitable for clamping between ribs and hollow spaces that are difficult to reach. Compact design and different types of operation allow for application of the straight line clamps in fixtures for mass production as well as for single part production. G models feature a through hole mounting type and can be operated with one or two hands.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 1500 ～ 3000 - - - - - - - KonfigurujCena (bez VAT) od:371.47 €Standardowa data wysyłki:20 dni robocze
KIPP
Toggle clamps push-pull with mounting bracket (K0085)
· Toggle clamps and power clamps are used in assembly and workholding fixtures· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry· Locking in both closed and open positions· Used for thrust and traction· Can be mounted in any position using the fastening nutCzytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - - - Stainless Steel ～ Steel - - - - - KonfigurujCena (bez VAT) od:43.56 €Standardowa data wysyłki:4 dni robocze
NORELEM
Mini push-pull toggle clamp with mounting bracket (05835-01)
· Locking in both closed and open positions· Used for thrust and traction· For particularly tight spaces· Compact construction (mini)Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Push-Pull 80 Flange Base Stainless Steel ～ Steel - - - Up to 1399 - KonfigurujCena (bez VAT) od:17.13 €Standardowa data wysyłki:4 dni robocze
NORELEM
Push-pull toggle clamp with mounting bracket (05837-01)
· Used for thrust and traction· Locking in both closed and open positions· Toggle clamps and power clamps are used in assembly and workholding fixtures· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry· Can be mounted in any position using the fastening nutCzytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Push-Pull 40 ～ 100 Flange Base Stainless Steel ～ Steel - - - Up to 1399 - KonfigurujCena (bez VAT) od:42.13 €Standardowa data wysyłki:4 dni robocze
- Volume Discount
- Order quantities extended (D-JIT)
MISUMI
Toggle Clamp, Side Push/Pull, Flange Base, Clamp Bolt Size M4, Clamping Force 490 N
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 490 - - Stationary M4 Steel Up to 1399 Steel Bolt KonfigurujCena (bez VAT) od:10.77 €Standardowa data wysyłki:Towar dostępny w magazynie: 1 dzień roboczyMożliwa wysyłka tego samego dnia
- Volume Discount
KAKUTA
Horizontal Push-Type Clamp, No. 80
Optimal for inspection, welding, assembly, and machining jigs.[Features]· All pressing forces are maximum values.· Regular bolts are used to measure the pressing force.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 3000 Straight Base Steel Stationary M6 - 2000 to 3099 Not Provided KonfigurujCena (bez VAT) od:42.20 €Standardowa data wysyłki:6 dni robocze
- Volume Discount
AMF
6873 Push-pull type toggle clamp variable
Push-pull type toggle clamp variable with angle base.Toggle clamp with continuous counterbalance function for workpieces with different clamping widths.Galvanised and passivated. Ergonomic, oil-resistant handle with large grip surface and soft components. Retainer for the clamping screw at the end of the clamp arm.Complete with galvanised clamping screw. The product is available per 1 peace.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - - - - - M6 ～ M8 - - - KonfigurujCena (bez VAT) od:33.85 €Standardowa data wysyłki:5 dni robocze
- ZNIŻKA
- Volume Discount
GANTER
Stainless Steel-Latch type toggle clamps with safety hook, heavy duty type
The GN 852.3 latch type toggle clamps are compact in design and can be used to ensure high holding capacities.When closing the spanner, a safety hook positively locks onto the body. This prevents the inadvertent or vibration-induced release from the clamping position. To open the safety hook it is unlocked per one-hand operation.The U-bolt latch can be adjusted within its range.In addition to the standard lengths for the U-bolt latch shown above, more lengths may be achieved by using series GN 951.1 square U-bolts.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - - - Stainless Steel - - - - - KonfigurujCena (bez VAT) od:284.78 €Cena specjalnaStandardowa data wysyłki:Towar dostępny w magazynie: 1 dzień roboczyNiektóre pozycje mogą zostać wysłane tego samego dnia
- Volume Discount
GANTER
Stainless Steel-Vertical hook type toggle clamps
The stroke of the U-bolt latch of GN 851.1 hook type toggle clamps can be adjusted within its range.In the clamped position the U-bolt latch is perpendicular to the clamping arm.In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.1 series.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - - - Stainless Steel - - - - - KonfigurujCena (bez VAT) od:50.36 €Standardowa data wysyłki:7 dni robocze
- Volume Discount
DESTACO
Straight Line Action Clamps 609
Destaco’s 609 Series straight line action clamps feature a low profile, high holding capacity for its size, and allow the handle to rotate then fall below the mounting plane to lock in retracted position. This model is also available with a flanged or straight base. Common applications for these models include assembly/testing, welding, and tensioning devices.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 1330 - Steel - - - - - KonfigurujCena (bez VAT) od:64.34 €Standardowa data wysyłki:54 dni robocze
- Volume Discount
DESTACO
Straight Line Action Clamps 640
Destaco’s 640 Series straight line action clamps are designed for heavy duty push/pull clamping, handle rotation to fall below the mounting plane to lock in retracted position, and are available with Destaco® Toggle Lock Plus. This model also has the longest stroke of our straight line action clamps. Common applications for these models include assembly/testing, welding, and tensioning devices.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - 33400 - Steel - - - - - KonfigurujCena (bez VAT) od:212.77 €Standardowa data wysyłki:10 dni robocze
KIPP
Toggle clamps mini push-pull with mounting bracket (K0083)
· Toggle clamps and power clamps are used in assembly and workholding fixtures· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry· Locking in both closed and open positions· Used for thrust and traction· For particularly tight spacesCzytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type - - - Stainless Steel ～ Steel - - - - - KonfigurujCena (bez VAT) od:17.04 €Standardowa data wysyłki:4 dni robocze
KIPP

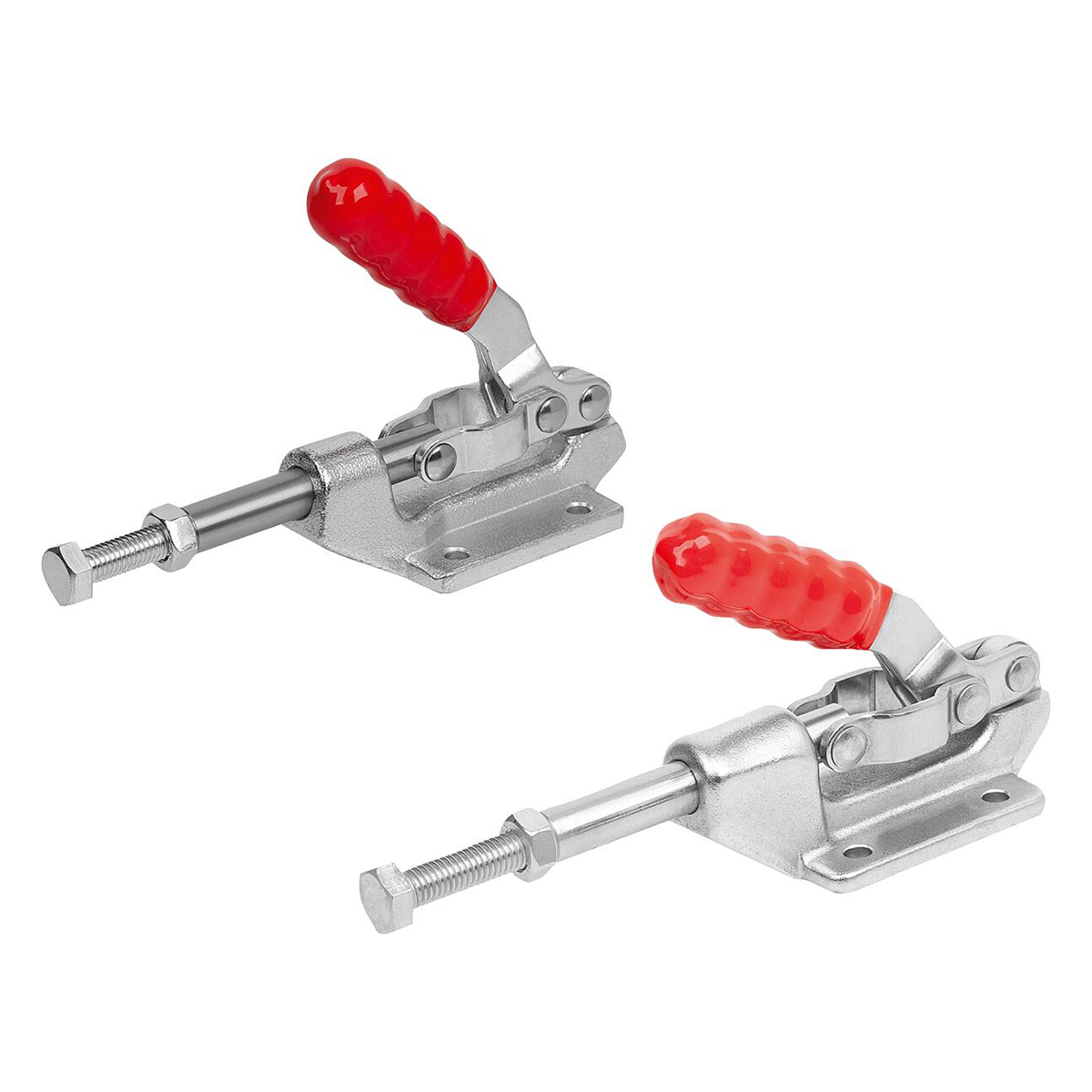

Push-pull toggle clamps, steel or stainless steel retaining force up to 2670 N (K2283)
Material: Steel or stainless steel A2. Version: Electro zinc-plated steel. Bright stainless steel. Plastic handle, oil-resistant. Note: The clamps lock in the open and closed handle positions. This means they can clamp during the pushing or pulling actions.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Push-Pull - - - - - - - - KonfigurujCena (bez VAT) od:46.71 €Standardowa data wysyłki:4 dni robocze
KIPP
Push-pull toggle clamps, steel, retaining force up to 3575 N, Form A (K2290 A)
Material: Steel. Version: Electro zinc-plated steel. Plastic handle, oil-resistant. Note: Form A: The clamps lock in the closed grip position. They can thus only be used for thrust clamping.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Push-Pull - - Steel - - - - - KonfigurujCena (bez VAT) od:24.18 €Standardowa data wysyłki:4 dni robocze
- Volume Discount
- Order quantities extended (D-JIT)
MISUMI
Toggle Clamp, Side Push/Pull, Flange Base, Clamp Bolt Size M12, Clamping Force 3,000 N
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 3000 - - Stationary M12 Steel 3100 or More Steel Bolt KonfigurujCena (bez VAT) od:85.95 €Standardowa data wysyłki:Towar dostępny w magazynie: 1 dzień roboczyMożliwa wysyłka tego samego dnia
GOODHANDCLAMP
Toggle Clamp - Latch Type - Flanged Base, J-Shaped Hook, GH-43150
MISUMI-VONA supplies carefully selected products made by leading Asian manufacturers, based on our customers' needs. Please select products according to your intended application. This product is made by a Taiwanese manufacturer, established in 1974, which mainly produces toggle clamps. As well as their own products, they supply OEM products for other manufacturers, and have expanded with manufacturing sites in Europe and North America. This manufacturer is a world leader in jig parts.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Push-Pull 3000 Flange Base Steel - - - 2000 to 3099 - KonfigurujCena (bez VAT) od:25.38 €Standardowa data wysyłki:6 dni robocze
GOODHANDCLAMP
Toggle Clamp, Push-Pull Type, Straight Base, Bolt Size M10, Tightening Force 3,640 N
- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 3640 Flange Base Steel Stationary M10 Steel 3100 or More Steel Bolt KonfigurujCena (bez VAT) od:17.72 €Standardowa data wysyłki:16 dni robocze
GOODHANDCLAMP
Toggle Clamp - Side-Push - Flange Base Stroke 100 mm Straight Long Handle GH-35000HL
Side-push toggle clamp. Maximum stroke: 100mm; maximum clamping pressure: 5000N. Convenient flange base for mounting. This product is made by a Taiwanese manufacturer, established in 1974, which mainly produces toggle clamps. In addition to OEM production, they have offices in Europe and North America, earning praise from a large variety of customers.Czytaj dalej- CAD:
- 3D
Type Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 50000 Flange Base Steel Stationary M16 Steel 3100 or More Steel Bolt KonfigurujCena (bez VAT) od:370.62 €Standardowa data wysyłki:5 dni robocze
- Volume Discount
KAKUTA
Horizontal Push-Type Clamp, No. 50B
Optimal for inspection, welding, assembly, and machining jigs.[Features]· All pressing forces are maximum values.· Regular bolts are used to measure the pressing force.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 3000 Flange Base Steel Stationary M8 Steel 2000 to 3099 Steel Bolt KonfigurujCena (bez VAT) od:42.20 €Standardowa data wysyłki:6 dni robocze
- Volume Discount
KAKUTA
Horizontal Push-Type Toggle Clamp, No. SL50-R
Optimal for inspection, welding, assembly, and machining jigs.[Features]· All pressing forces are maximum values.· Regular bolts are used to measure the pressing force.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 500 Flange Base Steel Stationary M4 Steel + Rubber Pad Up to 1399 Bolt with Rubber KonfigurujCena (bez VAT) od:15.45 €Standardowa data wysyłki:6 dni robocze
FLECLAM
Toggle Clamp Horizontal Pressure Type TPPL-30
With a clamp that operates by being pushed horizontally, it can be used for supporting workpieces from the side.Czytaj dalejType Tightening Force(N) Attaching Method Body Material Clamp Screw Clamp Screw Size Clamp Screw Material Tightening Force (Range Selectable)(N) Tip Bolt Type Side Push 1760 Flange Base Steel Stationary M8 Steel 1400 to 1999 - KonfigurujCena (bez VAT) od:14.64 €Standardowa data wysyłki:6 dni robocze
