Socket (Hexagon) 4S

Promotional pricing ends 31/12/2024
Volume Discount

A socket ideal for machine and bicycle maintenance.
[Features]
・ Square socket 12.7 mm.
・ Hex width across flats with good access to hexagon bolts and nuts.
・ Ideal for hex bolt and nut tightening and loosening work.
[Applications]
・ Assembly and maintenance of machines, and maintenance of automobiles, motorcycles, and bicycles.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Products homepage

Data to be displayed: 30; 45; 60

Part Number
4S-08
4S-09
4S-10
4S-11
4S-12
4S-13
4S-14
4S-15
4S-16
4S-17
4S-18
4S-19
4S-20
4S-21
4S-22
4S-23
4S-24
4S-25
4S-26
4S-27
4S-28
4S-29
4S-30
4S-31
4S-32
4S-33
4S-36

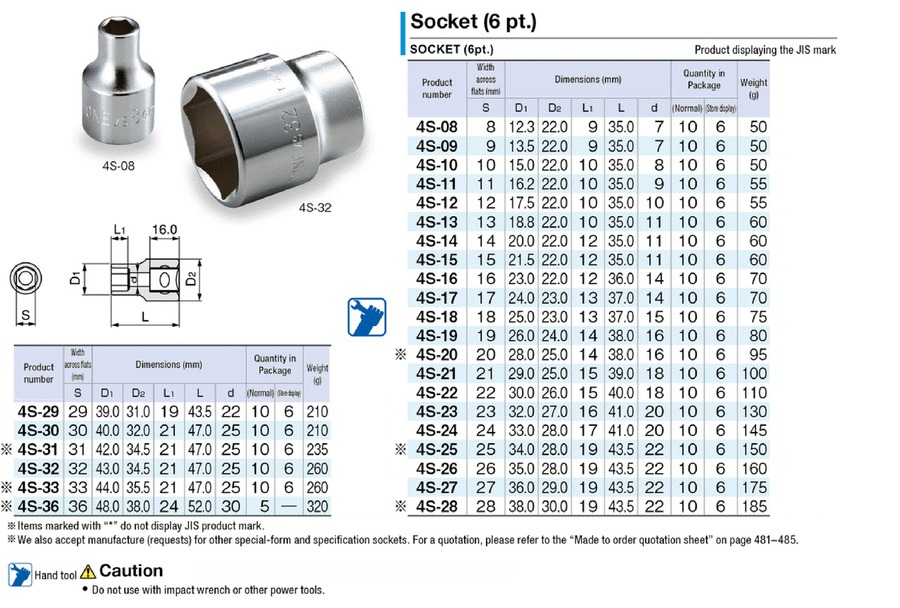

Standard Unit Price	Minimum order quantity	Volume Discount	Standard Shipping Days ?	Width across flat dimension (S Measurement)	Overall length (L dimension) (mm)	Width across flat part external diameter (measurement D1) (mm)	Maximum Outer Diameter (D1 or D2 Dimensions) (mm)	Width across flat part depth (measurement L1) (mm)	Through Hole I.D. (d Dimension) (mm)
7.17 €	1	Available	5 Days	8	35	12.3	22	9	7
7.17 €	1	Available	9 Days	9	35	13.5	22	9	7
7.59 €	1	Available	5 Days	10	35	15	22	10	8
7.64 €	1	Available	9 Days	11	35	16.2	22	10	9
7.64 €	1	Available	5 Days	12	35	17.5	22	10	10
7.69 €	1	Available	5 Days	13	35	18.8	22	10	11
7.69 €	1	Available	9 Days	14	35	20	22	12	11
8.40 €	1	Available	9 Days	15	35	22	21.5	12	11
8.50 €	1	Available	9 Days	16	36	23.0	22	12	14
8.50 €	1	Available	5 Days	17	37	24	23	13	14
8.54 €	1	Available	9 Days	18	37	25	23	13	15
8.59 €	1	Available	5 Days	19	38	26	24	14	16
8.93 €	1	Available	9 Days	20	38	28	25	14	16
8.98 €	1	Available	8 Days	21	39	29	25	15	18
9.27 €	1	Available	5 Days	22	40	30	26	15	18
9.45 €	1	Available	9 Days	23	41	32	27	16	20
9.59 €	1	Available	5 Days	24	41	33	28	17	20
12.01 €	1	Available	9 Days	25	43.5	34.0	28	19	22
12.11 €	1	Available	9 Days	26	43.5	35	28	19	22
12.25 €	1	Available	5 Days	27	43.5	36	29	19	22
14.41 €	1	Available	9 Days	28	43.5	38	30	19	22
14.63 €	1	Available	5 Days	29	43.5	39	31	19	22
15.25 €	1	Available	5 Days	30	47	40	32	21	25
16.40 €	1	Available	9 Days	31	47	42	34.5	21	25
16.64 €	1	Available	9 Days	32	47	43	34.5	21	25
19.64 € 10.41 €	1		Same day Stock	33	47	44	35.5	21	25
25.37 €	1	Available	5 Days	36	52	48	38	24	30

Basic information

Single Product/Set Classification	Single Item Socket	Application	For handwork	Insertion Angle (Shaft measurement when electric drill) (mm)	12.7
Socket shape	6 Sq.	Insertion Angle (Shaft measurement when electric drill) (Inch)	1/2

Configure

27Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.

The part number is completed.

Stock

- Show only stock items
Clear

Basic Attributes

Width across flat dimension (S Measurement)
8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

36
Clear
Overall length (L dimension)(mm)
35

36

37

38

39

40

41

43.5

47

52
Clear
Type
- 4S-08-4S-36
Clear
