I / O module, Axioline F XC, AXL F
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|

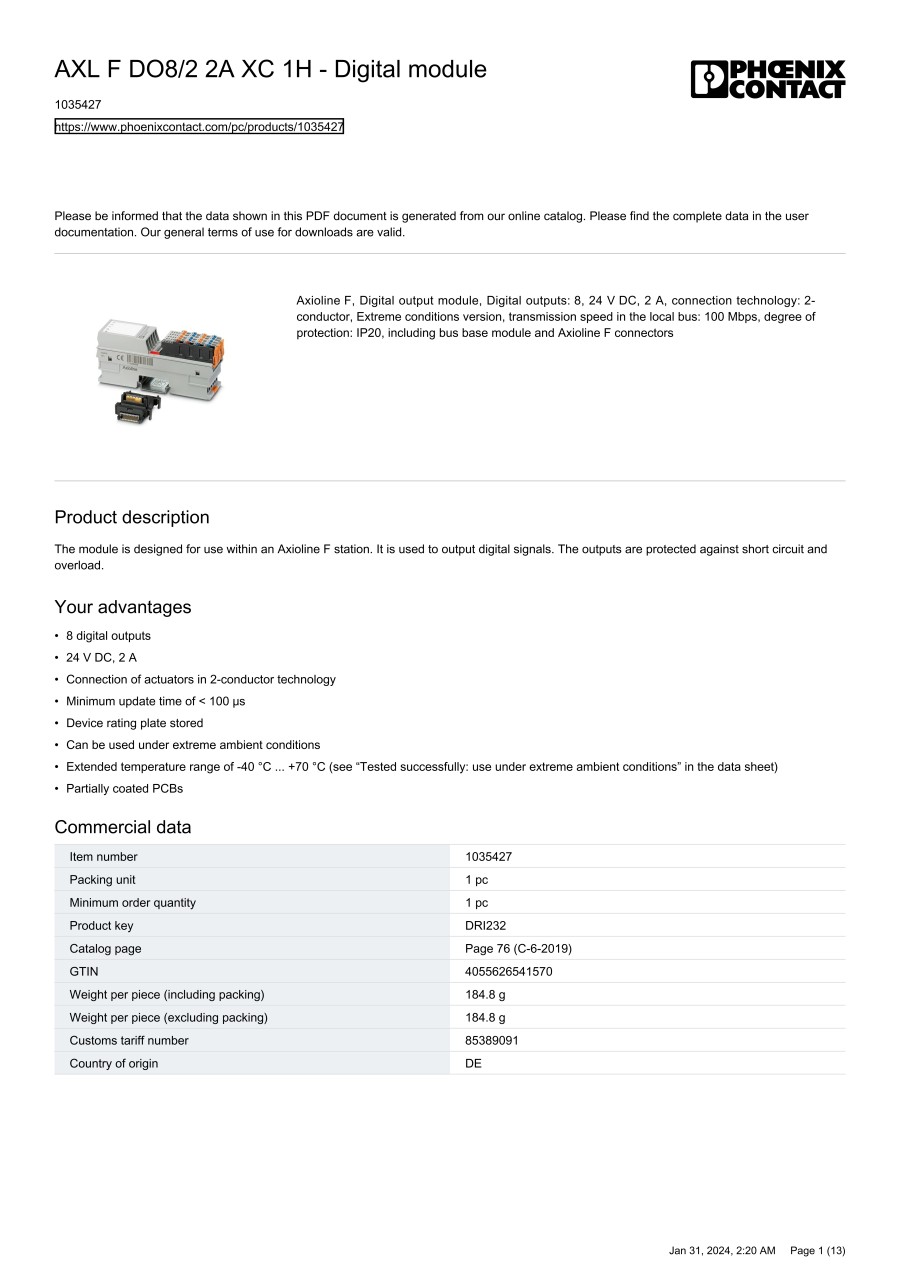

| 1035427 |
| 2701224 |
| 2701226 |
| 2701228 |
| 2701230 |
| 2702017 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Width (mm) | Height (mm) | Input current at signal 1 (mA) | Number of digital inputs | Number of digital outputs | Type of voltage (input voltage) | Supporting protocol for other bus systems | Output current (A) | Short-circuit protection, outputs available | Type of digital output | Supply voltage AC 50 Hz (V) | Permitted voltage at output (V) | Permitted voltage at input (V) | Type of output voltage | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
254.77 € | 1 | 40 Days | 35 | 126.1 | - | 0 | 8 | - | true | 2 | true | Other | -|- | 24|24 | 24|24 | DC | |||
274.15 € | 1 | 7 Days | 53.6 | 129.9 | 0.0024 | 16 | 0 | DC | true | - | false | None | 24|24 | -|- | 24|30 | - | |||
348.92 € | 1 | 7 Days | 53.6 | 126.1 | 0.0024 | 32 | 0 | DC | false | - | false | None | 24|24 | -|- | 24|30 | - | |||
321.23 € | 1 | 7 Days | 53.6 | 129.9 | - | 0 | 16 | DC | true | 0.5 | true | Other | -|- | 24|24 | 24|24 | DC | |||
379.38 € | 1 | 40 Days | 53.6 | 126.1 | - | 0 | 32 | DC | false | 0.5 | true | Other | 24|24 | 24|24 | 24|24 | DC | |||
232.62 € | 1 | 89 Days | 35 | 126.1 | 0.0024 | 8 | 8 | DC | true | 0.5 | true | Other | -|- | 24|24 | 24|30 | DC |
Loading...
Basic information
| Depth(mm) | 54 | Suitable for safety functions | false | Time delay at signal exchange(ms) | 0|0 |
|---|---|---|---|---|---|
| Voltage type of supply voltage | DC | Supporting protocol for LON | false | Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 | Number of HW-interfaces RS-422 | 0 | Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 | Number of HW-interfaces USB | - | Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 2 | With optical interface | false | Supporting protocol for TCP/IP | false |
| Supporting protocol for ASI | false | Supporting protocol for PROFIBUS | false | Supporting protocol for CAN | false |
| Supporting protocol for INTERBUS | false | Supporting protocol for KNX | false | Supporting protocol for MODBUS | false |
| Supporting protocol for Data-Highway | false | Supporting protocol for DeviceNet | false | Supporting protocol for SUCONET | false |
| Type of electric connection | Other | Rail mounting possible | true | Explosion safety category for gas | None |
| Explosion safety category for dust | Other | Fieldbus connection over separate bus coupler possible | true | System accessory | true |
| Appendant operation agent (Ex ia) | false | Appendant operation agent (Ex ib) | false | Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | false | Supporting protocol for INTERBUS-Safety | false | Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 0 | Number of HW-interfaces Wireless | 0 | Front build in possible | false |
| Rack-assembly possible | false | Wall mounting/direct mounting | false | Radio standard Bluetooth | - |
| Radio standard WLAN 802.11 | - | IO link master | false | Performance level acc. EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | false | Supporting protocol for DeviceNet Safety | false | Supporting protocol for EtherNet/IP | false |
| Supporting protocol for Foundation Fieldbus | false | Supporting protocol for PROFINET CBA | false | Supporting protocol for PROFINET IO | false |
| Supporting protocol for PROFIsafe | false | Supporting protocol for SafetyBUS p | false | Supply voltage AC 60 Hz(V) | -|- |
| Supply voltage DC(V) | 19.2|30 | Digital inputs configurable | false | Digital outputs configurable | false |
| Radio standard GPRS | - | Radio standard GSM | - | Radio standard UMTS | - |
| SIL according to IEC 61508 | None |
Configure
Basic Attributes
-
Width(mm)
-
Height(mm)
-
Input current at signal 1(mA)
-
Number of digital inputs
-
Number of digital outputs
-
Type of voltage (input voltage)
-
Supporting protocol for other bus systems
-
Output current(A)
-
Short-circuit protection, outputs available
-
Type of digital output
-
Supply voltage AC 50 Hz(V)
-
Permitted voltage at output(V)
-
Permitted voltage at input(V)
-
Type of output voltage
-
Type
Filter by standard shipping days
-
- All
- 7 Days or Less
- 40 Days or Less
- 89 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
