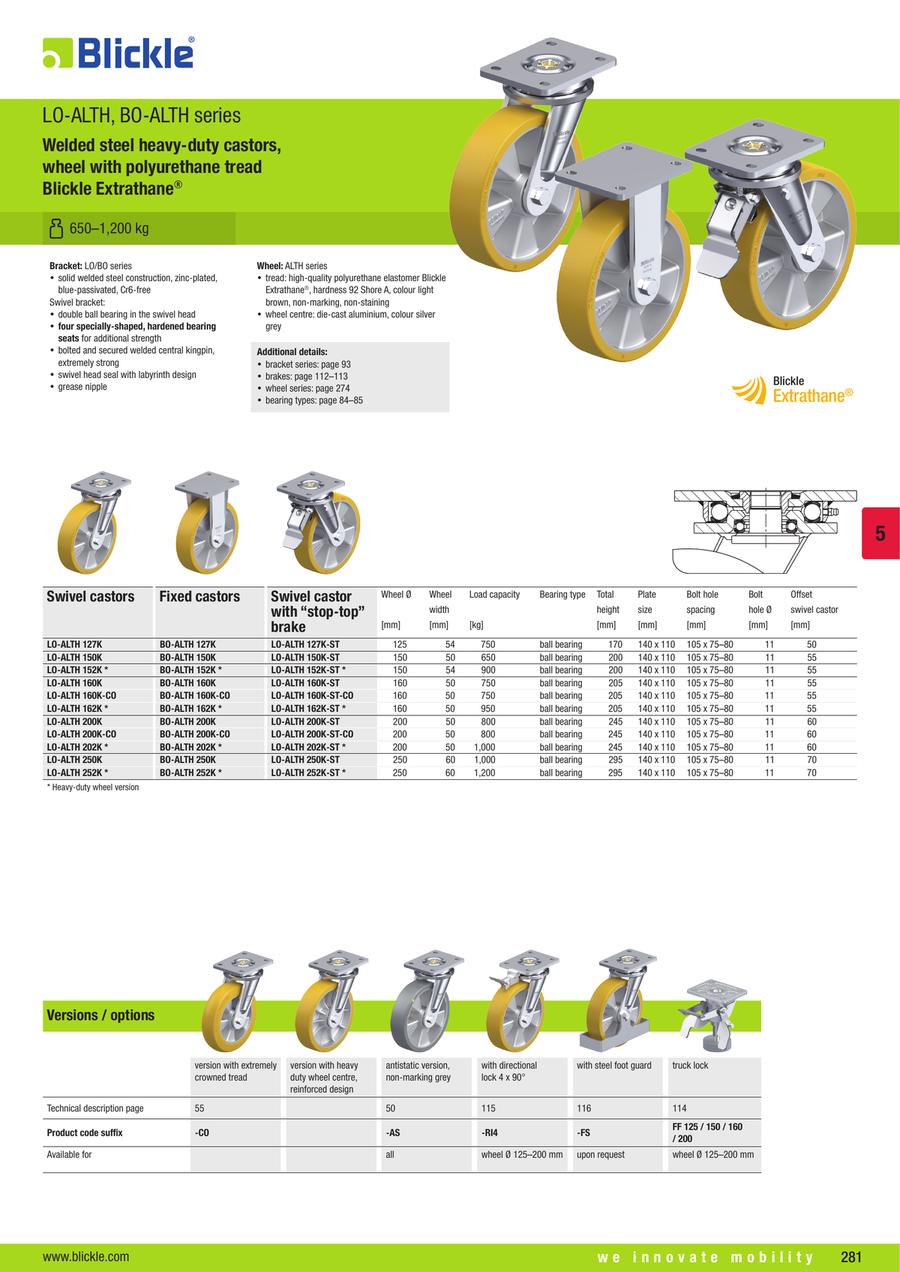

Heavy Duty Welded Steel Swivel Castor, LO-ALTH Series
Bracket: LO series
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- four specially-shaped, hardened bearing seats for additional strength
- bolted and secured welded central kingpin, extremely strong
- swivel head seal with labyrinth design
- grease nipple
Wheel: ALTH series
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour light brown, non-marking, non-staining
- wheel centre: die-cast aluminium, colour silver grey
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Wheel Dia. D (mm) | Wheel Width B (mm) | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Tread color | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
240.56 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 200 | 485.01 to 750.00 | - | 150 | 54 | swivel castor | 170 | 3950 | 125 | 54 | light brown | 750 | ||
262.05 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 200 | 485.01 to 750.00 | - | 150 | 54 | swivel castor | 170 | 3950 | 125 | 54 | grey | 750 | ||
323.02 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 200 | 485.01 to 750.00 | Antistatic | 150 | 54 | swivel castor | 170 | 4190 | 125 | 54 | grey | 750 | ||
301.52 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 200 | 485.01 to 750.00 | Antistatic | 150 | 54 | swivel castor | 170 | 4166 | 125 | 54 | light brown | 750 | ||
312.66 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 200 | 485.01 to 750.00 | - | 150 | 54 | swivel castor with brake | 170 | 4321 | 125 | 54 | light brown | 750 | ||
334.15 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | - | 160 | 50 | swivel castor with brake | 170 | 4340 | 125 | 54 | grey | 750 | ||
395.11 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | Antistatic | 160 | 50 | swivel castor with brake | 170 | 4522 | 125 | 54 | grey | 750 | ||
373.63 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | Antistatic | 160 | 50 | swivel castor with brake | 170 | 4600 | 125 | 54 | light brown | 750 | ||
240.38 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | Antistatic | 160 | 50 | swivel castor | 200 | 4022 | 150 | 50 | light brown | 650 | ||
262.20 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | Antistatic | 160 | 50 | swivel castor | 200 | 4010 | 150 | 50 | grey | 650 | ||
323.17 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | - | 160 | 50 | swivel castor | 200 | 4270 | 150 | 50 | grey | 650 | ||
301.33 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | - | 160 | 50 | swivel castor | 200 | 4246 | 150 | 50 | light brown | 650 | ||
319.65 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | - | 160 | 50 | swivel castor with brake | 200 | 4440 | 150 | 50 | light brown | 650 | ||
341.48 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | - | 160 | 50 | swivel castor with brake | 200 | 4440 | 150 | 50 | grey | 650 | ||
402.43 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | Antistatic | 160 | 50 | swivel castor with brake | 200 | 4690 | 150 | 50 | grey | 650 | ||
380.62 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | Antistatic | 160 | 50 | swivel castor with brake | 200 | 4680 | 150 | 50 | light brown | 650 | ||
275.49 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 750.01 or More | Antistatic | 160 | 50 | swivel castor | 200 | 4270 | 150 | 54 | light brown | 900 | ||
297.30 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 750.01 or More | Antistatic | 160 | 50 | swivel castor | 200 | 4270 | 150 | 54 | grey | 900 | ||
358.26 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 750.01 or More | - | 160 | 50 | swivel castor | 200 | 4481 | 150 | 54 | grey | 900 | ||
336.43 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 750.01 or More | - | 160 | 50 | swivel castor | 200 | 4541 | 150 | 54 | light brown | 900 | ||
354.75 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 750.01 or More | - | 160 | 50 | swivel castor with brake | 200 | 4670 | 150 | 54 | light brown | 900 | ||
376.59 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 750.01 or More | - | 160 | 50 | swivel castor with brake | 200 | 4670 | 150 | 54 | grey | 900 | ||
437.53 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 750.01 or More | Antistatic | 160 | 50 | swivel castor with brake | 200 | 4950 | 150 | 54 | grey | 900 | ||
415.71 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 750.01 or More | Antistatic | 160 | 50 | swivel castor with brake | 200 | 4950 | 150 | 54 | light brown | 900 | ||
243.40 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | - | 160 | 50 | swivel castor | 205 | 4090 | 160 | 50 | light brown | 750 | ||
266.84 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | - | 160 | 50 | swivel castor | 205 | 4090 | 160 | 50 | grey | 750 | ||
275.08 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | Antistatic | 160 | 50 | swivel castor | 205 | 4050 | 160 | 50 | grey | 750 | ||
336.04 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | Antistatic | 160 | 50 | swivel castor | 205 | 4408 | 160 | 50 | grey | 750 | ||
327.78 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 205 | 485.01 to 750.00 | - | 160 | 50 | swivel castor | 205 | 4330 | 160 | 50 | grey | 750 | ||
251.65 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | - | 200 | 50 | swivel castor | 205 | 4050 | 160 | 50 | light brown | 750 | ||
312.62 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | Antistatic | 200 | 50 | swivel castor | 205 | 4384 | 160 | 50 | light brown | 750 | ||
304.36 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | Antistatic | 200 | 50 | swivel castor | 205 | 4340 | 160 | 50 | light brown | 750 | ||
313.66 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | Antistatic | 200 | 50 | swivel castor with brake | 205 | 4520 | 160 | 50 | light brown | 750 | ||
337.08 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | Antistatic | 200 | 50 | swivel castor with brake | 205 | 4480 | 160 | 50 | grey | 750 | ||
345.34 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | - | 200 | 50 | swivel castor with brake | 205 | 4480 | 160 | 50 | grey | 750 | ||
406.30 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | - | 200 | 50 | swivel castor with brake | 205 | 4749 | 160 | 50 | grey | 750 | ||
398.05 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | - | 200 | 50 | swivel castor with brake | 205 | 4730 | 160 | 50 | grey | 750 | ||
321.92 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | - | 200 | 50 | swivel castor with brake | 205 | 4480 | 160 | 50 | light brown | 750 | ||
382.89 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | Antistatic | 200 | 50 | swivel castor with brake | 205 | 4725 | 160 | 50 | light brown | 750 | ||
374.63 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | Antistatic | 200 | 50 | swivel castor with brake | 205 | 4720 | 160 | 50 | light brown | 750 | ||
252.68 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | Antistatic | 200 | 50 | swivel castor | 205 | 4140 | 160 | 50 | light brown | 950 | ||
276.10 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | Antistatic | 200 | 50 | swivel castor | 205 | 4130 | 160 | 50 | grey | 950 | ||
337.07 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | - | 200 | 50 | swivel castor | 205 | 4380 | 160 | 50 | grey | 950 | ||
313.65 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | - | 200 | 50 | swivel castor | 205 | 4452 | 160 | 50 | light brown | 950 | ||
322.95 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | - | 200 | 50 | swivel castor with brake | 205 | 4550 | 160 | 50 | light brown | 950 | ||
346.37 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | - | 200 | 50 | swivel castor with brake | 205 | 4550 | 160 | 50 | grey | 950 | ||
407.34 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | Antistatic | 200 | 50 | swivel castor with brake | 205 | 4817 | 160 | 50 | grey | 950 | ||
383.90 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | Antistatic | 200 | 50 | swivel castor with brake | 205 | 4780 | 160 | 50 | light brown | 950 | ||
261.25 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | - | 200 | 50 | swivel castor | 245 | 4520 | 200 | 50 | light brown | 800 | ||
285.51 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | - | 200 | 50 | swivel castor | 245 | 4520 | 200 | 50 | grey | 800 | ||
290.63 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | Antistatic | 200 | 50 | swivel castor | 245 | 4580 | 200 | 50 | grey | 800 | ||
351.60 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | Antistatic | 200 | 50 | swivel castor | 245 | 4982 | 200 | 50 | grey | 800 | ||
346.48 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | - | 200 | 50 | swivel castor | 245 | 4790 | 200 | 50 | grey | 800 | ||
266.38 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 295 | 750.01 or More | - | 250 | 60 | swivel castor | 245 | 4580 | 200 | 50 | light brown | 800 | ||
327.33 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 295 | 750.01 or More | Antistatic | 250 | 60 | swivel castor | 245 | 4860 | 200 | 50 | light brown | 800 | ||
322.22 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 295 | 750.01 or More | - | 250 | 60 | swivel castor | 245 | 4790 | 200 | 50 | light brown | 800 | ||
355.66 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 295 | 750.01 or More | Antistatic | 250 | 60 | swivel castor with brake | 245 | 4960 | 200 | 50 | light brown | 800 | ||
379.93 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 295 | 750.01 or More | - | 250 | 60 | swivel castor with brake | 245 | 4960 | 200 | 50 | grey | 800 | ||
385.05 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 295 | 750.01 or More | Antistatic | 250 | 60 | swivel castor with brake | 245 | 5030 | 200 | 50 | grey | 800 | ||
446.02 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 295 | 750.01 or More | - | 250 | 60 | swivel castor with brake | 245 | 5250 | 200 | 50 | grey | 800 |
Loading...
Basic information
| Wheel Material | Aluminum | Plate Length L(mm) | 140 | Plate Width W(mm) | 110 |
|---|---|---|---|---|---|
| Bearing type | Ball bearing | Material (details) | Tread material: Polyurethane, Wheel body material: die-cast aluminium | Material | Polyurethane |
| Suitable for autoclaves | no | Mounting type | top plate | Tread and tyre hardness | 92 Shore A |
| Wheel body color | silver grey | Tread hydrolysis-resistant | no | Non-staining | yes |
| Rustproof | no | Non-marking | yes | Maximum temperature resistance(°C) | 70 |
| Minimum temperature resistance(°C) | -20 |
