Energy-Saving Type, Pilot Operated 2 Port Solenoid Valve VXED21 / 22 / 23 Series

Warunki filtrowania

Applicable Fluid
- Air
- Water
- Oil
Operating Environment
Connection Type
Rc (R)
Rc
G
NPT
Tube Flange
Nominal Pipe Thread Size
- 1/4
- 3/8
- 1/2
- 3/4
- 1
Tube Flange Nominal
- 32
- 40
- 50
Orifice Diameter(mm)
- 20
- 40
- 50
Voltage
- 12 V DC
Sealing materials
- EPDM
- FKM
- NBR
Body material
- C37
- SUS
Bracket
- None
- With Bracket
Lead wire electrical entry
Type
Szacowane dni wysyłki
- Wszystko
- W ciągu 11 dni robocze
- W ciągu 18 dni robocze
- W ciągu 23 dni robocze
- W ciągu 24 dni robocze

SMC

Energy-Saving Type, Pilot Operated 2 Port Solenoid Valve VXED21 / 22 / 23 Series

Katalog

Przestroga

Refer to the manufacturer's catalog for specification and material details.
The product images are representative only. Please refer to the manufacturer's catalog for shape details.

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 97.

Lista numerów części
Szczegółowe informacje
Katalog

Lista numerów części

Liczba pozycji

Dalej

Numer części

Applicable Fluid

Operating Environment

Connection Type

Nominal Pipe Thread Size

Tube Flange Nominal

Orifice Diameter

(mm)

Voltage

Sealing materials

Body material

Bracket

Lead wire electrical entry

Minimalna wielkość zamówienia

Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/4	-	-	-	NBR	C37	None	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/4	-	-	-	NBR	C37	With Bracket	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/4	-	-	-	NBR	C37	None	Grommet	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/4	-	-	-	NBR	C37	None	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/4	-	-	-	NBR	C37	With Bracket	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/4	-	-	-	NBR	C37	With Bracket	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/4	-	-	12 V DC	NBR	C37	None	For DIN terminal (without connector, gasket included)	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	3/8	-	-	-	NBR	C37	None	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	3/8	-	-	-	NBR	C37	With Bracket	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	3/8	-	-	-	NBR	C37	None	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	3/8	-	-	-	NBR	C37	With Bracket	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	3/8	-	-	-	NBR	C37	None	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	3/8	-	-	-	NBR	C37	With Bracket	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/2	-	-	-	NBR	C37	None	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/2	-	-	-	NBR	C37	None	Grommet	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	NBR	C37	None	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	NBR	C37	None	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	NBR	C37	None	Grommet	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	12 V DC	NBR	C37	None	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	12 V DC	NBR	C37	None	For DIN terminal (without connector, gasket included)	1 szt.
Oil	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/4	-	-	-	FKM	C37	With Bracket	DIN terminal / With light	1 szt.
Oil	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/4	-	-	-	FKM	C37	None	Grommet	1 szt.
Oil	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	3/8	-	-	-	FKM	C37	None	DIN terminal	1 szt.
Oil	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	3/8	-	-	-	FKM	C37	None	DIN terminal / With light	1 szt.
Oil	Standard / Dust Resistant / Jet Proof Type	G	3/8	-	-	-	FKM	C37	None	For DIN terminal (without connector, gasket included)	1 szt.
Oil	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	FKM	C37	None	For DIN terminal (without connector, gasket included)	1 szt.
-	Standard / Dust Resistant / Jet Proof Type	G	3/8	-	-	-	EPDM	C37	With Bracket	For DIN terminal (without connector, gasket included)	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/4	-	-	-	NBR	SUS	None	DIN terminal	1 szt.
-	Dust Resistant / Jet Proof Type / No Copper, Fluoro Material	G	1/2	-	-	-	EPDM	SUS	None	For DIN terminal (without connector, gasket included)	1 szt.
Air / Water	No oil / Dust Resistant / Jet Proof Type	G	1/4	-	-	12 V DC	NBR	C37	With Bracket	Grommet	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	3/8	-	-	-	NBR	C37	None	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	3/8	-	-	-	NBR	C37	With Bracket	Grommet	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	3/8	-	-	-	NBR	C37	None	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	3/8	-	-	-	NBR	C37	None	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/2	-	-	-	NBR	C37	None	Conduit	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/2	-	-	-	NBR	C37	None	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/2	-	-	-	NBR	C37	With Bracket	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/2	-	-	-	NBR	C37	None	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/2	-	-	-	NBR	C37	None	For DIN terminal (without connector, gasket included)	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/2	-	-	-	NBR	C37	With Bracket	Conduit terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	NBR	C37	None	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	NBR	C37	With Bracket	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	NBR	C37	None	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	NBR	C37	With Bracket	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	NBR	C37	With Bracket	For DIN terminal (without connector, gasket included)	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	NBR	C37	With Bracket	Grommet	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	12 V DC	NBR	C37	None	For DIN terminal (without connector, gasket included)	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	NPT	1/2	-	-	-	NBR	C37	None	DIN terminal / With light	1 szt.
Oil	Standard / Dust Resistant / Jet Proof Type	G	3/8	-	-	-	FKM	C37	With Bracket	DIN terminal / With light	1 szt.
Oil	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/2	-	-	-	FKM	C37	None	DIN terminal / With light	1 szt.
Oil	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	FKM	C37	With Bracket	DIN terminal / With light	1 szt.
Oil	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	12 V DC	FKM	C37	With Bracket	DIN terminal	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	3/8	-	-	-	NBR	SUS	None	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	3/8	-	-	-	NBR	SUS	None	For DIN terminal (without connector, gasket included)	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	[Rc (R)] Rc	1/2	-	-	-	NBR	SUS	None	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	NBR	SUS	None	DIN terminal / With light	1 szt.
Air / Water	Standard / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	NBR	SUS	None	For DIN terminal (without connector, gasket included)	1 szt.
-	Dust Resistant / Jet Proof Type / No Copper, Fluoro Material	G	3/8	-	-	-	EPDM	SUS	None	For DIN terminal (without connector, gasket included)	1 szt.
-	No oil / High Corrosion Resistance / Dust Resistant / Jet Proof Type	G	1/2	-	-	-	FKM	SUS	None	DIN terminal / With light	1 szt.
Air / Water	No oil / Dust Resistant / Jet Proof Type	G	3/8	-	-	12 V DC	NBR	C37	With Bracket	Grommet	1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

62.47 € ( 74.34 € )	23 dni robocze
70.52 € ( 83.92 € )	23 dni robocze
54.94 € ( 65.38 € )	23 dni robocze
62.45 € ( 74.32 € )	23 dni robocze
64.34 € ( 76.56 € )	23 dni robocze
70.53 € ( 83.93 € )	23 dni robocze
59.97 € ( 71.36 € )	23 dni robocze
62.47 € ( 74.34 € )	11 dni robocze
70.52 € ( 83.92 € )	18 dni robocze
62.45 € ( 74.32 € )	23 dni robocze
64.34 € ( 76.56 € )	11 dni robocze
68.65 € ( 81.69 € )	23 dni robocze
70.53 € ( 83.93 € )	23 dni robocze
68.11 € ( 81.05 € )	23 dni robocze
60.56 € ( 72.07 € )	11 dni robocze
68.10 € ( 81.04 € )	24 dni robocze
74.31 € ( 88.43 € )	23 dni robocze
60.56 € ( 72.07 € )	24 dni robocze
68.10 € ( 81.04 € )	23 dni robocze
65.60 € ( 78.06 € )	23 dni robocze
80.53 € ( 95.83 € )	23 dni robocze
64.94 € ( 77.28 € )	23 dni robocze
72.47 € ( 86.24 € )	23 dni robocze
78.66 € ( 93.61 € )	23 dni robocze
69.90 € ( 83.18 € )	23 dni robocze
75.63 € ( 90.00 € )	23 dni robocze
65.60 € ( 78.06 € )	23 dni robocze
82.44 € ( 98.10 € )	23 dni robocze
101.77 € ( 121.11 € )	23 dni robocze
58.10 € ( 69.14 € )	23 dni robocze
86.19 € ( 102.57 € )	23 dni robocze
80.53 € ( 95.83 € )	11 dni robocze
86.18 € ( 102.55 € )	23 dni robocze
92.39 € ( 109.94 € )	23 dni robocze
81.82 € ( 97.37 € )	23 dni robocze
86.19 € ( 102.57 € )	23 dni robocze
88.06 € ( 104.79 € )	11 dni robocze
92.39 € ( 109.94 € )	23 dni robocze
83.69 € ( 99.59 € )	23 dni robocze
92.44 € ( 110.00 € )	11 dni robocze
86.18 € ( 102.55 € )	23 dni robocze
88.06 € ( 104.79 € )	23 dni robocze
92.37 € ( 109.92 € )	23 dni robocze
94.26 € ( 112.17 € )	23 dni robocze
85.56 € ( 101.82 € )	23 dni robocze
80.53 € ( 95.83 € )	23 dni robocze
83.71 € ( 99.61 € )	23 dni robocze
92.39 € ( 109.94 € )	11 dni robocze
112.40 € ( 133.76 € )	11 dni robocze
110.53 € ( 131.53 € )	23 dni robocze
112.40 € ( 133.76 € )	23 dni robocze
106.21 € ( 126.39 € )	23 dni robocze
177.18 € ( 210.84 € )	23 dni robocze
168.48 € ( 200.49 € )	11 dni robocze
177.18 € ( 210.84 € )	23 dni robocze
177.18 € ( 210.84 € )	11 dni robocze
168.48 € ( 200.49 € )	23 dni robocze
174.74 € ( 207.94 € )	23 dni robocze
197.73 € ( 235.30 € )	23 dni robocze
81.82 € ( 97.37 € )	23 dni robocze

Dalej

Szczegółowe informacje

Podstawowe informacje

Podstawowe informacje

This is the Energy-Saving Type, Pilot Operated 2 Port Solenoid Valve, VXED21/22/23 series.
[Features]
· Power consumption (when holding) is substantially reduced (approx. 1/3)
· Coil heat reduction
・ Mounting dimensions and basic specifications are the same as the conventional series
・ VX2, VXD, VXZ solenoid coil assemblies can be converted to power saving type coils

Przestroga

Refer to the manufacturer's catalog for specification and material details.
The product images are representative only. Please refer to the manufacturer's catalog for shape details.

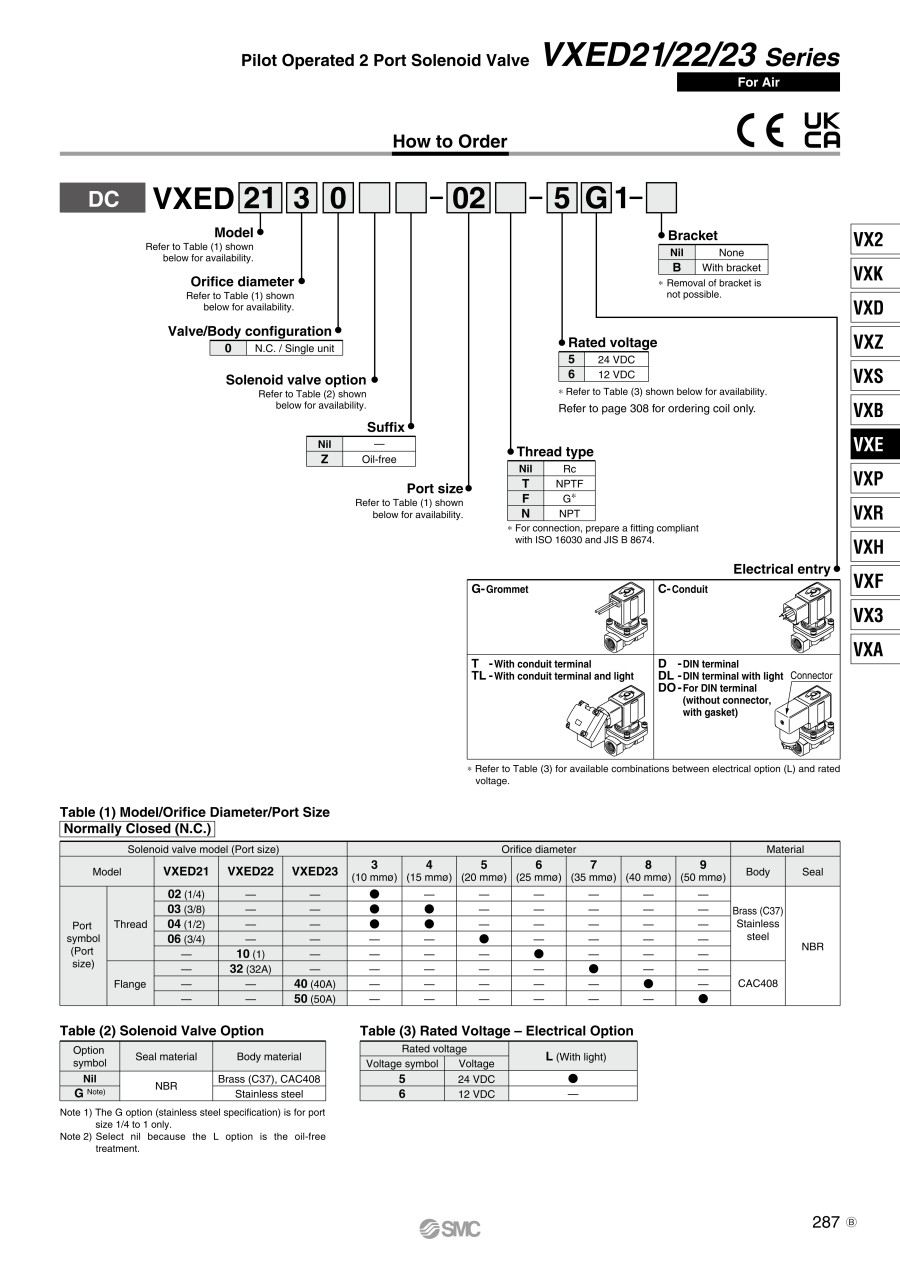

Katalog

Products homepage

Katalog (arkusz dwustronny)
