6803 Vertical acting toggle clamp

6803 Vertical acting toggle clamp

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 4.
Ilość:

Informacje o produkcie

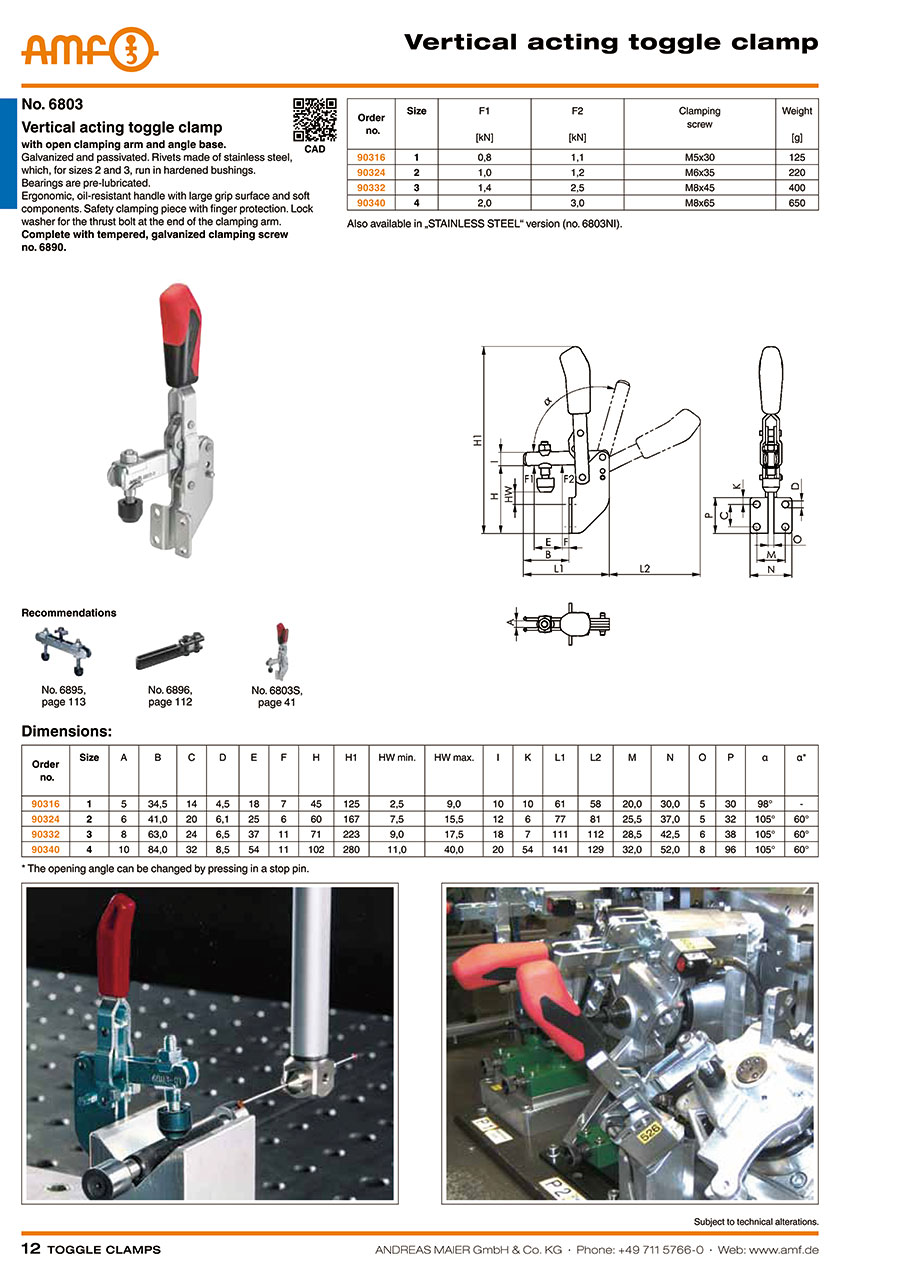

No. 6803 Vertical Acting Toggle Clamp

Product Information


With open clamping arm and angle base.
Galvanized and passivated. Rivets made of stainless steel, which, for sizes 2 and 3, run in hardened bushings.
Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components. Safety clamping piece with finger protection. Lock washer for the thrust bolt at the end of the clamping arm.
Complete with tempered, galvanized clamping screw no. 6890.

Drawing

Dimensions

Order
no.		SizeABCDEFHH1HW min.HW max.IKL1L2MNOPαα*
903161534.5144.5187451252.59.01010615820.030.053098°-
903242641.0206.1256601677.515.5126778125.537.0532105°60°
903323863.0246.53711712239.017.518711111228.542.5638105°60°
9034041084.0328.5541110228011.040.0205414112932.052.0896105°60°
* The opening angle can be changed by pressing in a stop pin.

Technical Information

Order
no.		SizeF1
[kN]		F2
[kN]		Clamping screwWeight
[g]
9031610.81.1M5 x 30125
9032421.01.2M6 x 35220
9033231.42.5M8 x 45400
9034042.03.0M8 x 65650
Also available in „STAINLESS STEEL“ version (no. 6803NI).

Examples

Recommendations

No. 6895No. 6896       No. 6803S

Lista numerów części

Liczba pozycji
  • 1
    • Numer części
    90316
    90324
    90332
    90340

    Tightening Force

    (N)

    Clamping screw

    Clamp Force (Range)(N)

    (N)

    F1

    (kN)

    Size

    		RoHS?Minimalna wielkość zamówienia
    1100
    [M5] M5x30
    1050 to 2259
    0,8
    1
    10
    1 szt.
    1200
    [M6] M6x35
    1050 to 2259
    1,0
    2
    10
    1 szt.
    2500
    [M8] M8x45
    2260 or More
    1,4
    3
    10
    1 szt.
    3000
    [M8] M8x65
    2260 or More
    2,0
    4
    10
    1 szt.
    Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)
    Standardowa data wysyłki
    30.68 €
    ( 36.51 € )
    6 dni robocze
    38.28 €
    ( 45.55 € )
    7 dni robocze
    42.00 €
    ( 49.98 € )
    6 dni robocze
    55.00 €
    ( 65.45 € )
    5 dni robocze
  • 1

    • Szczegółowe informacje

    Podstawowe informacje

    Vertical acting toggle clamp with open clamping arm and angle base.
    Galvanized and passivated. Rivets made of stainless steel, which, for sizes 2 and 3, run in hardened bushings. Bearings are pre-lubricated.
    Ergonomic, oil-resistant handle with large grip surface and soft components. Safety clamping piece with finger protection. Lock washer for the thrust bolt at the end of the clamping arm.
    Complete with tempered, galvanized clamping screw no. 6890. The product is available per 1 peace.
