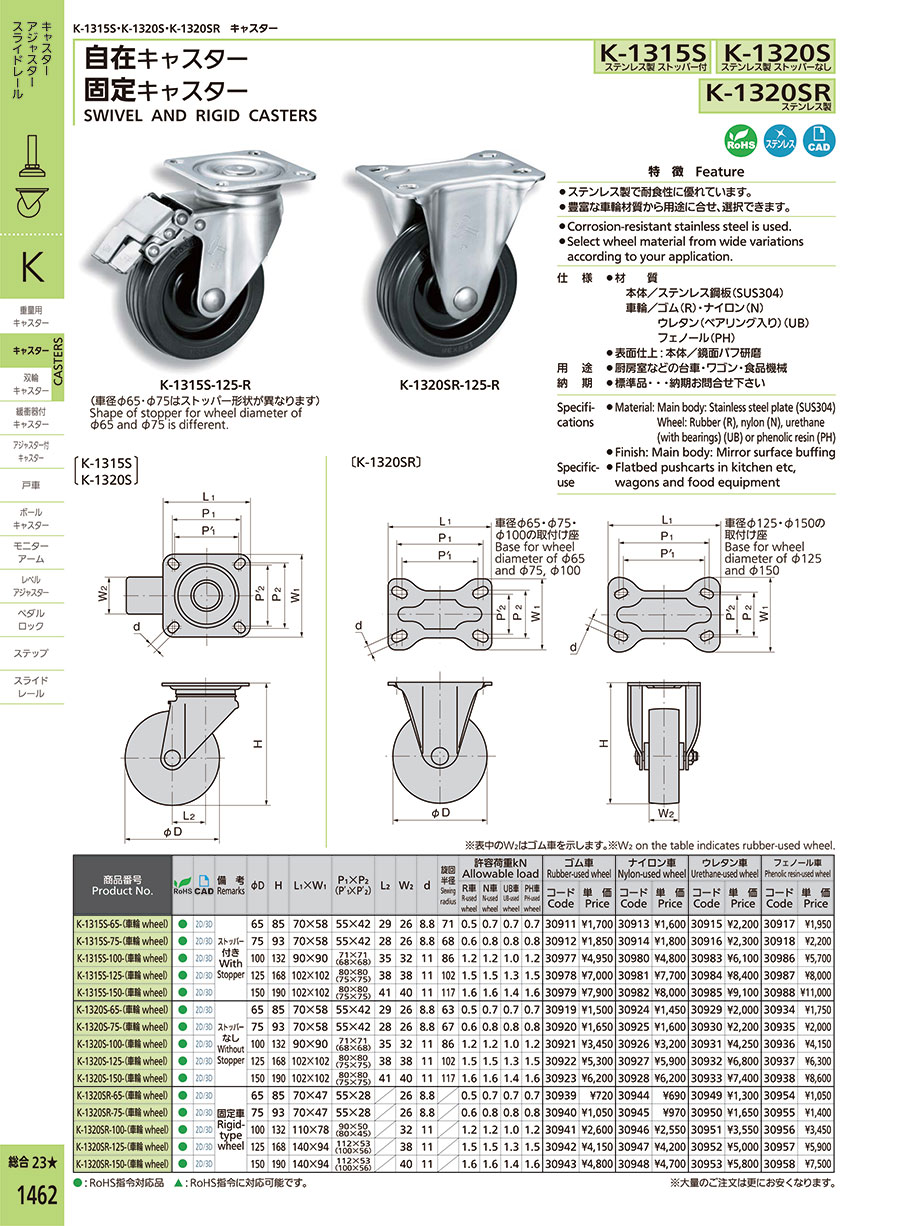

Stainless Steel Swivel Castors Without Stopper K-1320S

Promotional pricing ends 30/11/2024

Stainless steel with superior corrosion resistance. Selection from a variety of wheel materials is possible to suit the application.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Products homepage

Data to be displayed: 30; 45; 60

Part Number
K-1320S-65-N
K-1320S-65-R
K-1320S-65-UB
K-1320S-75-N
K-1320S-75-PH
K-1320S-75-R
K-1320S-75-UB
K-1320S-100-R
K-1320S-100-UB
K-1320S-125-N
K-1320S-125-R
K-1320S-125-UB
K-1320S-150-N
K-1320S-150-PH
K-1320S-150-R
K-1320S-150-UB

Standard Unit Price	Minimum order quantity	Standard Shipping Days ?	RoHS	Mounting height (mm)	Allowable Load Range (daN)	Allowable Load (daN)	Wheel Material	Wheel Characteristics	Mounting Hole Pitch Longitudinal direction P1 (mm)	Mounting Hole Pitch Transverse Direction P2 (mm)	Plate Length L1 (mm)	Plate Width W1 (mm)	Wheel Dia. D (mm)	Wheel Width (mm)	Swivel Radius (mm)	Load Category	Product CD
27.93 € 19.55 €	1	Same day Stock	10	85	35.01~80.00	70	[Nylon] Nylon	Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance	55	42	70	58	65	26	63	Medium Load	30924
29.29 €	1	6 Days	10	85	35.01~80.00	50	Rubber	NA	55	42	70	58	65	26	63	Used for Light load	30919
39.06 €	1	6 Days	10	85	35.01~80.00	70	[Urethane] Urethane Rubber	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	55	42	70	58	65	26	63	Medium Load	30929
30.92 €	1	7 Days	10	93	35.01~80.00	80	[Nylon] Nylon	Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance	55	42	70	58	75	26	67	Medium Load	30925
38.25 €	1	14 Days	10	93	35.01~80.00	80	Phenol Resin	NA	55	42	70	58	75	26	67	Medium Load	30935
31.73 €	1	10 Days	10	93	35.01~80.00	60	Rubber	NA	55	42	70	58	75	26	67	Medium Load	30920
42.33 €	1	6 Days	10	93	35.01~80.00	80	[Urethane] Urethane Rubber	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	55	42	70	58	75	26	67	Medium Load	30930
65.95 €	1	6 Days	10	132	80.01~140.00	120	Rubber	NA	68(71)	68(71)	90	90	100	32	86	Medium Load	30921
82.24 €	1	14 Days	10	132	80.01~140.00	100	[Urethane] Urethane Rubber	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	68(71)	68(71)	90	90	100	32	86	Medium Load	30931
112.39 €	1	10 Days	10	168	140.01~220.00	150	[Nylon] Nylon	Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance	75(80)	75(80)	102	102	125	38	102	Medium Load	30927
113.21 €	1	10 Days	10	168	140.01~220.00	150	Rubber	NA	75(80)	75(80)	102	102	125	38	102	Medium Load	30922
128.68 €	1	10 Days	10	168	80.01~140.00	130	[Urethane] Urethane Rubber	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	75(80)	75(80)	102	102	125	38	102	Medium Load	30932
118.10 €	1	10 Days	10	190	140.01~220.00	160	[Nylon] Nylon	Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance	75(80)	75(80)	102	102	150	40	117	Medium Load	30928
115.51 €	1	14 Days	10	190	140.01~220.00	160	Phenol Resin	NA	75(80)	75(80)	102	102	150	40	117	Medium Load	30938
118.91 €	1	10 Days	10	190	140.01~220.00	160	Rubber	NA	75(80)	75(80)	102	102	150	40	117	Medium Load	30923
141.72 €	1	6 Days	10	190	80.01~140.00	140	[Urethane] Urethane Rubber	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	75(80)	75(80)	102	102	150	40	117	Medium Load	30933

Basic information

Caster Type	Plate Type Universal	Stopper	NA	Fitting Material	Stainless Steel Plate (EN 1.4301 Equiv.)
Mounting Hole Type	Long Hole	Application	Commercial Facilities Display / Streamlining of Logistics, Hand Truck
