Rod Type with Support Guide

Umieść kursor myszy nad ilustracją, aby ją powiększyć

Poprzednia strona

Następna strona

KatalogS. 1-475

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 16.

Rysunek konturowy i tabela specyfikacji
Lista numerów części
Szczegółowe informacje

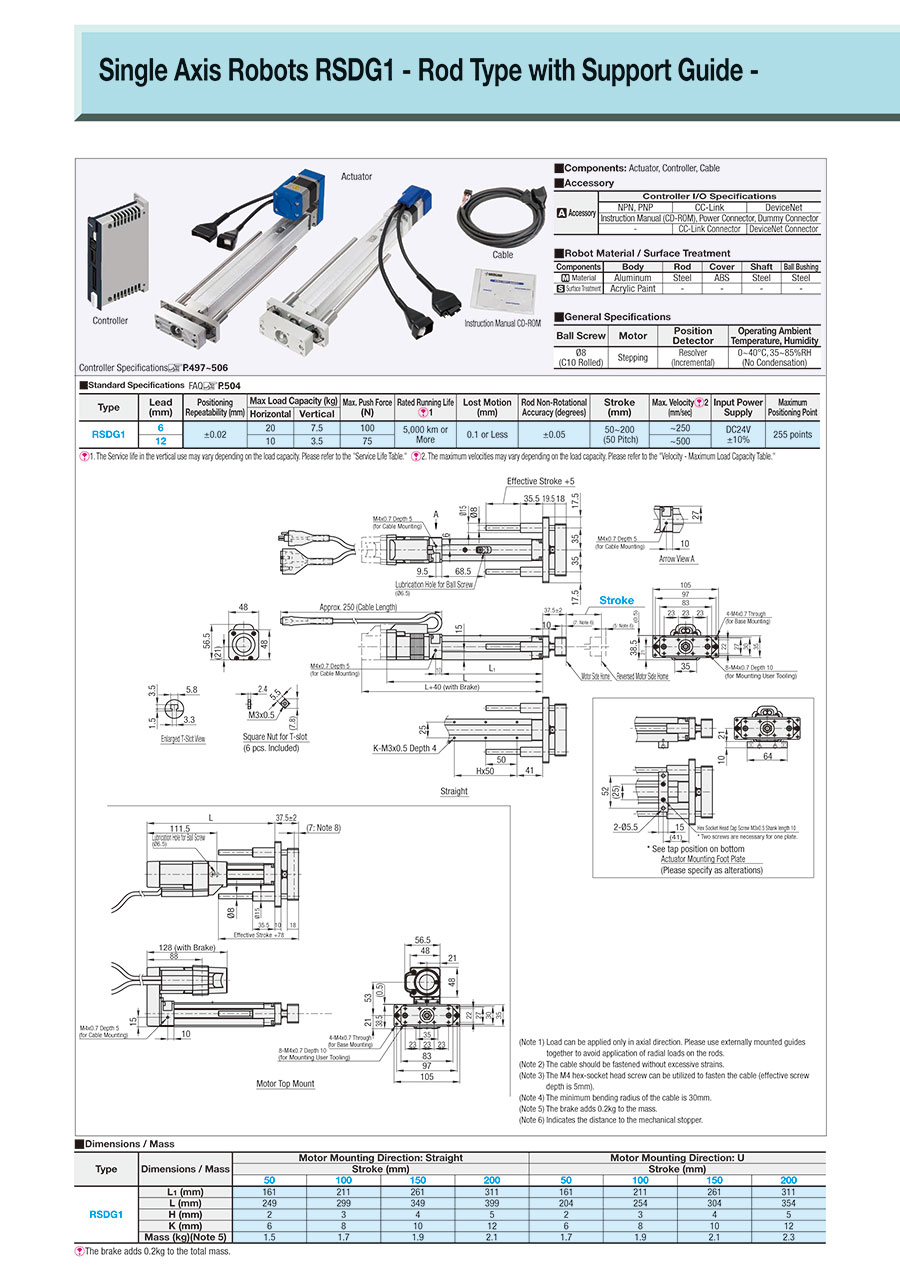

Katalog

Rysunek konturowy i tabela specyfikacji

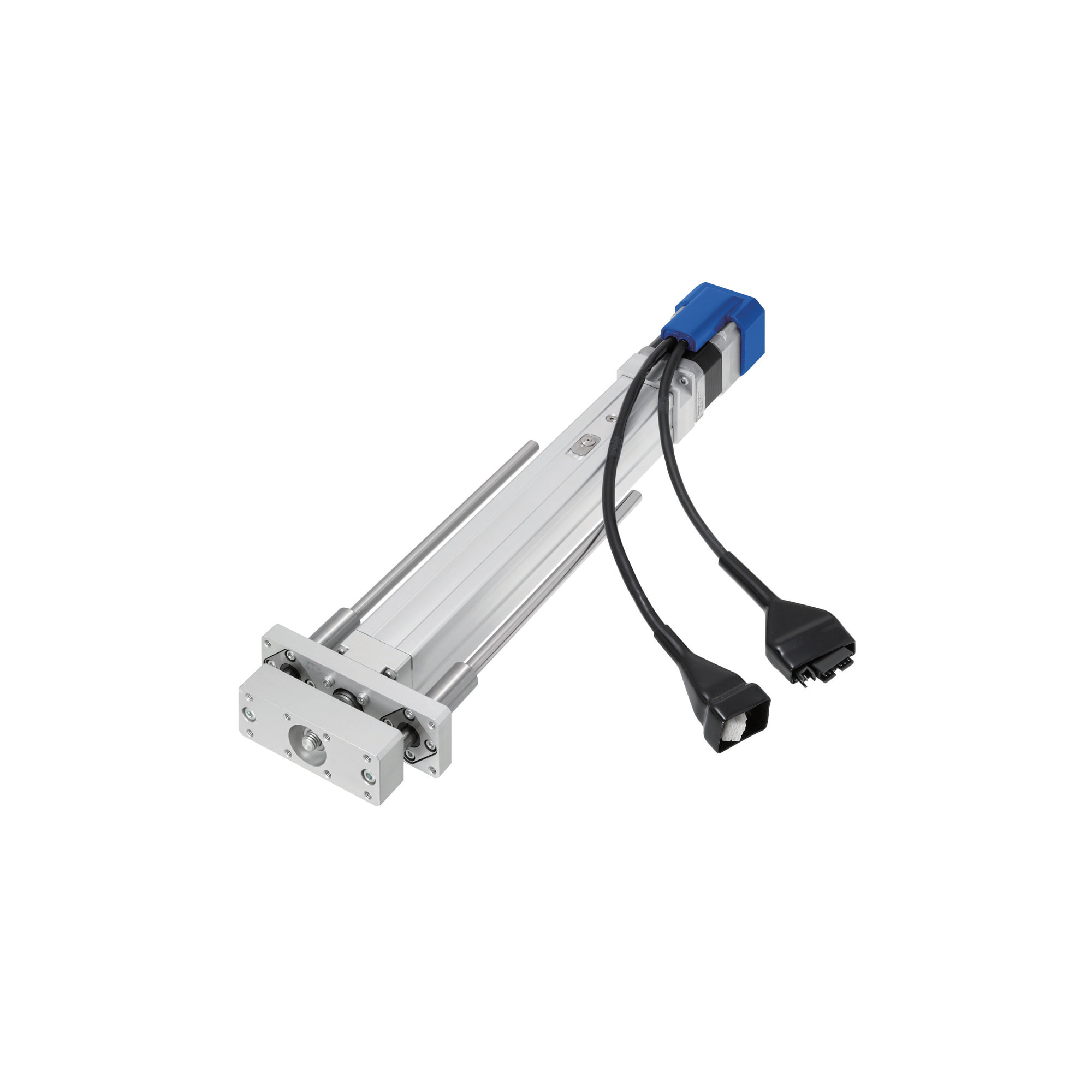

Rod Type with Support Guide:Related Image

■ Components: Actuator, Controller, Cable
■ Accessory

Accessory	Controller I/O Specifications
	NPN, PNP	CC-Link	DeviceNet
	Instruction Manual (CD-ROM), Power Connector, Dummy Connector
	-	CC-Link Connector	DeviceNet Connector

■ Robot Material / Surface Treatment

Components	Body	Rod	Cover	Shaft	Ball Bushing
Material	Aluminum	Steel	ABS	Steel	Steel
Surface Treatment	Acrylic Paint	-	-	-	-

Specifications

Part Number	-	Motor Mounting Direction	-	Controller	-	I/O Module	-	Cable Length	-	Stroke
RSDG106B RSDG106B RSDG106B	- -	U U	- - -	C1 C1 P1	- -	N N	- - -	3 3 3	- - -	200 200 200	(Motor Mounting Direction: U) (Motor Mounting Direction: Straight) (Motor Mounting Direction: U, Controller: P1)

■ General Specifications

Ball Screw	Motor	Position Detector	Operating Ambient Temperature, Humidity
Ø8 (C10 Rolled)	Stepping	Resolver (Incremental)	0~40°C, 35~85%RH (No Condensation)

■ Standard Specifications FAQ >> P.504

Type

Lead (mm)

Positioning Repeatability (mm)

Max Load Capacity (kg)

Max. Push Force
(N)

Rated Running Life
1

Lost Motion (mm)

Rod Non-Rotational Accuracy (degrees)

Stroke (mm)

Max. Velocity 2
(mm/sec)

Input Power Supply

Maximum Positioning Point

Horizontal

Vertical

RSDG1

±0.02

7.5

100

5,000 km or More

0.1 or Less

±0.05

50~200
(50 Pitch)

~250

DC24V
±10%

255 points

3.5

~500

1. The Service life in the vertical use may vary depending on the load capacity. Please refer to the "Service Life Table." 2. The maximum velocities may vary depending on the load capacity. Please refer to the "Velocity - Maximum Load Capacity Table."

■ Dimensions / Mass

Type	Dimensions / Mass	Motor Mounting Direction: Straight				Motor Mounting Direction: U
		Stroke (mm)				Stroke (mm)
		50	100	150	200	50	100	150	200
RSDG1	L₁ (mm)	161	211	261	311	161	211	261	311
	L (mm)	249	299	349	399	204	254	304	354
	H (mm)	2	3	4	5	2	3	4	5
	K (mm)	6	8	10	12	6	8	10	12
	Mass (kg)(Note 5)	1.5	1.7	1.9	2.1	1.7	1.9	2.1	2.3

The brake adds 0.2kg to the total mass.

Part Number			Selection
Type	Lead (mm)	With or w/o Brake ( 1)	Motor Mounting Direction	Controller ( 2)	I/O Module	Cable Length (m)	Stroke (mm)
RSDG1	06	None: Leave blank Included: B	Straight: Leave blank Top mounting: U	Point Control: C1 Pulse Control: P1 (DC24V ±10%)	NPN: N PNP: P CC-Link: C DeviceNet: D	1 3 5 10 (Flexible Cable)	50~200 (50mm Increment)
	12

( 1) Choose the "Brake" option for use in vertical applications. ( 2) When the pulse train type controller is selected, the I/O type selection is not required.

Alterations

Lista numerów części

Liczba pozycji

Numer części

RSDG106-C1-[C,D,N,P]-[1,3,5,10]-[50,100,150,200]

RSDG106-P1-[1,3,5,10]-[50,100,150,200]

RSDG106-U-C1-N-[1,3,5,10]-[50,100,150,200]

RSDG106-U-P1-[1,3,5,10]-[50,100,150,200]

RSDG106B-C1-[C,D,N,P]-[1,3,5,10]-[50,100,150,200]

RSDG106B-P1-[1,3,5,10]-[50,100,150,200]

RSDG106B-U-C1-N-[1,3,5,10]-[50,100,150,200]

RSDG106B-U-P1-[1,3,5,10]-[50,100,150,200]

RSDG112-C1-[C,D,N,P]-[1,3,5,10]-[50,100,150,200]

RSDG112-P1-[1,3,5,10]-[50,100,150,200]

RSDG112-U-C1-N-[1,3,5,10]-[50,100,150,200]

RSDG112-U-P1-[1,3,5,10]-[50,100,150,200]

RSDG112B-C1-[C,D,N,P]-[1,3,5,10]-[50,100,150,200]

RSDG112B-P1-[1,3,5,10]-[50,100,150,200]

RSDG112B-U-C1-N-[1,3,5,10]-[50,100,150,200]

RSDG112B-U-P1-[1,3,5,10]-[50,100,150,200]

Stroke

(mm)

Max. Transportable Mass Range (Horizontal)

(kg)

Max. Transportable Mass (Horizontal)

(kg)

Max. Transportable Mass Range (Vertical)

(kg)

Max. Transportable Mass (Vertical)

(kg)

Lead

(mm)

I/O Module

Brake

Max. Push Force

(N)

Environmental Spec.

Maximum Velocity

(mm/sec)

Controller Type

Motor Mounting Direction

Cable Length

(m)

Minimalna wielkość zamówienia

50 ～ 200	10.1 to 20.0	20	5.1 to 10.0	7.5	6	NPN / PNP / CC-Link / DeviceNet	Not Provided	100	-	250	Point Control (C1)	Straight	-	-	1 ～ 10	1 szt.
50 ～ 200	10.1 to 20.0	20	5.1 to 10.0	7.5	6	-	Not Provided	100	-	250	Pulse Train Control (P1)	Straight	-	-	1 ～ 10	1 szt.
-	10.1 to 20.0	20	5.1 to 10.0	7.5	6	-	Not Provided	100	Standard Specification	250	Point Control (C1)	Top Half	1 ～ 10	50 ～ 200	-	1 szt.
50 ～ 200	10.1 to 20.0	20	5.1 to 10.0	7.5	6	-	Not Provided	100	Standard Specification	250	Pulse Train Control (P1)	Top Half	-	-	1 ～ 10	1 szt.
50 ～ 200	10.1 to 20.0	20	5.1 to 10.0	7.5	6	NPN / PNP / CC-Link / DeviceNet	Provided	100	-	250	Point Control (C1)	Straight	-	-	1 ～ 10	1 szt.
50 ～ 200	10.1 to 20.0	20	5.1 to 10.0	7.5	6	-	Provided	100	-	250	Pulse Train Control (P1)	Straight	-	-	1 ～ 10	1 szt.
-	10.1 to 20.0	20	5.1 to 10.0	7.5	6	-	Provided	100	Standard Specification	250	Point Control (C1)	Top Half	1 ～ 10	50 ～ 200	-	1 szt.
50 ～ 200	10.1 to 20.0	20	5.1 to 10.0	7.5	6	-	Provided	100	Standard Specification	250	Pulse Train Control (P1)	Top Half	-	-	1 ～ 10	1 szt.
50 ～ 200	5.1 to 10.0	10	2.1 to 5.0	3.5	12	NPN / PNP / CC-Link / DeviceNet	Not Provided	75	-	500	Point Control (C1)	Straight	-	-	1 ～ 10	1 szt.
50 ～ 200	5.1 to 10.0	10	2.1 to 5.0	3.5	12	-	Not Provided	75	-	500	Pulse Train Control (P1)	Straight	-	-	1 ～ 10	1 szt.
-	5.1 to 10.0	10	2.1 to 5.0	3.5	12	-	Not Provided	75	Standard Specification	500	Point Control (C1)	Top Half	1 ～ 10	50 ～ 200	-	1 szt.
50 ～ 200	5.1 to 10.0	10	2.1 to 5.0	3.5	12	-	Not Provided	75	Standard Specification	500	Pulse Train Control (P1)	Top Half	-	-	1 ～ 10	1 szt.
50 ～ 200	5.1 to 10.0	10	2.1 to 5.0	3.5	12	NPN / PNP / CC-Link / DeviceNet	Provided	75	-	500	Point Control (C1)	Straight	-	-	1 ～ 10	1 szt.
50 ～ 200	5.1 to 10.0	10	2.1 to 5.0	3.5	12	-	Provided	75	-	500	Pulse Train Control (P1)	Straight	-	-	1 ～ 10	1 szt.
-	5.1 to 10.0	10	2.1 to 5.0	3.5	12	-	Provided	75	Standard Specification	500	Point Control (C1)	Top Half	1 ～ 10	50 ～ 200	-	1 szt.
50 ～ 200	5.1 to 10.0	10	2.1 to 5.0	3.5	12	-	Provided	75	Standard Specification	500	Pulse Train Control (P1)	Top Half	-	-	1 ～ 10	1 szt.
