Plastic Roller Conveyors / Length Selectable / Roller Dia. 20mm / 30mm / 50mm(Lista numerów części: str. 8)

Umieść kursor myszy nad ilustracją, aby ją powiększyć

KatalogS. 1-1167

Przestroga

For the guide holder alteration KN, the number of brackets that can be selected depends on the L dimension.
Please check the content on our website as the PDF does not contain the most up-to-date information.

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 520.

Rysunek konturowy i tabela specyfikacji
Lista numerów części
Szczegółowe informacje
Katalog

Rysunek konturowy i tabela specyfikacji

Dimensional Drawing

Resin Conveyor Rollers DIA. 20, 30, 50 mm: Related Image

[ ! ] If the L dimension is 400 or less, there are 2 holes with a pitch of 100, with the holes spaced equally from the center.
[ ! ] If the L dimension is 150 or less, there are no stand mounting holes.

Frame Side View

Type	(1) Roller (HRJA)	Bearing	(2) Frame
Type	[M] Material	[M] Material	[M] Material	[S] Surface Treatment
ROCOP	ABS Plastic	Inner/Outer Rings: Polyacetal Retainer: Nylon 66 Cover: ABS Plastic Ball: EN 1.4301 Equiv.	Aluminum	Clear Anodize

Type	R Pin		Frame Coupling Support		Screw, Nut
Type	[M] Material	[S] Surface Treatment	[M] Material	[S] Surface Treatment	[M] Material	[S] Surface Treatment
ROCOP	Steel	Trivalent Chromate	Steel	Trivalent Chromate	Steel	Trivalent Chromate

Specification Table

Part Number	—	Number of Rollers	—	W	—	P
ROCOP20	—	10	—	213	—	25

Part Number		Rollers	W (Roller Width)	P (Pitch)	A	D₁	T	H
Type	D
ROCOP	20	5 to 40	113 213 313 413 513	25	6	9.5	1.5	62
	30	5 to 32		40	8	14	1.8	67
		5 to 26		50
	50	5 to 13		75	12	17	2.8	66.5
		5 to 13		100

Part Number		Dimension (mm)
Type	Roller	D20			D30
		P = 25			P = 40			P = 50
		(L)	F	G	(L)	F	G	(L)	F	G
ROCOP	5	(120)	10	22	(195)	17.5	37	(245)	22.5	40
	6	(145)			(235)			(295)
	7	(170)			(275)			(345)
	8	(195)			(315)			(395)
	9	(220)			(355)			(445)
	10	(245)			(395)			(495)
	11	(270)			(435)			(545)
	12	(295)			(475)			(595)
	13	(320)			(515)			(645)
	14	(345)			(555)			(695)
	15	(370)			(595)			(745)
	16	(395)			(635)			(795)
	17	(420)			(675)			(845)
	18	(445)			(715)			(895)
	19	(470)			(755)			(945)
	20	(495)			(795)			(995)
	21	(520)			(835)			(1045)
	22	(545)			(875)			(1095)
	23	(570)			(915)			(1145)
	24	(595)			(955)			(1195)
	25	(620)		97	(995)		11.7	(1245)		97.5
	26	(645)			(1035)			(1295)
	27	(670)			(1075)			—
	28	(695)			(1115)			—
	29	(720)			(1155)			—
	30	(745)			(1195)			—
	31	(770)			(1235)			—
	32	(795)			(1275)			—
	33	(820)			—			—
	34	(845)			—			—
	35	(870)			—			—
	36	(895)			—			—
	37	(920)			—			—
	38	(945)			—			—
	39	(970)			—			—
	40	(995)			—			—

Part Number		Dimension (mm)
Type	Roller	D50
		P = 75			P = 100
		(L)	F	G	(L)	F	G
ROCOP	5	(370)	35	75	(495)	47.5	97
	6	(445)			(595)
	7	(520)			(695)
	8	(595)			(795)
	9	(670)			(895)
	10	(745)			(995)
	11	(820)			(1095)
	12	(895)			(1195)
	13	(970)			(1295)

Strength per Roller

Roller DIA.	Roller Strength (N)
Roller DIA.	W113	W213	W313	W413	W513
20 mm	113	105	98	90	83
30 mm	162	154	147	139	132
50 mm	314	304	294	289	279

Alterations

Part Number	—	Number of Rollers	—	W	—	P	—	(SH·GA·GT·KN・ST·SW)
ROCOP20	—	10	—	213	—	25	—	GA－A－L245
ROCOP30	—	15	—	113	—	40	—	KN－G2
ROCOP30	—	15	—	113	—	40	—	ST－F500

Alterations

Code

Spec.

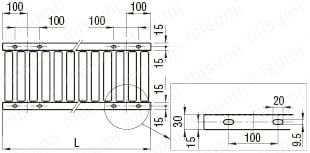

Stand Mounting Hole Machining

[Detail]

Roller Conveyors can be hole drilled for stand mounting.
Ordering Code SH

[ ! ] SH alteration is applied to ROCOP.
[ NG ] Not available in combination with ST and SW

[ ! ] Number of Holes for (L) dimension 400 or less is 2, and with the division of center there are 100 Pitches.

[ ! ] Not applicable to (L) dimension 150 or less.

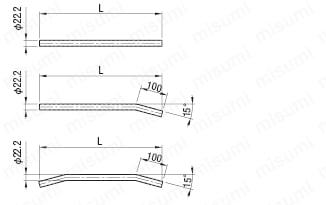

Conveyor Guide Rails

[M]Material: Steel [S] Surface Treatment: Zinc Plating

A (Straight)

B (One end bent)

C (Both ends bent)

GA
GT

GA: One Conveyor guide is added.
GT: Two Conveyor guides are added.
Dimension Increments: Shape A (Straight) can be specified in 5-mm increments from L100 to 1300.
Shape B (One End Bent) can be specified in 5-mm increments from L200 to 1300.
Shape C (Both Ends Bent) can be specified in 5-mm increments from L300 to 1300.

Ordering Code		Code	—	Shape	—	Length
		GA GA GA	— — —	A B C	— — —	L300 L450 L550

[ ! ] Packaged together with Roller Conveyors.

Guide Holder

Bracket

[M]Material: Steel [S] Surface Treatment: Trivalent Chromate

Guide mounting brackets can be added to Roller Conveyors.
Ordering Code KN-G2 (Guide Holder Brackets 2 pcs.) [ ! ] Mounting screws and nuts (M10) are included.
[ ! ] The code numerals represent quantities.
[ ! ] Roller Conveyors are hole drilled for bracket mounting.

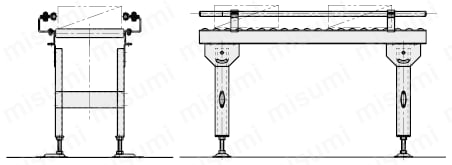

Conveyor Stand

	(1) Mounting Bracket	(2) Stand	(3) Adjusting Bolt	(4) Reinforcements
[M] Material	Steel (EN 1.0038 Equiv.)
[S] Surface Treatment	Trivalent Chromate

ST
SW

ST: Adds one Roller Conveyor Stand.
SW: Adds two Roller Conveyor Stands.
[!] Specify F: 450 to 1,200, in 50 mm increments.
Ordering Code ST-F950 [ NG ] Not available in combination with SH
[ ! ] Mounting hole location is the same as Alteration SH.
[ ! ] (4) One reinforcement piece for F800 or less.

[ ! ] Roller Conveyor part alterations are RoHS10 compliant.

KN Alterations: Bracket Mounting Hole Position

Roller Diameter 20 m Type

Unit: mm

Roller Diameter 30 mm Type

Unit: mm

Product Name	Pitch P	Rollers	Conveyor Length (L)	Mounting Hole Position
				2 pcs.	4 pcs.		6 pcs.			8 pcs.				10 pcs.
				G2	G4	G4	G6	G6	G6	G8	G8	G8	G8	G10	G10	G10	G10	G10
ROCOP20	25	5	120
		6	145
		7	170
		8	195
		9	220
		10	245	122.5
		11	270	147.5
		12	295	172.5	122.5	172.5
		13	320	172.5	122.5	197.5
		14	345	172.5	122.5	222.5	122.5	172.5	222.5
		15	370	197.5	122.5	247.5	122.5	197.5	247.5
		16	395	197.5	122.5	272.5	122.5	197.5	272.5	122.5	172.5	222.5	272.5
		17	420	222.5	122.5	297.5	122.5	222.5	297.5	122.5	172.5	247.5	297.5
		18	445	222.5	122.5	322.5	122.5	222.5	322.5	122.5	172.5	272.5	322.5	122.5	172.5	222.5	272.5	322.5
		19	470	247.5	122.5	347.5	122.5	247.5	347.5	122.5	197.5	272.5	347.5	122.5	172.5	247.5	297.5	347.5
		20	495	247.5	122.5	372.5	122.5	247.5	372.5	122.5	197.5	297.5	372.5	122.5	172.5	247.5	322.5	372.5
		21	520	272.5	122.5	397.5	122.5	272.5	397.5	122.5	197.5	322.5	397.5	122.5	172.5	272.5	344.5	397.5
		22	545	272.5	122.5	422.5	122.5	272.5	422.5	122.5	222.5	322.5	422.5	122.5	197.5	272.5	347.5	422.5
		23	570	297.5	122.5	447.5	122.5	297.5	447.5	122.5	222.5	347.5	447.5	122.5	197.5	297.5	372.5	447.5
		24	595	297.5	122.5	472.5	122.5	297.5	472.5	122.5	222.5	372.5	472.5	122.5	197.5	297.5	397.5	472.5
		25	620	322.5	122.5	497.5	122.5	322.5	497.5	122.5	247.5	372.5	497.5	122.5	222.5	322.5	397.5	497.5
		26	645	322.5	122.5	522.5	122.5	322.5	522.5	122.5	247.5	397.5	522.5	122.5	222.5	322.5	422.5	522.5
		27	670	347.5	122.5	547.5	122.5	347.5	547.5	122.5	247.5	422.5	547.5	122.5	222.5	347.5	447.5	547.5
		28	695	347.5	122.5	572.5	122.5	347.5	572.5	122.5	272.5	422.5	572.5	122.5	222.5	347.5	472.5	572.5
		29	720	372.5	122.5	597.5	122.5	372.5	597.5	122.5	272.5	447.5	597.5	122.5	247.5	372.5	472.5	597.5
		30	745	372.5	122.5	622.5	122.5	372.5	622.5	122.5	297.5	447.5	622.5	122.5	247.5	372.5	497.5	622.5
		31	770	397.5	122.5	647.5	122.5	397.5	647.5	122.5	297.5	472.5	647.5	122.5	247.5	397.5	522.5	647.5
		32	795	397.5	122.5	672.5	122.5	397.5	672.5	122.5	297.5	497.5	672.5	122.5	247.5	397.5	547.5	672.5
		33	820	422.5	122.5	697.5	122.5	422.5	697.5	122.5	297.5	522.5	697.5	122.5	272.5	422.5	572.5	697.5
		34	845	422.5	122.5	722.5	122.5	422.5	722.5	122.5	322.5	522.5	722.5	122.5	272.5	422.5	572.5	722.5
		35	870	447.5	122.5	747.5	122.5	447.5	747.5	122.5	322.5	547.5	747.5	122.5	272.5	447.5	597.5	747.5
		36	895	447.5	122.5	772.5	122.5	447.5	772.5	122.5	322.5	572.5	772.5	122.5	272.5	447.5	622.5	772.5
		37	920	472.5	122.5	797.5	122.5	472.5	797.5	122.5	347.5	572.5	797.5	122.5	297.5	472.5	622.5	797.5
		38	945	472.5	122.5	822.5	122.5	472.5	822.5	122.5	347.5	597.5	822.5	122.5	297.5	472.5	647.5	822.5
		39	970	497.5	122.5	847.5	122.5	497.5	847.5	122.5	347.5	622.5	847.5	122.5	297.5	497.5	672.5	847.5
		40	995	497.5	122.5	872.5	122.5	497.5	872.5	122.5	372.5	622.5	872.5	122.5	297.5	497.5	697.5	872.5

Product Name	Pitch P	Rollers	Conveyor Length (L)	Mounting Hole Position
				2 pcs.	4 pcs.		6 pcs.			8 pcs.				10 pcs.
				G2	G4	G4	G6	G6	G6	G8	G8	G8	G8	G10	G10	G10	G10	G10
ROCOP30	40	5	195
		6	235	117.5
		7	275	157.5	117.5	157.5
		8	315	157.5	117.5	197.5	117.5	157.5	197.5
		9	355	197.5	117.5	237.5	117.5	197.5	237.5	117.5	157.5	237.5	277.5
		10	395	197.5	117.5	277.5	117.5	197.5	277.5	117.5	157.5	197.5	277.5	117.5	157.5	197.5	237.5	277.5
		11	435	237.5	117.5	317.5	117.5	237.5	317.5	117.5	157.5	277.5	317.5	117.5	157.5	237.5	277.5	317.5
		12	475	237.5	117.5	357.5	117.5	237.5	357.5	117.5	197.5	277.5	357.5	117.5	157.5	237.5	317.5	357.5
		13	515	277.5	117.5	397.5	117.5	277.5	397.5	117.5	197.5	317.5	397.5	117.5	197.5	277.5	317.5	397.5
		14	555	277.5	117.5	437.5	117.5	277.5	437.5	117.5	197.5	357.5	437.5	117.5	197.5	277.5	357.5	437.5
		15	595	317.5	117.5	477.5	117.5	317.5	477.5	117.5	237.5	357.5	477.5	117.5	197.5	317.5	397.5	477.5
		16	635	317.5	117.5	517.5	117.5	317.5	517.5	117.5	237.5	397.5	517.5	117.5	237.5	317.5	397.5	517.5
		17	675	357.5	117.5	557.5	117.5	357.5	557.5	117.5	237.5	437.5	557.5	117.5	237.5	357.5	437.5	557.5
		18	715	357.5	117.5	597.5	117.5	357.5	597.5	117.5	277.5	437.5	597.5	117.5	237.5	357.5	477.5	597.5
		19	755	397.5	117.5	637.5	117.5	397.5	637.5	117.5	277.5	477.5	637.5	117.5	237.5	397.5	517.5	637.5
		20	795	397.5	117.5	677.5	117.5	397.5	677.5	117.5	277.5	517.5	677.5	117.5	237.5	397.5	557.5	677.5
		21	835	437.5	117.5	717.5	117.5	437.5	717.5	117.5	317.5	517.5	717.5	117.5	277.5	437.5	557.5	717.5
		22	875	437.5	117.5	757.5	117.5	437.5	757.5	117.5	317.5	557.5	757.5	117.5	277.5	437.5	597.5	757.5
		23	915	477.5	117.5	797.5	117.5	477.5	797.5	117.5	317.5	597.5	797.5	117.5	277.5	477.5	637.5	797.5
		24	955	477.5	117.5	837.5	117.5	477.5	837.5	117.5	357.5	597.5	837.5	117.5	277.5	477.5	677.5	837.5
		25	995	517.5	117.5	877.5	117.5	517.5	877.5	117.5	357.5	637.5	877.5	117.5	317.5	517.5	677.5	877.5
		26	1035	517.5	117.5	917.5	117.5	517.5	917.5	117.5	357.5	677.5	917.5	117.5	317.5	517.5	717.5	917.5
		27	1075	557.5	117.5	957.5	117.5	557.5	957.5	117.5	397.5	677.5	957.5	117.5	317.5	557.5	757.5	957.5
		28	1115	557.5	117.5	997.5	117.5	557.5	997.5	117.5	397.5	717.5	997.5	117.5	317.5	557.5	797.5	997.5
		29	1155	597.5	117.5	1037.5	117.5	597.5	1037.5	117.5	397.5	757.5	1037.5	117.5	317.5	597.5	837.5	1037.5
		30	1195	597.5	117.5	1077.5	117.5	597.5	1077.5	117.5	437.5	757.5	1077.5	117.5	357.5	597.5	837.5	1077.5
		31	1235	637.5	117.5	1117.5	117.5	637.5	1117.5	117.5	437.5	797.5	1117.5	117.5	357.5	637.5	877.5	1117.5
		32	1275	637.5	117.5	1157.5	117.5	637.5	1157.5	117.5	437.5	837.5	1157.5	117.5	357.5	637.5	917.5	1157.5
	50	5	245
		6	295	147.5
		7	345	197.5	147.5	197.5
		8	395	197.5	147.5	247.5	147.5	197.5	247.5
		9	445	247.5	147.5	297.5	147.5	247.5	297.5	147.5	197.5	247.5	297.5
		10	495	247.5	147.5	347.5	147.5	247.5	347.5	147.5	197.5	297.5	347.5	147.5	197.5	247.5	297.5	347.5
		11	545	297.5	147.5	397.5	147.5	297.5	397.5	147.5	197.5	347.5	397.5	147.5	197.5	297.5	347.5	397.5
		12	595	297.5	147.5	447.5	147.5	297.5	447.5	147.5	247.5	347.5	447.5	147.5	197.5	297.5	397.5	447.5
		13	645	347.5	147.5	497.5	147.5	347.5	497.5	147.5	247.5	397.5	497.5	147.5	247.5	347.5	397.5	497.5
		14	695	347.5	147.5	547.5	147.5	347.5	547.5	147.5	247.5	447.5	547.5	147.5	247.5	347.5	447.5	547.5
		15	745	397.5	147.5	597.5	147.5	397.5	597.5	147.5	297.5	447.5	597.5	147.5	247.5	397.5	497.5	597.5
		16	795	397.5	147.5	647.5	147.5	397.5	647.5	147.5	297.5	497.5	647.5	147.5	247.5	397.5	547.5	647.5
		17	845	447.5	147.5	697.5	147.5	447.5	697.5	147.5	297.5	547.5	697.5	147.5	297.5	447.5	547.5	697.5
		18	895	447.5	147.5	747.5	147.5	447.5	747.5	147.5	347.5	547.5	747.5	147.5	297.5	447.5	597.5	747.5
		19	945	497.5	147.5	797.5	147.5	497.5	797.5	147.5	347.5	597.5	797.5	147.5	297.5	497.5	647.5	797.5
		20	995	497.5	147.5	847.5	147.5	497.5	847.5	147.5	347.5	647.5	847.5	147.5	297.5	497.5	697.5	847.5
		21	1045	547.5	147.5	897.5	147.5	547.5	897.5	147.5	397.5	647.5	897.5	147.5	347.5	547.5	697.5	897.5
		22	1095	547.5	147.5	947.5	147.5	547.5	947.5	147.5	397.5	697.5	947.5	147.5	347.5	547.5	747.5	947.5
		23	1145	597.5	147.5	997.5	147.5	597.5	997.5	147.5	397.5	747.5	997.5	147.5	347.5	597.5	797.5	997.5
		24	1195	597.5	147.5	1047.5	147.5	597.5	1047.5	147.5	447.5	747.5	1047.5	147.5	347.5	597.5	847.5	1047.5
		25	1245	647.5	147.5	1097.5	147.5	647.5	1097.5	147.5	447.5	797.5	1097.5	147.5	347.5	647.5	897.5	1097.5
		26	1295	647.5	147.5	1147.5	147.5	647.5	1147.5	147.5	447.5	847.5	1147.5	147.5	347.5	647.5	947.5	1147.5

Roller Diameter 50 mm Type
Unit: mm
Product Name	Pitch P	Rollers	Conveyor Length (L)	Mounting Hole Position
				2 pcs.	4 pcs.		6 pcs.			8 pcs.				10 pcs.
				G2	G4	G4	G6	G6	G6	G8	G8	G8	G8	G10	G10	G10	G10	G10
ROCOP50	75	5	370	222.5	147.5	222.5
		6	445	222.5	147.5	297.5	147.5	222.5	297.5
		7	520	297.5	147.5	372.5	147.5	297.5	372.5	147.5	222.5	297.5	372.5
		8	595	297.5	147.5	447.5	147.5	297.5	447.5	147.5	222.5	372.5	447.5	147.5	222.5	297.5	372.5	447.5
		9	670	372.5	147.5	522.5	147.5	372.5	522.5	147.5	222.5	447.5	522.5	147.5	222.5	372.5	447.5	522.5
		10	745	372.5	147.5	597.5	147.5	372.5	597.5	147.5	297.5	447.5	597.5	147.5	222.5	372.5	522.5	597.5
		11	820	447.5	147.5	672.5	147.5	447.5	672.5	147.5	297.5	522.5	672.5	147.5	297.5	447.5	522.5	672.5
		12	895	447.5	147.5	747.5	147.5	447.5	747.5	147.5	297.5	597.5	747.5	147.5	297.5	447.5	597.5	747.5
		13	970	522.5	147.5	822.5	147.5	522.5	822.5	147.5	372.5	597.5	822.5	147.5	297.5	522.5	672.5	822.5
	100	5	495	297.5	197.5	297.5
		6	595	297.5	197.5	397.5	197.5	297.5	397.5
		7	695	397.5	197.5	497.5	197.5	397.5	497.5	197.5	297.5	397.5	497.5
		8	795	397.5	197.5	597.5	197.5	397.5	597.5	197.5	297.5	497.5	597.5	197.5	297.5	397.5	497.5	597.5
		9	895	497.5	197.5	697.5	197.5	497.5	697.5	197.5	297.5	597.5	697.5	197.5	297.5	497.5	597.5	697.5
		10	995	497.5	197.5	797.5	197.5	497.5	797.5	197.5	397.5	597.5	797.5	197.5	297.5	497.5	697.5	797.5
		11	1095	597.5	197.5	897.5	197.5	597.5	897.5	197.5	397.5	697.5	897.5	197.5	397.5	597.5	697.5	897.5
		12	1195	597.5	197.5	997.5	197.5	597.5	997.5	197.5	397.5	797.5	997.5	197.5	397.5	597.5	797.5	997.5
		13	1295	697.5	197.5	1097.5	197.5	697.5	1097.5	197.5	497.5	797.5	1097.5	197.5	397.5	697.5	897.5	1097.5

* Dimensions from unique left edge of the side.
Hole Dia. 11 mm. Mounting screw (low head M10 × 25) included
Hole position in case of odd number of rollers will not be even on the left and right, but will be closer to the right.
*For ROCOP20-10-313-25 (L = 245), only G2 can be selected.

Lista numerów części

Liczba pozycji

Poprzednia

...

Dalej

Numer części

Roller O.D.

(Ø)

Roller Width W

(mm)

Roller Pitch (P)

(mm)

Roller Thickness

(mm)

External Shape Height H

(mm)

Roller Strength

(N/pc.)

Conveyer Length L

(mm)

Number of Rollers

RoHS?

Minimalna wielkość zamówienia

30	113	40	1.8	65	0～162	1235	31	10	1 szt.
30	213	40	1.8	65	0～154	1235	31	10	1 szt.
30	313	40	1.8	65	0～147	1235	31	10	1 szt.
30	413	40	1.8	65	0～139	1235	31	10	1 szt.
30	513	40	1.8	65	0～132	1235	31	10	1 szt.
30	113	40	1.8	65	0～162	1275	32	10	1 szt.
30	213	40	1.8	65	0～154	1275	32	10	1 szt.
30	313	40	1.8	65	0～147	1275	32	10	1 szt.
30	413	40	1.8	65	0～139	1275	32	10	1 szt.
30	513	40	1.8	65	0～132	1275	32	10	1 szt.
50	113	75	2.8	66.5	0～113	370	5	10	1 szt.
50	113	100	2.8	66.5	0～113	495	5	10	1 szt.
50	213	75	2.8	66.5	0～105	370	5	10	1 szt.
50	213	100	2.8	66.5	0～105	495	5	10	1 szt.
50	313	75	2.8	66.5	0～98	370	5	10	1 szt.
50	313	100	2.8	66.5	0～98	495	5	10	1 szt.
50	413	75	2.8	66.5	0～90	370	5	10	1 szt.
50	413	100	2.8	66.5	0～90	495	5	10	1 szt.
50	513	75	2.8	66.5	0～83	370	5	10	1 szt.
50	513	100	2.8	66.5	0～83	495	5	10	1 szt.
50	113	75	2.8	66.5	0～113	445	6	10	1 szt.
50	113	100	2.8	66.5	0～113	595	6	10	1 szt.
50	213	75	2.8	66.5	0～105	445	6	10	1 szt.
50	213	100	2.8	66.5	0～105	595	6	10	1 szt.
50	313	75	2.8	66.5	0～98	445	6	10	1 szt.
50	313	100	2.8	66.5	0～98	595	6	10	1 szt.
50	413	75	2.8	66.5	0～90	445	6	10	1 szt.
50	413	100	2.8	66.5	0～90	595	6	10	1 szt.
50	513	75	2.8	66.5	0～83	445	6	10	1 szt.
50	513	100	2.8	66.5	0～83	595	6	10	1 szt.
50	113	75	2.8	66.5	0～113	520	7	10	1 szt.
50	113	100	2.8	66.5	0～113	695	7	10	1 szt.
50	213	75	2.8	66.5	0～105	520	7	10	1 szt.
50	213	100	2.8	66.5	0～105	695	7	10	1 szt.
50	313	75	2.8	66.5	0～98	520	7	10	1 szt.
50	313	100	2.8	66.5	0～98	695	7	10	1 szt.
50	413	75	2.8	66.5	0～90	520	7	10	1 szt.
50	413	100	2.8	66.5	0～90	695	7	10	1 szt.
50	513	75	2.8	66.5	0～83	520	7	10	1 szt.
50	513	100	2.8	66.5	0～83	695	7	10	1 szt.
50	113	75	2.8	66.5	0～113	595	8	10	1 szt.
50	113	100	2.8	66.5	0～113	795	8	10	1 szt.
50	213	75	2.8	66.5	0～105	595	8	10	1 szt.
50	213	100	2.8	66.5	0～105	795	8	10	1 szt.
50	313	75	2.8	66.5	0～98	595	8	10	1 szt.
50	313	100	2.8	66.5	0～98	795	8	10	1 szt.
50	413	75	2.8	66.5	0～90	595	8	10	1 szt.
50	413	100	2.8	66.5	0～90	795	8	10	1 szt.
50	513	75	2.8	66.5	0～83	595	8	10	1 szt.
50	513	100	2.8	66.5	0～83	795	8	10	1 szt.
50	113	75	2.8	66.5	0～113	670	9	10	1 szt.
50	113	100	2.8	66.5	0～113	895	9	10	1 szt.
50	213	75	2.8	66.5	0～105	670	9	10	1 szt.
50	213	100	2.8	66.5	0～105	895	9	10	1 szt.
50	313	75	2.8	66.5	0～98	670	9	10	1 szt.
50	313	100	2.8	66.5	0～98	895	9	10	1 szt.
50	413	75	2.8	66.5	0～90	670	9	10	1 szt.
50	413	100	2.8	66.5	0～90	895	9	10	1 szt.
50	513	75	2.8	66.5	0～83	670	9	10	1 szt.
50	513	100	2.8	66.5	0～83	895	9	10	1 szt.

Cena jednostkowa (bez VAT)(Cena jednostkowa z podatkiem)	Standardowa data wysyłki

872.51 € ( 1,038.29 € )	9 dni robocze
693.74 € ( 825.55 € )	9 dni robocze
754.22 € ( 897.52 € )	9 dni robocze
811.92 € ( 966.18 € )	9 dni robocze
872.51 € ( 1,038.29 € )	9 dni robocze
898.71 € ( 1,069.46 € )	9 dni robocze
714.12 € ( 849.80 € )	9 dni robocze
776.49 € ( 924.02 € )	9 dni robocze
836.22 € ( 995.10 € )	9 dni robocze
898.71 € ( 1,069.46 € )	9 dni robocze
215.09 € ( 255.96 € )	9 dni robocze
226.35 € ( 269.36 € )	9 dni robocze
237.74 € ( 282.91 € )	9 dni robocze
251.16 € ( 298.88 € )	9 dni robocze
259.88 € ( 309.26 € )	9 dni robocze
274.80 € ( 327.01 € )	9 dni robocze
282.54 € ( 336.22 € )	9 dni robocze
297.34 € ( 353.83 € )	9 dni robocze
303.80 € ( 361.52 € )	9 dni robocze
320.36 € ( 381.23 € )	9 dni robocze
245.97 € ( 292.70 € )	9 dni robocze
259.37 € ( 308.65 € )	9 dni robocze
273.18 € ( 325.08 € )	9 dni robocze
289.23 € ( 344.18 € )	9 dni robocze
299.74 € ( 356.69 € )	9 dni robocze
317.58 € ( 377.92 € )	9 dni robocze
326.81 € ( 388.90 € )	9 dni robocze
344.66 € ( 410.15 € )	9 dni robocze
352.37 € ( 419.32 € )	9 dni robocze
372.23 € ( 442.95 € )	9 dni robocze
276.83 € ( 329.43 € )	9 dni robocze
292.53 € ( 348.11 € )	9 dni robocze
308.46 € ( 367.07 € )	9 dni robocze
327.32 € ( 389.51 € )	9 dni robocze
339.59 € ( 404.11 € )	9 dni robocze
360.34 € ( 428.80 € )	9 dni robocze
371.22 € ( 441.75 € )	9 dni robocze
391.84 € ( 466.29 € )	9 dni robocze
401.08 € ( 477.29 € )	9 dni robocze
424.24 € ( 504.85 € )	9 dni robocze
307.71 € ( 366.17 € )	9 dni robocze
325.68 € ( 387.56 € )	9 dni robocze
343.89 € ( 409.23 € )	9 dni robocze
365.40 € ( 434.83 € )	9 dni robocze
379.33 € ( 451.40 € )	9 dni robocze
403.23 € ( 479.84 € )	9 dni robocze
415.51 € ( 494.46 € )	9 dni robocze
439.17 € ( 522.61 € )	9 dni robocze
449.68 € ( 535.12 € )	9 dni robocze
476.12 € ( 566.58 € )	9 dni robocze
338.58 € ( 402.91 € )	9 dni robocze
358.83 € ( 427.01 € )	9 dni robocze
379.33 € ( 451.40 € )	9 dni robocze
403.49 € ( 480.15 € )	9 dni robocze
419.18 € ( 498.82 € )	9 dni robocze
446.01 € ( 530.75 € )	9 dni robocze
459.93 € ( 547.32 € )	9 dni robocze
486.49 € ( 578.92 € )	9 dni robocze
498.25 € ( 592.92 € )	9 dni robocze
528.12 € ( 628.46 € )	9 dni robocze

Poprzednia

...

Dalej

Podstawowe informacje

Przestroga

For the guide holder alteration KN, the number of brackets that can be selected depends on the L dimension.
Please check the content on our website as the PDF does not contain the most up-to-date information.

Kontury i specyfikacja

App. Example

Katalog

Products homepage

Katalog (arkusz dwustronny)
