- Belt Width(mm)
- 15
- [T] Number of Teeth
- 25
- Pulley Shape
- Material
- Aluminum
- EN AW-2017 Equiv. (Duralumin)
- Surface Treatment
- Shaft Bore Specifications (New JIS Keyway Hole + Tap) [N](mm)[16–30/1mm jedn.]
- Type
- CAD
- 2D
- 3D
- Szacowane dni wysyłki
- Wszystko
- W ciągu 12 dni robocze
Dodatkowa opcje
- Change an Angle of Set Screw to 90° [KC](°)
- 90
- Flange not swaged when shipped
- Flange swaged only on the hub side when shipped
- Flange swaged only on the opposite side of the hub when shipped
- Flange Cut [FC](mm)[63.5–70/0.5mm jedn.]
- Add through holes to the side (at three locations) [KTC](mm)[24–44/1mm jedn.]
- Add through holes to the side (at four locations) [KFC](mm)[24–44/1mm jedn.]
- Through Hole Dia. [K](mm)[4–13/0.5mm jedn.]
- Add tapped holes on the side (at three locations) [QTC](mm)[23–45/1mm jedn.]
- Add tapped holes on the side (at four locations) [QFC](mm)[23–45/1mm jedn.]
- Tap Dia. [M](mm)
- 3
- 4
- 5
- 6
- 8
Timing belt pulleys / 8YU / flanged pulley selectable / configurable / aluminium, steel (GPA25YU8150-A-N28)
Przestroga
- Please note that the swaged flange options, NFC, RFC, and LFC, are not reflected in the CAD data.
Rysunek konturowy i tabela specyfikacji
Back to the Category Toothed Pulleys/Timing Pulleys/Idler Pulleys

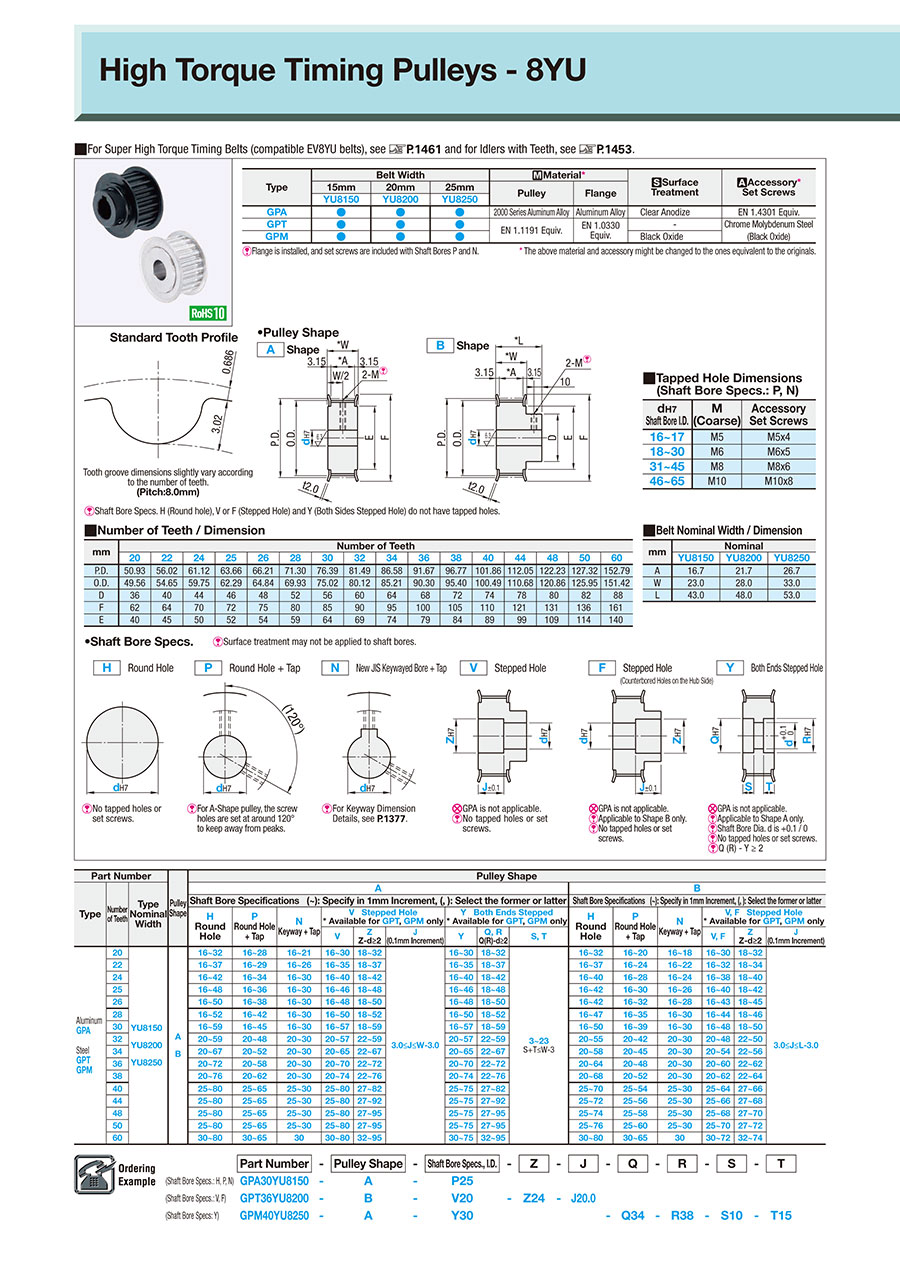

Technical Drawing - Toothed Pulleys/Timing Pulleys/Idler Pulleys
Open the technical drawing in the new window
Available dimensions and tolerances can be found under the tab More Information.
Basic Properties (e.g., material, hardness, coating, tolerance) - Toothed Pulleys/Timing Pulleys/Idler Pulleys
| Type | Belt Width | Material* | Surface Treatment | Accessory* Set Screws | |||
| 15mm | 20mm | 25mm | Pulley | Flange | |||
| YU8150 | YU8200 | YU8250 | |||||
| GPA | ● | ● | ● | 2000 Series Aluminum Alloy | Aluminum Alloy | Clear Anodize | EN 1.4301 Equiv. |
| GPT | ● | ● | ● | EN 1.1191 Equiv. | EN 1.0330 Equiv. | - | Chrome Molybdenum Steel (Black Oxide) |
| GPM | ● | ● | ● | Black Oxide | |||
* The above material and accessory might be changed to the ones equivalent to the originals.
Further specifications can be found under the tab More Information.
Composition of a Product Code - Toothed Pulleys/Timing Pulleys/Idler Pulleys
|
Alterations - Toothed Pulleys/Timing Pulleys/Idler Pulleys
Here to the Overview of Options as PDF.
Szczegółowe informacje
Podstawowe informacje
Przestroga
- Please note that the swaged flange options, NFC, RFC, and LFC, are not reflected in the CAD data.
Kontury i specyfikacja
Back to the Category Toothed Pulleys/Timing Pulleys/Idler Pulleys
Technical Drawing - Toothed Pulleys/Timing Pulleys/Idler Pulleys
Open the technical drawing in the new window
Specification Tables - Toothed Pulleys/Timing Pulleys/Idler Pulleys
| Part Number | Pulley Shape | Pulley Shape | ||||||||||||||||
| Type | Number of Teeth | Type Nominal Width | A | B | ||||||||||||||
| Shaft Bore Specifications (~): Specify in 1mm Increment, (, ): Select the former or latter | Shaft Bore Specifications (~): Specify in 1mm Increment, (, ): Select the former or latter | |||||||||||||||||
| H Round Hole | P Round Hole + Tap | N Keyway + Tap | V Stepped Hole * Available for GPT, GPM only | Y Both Ends Stepped * Available for GPT, GPM only | H Round Hole | P Round Hole + Tap | N Keyway + Tap | V, F Stepped Hole * Available for GPT, GPM only | ||||||||||
| V | Z Z-d≥2 | J (0.1mm Increment) | Y | Q, R Q(R)-d≥2 | S, T | V, F | Z Z-d≥2 | J (0.1mm Increment) | ||||||||||
| Aluminum GPA Steel GPT GPM | 20 | YU8150 YU8200 YU8250 | A B | 16~32 | 16~28 | 16~21 | 16~30 | 18~32 | 3.0≤J≤W-3.0 | 16~30 | 18~32 | 3~23 S+T≤W-3 | 16~32 | 16~20 | 16~18 | 16~30 | 18~32 | 3.0≤J≤L-3.0 |
| 22 | 16~37 | 16~29 | 16~26 | 16~35 | 18~37 | 16~35 | 18~37 | 16~37 | 16~24 | 16~22 | 16~32 | 18~34 | ||||||
| 24 | 16~42 | 16~34 | 16~30 | 16~40 | 18~42 | 16~40 | 18~42 | 16~40 | 16~28 | 16~24 | 16~38 | 18~40 | ||||||
| 25 | 16~48 | 16~36 | 16~30 | 16~46 | 18~48 | 16~46 | 18~48 | 16~42 | 16~30 | 16~26 | 16~40 | 18~42 | ||||||
| 26 | 16~50 | 16~38 | 16~30 | 16~48 | 18~50 | 16~48 | 18~50 | 16~42 | 16~32 | 16~28 | 16~43 | 18~45 | ||||||
| 28 | 16~52 | 16~42 | 16~30 | 16~50 | 18~52 | 16~50 | 18~52 | 16~47 | 16~35 | 16~30 | 16~44 | 18~46 | ||||||
| 30 | 16~59 | 16~45 | 16~30 | 16~57 | 18~59 | 16~57 | 18~59 | 16~50 | 16~39 | 16~30 | 16~48 | 18~50 | ||||||
| 32 | 20~59 | 20~48 | 20~30 | 20~57 | 22~59 | 20~57 | 22~59 | 20~55 | 20~42 | 20~30 | 20~48 | 22~50 | ||||||
| 34 | 20~67 | 20~52 | 20~30 | 20~65 | 22~67 | 20~65 | 22~67 | 20~58 | 20~45 | 20~30 | 20~54 | 22~56 | ||||||
| 36 | 20~72 | 20~58 | 20~30 | 20~70 | 22~72 | 20~70 | 22~72 | 20~64 | 20~48 | 20~30 | 20~60 | 22~62 | ||||||
| 38 | 20~76 | 20~62 | 20~30 | 20~74 | 22~76 | 20~74 | 22~76 | 20~68 | 20~52 | 20~30 | 20~62 | 22~64 | ||||||
| 40 | 25~80 | 25~65 | 25~30 | 25~80 | 27~82 | 25~75 | 27~82 | 25~70 | 25~54 | 25~30 | 25~64 | 27~66 | ||||||
| 44 | 25~80 | 25~65 | 25~30 | 25~80 | 27~92 | 25~75 | 27~92 | 25~72 | 25~56 | 25~30 | 25~66 | 27~68 | ||||||
| 48 | 25~80 | 25~65 | 25~30 | 25~80 | 27~95 | 25~75 | 27~95 | 25~74 | 25~58 | 25~30 | 25~68 | 27~70 | ||||||
| 50 | 25~80 | 25~65 | 25~30 | 25~80 | 27~95 | 25~75 | 27~95 | 25~76 | 25~60 | 25~30 | 25~70 | 27~72 | ||||||
| 60 | 30~80 | 30~65 | 30 | 30~80 | 32~95 | 30~75 | 32~95 | 30~80 | 30~65 | 30 | 30~72 | 32~74 | ||||||
Alterations - Toothed Pulleys/Timing Pulleys/Idler Pulleys
Here to the Option Overview PDF
General Information - Toothed Pulleys/Timing Pulleys/Idler Pulleys
Selection details of toothed pulleys/timing pulleys/idler pulleys
- Material: aluminum, steel, stainless steel (stainless steel), plastic
- Coatings: uncoated, burnished, anodized, nickel-plated
- Profile form: 1.5GT, 2GT, 3GT, 5GT, P2M, P3M, P5M, P8M, S2M, S3M, S5M, S8M, S14M, T2.5, T5, T10, AT5, AT10, 5M, 8M, 14M, 8YU, H, L, MXL, XL, PowerGrip GT3: MR2, MR3, MR5
- ISO tolerances: H7
- Belt width (mm): 4, 4.8, 6, 6.4, 7, 7.9, 9, 9.5, 10, 12, 12.7, 15, 18, 19.1, 20, 25, 25.4, 26, 28, 30, 31, 38,1, 40, 50, 50.8, 53, 60, 74, 76.2, 100
- Belt width (inches): 0.19, 0.25, 0.31, 0.37, 0.5, 0.75, 1, 1.5, 2
- Number of teeth: 10 to 72
Description/Basics
The toothed pulley for mechanical engineering is intended for the transmission of force and torque. Timing pulleys enable a gear ratio of speeds through belt pulleys of different sizes. Timing pulleys are more efficient, durable and significantly more maintenance-friendly compared to chain transmissions.
How much torque and load a timing pulley can transmit depends on the width of the belt. The width of the belt must be calculated. It is recommended to ensure the belt is correctly tensioned. MISUMI already offers the suitable idler pulley and return rollers with integrated ball bearings. For design and design help follow this link.
Different profile shapes of the toothed belts and belt pulleys are responsible for the transmission of power. Depending on the positioning accuracy, the applied torque and the conveying weight, MISUMI offers the fitting pulley. Toothed belt drives are generally used in the industry in three areas:
Positioning: Timing pulleys is often used in 3D printers. A toothed pulley with a semi-circular profile (e.g., GT) is often used for the required position accuracy of a 3D printers. The round shape offers the benefit of little play when the direction changes.
Drive: toothed pulleys are also used for high torque. In most cases, a timing pulley with a rounded trapezoidal profile (e.g., S8M) is used. These are particularly well suited for the transmission of high forces, which occur in drives of various applications in order to drive mechanical components.
Conveying: toothed pulleys can also be used for transporting loads. A straight trapezoidal profile is often used for this purpose (e.g., AT). This toothed pulley shape offers a large surface for loading and transmitting of loads.
Which toothed pulley or timing pulley is the right one for your application depends on the respective task of the toothed belt drive. Different toothed disc profiles have proven themselves for each type of application.
Various bore hole shapes and fastening variants are available for shaft mounting. These allow fastening via set screws, keyways and by means of Mecha locks. Fastening via a clamping sleeve has the further advantage that it allows adjusting the alignment continuously. The MISUMI product assortment has these ready-to-install.
Application Examples - Toothed Pulleys/Timing Pulleys/Idler Pulleys
Application example: idler pulley
(1) Idler pulleys, (2) chain tensioner
Application example: deflection roller
S (1) Toothed pulleys with crimp disc, (2) nut, (3) washer, (4) cantilever shaft, (5) retaining ring
Application example: timing pulleys
(1) Flat head screw, (2) Timing pulley, (3) Timing belt, (4) Screw-on terminal
Application example: of toothed belt drives
(1) Toothed belt, (2) driven toothed pulley with crimp disc, (3) idler pulley with crimp disc, (4) driving toothed pulley with crimp disc
