Potwierdzono
- Material
- Surface Treatment
- Dimension A(mm)
- 100
- Dimension B(mm)
- 50
- Height H(mm)[50–200/1mm jedn.]
- Type
- CAD
- 2D
- 3D
- Szacowane dni wysyłki
- Wszystko
- W ciągu 9 dni robocze
Dodatkowa opcje
- F(mm)[15–30/1mm jedn.]
- G(mm)
- 80
- Hole Selection Tapped Hole [M]
- 6

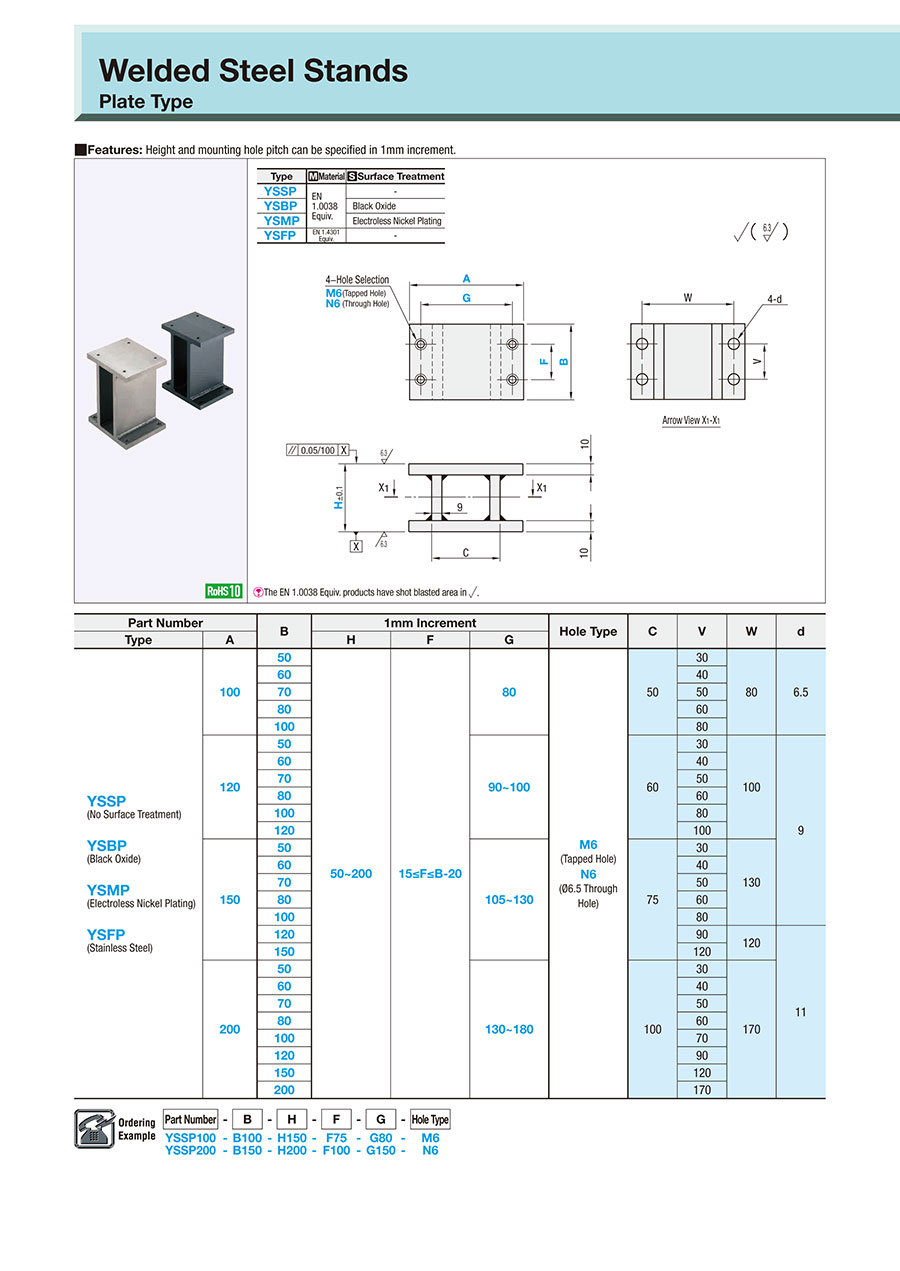

Welded Steel Stands / Plate Type (YSFP100-B50-H125-F30-G80-M6)
Rysunek konturowy i tabela specyfikacji
Arrow view X1-X1
areas are shot blasted| Type | [M] Material | [S] Surface Treatment |
| YSSP | EN 1.0038 Equiv. | — |
| YSBP | Black Oxide | |
| YSMP | Electroless Nickel Plating | |
| YSFP | EN 1.4301 Equiv. | — |
Specification Table
| Part Number | — | B | — | H | — | F | — | G | — | Hole Type Selection |
| YSSP100 YSSP200 | — — | B100 B150 | — — | H150 H200 | — — | F75 F100 | — — | G80 G150 | — — | M6 N6 |
| Part Number | B | 1 mm Increments | Hole Type Selection | C | V | W | d | |||
| Type | A | H | F | G | ||||||
| YSSP (No Surface Treatment) YSBP (Black Oxide) YSMP (Electroless Nickel Plating) YSFP (Stainless Steel) | 100 | 50 | 50 to 200 | 15 ≤ F ≤ B−20 | 80 | M6 (Tapped Hole) N6 (ø6.5 Through Hole) | 50 | 30 | 80 | 6.5 |
| 60 | 40 | |||||||||
| 70 | 50 | |||||||||
| 80 | 60 | |||||||||
| 100 | 80 | |||||||||
| 120 | 50 | 90 to 100 | 60 | 30 | 100 | 9 | ||||
| 60 | 40 | |||||||||
| 70 | 50 | |||||||||
| 80 | 60 | |||||||||
| 100 | 80 | |||||||||
| 120 | 100 | |||||||||
| 150 | 50 | 105 to 130 | 75 | 30 | 130 | |||||
| 60 | 40 | |||||||||
| 70 | 50 | |||||||||
| 80 | 60 | |||||||||
| 100 | 80 | |||||||||
| 120 | 90 | 120 | 11 | |||||||
| 150 | 120 | |||||||||
| 200 | 50 | 130 to 180 | 100 | 30 | 170 | |||||
| 60 | 40 | |||||||||
| 70 | 50 | |||||||||
| 80 | 60 | |||||||||
| 100 | 70 | |||||||||
| 120 | 90 | |||||||||
| 150 | 120 | |||||||||
| 200 | 170 | |||||||||
Alterations
| Part Number | — | B | — | H | — | (HNC) |
| YSBP200 | B150 | H200 | HNC |
| Alteration | Code | Spec. | ||
 | HNC | Eliminates the top installation holes (M6 or N6). (Bottom Installation Holes are retained.)
|
Szczegółowe informacje
Podstawowe informacje
With this welded spacer, the height and spacing of the fixing holes can be set in 1 mm increments.
Kontury i specyfikacja
App. Example
