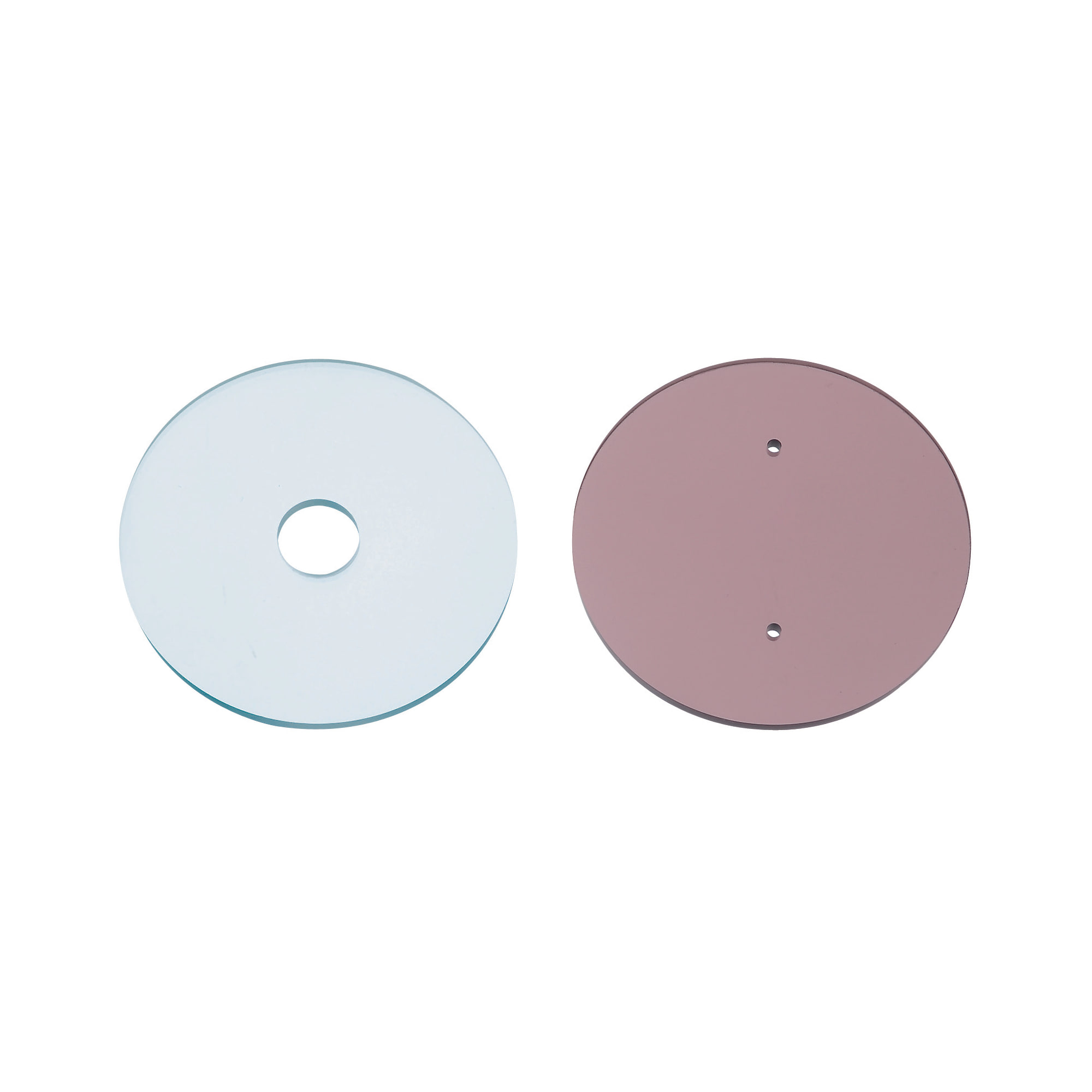

Resin Circular Plates / with Holes

Umieść kursor myszy nad ilustracją, aby ją powiększyć

KatalogS. 2-979

Numer części:

Znaleziono następującą liczbę niepotwierdzonych proponowanych produktów: 179.

Rysunek konturowy i tabela specyfikacji
Lista numerów części
Szczegółowe informacje
Katalog

Rysunek konturowy i tabela specyfikacji

Drawing

Standard Type Hole Machined Type
2 holes 2H 3 holes 3H 4 holes 4H

Hole Machining Details

N
(Through Hole) P
(Countersink)

Bolt Nominal Dia.	3	4	5	6	8	10
d	3.5	4.5	5.5	6.5	9	11
d₁	7.5	9.5	11.5	13.5	19	23
h	2	2.5	3	3.5	5	6

Type	Material	Grade	Color
ENJAC	Acrylic	Standard Grade	Transparent
ENJAB		Standard Grade	Smoke Brown
ENJAT		Antistatic Grade	Transparent
ENJABT		Antistatic Grade	Smoke Brown
ENJPC	Polycarbonate	Standard Grade	Transparent
ENJPCB		Standard Grade	Smoke Brown
ENJPT		Antistatic Grade	Transparent
ENJPCT		Antistatic Grade	Smoke Brown
ENJPY	PET	Standard Grade	Transparent
ENJPYB		Standard Grade	Smoke Brown
ENJPZ		Antistatic Grade	Transparent

Specification Table

■ Standard Type

Part Number	—	D	—	V
ENJPC5	—	300	—	50

■ Hole Machined Type

Part Number	—	D	—	V	—	P.C.D	—	Screw Nominal Dia.
ENJPC3H5	—	200	—	20	—	100	—	N4

Lista numerów części

Liczba pozycji

Dalej

Numer części

ENJAB2H3-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAB2H3-[50-400/1]-[0-50/1]-[20-390/1]-P3

ENJAB2H5-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAB2H5-[50-400/1]-[0-50/1]-[20-390/1]-P[3,4,5,6]

ENJAB2H10-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAB2H10-[50-400/1]-[0-50/1]-[20-390/1]-P[4,5,6,8,10]

ENJAB3-[50-400/1]-[0-50/1]

ENJAB3H3-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAB3H3-[50-400/1]-[0-50/1]-[20-390/1]-P3

ENJAB3H5-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAB3H5-[50-400/1]-[0-50/1]-[20-390/1]-P[3,4,5,6]

ENJAB3H10-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAB3H10-[50-400/1]-[0-50/1]-[20-390/1]-P[4,5,6,8,10]

ENJAB4H3-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAB4H3-[50-400/1]-[0-50/1]-[20-390/1]-P3

ENJAB4H5-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAB4H5-[50-400/1]-[0-50/1]-[20-390/1]-P[3,4,5,6]

ENJAB4H10-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAB4H10-[50-400/1]-[0-50/1]-[20-390/1]-P[4,5,6,8,10]

ENJAB5-[50-400/1]-[0-50/1]

ENJAB10-[50-400/1]-[0-50/1]

ENJABT2H3-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJABT2H3-[50-400/1]-[0-50/1]-[20-390/1]-P3

ENJABT2H5-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJABT2H5-[50-400/1]-[0-50/1]-[20-390/1]-P[3,4,5,6]

ENJABT3-[50-400/1]-[0-50/1]

ENJABT3H3-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJABT3H3-[50-400/1]-[0-50/1]-[20-390/1]-P3

ENJABT3H5-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJABT3H5-[50-400/1]-[0-50/1]-[20-390/1]-P[3,4,5,6]

ENJABT4H3-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJABT4H3-[50-400/1]-[0-50/1]-[20-390/1]-P3

ENJABT4H5-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJABT4H5-[50-400/1]-[0-50/1]-[20-390/1]-P[3,4,5,6]

ENJABT5-[50-400/1]-[0-50/1]

ENJAC2H3-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAC2H3-[50-400/1]-[0-50/1]-[20-390/1]-P3

ENJAC2H5-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAC2H5-[50-400/1]-[0-50/1]-[20-390/1]-P[3,4,5,6]

ENJAC2H10-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAC2H10-[50-400/1]-[0-50/1]-[20-390/1]-P[4,5,6,8,10]

ENJAC3-[50-400/1]-[0-50/1]

ENJAC3H3-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAC3H3-[50-400/1]-[0-50/1]-[20-390/1]-P3

ENJAC3H5-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAC3H5-[50-400/1]-[0-50/1]-[20-390/1]-P[3,4,5,6]

ENJAC3H10-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAC3H10-[50-400/1]-[0-50/1]-[20-390/1]-P[4,5,6,8,10]

ENJAC4H3-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAC4H3-[50-400/1]-[0-50/1]-[20-390/1]-P3

ENJAC4H5-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAC4H5-[50-400/1]-[0-50/1]-[20-390/1]-P[3,4,5,6]

ENJAC4H10-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAC4H10-[50-400/1]-[0-50/1]-[20-390/1]-P[4,5,6,8,10]

ENJAC5-[50-400/1]-[0-50/1]

ENJAC10-[50-400/1]-[0-50/1]

ENJAT2H3-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAT2H3-[50-400/1]-[0-50/1]-[20-390/1]-P3

ENJAT2H5-[50-400/1]-[0-50/1]-[20-390/1]-N[3,4,5,6,8,10]

ENJAT2H5-[50-400/1]-[0-50/1]-[20-390/1]-P[3,4,5,6]

Material

Grade

Color

Number of Holes

Thickness T

(mm)

Countersink Hole Nominal Dia. [P]

(mm)

P.C.D

(mm)

Through Hole Nominal Dia. [N]

(mm)

RoHS?

Minimalna wielkość zamówienia

Acrylic	Standard Grade	Smoke Brown	2H (Two Holes)	3	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	2H (Two Holes)	3	3	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	2H (Two Holes)	5	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	2H (Two Holes)	5	3 ～ 6	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	2H (Two Holes)	10	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	2H (Two Holes)	10	4 ～ 10	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	Standard Type	3	-	50 ～ 400	-	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	3H (Three Holes)	3	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	3H (Three Holes)	3	3	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	3H (Three Holes)	5	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	3H (Three Holes)	5	3 ～ 6	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	3H (Three Holes)	10	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	3H (Three Holes)	10	4 ～ 10	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	4H (Four Holes)	3	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	4H (Four Holes)	3	3	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	4H (Four Holes)	5	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	4H (Four Holes)	5	3 ～ 6	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	4H (Four Holes)	10	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	4H (Four Holes)	10	4 ～ 10	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	Standard Type	5	-	50 ～ 400	-	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Smoke Brown	Standard Type	10	-	50 ～ 400	-	-	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	2H (Two Holes)	3	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	2H (Two Holes)	3	3	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	2H (Two Holes)	5	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	2H (Two Holes)	5	3 ～ 6	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	Standard Type	3	-	50 ～ 400	-	-	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	3H (Three Holes)	3	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	3H (Three Holes)	3	3	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	3H (Three Holes)	5	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	3H (Three Holes)	5	3 ～ 6	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	4H (Four Holes)	3	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	4H (Four Holes)	3	3	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	4H (Four Holes)	5	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	4H (Four Holes)	5	3 ～ 6	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Smoke Brown	Standard Type	5	-	50 ～ 400	-	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	2H (Two Holes)	3	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	2H (Two Holes)	3	3	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	2H (Two Holes)	5	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	2H (Two Holes)	5	3 ～ 6	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	2H (Two Holes)	10	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	2H (Two Holes)	10	4 ～ 10	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	Standard Type	3	-	50 ～ 400	-	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	3H (Three Holes)	3	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	3H (Three Holes)	3	3	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	3H (Three Holes)	5	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	3H (Three Holes)	5	3 ～ 6	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	3H (Three Holes)	10	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	3H (Three Holes)	10	4 ～ 10	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	4H (Four Holes)	3	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	4H (Four Holes)	3	3	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	4H (Four Holes)	5	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	4H (Four Holes)	5	3 ～ 6	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	4H (Four Holes)	10	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	4H (Four Holes)	10	4 ～ 10	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	Standard Type	5	-	50 ～ 400	-	-	0 ～ 50	10	1 szt.
Acrylic	Standard Grade	Transparent	Standard Type	10	-	50 ～ 400	-	-	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Transparent	2H (Two Holes)	3	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Transparent	2H (Two Holes)	3	3	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Transparent	2H (Two Holes)	5	-	50 ～ 400	20 ～ 390	3 ～ 10	0 ～ 50	10	1 szt.
Acrylic	Antistatic Grade	Transparent	2H (Two Holes)	5	3 ～ 6	50 ～ 400	20 ～ 390	-	0 ～ 50	10	1 szt.
